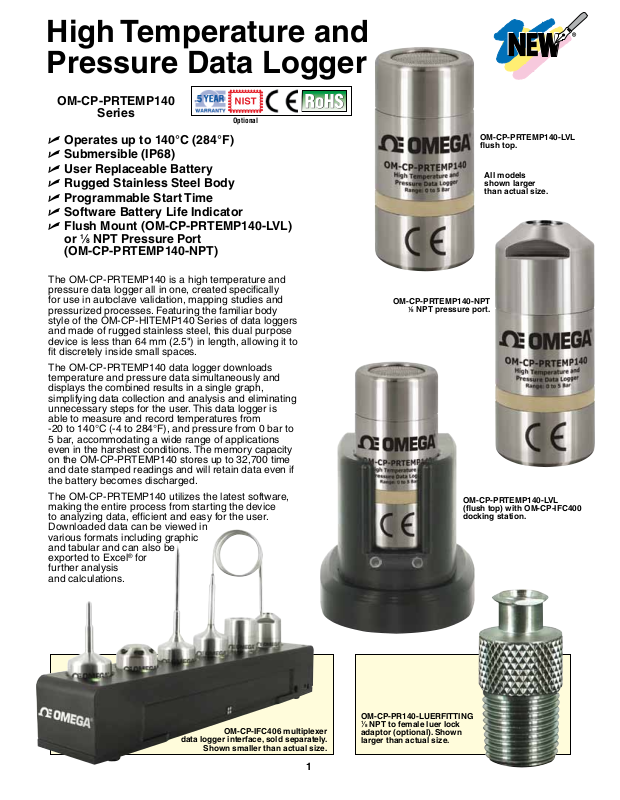

Page 1
High Temperature and
Pressure Data Logger
OM-CP-PRTEMP140
Series
U Operates up to 140°C (284°F)
U Submersible (IP68)
U User Replaceable Battery
U Rugged Stainless Steel Body
U Programmable Start Time
U Software Battery Life Indicator
U Flush Mount (OM-CP-PRTEMP140-LVL)
or 1⁄8 NPT Pressure Port
(OM-CP-PRTEMP140-NPT)
The OM-CP-PRTEMP140 is a high temperature and
pressure data logger all in one, created specifically
for use in autoclave validation, mapping studies and
pressurized processes. Featuring the familiar body
style of the OM-CP-HITEMP140 Series of data loggers
and made of rugged stainless steel, this dual purpose
device is less than 64 mm (2.5") in length, allowing it to
fit discretely inside small spaces.
The OM-CP-PRTEMP140 data logger downloads
temperature and pressure data simultaneously and
displays the combined results in a single graph,
simplifying data collection and analysis and eliminating
unnecessary steps for the user. This data logger is
able to measure and record temperatures from
-20 to 140°C (-4 to 284°F), and pressure from 0 bar to
5 bar, accommodating a wide range of applications
even in the harshest conditions. The memory capacity
on the OM-CP-PRTEMP140 stores up to 32,700 time
and date stamped readings and will retain data even if
the battery becomes discharged.
The OM-CP-PRTEMP140 utilizes the latest software,
making the entire process from starting the device
to analyzing data, efficient and easy for the user.
Downloaded data can be viewed in
various formats including graphic
and tabular and can also be
exported to Excel
further analysis
and calculations.
®
for
Optional
OM-CP-PRTEMP140-LVL
flush top.
OM-CP-PRTEMP140-NPT
1
⁄8 NPT pressure port.
OM-CP-PRTEMP140-LVL
(flush top) with OM-CP-IFC400
docking station.
All models
shown larger
than actual size.
data logger interface, sold separately.
OM-CP-IFC406 multiplexer
Shown smaller than actual size.
1
OM-CP-PR140-LUERFITTING
1
⁄8 NPT to female luer lock
adaptor (optional). Shown
larger than actual size.
Page 2
SPECIFICATIONS
PRESSURE
Sensor: Strain gauge
Range: 0 to 5 bar
Resolution: 0.0001 bar
Calibrated Accuracy: ±0.03 bar (20 to 140°C)
TEMPERATURE
Sensor: Resistance temperature detector (RTD)
Range: -20 to 140°C (-4 to 284°F)
Resolution: 0.01°C
Calibrated Accuracy: ±0.1°C (20 to 140°C)
GENERAL
Start Modes:
•Immediatestart
•Delaystartupto18monthsinadvance
Stop Modes: Manual or timed (specific date and time)
Real Time Recording: May be used with PC to monitor and
record data in real time
Memory: 32,767 readings
Password Protection: An optional password may be
programmed into the device to restrict access to configuration
options. Data may be read without the password
Reading Rate: 1 reading every second up to 1 reading every
24 hours
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
Memory Wrap: Ye s
Data Format: °C, °F, °R, K, bar, mbar, PSI, inHg, mmHg, atm,
Torr, Pa, kPa, MPa
Battery Life: 2 years typical (1 minute reading rate)
Battery Type: 3.6V high-temperature lithium battery included;
user replaceable
Time Accuracy: ±1 min/month @ 25°C
Extended Operation: ±20 mins/month at 140°C
Computer Interface: OM-CP-IFC400 USB docking station or
OM-CP-IFC406 multiplexer interface required; 125,000 baud
Software: Windows
Operating Environment: -20 to 140°C (-4 to 284°F),
0 to 100% RH, 0.002 to 100 PSIA
Dimensions:
OM-CP-PRTEMP140-LVL (Flush Top): 50.2 L x 24.6 mm
dia (1.98 x 0.97")
OM-CP-PRTEMP140-NPT (NPT Top): 58.2 L x 24.6 mm dia
(2.3 x 0.97")
Weight:
OM-CP-PRTEMP140-LVL (Flush Top): 90 g (3.2 oz)
OM-CP-PRTEMP140-NPT (NPT Top): 100 g (3.5 oz)
Material: 316 stainless steel
IP Rating: IP68
®
XP SP3/Vista/7 and 8 (32- and 64-bit)
OM-CP-IFC400 Windows® software displays data in
graphical or tabular format.
OM-CP-PRTEMP140-LVL
(flush top) shown larger
than actual size.
To Order
Model No. Description
OM-CP-PRTEMP140-LVL
OM-CP-PRTEMP140-LVL-CERT High temperature and pressure data logger, flush top, and NIST calibration
OM-CP-PRTEMP140-NPT
OM-CP-PRTEMP140-NPT-CERT
OM-CP-PR140-LUERFITTING
OM-CP-IFC400 Docking station (for single data logger) with USB cable, software and manual
OM-CP-IFC406 Multiplexer data logger interface (accepts up to 6 data loggers) with USB
OM-CP-BAT110 Replacement 3.6V high temperature lithium battery
OM-CP-SVP-SYSTEM
Comes complete with 3.6V lithium battery. Operator’s manual and USB interface cable are included with the OM-CP-IFC400 software/cable
package (required for data logger operation, sold separately).
Ordering Example: OM-CP-PRTEMP140-LVL-CERT, high temperature and pressure data logger (flush mount) with NIST calibration certificate.
High temperature and pressure data logger, flush top
certificate
1
High temperature and pressure data logger (
High temperature and pressure data logger (
⁄8 NPT pressure port)
1
⁄8 NPT pressure port) and NIST
calibration certificate
1
⁄8 NPT to female luer lock adaptor
cable, software and manual
FDA 21 CFR Part 11 compliant IQ/OQ/PQ secure software validation
workbook and software package (unlimited users, license per computer)
