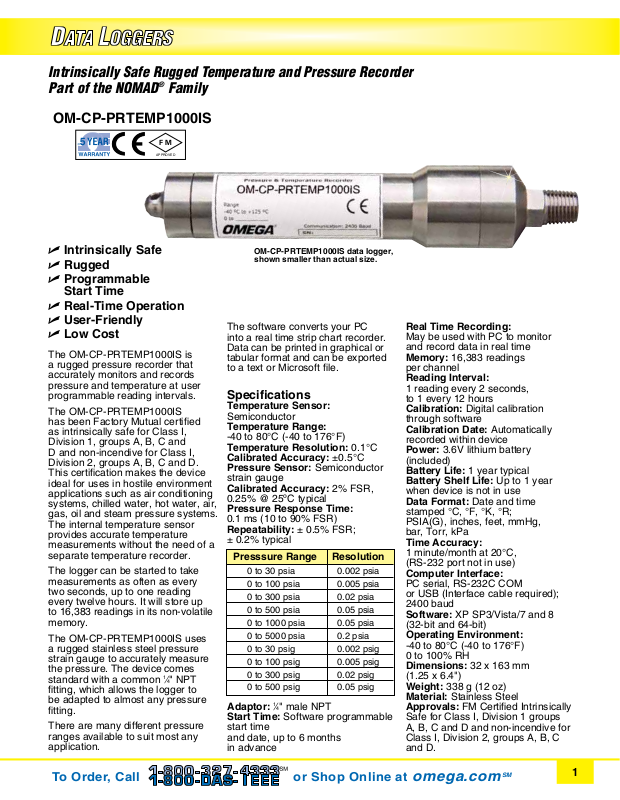

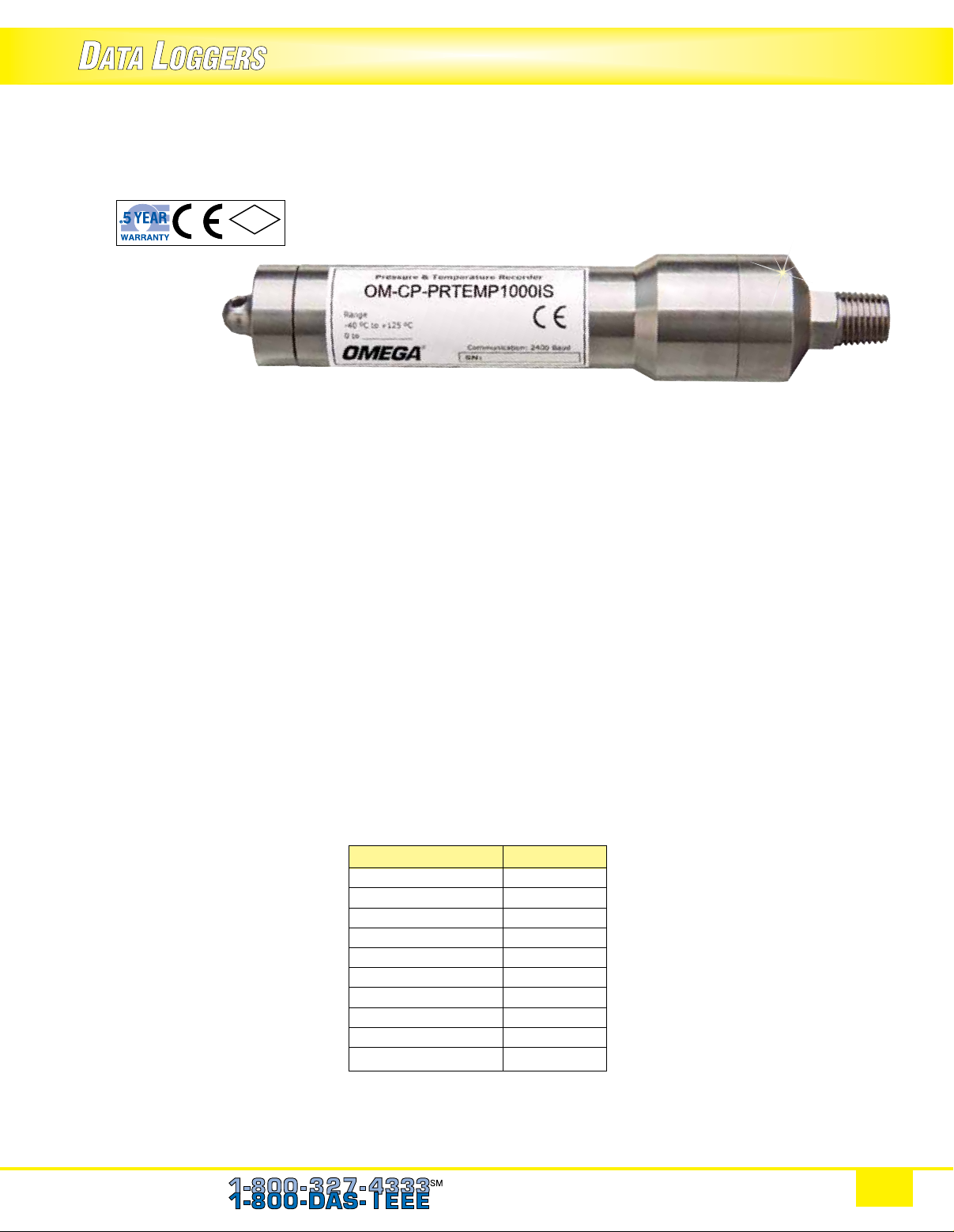

Intrinsically Safe Rugged Temperature and Pressure Recorder
®
Part of the NOMAD
Family
OM-CP-PRTEMP1000IS
FM
APPROVED
U Intrinsically Safe
U Rugged
U Programmable
Start Time
U Real-Time Operation
U User-Friendly
U Low Cost
The OM-CP-PRTEMP1000IS is
a rugged pressure recorder that
accurately monitors and records
pressure and temperature at user
programmable reading intervals.
The OM-CP-PRTEMP1000IS
has been Factory Mutual certified
as intrinsically safe for Class I,
Division 1, groups A, B, C and
D and non-incendive for Class I,
Division 2, groups A, B, C and D.
This certification makes the device
ideal for uses in hostile environment
applications such as air conditioning
systems, chilled water, hot water, air,
gas, oil and steam pressure systems.
The internal temperature sensor
provides accurate temperature
measurements without the need of a
separate temperature recorder.
The logger can be started to take
measurements as often as every
two seconds, up to one reading
every twelve hours. It will store up
to 16,383 readings in its non-volatile
memory.
The OM-CP-PRTEMP1000IS uses
a rugged stainless steel pressure
strain gauge to accurately measure
the pressure. The device comes
standard with a common
fitting, which allows the logger to
be adapted to almost any pressure
fitting.
There are many different pressure
ranges available to suit most any
application.
1
⁄4" NPT
OM-CP-PRTEMP1000IS data logger,
shown smaller than actual size.
The software converts your PC
into a real time strip chart recorder.
Data can be printed in graphical or
tabular format and can be exported
to a text or Microsoft file.
Specifications
Temperature Sensor:
Semiconductor
Temperature Range:
-40 to 80°C (-40 to 176°F)
Temperature Resolution: 0.1°C
Calibrated Accuracy: ±0.5°C
Pressure Sensor: Semiconductor
strain gauge
Calibrated Accuracy: 2% FSR,
0.25% @ 25ºC typical
Pressure Response Time:
0.1 ms (10 to 90% FSR)
Repeatability: ± 0.5% FSR;
± 0.2% typical
Presssure Range Resolution
0 to 30 psia 0.002 psia
0 to 100 psia 0.005 psia
0 to 300 psia 0.02 psia
0 to 500 psia 0.05 psia
0 to 1000 psia 0.05 psia
0 to 5000 psia 0.2 psia
0 to 30 psig 0.002 psig
0 to 100 psig 0.005 psig
0 to 300 psig 0.02 psig
0 to 500 psig 0.05 psig
1
Adaptor:
Start Time: Software programmable
start time
and date, up to 6 months
in advance
⁄4" male NPT
Real Time Recording:
May be used with PC to monitor
and record data in real time
Memory: 16,383 readings
per channel
Reading Interval:
1 reading every 2 seconds,
to 1 every 12 hours
Calibration: Digital calibration
through software
Calibration Date: Automatically
recorded within device
Power: 3.6V lithium battery
(included)
Battery Life: 1 year typical
Battery Shelf Life: Up to 1 year
when device is not in use
Data Format: Date and time
stamped °C, °F, °K, °R;
PSIA(G), inches, feet, mmHg,
bar, Torr, kPa
Time Accuracy:
1 minute/month at 20°C,
(RS-232 port not in use)
Computer Interface:
PC serial, RS-232C COM
or USB (Interface cable required);
2400 baud
Software: XP SP3/Vista/7 and 8
(32-bit and 64-bit)
Operating Environment:
-40 to 80°C (-40 to 176°F)
0 to 100% RH
Dimensions: 32 x 163 mm
(1.25 x 6.4")
Weight: 338 g (12 oz)
Material: Stainless Steel
Approvals: FM Certified Intrinsically
Safe for Class I, Division 1 groups
A, B, C and D and non-incendive for
Class I, Division 2, groups A, B, C
and D.
To Order, Call or Shop Online at omega.com
SM
1
Page 2

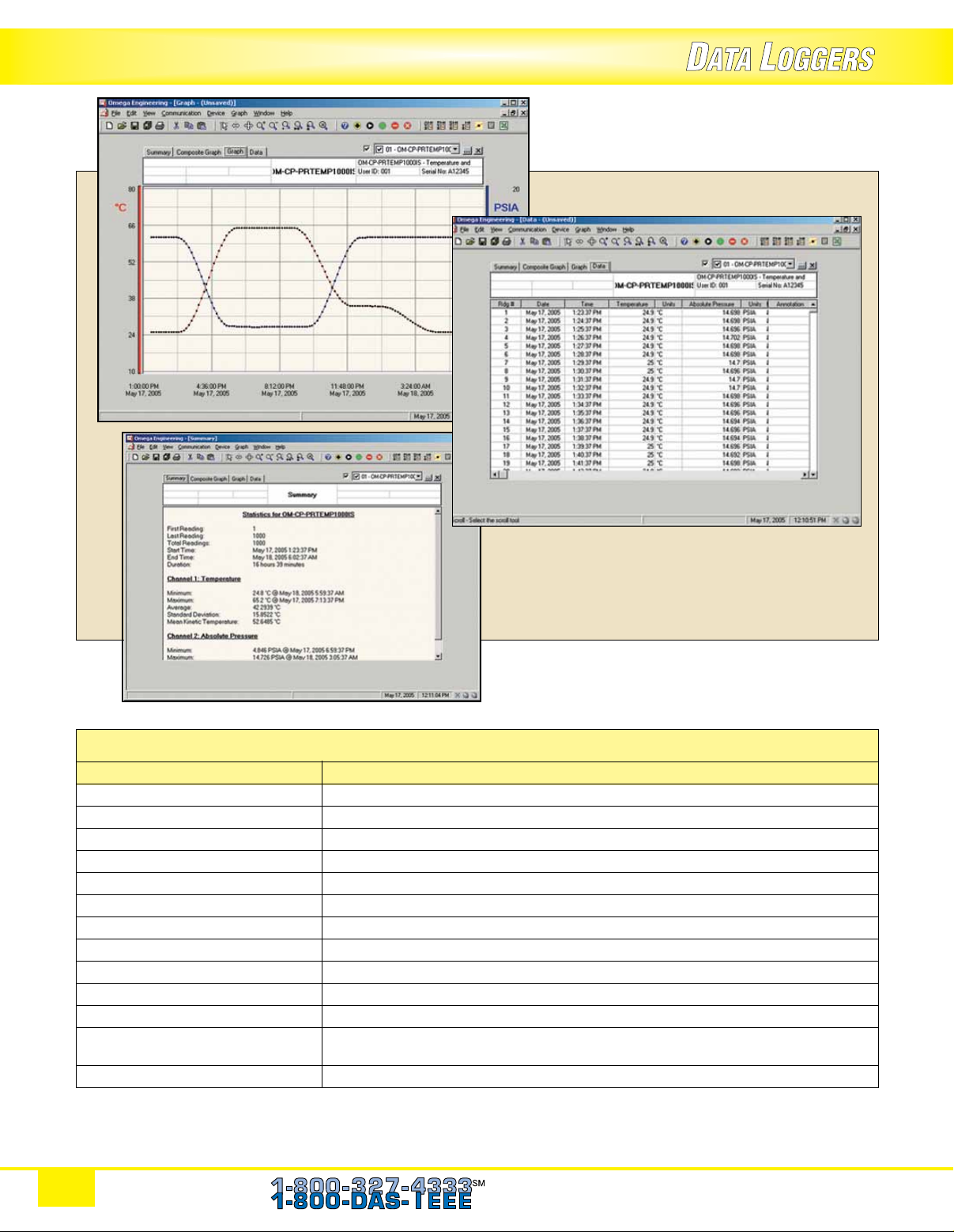

OM-CP-IFC200, Windows
software displays data in
graphical or tabular format.
To Order
Model No. Description
OM-CP-PRTEMP1000IS-1-30-A Intrinsically safe pressure and temperature recorder, range: 0 to 30 psia
OM-CP-PRTEMP1000IS-1-30-G Intrinsically safe pressure and temperature recorder, range: 0 to 30 psig
OM-CP-PRTEMP1000IS-1-100-A Intrinsically safe pressure and temperature recorder, range: 0 to 100 psia
OM-CP-PRTEMP1000IS-1-100-G Intrinsically safe pressure and temperature recorder, range: 0 to 100 psig
OM-CP-PRTEMP1000IS-1-300-A Intrinsically safe pressure and temperature recorder, range: 0 to 300 psia
OM-CP-PRTEMP1000IS-1-300-G Intrinsically safe pressure and temperature recorder, range: 0 to 300 psig
OM-CP-PRTEMP1000IS-1-500-A Intrinsically safe pressure and temperature recorder, range: 0 to 500 psia
OM-CP-PRTEMP1000IS-1-500-G Intrinsically safe pressure and temperature recorder, range: 0 to 500 psig
OM-CP-PRTEMP1000IS-1-1000-A Intrinsically safe pressure and temperature recorder, range: 0 to 1000 psia
OM-CP-PRTEMP1000IS-1-5000-A Intrinsically safe pressure and temperature recorder, range: 0 to 5000 psia
OM-CP-IFC200 Windows software and 1.8 m (6') USB interface cable
OM-CP-SVP-SYSTEM FDA 21 CFR part 11 compliant IQ/OQ/PQ secure software validation workbook and
OM-CP-BAT102 Replacement 3.6V lithium battery
Comes complete with 3.6V lithium battery. Operator’s manual and USB interface cable are included with the OM-CP-IFC200 Windows software
(software sold separately).
To order data logger with NIST calibration certificate, add suffix “-CERT” to model number (NIST calibration for temperature only).
Ordering Example: OM-CP-PRTEMP1000IS-1-100-A-CERT pressure and temperature data logger with NIST calibration certificate,
1
⁄4" NPT fitting, 0 to 100 psia range, OM-CP-IFC200 Windows software and USB interface cable.
software package (unlimited users, license per computer)
2
To Order, Call or Shop Online at omega.com
