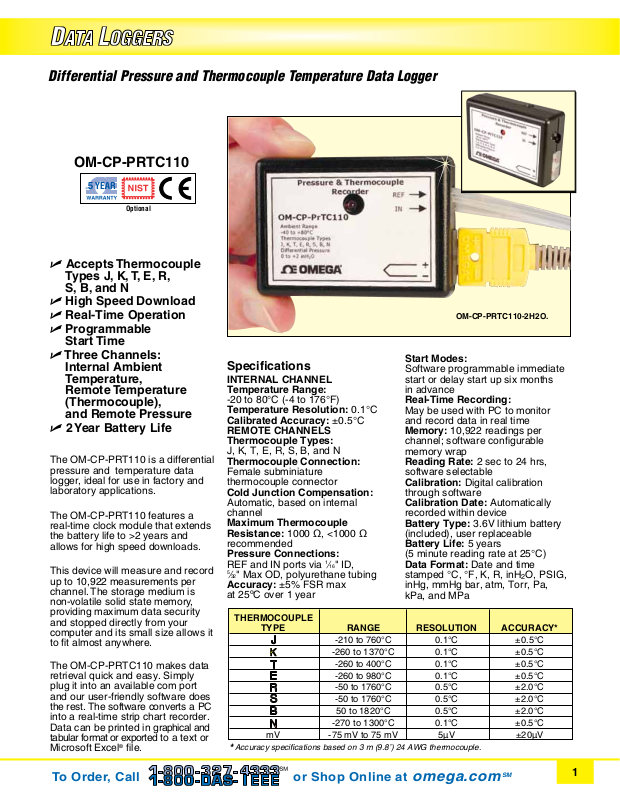

Omega OM-CP-PRTC110 Specification

Differential Pressure and Thermocouple Temperature Data Logger

OM-CP-PRTC110

Optional

U Accepts Thermocouple

Types J, K, T, E, R,
S, B, and N

U High Speed Download
U Real-Time Operation
U Programmable

Start Time

U Three Channels:

Internal Ambient
Temperature,
Remote Temperature
(Thermocouple),
and Remote Pressure

U 2 Year Battery Life

The OM-CP-PRT110 is a differential
pressure and temperature data
logger, ideal for use in factory and
laboratory applications.

The OM-CP-PRT110 features a
real-time clock module that extends
the battery life to >2 years and
allows for high speed downloads.

This device will measure and record
up to 10,922 measurements per
channel. The storage medium is
non-volatile solid state memory,
providing maximum data security
and stopped directly from your
computer and its small size allows it
to fit almost anywhere.

The OM-CP-PRTC110 makes data
retrieval quick and easy. Simply
plug it into an available com port
and our user-friendly software does
the rest. The software converts a PC
into a real-time strip chart recorder.
Data can be printed in graphical and
tabular format or exported to a text or
Microsoft Excel

®

file.

Specifications

INTERNAL CHANNEL
Temperature Range:

-20 to 80°C (-4 to 176°F)

Temperature Resolution: 0.1°C
Calibrated Accuracy: ±0.5°C
REMOTE CHANNELS
Thermocouple Types:

J, K, T, E, R, S, B, and N
Thermocouple Connection:
Female subminiature
thermocouple connector
Cold Junction Compensation:
Automatic, based on internal
channel

Maximum Thermocouple
Resistance: 1000 Ω, <1000 Ω

recommended
Pressure Connections:
REF and IN ports via 1⁄16" ID,

5

⁄32" Max OD, polyurethane tubing
Accuracy: ±5% FSR max
at 25ºC over 1 year

THERMOCOUPLE

TYPE RANGE RESOLUTION ACCURACY*

-210 to 760°C 0.1°C ±0.5°C

-260 to 1370°C 0.1°C ±0.5°C

-260 to 400°C 0.1°C ±0.5°C

-260 to 980°C 0.1°C ±0.5°C

-50 to 1760°C 0.5°C ±2.0°C

-50 to 1760°C 0.5°C ±2.0°C

50 to 1820°C 0.5°C ±2.0°C

-270 to 1300°C 0.1°C ±0.5°C

mV -75 mV to 75 mV 5µV ±20µV

Accuracy specifications based on 3 m (9.8’) 24 AWG thermocouple.

*

Start Modes:
Software programmable immediate
start or delay start up six months
in advance
Real-Time Recording:
May be used with PC to monitor
and record data in real time
Memory: 10,922 readings per
channel; software configurable
memory wrap
Reading Rate: 2 sec to 24 hrs,
software selectable
Calibration: Digital calibration
through software
Calibration Date: Automatically
recorded within device
Battery Type: 3.6V lithium battery
(included), user replaceable
Battery Life: 5 years
(5 minute reading rate at 25°C)
Data Format: Date and time
stamped °C, °F, K, R, inH
inHg, mmHg bar, atm, Torr, Pa,
kPa, and MPa

OM-CP-PRTC110-2H2O.

O, PSIG,

2

To Order, Call or Shop Online at omega.com

SM

1

5SRTC, 5 pack, shown
smaller than actual size.

Kapton

®

Insulation

Available

Bead type

thermocouple

ANSI
color
code

shown

To order

IEC color

code visit

us online

Miniature size

connector shown

actual size.

Snap-on

strain relief

Time Accuracy: ±1 min/month

(at 20 to 30°C)
Computer Interface: PC serial
or USB (interface cable required);
57,600 baud
Software:

XP SP3/Vista/7 and 8
(32-bit and 64-bit)

Operating Environment:

-20 to 80°C (-4 to 176°F),
0 to 95% RH, non-condensing

OM-CP-IFC200, Windows

software displays data in

graphical or tabular format,

laptop not included.

Dimensions:

41 H x 68 W x 20 mm D
(1.6 x 2.7 x 0.8") plus
connective tube

Enclosure: ABS plastic
Weight: 250 g (8.8 oz)

To Order

PRESSURE MAX PRESSURE NIST
MODEL NO. RANGE PRESSURE RESOLUTION CERTIFICATE

OM-CP-PRTC110-2H2O 0 to 2 inH
OM-CP-PRTC110-2H2O-CERT 0 to 2 inH
OM-CP-PRTC110-5H2O 0 to 5 inH
OM-CP-PRTC110-5H2O-CERT 0 to 5 inH

ACCESSORIES

MODEL NO. DESCRIPTION

OM-CP-IFC200 Windows software and 1.8 m (6') USB interface cable

OM-CP-SVP-SYSTEM FDA 21 CFR part 11 compliant IQ/OQ/PQ secure software validation workbook and

software package (unlimited users, license per computer)

OM-CP-BAT105 Replacement 3.6V lithium battery

Comes complete with 3.6V lithium battery. Operator’s manual and USB interface cable are included with the OM-CP-IFC200 Windows
software (required to operate the data logger, sold separately).

Ordering Example: OM-CP-PRTC110-2H2O-CERT, differential pressure and temperature data logger with NIST calibration certificate,
and OM-CP-IFC200, Windows software with USB interface cable.

O -2 to 4 inH2O 0.002 inH2O –

2

O -2 to 4 inH2O 0.002 inH2O Y

2

O -2 to 8 inH2O 0.005 inH2O –

2

O -2 to 8 inH2O 0.005 inH2O Y

2

2
