Page 1
OM-CP-PROCESS101A
Xxxxx Xxxxxx
Xxxxx Xxxxxx Xxxxxxxx
M0000/0016
INSTRUCTION
SHEET
Shop online at omega.comSM e-mail: [email protected]
For latest product manuals: www.omegamanual.info

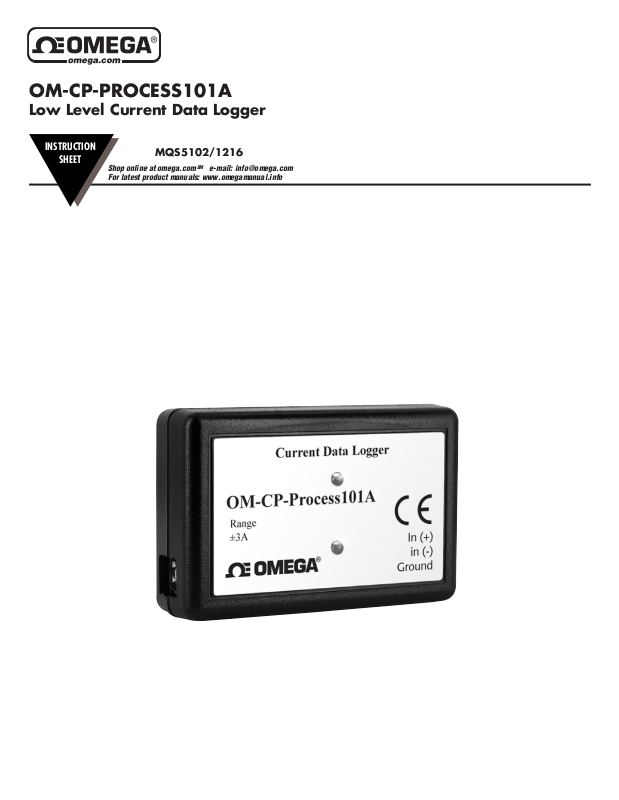

Low Level Current Data Logger
MQS5102/1216
Page 2
OM-CP-PROCESS101A

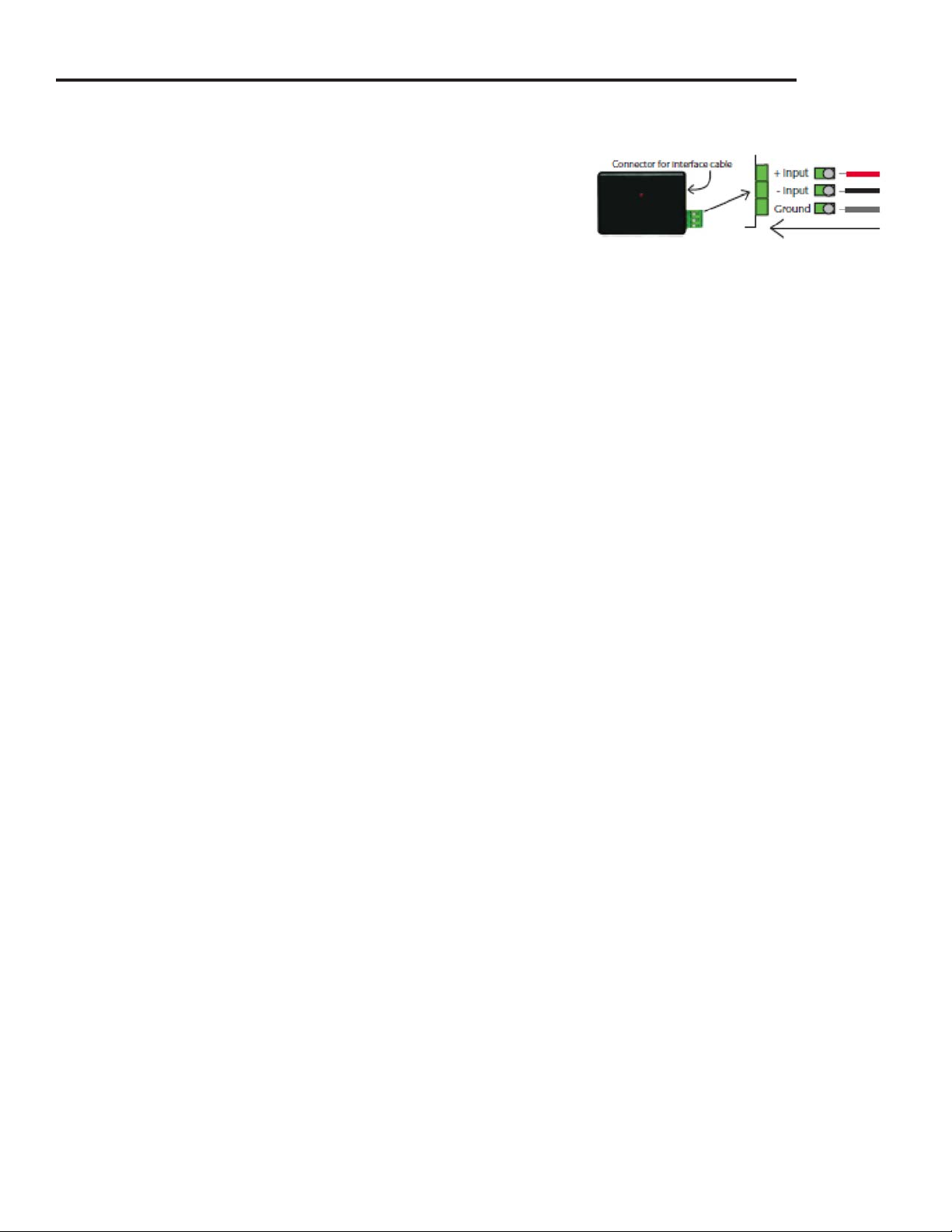

Wiring the Data Logger
Wiring Options
Three-position removable screw terminal connections; accepts
3-wire configurations.
Warning: Note the polarity instructions. Do not attach wires to the wrong terminals.
Product Notes
LEDs
- Green LED blinks: 10 seconds to indicate logging and 15 seconds to indicate delay start mode..
- Red LED blinks: 10 seconds to indicate low battery and/or memory and 1 second to indicate an alarm
condition.
Password Protection
An optional password may be programmed into the device to restrict access to configuration options. Data
may be read out without the password.
Multiple Start/Stop Mode Activation
- To start device: Press and hold the pushbutton for 5 seconds, the green LED will flash during this time. The
device has started logging.
- To stop the device: Press and hold the pushbutton for 5 seconds, the red LED will flash during this time.
The device has stopped logging.
Alarm Settings
Programmable high and low limits; alarm is activated when current reaches or exceeds set limits.
Engineering Units
Engineering units are used to convert one measurement reading to another. The Omega software allows for
software level Engineering Units (conversion applied to data after download). Certain devices have device level
Engineering Units, which upon download automatically appear in the chosen unit of measure.
Installation Guide
Installing the Interface cable
- OM-CP-IFC200
Insert the device into a USB port. The drivers will install automatically.
Installing the software
Insert the Omega Software Flash Drive in an open USB port. If the autorun does not appear, locate the drive
on the computer and double click on Autorun.exe. Follow the instructions provided in the Installation Wizard.
2
Page 3
OM-CP-PROCESS101A
Device Operation
Connecting and Starting the data logger
1. Once the software is installed and running, plug the interface cable into the data logger.
2. Connect the USB end of the interface cable into an open USB port on the computer.
3. The device will appear in the Connected Devices list, highlight the desired data logger.
4. For most applications, select “Custom Start” from the menu bar and choose the desired start method,
reading rate and other parameters appropriate for the data logging application and click “Start”. (“Quick
Start” applies the most recent custom start options, “Batch Start” is used for managing multiple loggers at
once, “Real Time Start” stores the dataset as it records while connected to the logger.)
5. The status of the device will change to “Running”, “Waiting to Start” or “Waiting to Manual Start”,
depending upon your start method.
6. Disconnect the data logger from the interface cable and place it in the environment to measure.
Note: The device will stop recording data when the end of memory is reached or the device is stopped. At this point
the device cannot be restarted until it has been re-named by the computer.
Downloading data from a data logger.
1. Highlight the data logger in the Connected Devices list. Click “Stop” on the menu bar.
2. Once the data logger is stopped, with the logger highlighted, click “Download”. You will be prompted to
name your report.
3. Downloading will offload and save all the recorded data to the PC.
Product Maintenance
Battery Replacement
Materials:
Small Phillips Head Screwdriver
Replacement Battery (OM-CP-BAT105)
1. Puncture the center of the back label with the screw driver and unscrew the enclosure.
2. Remove the battery by pulling it perpendicular to the circuit board.
3. Insert the new battery into the terminals and verify it is secure.
4. Screw the enclosure back together securely.
Note: Be sure not to over tighten the screws or strip the threads.
Recalibration
The OM-CP-PROCESS101A standard calibration is at two points. The points are dependent on the range of the
data logger.
Range 20 mA ± 160 mA ± 3A
Calibration Points 0 mA and 25 mA 0 mA and 100 mA 0A and 1A
Recalibration is recommended annually for any Omega data logger; a reminder is automatically displayed in
the software when the device is due.
3
Page 4
OM-CP-PROCESS101A
OM-CP-PROCESS101A General Specifications
Current Range
Current Resolution *See Table Below
Calibrated Accuracy
Input Impedance
Memory
Reading Rate 4 Hz to 1 reading every 24 hours
LED Indicator Red and green
Required Interface Package OM-CP-IFC200
Baud Rate 115,200
Typical Battery Life 10 year battery life typical, at a 15 minute reading rate
1,000,000 readings; software congurable memory wrap
333,000 readings in multiple start/stop mode
Operating Environment
Material ABS plastic
Dimensions
Weight 0.9 oz (24 g)
Approvals CE
*Current Series Range, Resolution and Calibrated Accuracy
Nominal Range 20 mA +160 mA +3 A
Measurement Range -2 mA to +30 mA
Maximum Voltage Between
Inputs to Ground
Resolution 0.5 µA 5 µA 100 µA
Calibrated Accuracy @ 25
Input Impedence
Absolute Maximum Current 316 mA 1 A 6 A
-40 °C to +80 °C (-40 °F to +176 °F),
0 %RH to 95 %RH (non–condensing)
1.4 in x 2.2 in x 0.6 in
(36 mm x 56 mm x 16 mm)
+160 mA +3 A
0 V to 2.5 V
+0.05 %FSR +0.15 %FSR
°C
10 Ω, +1% 1 Ω, +1% <0.05 Ω
Battery Warning
WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD. DO NOT SHORT CIRCUIT, CHARGE, FORCE OVER DISCHARGE, CRUSH, PENETRATE
OR INCINERATE. BATTERY MAY LEAK OR EXPLODE IF HEATED ABOVE 80°C (176°F).
Specifications subject to change.
