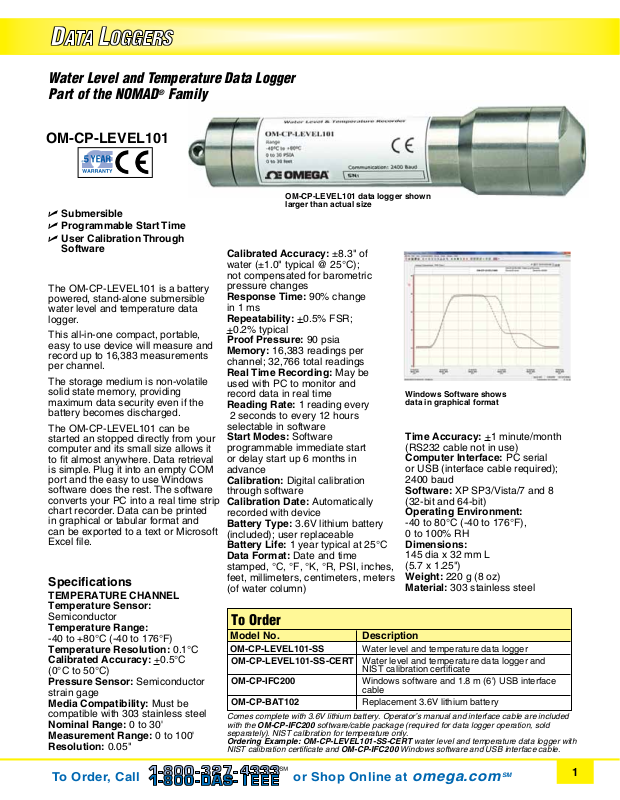

Water Level and Temperature Data Logger
Part of the NOMAD® Family
OM-CP-LEVEL101
U Submersible
U Programmable Start Time
U User Calibration Through
Software
The OM-CP-LEVEL101 is a battery
powered, stand-alone submersible
water level and temperature data
logger.
This all-in-one compact, portable,
easy to use device will measure and
record up to 16,383 measurements
per channel.
The storage medium is non-volatile
solid state memory, providing
maximum data security even if the
battery becomes discharged.
The OM-CP-LEVEL101 can be
started an stopped directly from your
computer and its small size allows it
to fit almost anywhere. Data retrieval
is simple. Plug it into an empty COM
port and the easy to use Windows
software does the rest. The software
converts your PC into a real time strip
chart recorder. Data can be printed
in graphical or tabular format and
can be exported to a text or Microsoft
Excel file.
Specifications
TEMPERATURE CHANNEL
Temperature Sensor:
Semiconductor
Temperature Range:
-40 to +80°C (-40 to 176°F)
Temperature Resolution: 0.1°C
Calibrated Accuracy: +0.5°C
(0°C to 50°C)
Pressure Sensor: Semiconductor
strain gage
Media Compatibility: Must be
compatible with 303 stainless steel
Nominal Range: 0 to 30'
Measurement Range: 0 to 100'
Resolution: 0.05"
Calibrated Accuracy: ±8.3" of
water (±1.0" typical @ 25°C);
not compensated for barometric
pressure changes
Response Time: 90% change
in 1 ms
Repeatability: +0.5% FSR;
+0.2% typical
Proof Pressure: 90 psia
Memory: 16,383 readings per
channel; 32,766 total readings
Real Time Recording: May be
used with PC to monitor and
record data in real time
Reading Rate: 1 reading every
2 seconds to every 12 hours
selectable in software
Start Modes: Software
programmable immediate start
or delay start up 6 months in
advance
Calibration: Digital calibration
through software
Calibration Date: Automatically
recorded with device
Battery Type: 3.6V lithium battery
(included); user replaceable
Battery Life: 1 year typical at 25°C
Data Format: Date and time
stamped, °C, °F, °K, °R, PSI, inches,
feet, millimeters, centimeters, meters
(of water column)
To Order
Model No. Description
OM-CP-LEVEL101-SS Water level and temperature data logger
OM-CP-LEVEL101-SS-CERT Water level and temperature data logger and
OM-CP-IFC200 Windows software and 1.8 m (6') USB interface
OM-CP-BAT102 Replacement 3.6V lithium battery
Comes complete with 3.6V lithium battery. Operator’s manual and interface cable are included
with the OM-CP-IFC200 software/cable package (required for data logger operation, sold
separately). NIST calibration for temperature only.
Ordering Example: OM-CP-LEVEL101-SS-CERT water level and temperature data logger with
NIST calibration certificate and OM-CP-IFC200 Windows software and USB interface cable.
OM-CP-LEVEL101 data logger shown
larger than actual size
Windows Software shows
data in graphical format
Time Accuracy: +1 minute/month
(RS232 cable not in use)
Computer Interface: PC serial
or USB (interface cable required);
2400 baud
Software: XP SP3/Vista/7 and 8
(32-bit and 64-bit)
Operating Environment:
-40 to 80°C (-40 to 176°F),
0 to 100% RH
Dimensions:
145 dia x 32 mm L
(5.7 x 1.25")
Weight: 220 g (8 oz)
Material: 303 stainless steel
NIST calibration certificate
cable
To Order, Call or Shop Online at omega.com
