OM-CP-IFC200 / OM-CP-IFC202
Xxxxx Xxxxxx
Xxxxx Xxxxxx Xxxxxxxx
M0000/0016
INSTRUCTION
SHEET
Shop online at omega.comSM e-mail: [email protected]
For latest product manuals: www.omegamanual.info
Data Logger Interface
M-5614/1116
Page 2
OM-CP-IFC200 / OM-CP-IFC202
1. Setup USB Data Logger Interface
Insert the Omega Data Logger Software USB Flash Drive
A
into an available USB port on your PC. Click the Start menu
and choose Computer or My Computer. Browse to the
Removable Disk drive corresponding to the USB port you
selected.
For Windows 7 users, a dialogue box may appear with a
list of options. Select “Open Folder to view files.” If you are
not prompted, Click the Start menu and choose Computer
or My Computer. Browse to the Removable Disk drive
corresponding to the USB port you selected.

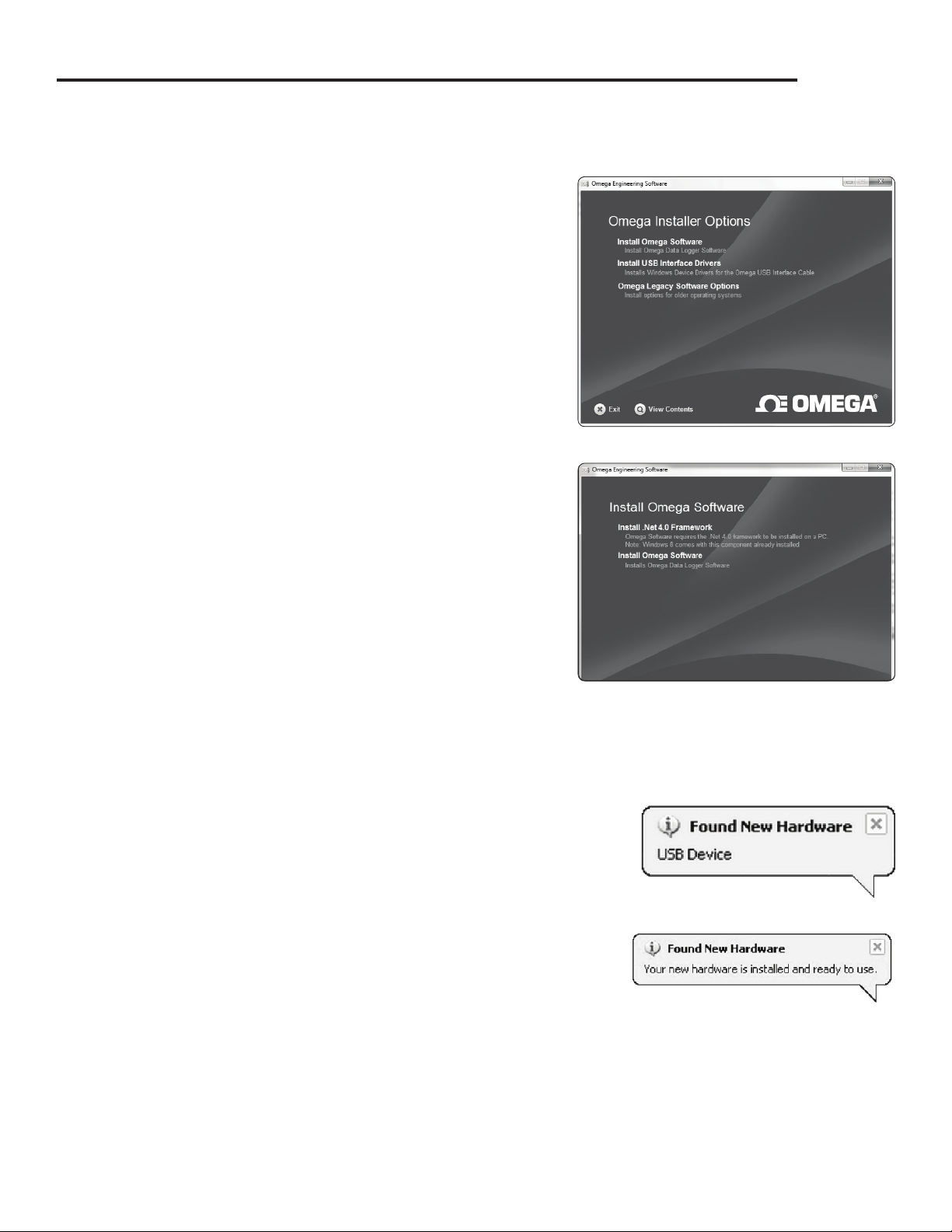

Click on the Omega Software link on the Contents screen
B
to start the install of the Data Logger Software. The Install
Omega Software window will appear, click on the Install
Omega Software link. Follow the on screen prompts to
complete the installation. Click Back to Omega Contents
when completed. See the Software Manual for additional
information.
2. Connect the USB Data Logger Interface
Connect the USB end of the OM-CP-IFC200/202 to the 6” USB
A
extender cable (optional but recommended). Plug the opposite end of
the cable into a USB port on the PC.
Once the OM-CP-IFC200/202 is plugged in, a New Hardware Found
B
message will appear on the PC. The new drivers will automatically
configure for use with the Interface Cable. A message will then
appear that the new hardware is installed and ready to use.
The installation of the USB data logger interface is complete.
Plug the stereo cable into the open jack on the OM-CP-IFC200/202 , the opposite end of the cable
will be plugged into the data logger.
Page 3
Quick Start Manual
3. Test the Data Logger Interface Operation
To verify that the USB Interface drivers are installed properly, check to ensure the Data Logger Software can
A
recognize a device.
When the interface cable is connected to the PC the blue LED power indicator light should be on. If the
B
indicator light is not on, unplug the interface cable, wait 5 seconds and plug it back into the PC.
Start the Omega Data Logger Software. (If necessary, see the software manual for additional information
C
on the software)

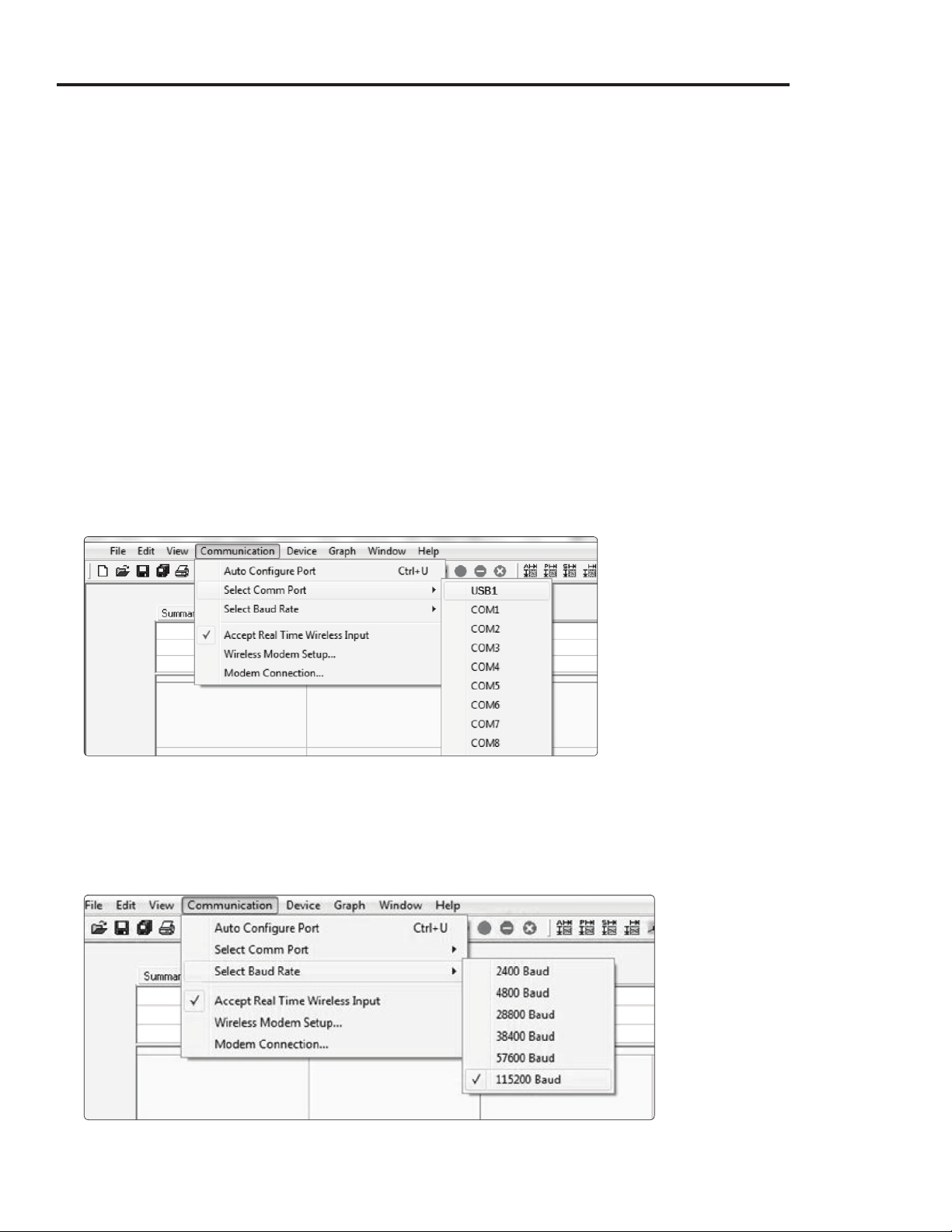

Choose Select Comm Port from the Communication menu. A sub-menu will appear listing the available
D
communication ports. If the USB driver install was successful, and the USB interface is plugged into the PC,
then USB1 should appear as an option.
If multiple USB interface cables are connected to the computer they will be listed USB1, USB2, USB3, etc.
Use this menu to select the proper device.
The USB interface can be configured to work with most Omega Data loggers by selecting the proper baud
E
rate from the Select Baud Rate option under the Communications menu. The baud rate used by the logger
is listed on its label. For example the OM-CP-Temp101A communicates at 115,200 baud, so 115,200 must
be selected.
Page 4
