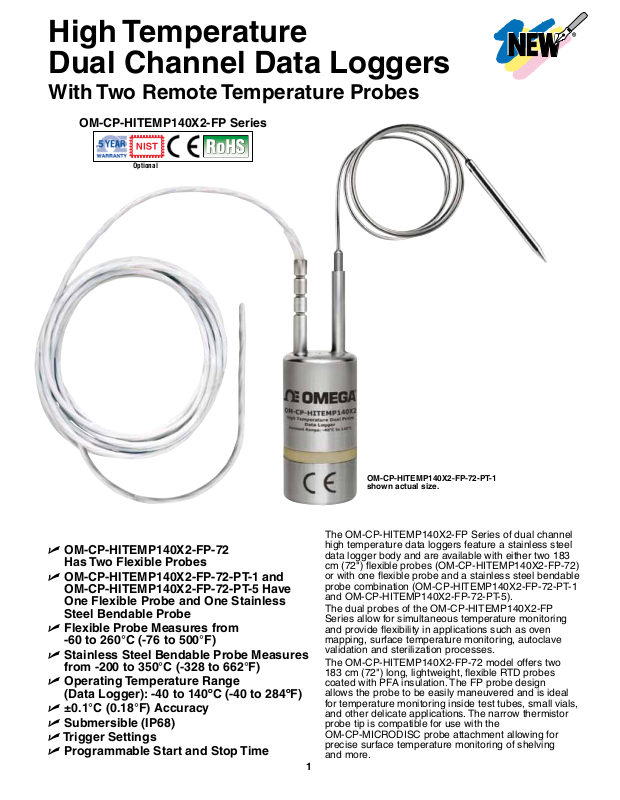

Page 1
High Temperature
Dual Channel Data Loggers
With Two Remote Temperature Probes
OM-CP-HITEMP140X2-FP Series
Optional
U OM-CP-HITEMP140X2-FP-72
Has Two Flexible Probes
U OM-CP-HITEMP140X2-FP-72-PT-1 and
OM-CP-HITEMP140X2-FP-72-PT-5 Have
One Flexible Probe and One Stainless
Steel Bendable Probe
U Flexible Probe Measures from
-60 to 260°C (-76 to 500°F)
U Stainless Steel Bendable Probe Measures
from -200 to 350°C (-328 to 662°F)
U Operating Temperature Range
(Data Logger): -40 to 140ºC (-40 to 284ºF)
U ±0.1°C (0.18°F) Accuracy
U Submersible (IP68)
U Trigger Settings
U Programmable Start and Stop Time
OM-CP-HITEMP140X2-FP-72-PT-1
shown actual size.
The OM-CP-HITEMP140X2-FP Series of dual channel
high temperature data loggers feature a stainless steel
data logger body and are available with either two 183
cm (72") flexible probes (OM-CP-HITEMP140X2-FP-72)
or with one flexible probe and a stainless steel bendable
probe combination (OM-CP-HITEMP140X2-FP-72-PT-1
and OM-CP-HITEMP140X2-FP-72-PT-5).
The dual probes of the OM-CP-HITEMP140X2-FP
Series allow for simultaneous temperature monitoring
and provide flexibility in applications such as oven
mapping, surface temperature monitoring, autoclave
validation and sterilization processes.
The OM-CP-HITEMP140X2-FP-72 model offers two
183 cm (72") long, lightweight, flexible RTD probes
coated with PFA insulation. The FP probe design
allows the probe to be easily maneuvered and is ideal
for temperature monitoring inside test tubes, small vials,
and other delicate applications. The narrow thermistor
probe tip is compatible for use with the
OM-CP-MICRODISC probe attachment allowing for
precise surface temperature monitoring of shelving
and more.
1
Page 2
OM-CP-HITEMP140X2-FP-72
The OM-CP-HITEMP140X2-FP-72-PT-1 and
OM-CP-HITEMP140X2-FP-72-PT-5 models feature a
61 cm (24") stainless steel bendable probe with the
option of either a 2.5 cm (1") or 12.7 cm (5") probe tip
(sheath). The stainless steel probe can be bent, angled,
and coiled in any direction and formed into position as
needed. The sharp probe tip allows for easy insertion
and has an extended measurement range of
-200 to 350°C (-328 to 662°F).
The body of the OM-CP-HITEMP140X2-FP data
loggers are capable of operating in temperatures from
-40 to 140°C (-40 to 284°F). All models have the
capacity to store up to 32,700 time and date stamped
readings and feature non-volatile solid state memory
that will retain data even if the battery becomes
discharged.
All models
shown smaller
than actual size.
OM-CP-HITEMP140X2-FP-72-PT-5
OM-CP-IFC400, Windows® software displays data
in graphical or tabular format.
The OM-CP-HITEMP140X2-FP utilizes the latest
software. The device can be started, stopped, and data
can be downloaded quickly and easily. Once in the
software, the data can be reviewed in graphic, tabular,
or summary form as well as exported to Excel® for
further analysis and calculations.
The OM-CP-MULTIMOUNT-Z
is a versatile mount or
stand for use with the
OM-CP-HITEMP140 series of
data loggers. It can be used
to stabilize a logger inside an
autoclave, or screwed to a
flat surface to create an
anchored base. Made of
316 stainless steel, the
OM-CP-MULTIMOUNT-Z
is able to withstand
temperatures up to
150°C (302°F) making
it ideal for use in autoclave
sterilization processes.
OM-CP-MULTIMOUNT-Z with OM-CP-HITEMP140X2,
shown smaller than actual size.
2
Page 3
OM-CP-IFC406 multiplexer
data logger interface, shown
smaller than actual size (data
loggers sold separately).
SPECIFICATIONS
TEMPERATURE
Temperature Sensor:
OM-CP-HITEMP140X2-FP: Flexible RTD probe
OM-CP-HITEMP140X2-FP-PT: Flexible RTD Probe and
bendable RTD probe
Probe Measurement Range:
Flexible Probe: -60 to 260°C (-76 to 500°F)
Bendable Probe: -200 to 350°C (-328 to 662°F)
Temperature Resolution: 0.01°C (0.02°F)
Calibrated Accuracy: ±0.1°C (±0.18°F)
GENERAL
Reading Rate: 1 reading every second up to 1 reading every
24 hours
Memory: 32,767 readings
Start Modes:
•Softwareprogrammableimmediatestart
•Delaystartupto18monthsinadvance
Stop Modes: Manual or Timed (specific date and time)
Real Time Recording: May be used with PC to monitor and
record data in real time
Password Protection: An optional password may be
programmed into the device to restrict access to configuration
options. Data may be read out without the password
Readings in Trigger Settings Mode: 16,383 readings
Trigger Settings: High and Low limits may be set. Once data
meets or exceed set limits, the device will record to memory.
Bi-level start and stop triggers can also be programmed. Users
can specify the number of readings to take after the device
triggers. (Triggering on channel 1 only)
Memory Wrap Around: Yes (software selectable)
Battery Type: 3.6V high-temperature lithium battery included;
user replaceable
Battery Life: 1 year typical [1 minute reading rate at 25°C (77°F)]
Calibration: Digital calibration through software
OM-CP-MICRODISC
surface temperature
probe attachment
(shown with probe
inserted, sold separately)
Calibration Date: Automatically recorded within device
Data Format: Date and time stamped °C, °F, °R, K
Time Accuracy: 1 minute/month @ 25°C (77°F)
•1 minute/month at 25°C (77°F)
Computer Interface: OM-CP-IFC400 USB docking
station or OM-CP-IFC406 multiplexer interface required;
125,000 baud
Software: Windows XP SP3/Vista/7 and 8 (32- and 64-bit)
Operating Environment: -40 to 140°C (-40 to 284°F),
0 to 100% RH, 0.002 to 100 psia
IP Rating: IP68
Dimensions (Body): 48 H x 24.6 mm dia (1.89 x 0.97")
Dimensions (Probe):
OM-CP-HITEMP140X2-FP-72:
Flexible Probe: 1829 L x 2.5 mm dia (72 x 0.1")
OM-CP-HITEMP140X2-FP-72-PT-1 with 2.5 cm (1")
Bendable Probe:
Probe Tip: 42 L x 3.2 mm dia (1.7 x 0.125")
Bendable Portion: 559 L x 1.6 mm dia (22 x 0.062")
OM-CP-HITEMP140X2-FP-72-PT-5 with 12.7 cm (5")
Bendable Probe:
Probe Tip: 121 L x 3.2 mm dia (4.8 x 0.125") with
25 L x 4.8 mm dia (1 x 0.188") handle
Bendable Portion: 559 L x 1.6 mm dia (22 x 0.062")
Weight:
OM-CP-HITEMP140X2-FP-72: 115 g (4.1 oz)
OM-CP-HITEMP140X2-FP-72-PT: 110 g (3.9 oz)
Materials:
Body: 316 stainless steel, PEEK
Bendable Probe: 316 stainless steel
Flexible Probe: PFA insulated cable
3
Page 4
OM-CP-HITEMP140X2-FP-72-PT-5
shown smaller than actual size.
To Order
Model No. Description
OM-CP-HITEMP140X2-FP-72
OM-CP-HITEMP140X2-FP-72-CERT
OM-CP-HITEMP140X2-FP-72-PT-1
OM-CP-HITEMP140X2-FP-72-PT-1-CERT
OM-CP-HITEMP140X2-FP-72-PT-5
OM-CP-HITEMP140X2-FP-72-PT-5-CERT
OM-CP-IFC400
OM-CP-IFC406
OM-CP-BAT110
OM-CP-MULTIMOUNT-Z
OM-CP-MICRODISC
OM-CP-SVP-SYSTEM
Comes complete with 3.6V lithium battery. Operator’s manual and USB interface cable are included with the OM-CP-IFC400 software/cable
package and OM-CP-IFC406 multiplexer. OM-CP-IFC400 required for data logger operation. Both models sold separately.
Ordering Example: OM-CP-HITEMP140X2-FP-72-CERT high temperature data logger with two 183 cm (72") flexible probes and NIST
calibration certificate.
High temperature data logger with two 183 cm (72") flexible probes
High temperature data logger with two 183 cm (72") flexible probes
and NIST calibration certificate
High temperature data logger with 183 cm (72") flexible probe and
61 cm (24") bendable stainless steel probe with 2.5 cm (1") tip
High temperature data logger with 183 cm (72") flexible probe and
61 cm (24") bendable stainless steel probe with 2.5 cm (1") tip and
NIST calibration certificate
High temperature data logger with 183 cm (72") flexible probe and
61 cm (24") bendable stainless steel probe with 12.7 cm (5") tip
High temperature data logger with 183 cm (72") flexible probe and
61 cm (24") bendable stainless steel probe with 12.7 cm (5") tip
and NIST calibration certificate
Docking station (for single data logger) with USB cable, software
and manual
Multiplexer data logger interface (accepts up to 6 data loggers) with
USB cable, software and manual
Replacement 3.6V high temperature lithium battery
Mount/stand for OM-CP-HITEMP140 series data loggers
Surface temperature probe attachment
FDA 21 CFR part 11 compliant IQ/OQ/PQ secure software
validation workbook and software package (unlimited users, license
per computer)
