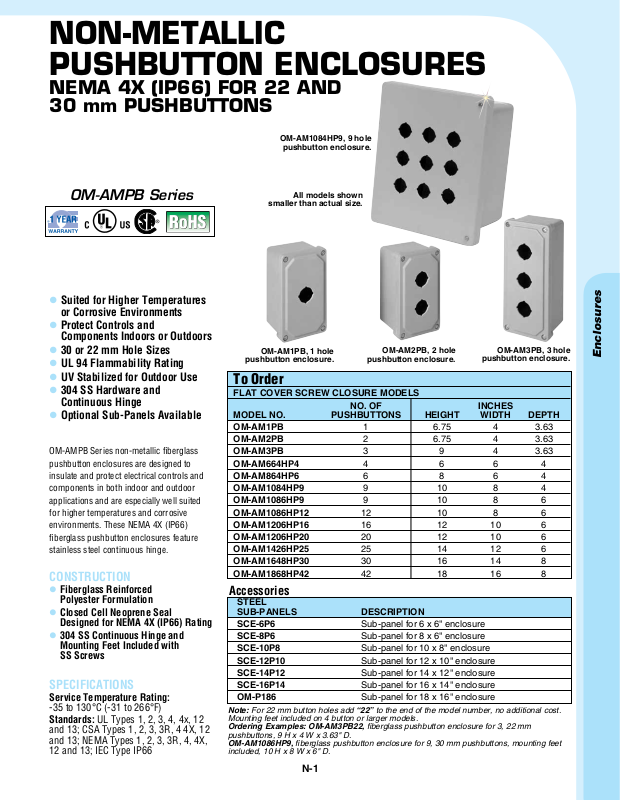

NoN-Metallic
PUSHBUttoN eNcloSUreS
NeMa 4X (iP66) For 22 aNd
30 mm PUSHBUttoNS
OM-AM1084HP9, 9 hole
pushbutton enclosure.
OM-AMPB Series
l Suited for Higher Temperatures
or Corrosive Environments
l Protect Controls and
Components Indoors or Outdoors
l 30 or 22 mm Hole Sizes
l UL 94 Flammability Rating
l UV Stabilized for Outdoor Use
l 304 SS Hardware and
Continuous Hinge
l Optional Sub-Panels Available
OM-AMPB Series non-metallic fiberglass
pushbutton enclosures are designed to
insulate and protect electrical controls and
components in both indoor and outdoor
applications and are especially well suited
for higher temperatures and corrosive
environments. These NEMA 4X (IP66)
fiberglass pushbutton enclosures feature
stainless steel continuous hinge.
CONSTRUCTION
l Fiberglass Reinforced
Polyester Formulation
l Closed Cell Neoprene Seal
Designed for NEMA 4X (IP66) Rating
l 304 SS Continuous Hinge and
Mounting Feet Included with
SS Screws
SPECIFICATIONS
Service Temperature Rating:
-35 to 130°C (-31 to 266°F)
Standards: UL Types 1, 2, 3, 4, 4x, 12
and 13; CSA Types 1, 2, 3, 3R, 4 4X, 12
and 13; NEMA Types 1, 2, 3, 3R, 4, 4X,
12 and 13; IEC Type IP66

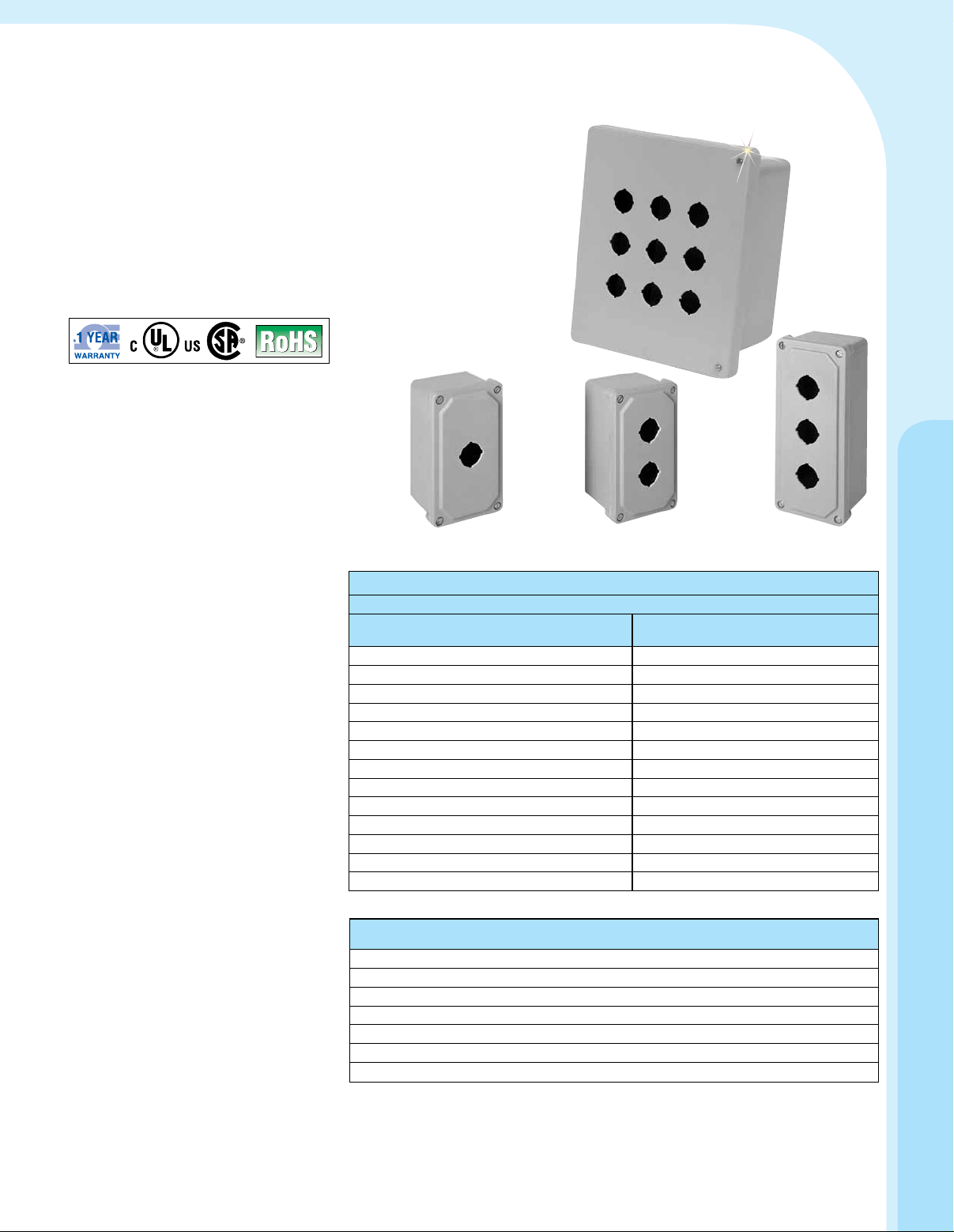

All models shown
smaller than actual size.
OM-AM1PB, 1 hole
pushbutton enclosure.
To Order
FLAT COVER SCREW CLOSURE MODELS
NO. OF INCHES
MODEL NO. PUSHBUTTONS HEIGHT WIDTH DEPTH
OM-AM1PB 1 6.75 4 3.63
OM-AM2PB 2 6.75 4 3.63
OM-AM3PB 3 9 4 3.63
OM-AM664HP4 4 6 6 4
OM-AM864HP6 6 8 6 4
OM-AM1084HP9 9 10 8 4
OM-AM1086HP9 9 10 8 6
OM-AM1086HP12 12 10 8 6
OM-AM1206HP16 16 12 10 6
OM-AM1206HP20 20 12 10 6
OM-AM1426HP25 25 14 12 6
OM-AM1648HP30 30 16 14 8
OM-AM1868HP42 42 18 16 8
OM-AM2PB, 2 hole
pushbutton enclosure.
OM-AM3PB, 3 hole
pushbutton enclosure.
Accessories
STEEL
SUB-PANELS DESCRIPTION
SCE-6P6 Sub-panel for 6 x 6" enclosure
SCE-8P6 Sub-panel for 8 x 6" enclosure
SCE-10P8 Sub-panel for 10 x 8" enclosure
SCE-12P10 Sub-panel for 12 x 10" enclosure
SCE-14P12 Sub-panel for 14 x 12" enclosure
SCE-16P14 Sub-panel for 16 x 14" enclosure
OM-P186 Sub-panel for 18 x 16" enclosure
Note: For 22 mm button holes add “22” to the end of the model number, no additional cost.
Mounting feet included on 4 button or larger models.
Ordering Examples: OM-AM3PB22, fiberglass pushbutton enclosure for 3, 22 mm
pushbuttons, 9 H x 4 W x 3.63" D.
OM-AM1086HP9, fiberglass pushbutton enclosure for 9, 30 mm pushbuttons, mounting feet
included, 10 H x 8 W x 6" D.
Enclosures
N-1
