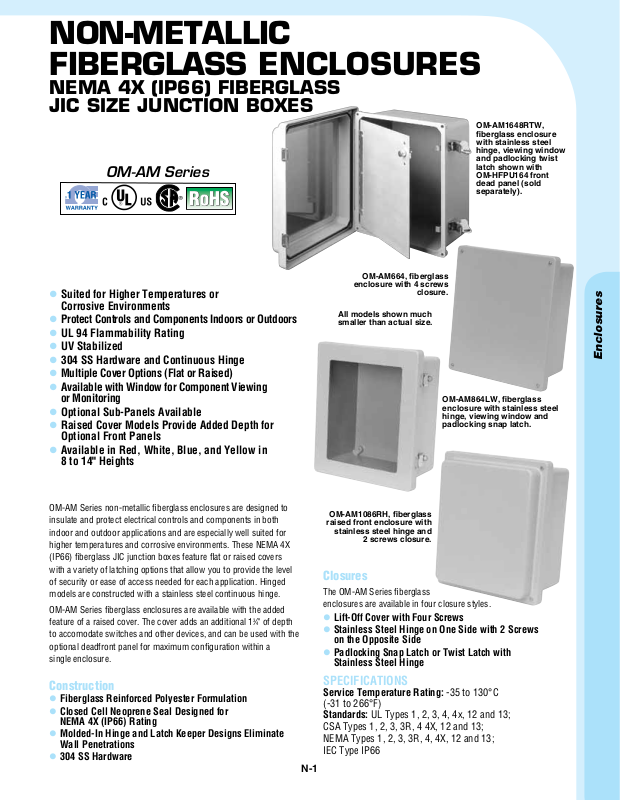

NoN-Metallic
Fiberglass eNclosures
NeMa 4X (iP66) Fiberglass
Jic size JuNctioN boXes
OM-AM Series

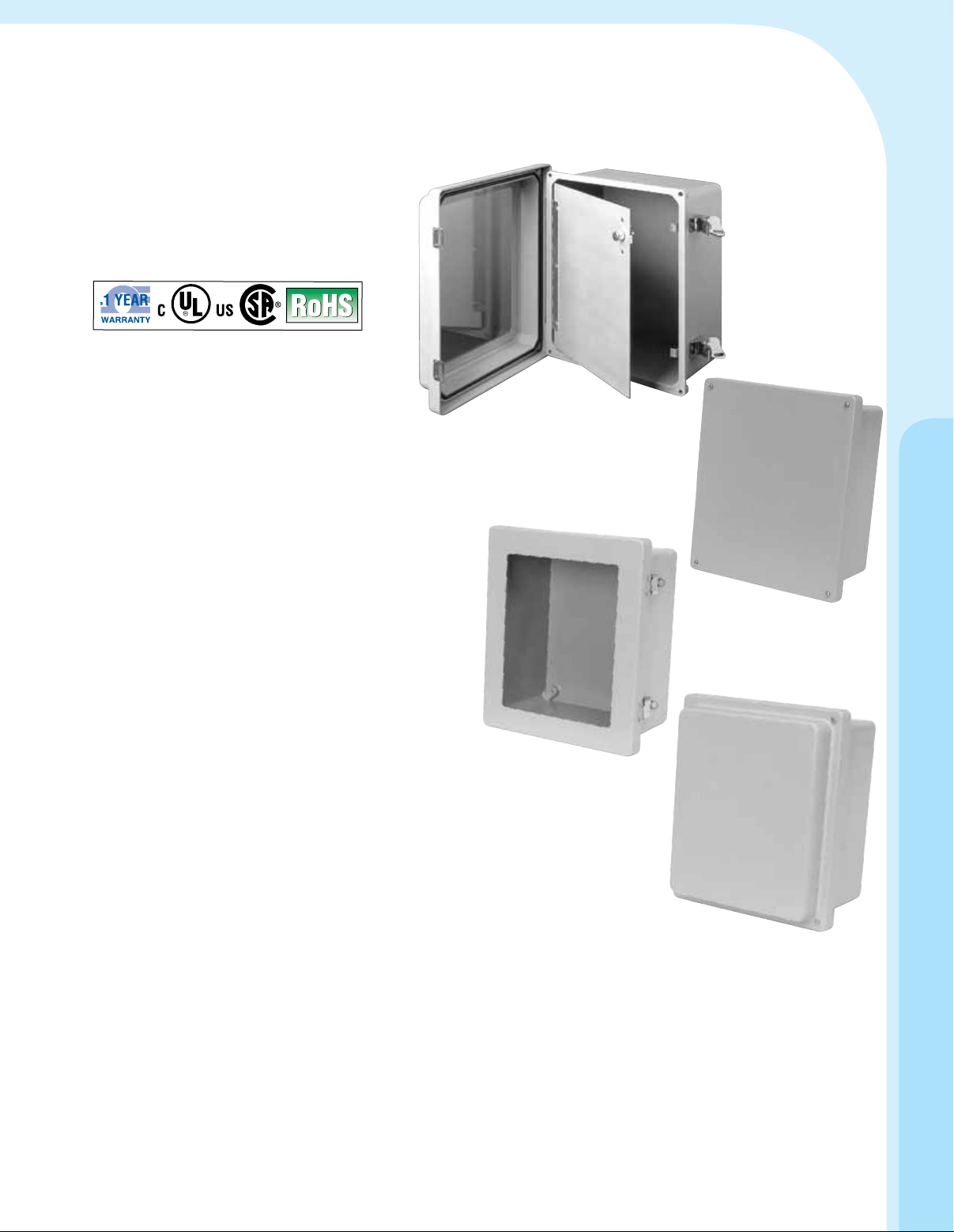

OM-AM664, fiberglass
l Suited for Higher Temperatures or
Corrosive Environments
l Protect Controls and Components Indoors or Outdoors
l UL 94 Flammability Rating
l UV Stabilized
l 304 SS Hardware and Continuous Hinge
l Multiple Cover Options (Flat or Raised)
l Available with Window for Component Viewing
or Monitoring
l Optional Sub-Panels Available
l Raised Cover Models Provide Added Depth for
Optional Front Panels
l Available in Red, White, Blue, and Yellow in
8 to 14" Heights
enclosure with 4 screws
All models shown much
smaller than actual size.
closure.
OM-AM864LW, fiberglass
enclosure with stainless steel
hinge, viewing window and
padlocking snap latch.

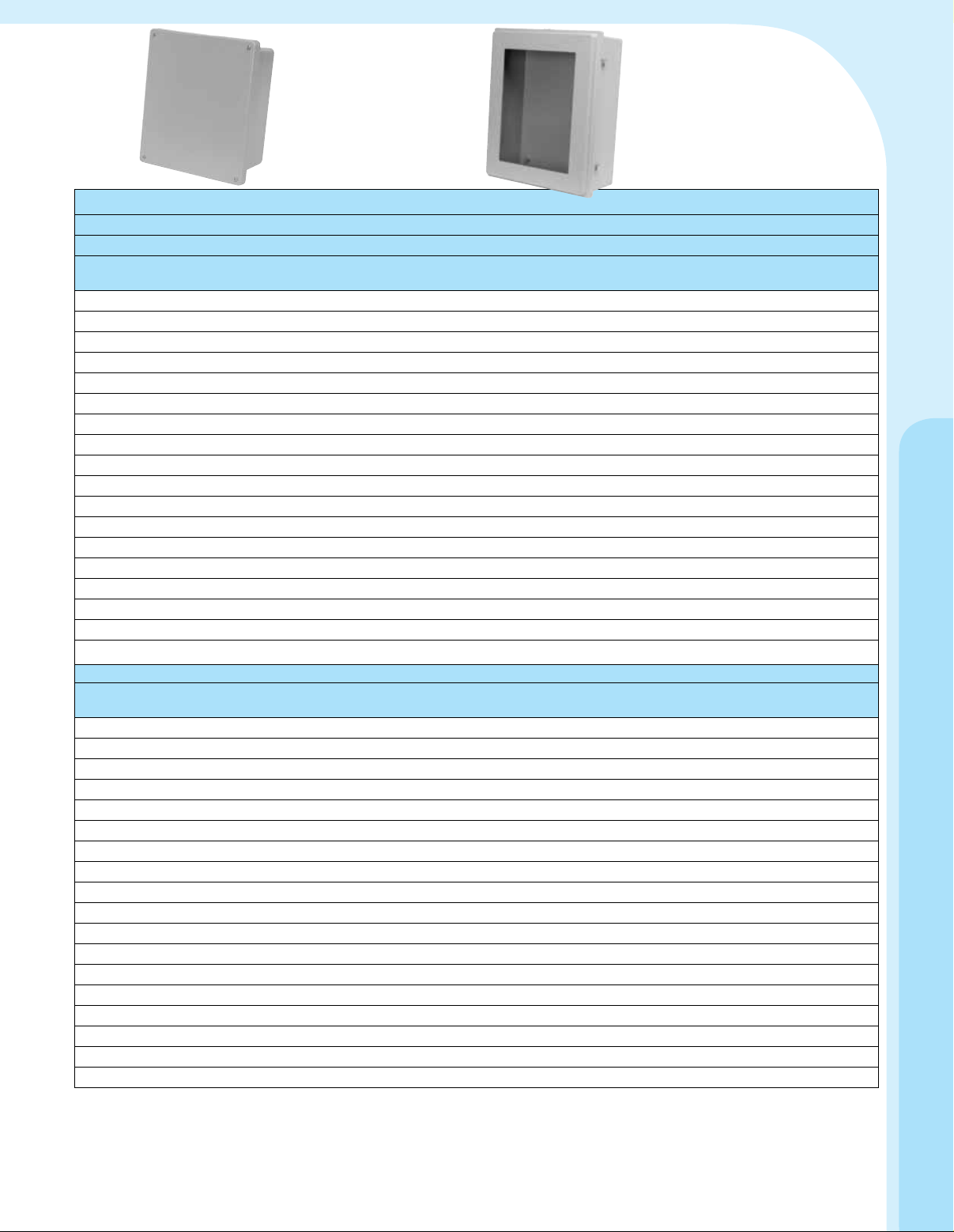

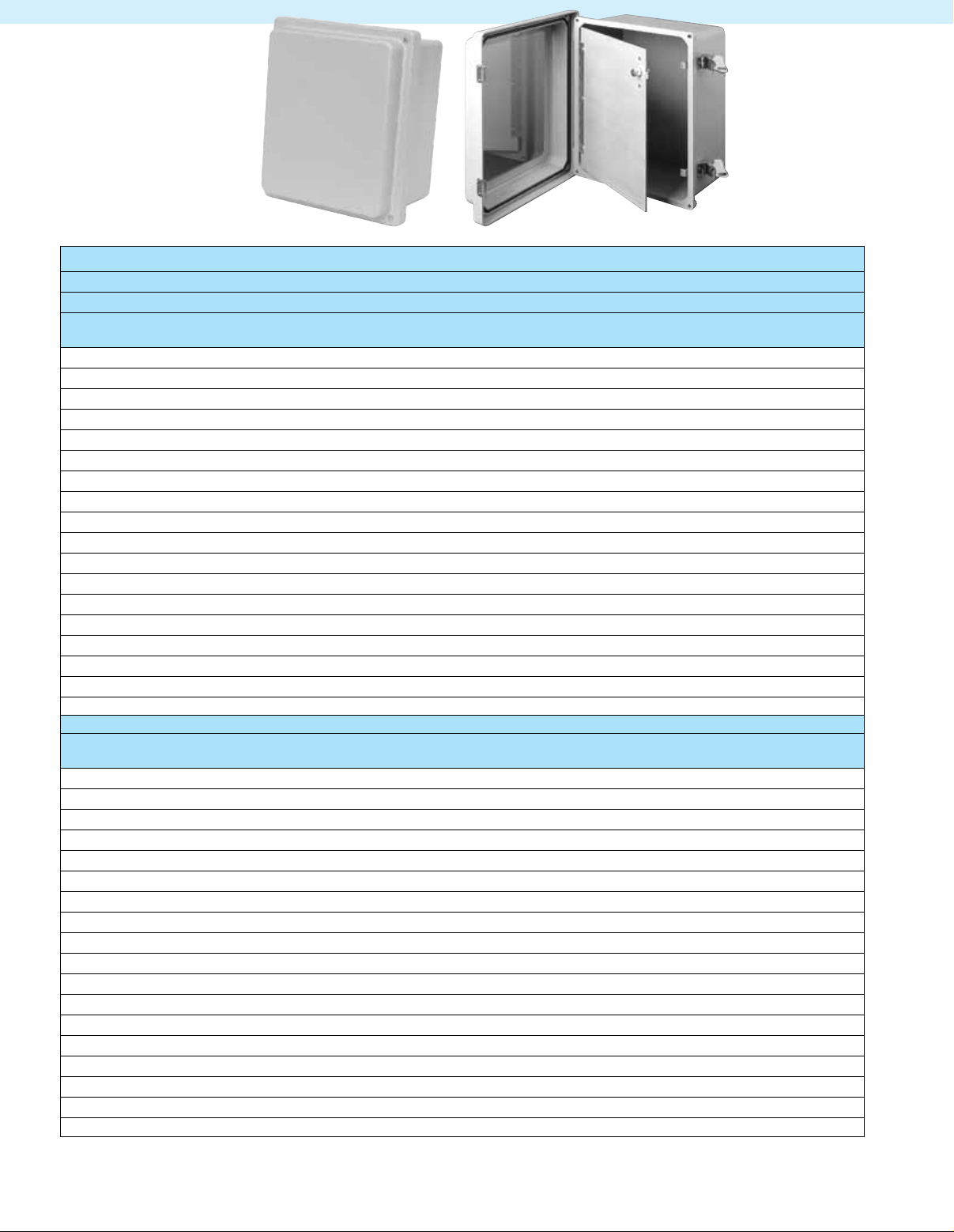

OM-AM1648RTW,
fiberglass enclosure
with stainless steel
hinge, viewing window
and padlocking twist
latch shown with
OM-HFPU164 front
dead panel (sold
separately).
Enclosures
OM-AM Series non-metallic fiberglass enclosures are designed to
insulate and protect electrical controls and components in both
indoor and outdoor applications and are especially well suited for
higher temperatures and corrosive environments. These NEMA 4X
(IP66) fiberglass JIC junction boxes feature flat or raised covers
with a variety of latching options that allow you to provide the level
of security or ease of access needed for each application. Hinged
models are constructed with a stainless steel continuous hinge.
OM-AM Series fiberglass enclosures are available with the added
feature of a raised cover. The cover adds an additional 1
to accomodate switches and other devices, and can be used with the
optional deadfront panel for maximum configuration within a
single enclosure.
3
⁄4" of depth
Construction
l Fiberglass Reinforced Polyester Formulation
l Closed Cell Neoprene Seal Designed for
NEMA 4X (IP66) Rating
l Molded-In Hinge and Latch Keeper Designs Eliminate
Wall Penetrations
l 304 SS Hardware
OM-AM1086RH, fiberglass
raised front enclosure with
stainless steel hinge and
2 screws closure.
Closures
The OM-AM Series fiberglass
enclosures are available in four closure styles.
l Lift-Off Cover with Four Screws
l Stainless Steel Hinge on One Side with 2 Screws
on the Opposite Side
l Padlocking Snap Latch or Twist Latch with
Stainless Steel Hinge
SPECIFICATIONS
Service Temperature Rating: -35 to 130°C
(-31 to 266°F)
Standards: UL Types 1, 2, 3, 4, 4x, 12 and 13;
CSA Types 1, 2, 3, 3R, 4 4X, 12 and 13;
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13;
IEC Type IP66
N-1
Page 2
B
A
12 TYP
(0.47)
Z
S
L
U
29 TYP
(1.15)
V
Note: Cover removed for clarity
F
M
D
30 TYP
(1.19)
Latch Locations
For use on:
24 x 20 x 8 D = 406 (16)
24 x 24 x 8 D = 406 (16)
30 x 24 x 8 D = 507 (19.98)
24 x 20 x 10 D = 406 (16)
24 x 24 x 10 D = 406 (16)
30 x 24 x 10 D = 507 (19.98)
C
L

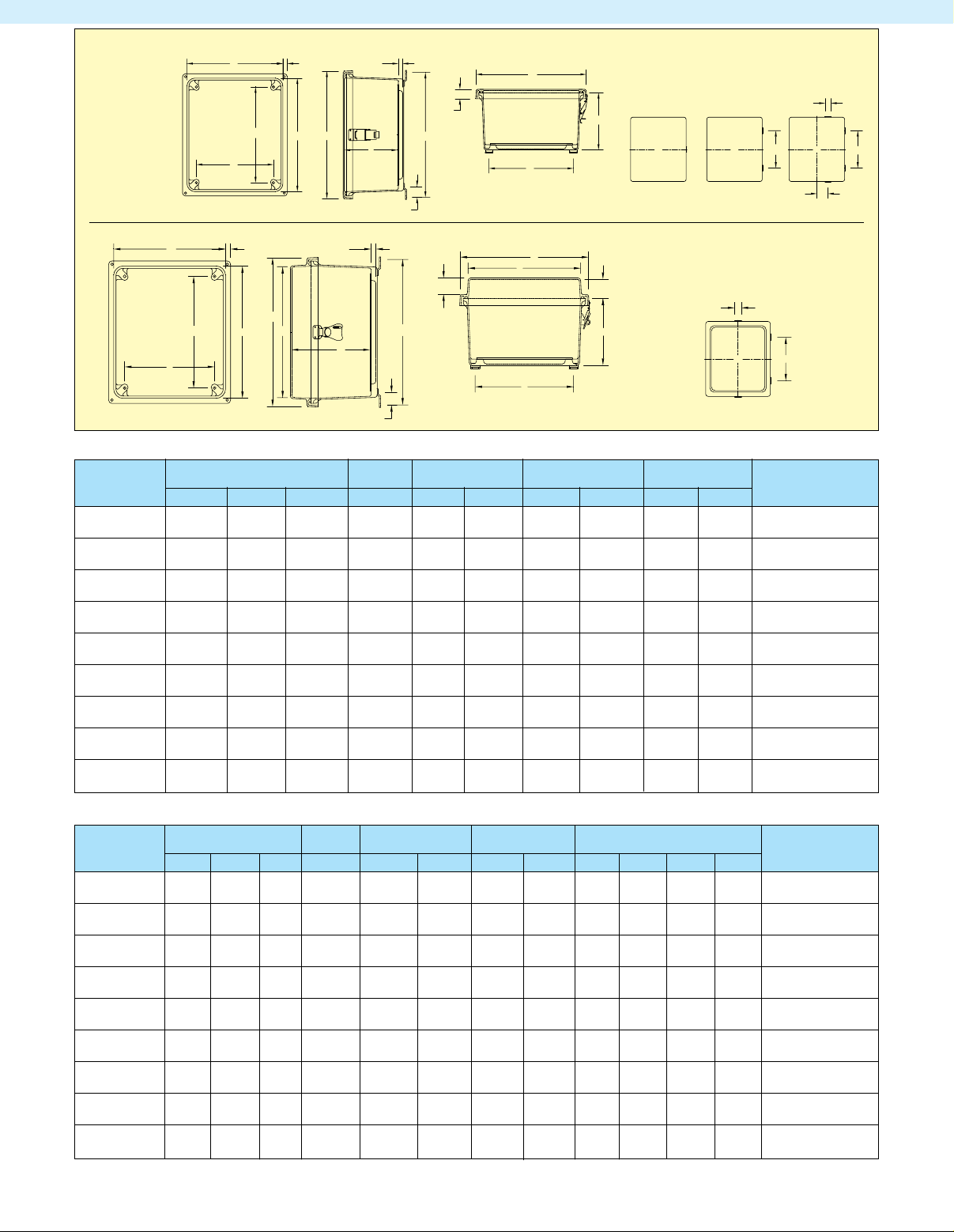

Flat Front Cover Dimensions: mm (inch)
LU
29 TYP
(1.15)
11
(0.44)
F
L
U
29 TYP
(1.15)
V
F
M
B
A
12 TYP
(0.47)
Z
S
LU
29 TYP
(1.15)
11
(0.44)
Note: Cover removed for clarity
F
D
D
30 TYP
(1.19)
38 TYP
C
L
Latch Locations
For use on
6 x 6 x 4
8 x 6 x 4
10 x 8 x 4
For use on
12 x 10 x 6 D = 203 (8.0)
14 x 12 x 6 D = 217 (8.54)
16 x 14 x 8 D = 217 (8.54)
For use on
18 x 16 x 8 D = 165 (6.5)
20 x 16 x 8 D = 267 (10.52)
C
L
10 x 8 x 6
C
L
S
12 TYP
12 TYP
(0.47)
A
U
M
B
Z
Note: Cover removed for clarity
Raised Front Cover Dimensions: mm (inch)
B
S
Z
Note: Cover removed for clarity
(0.47)
A
11
(0.44)
25
(0.125)
29 TYP
(1.15)
LU
Nominal 3 (0.125) wall thickness
38
(1.5)
L
Nominal 3 (0.125) wall thickness
F
V
F
29 TYP
(1.15)
W
H
W
K
H
C
44
(1.75)
C
For use on
6 x 6 x 4
8 x 6 x 4
10 x 8 x 4
10 x 8 x 6
Latch Locations
For use on
12 x 10 x 6 D = 203 (8.0)
14 x 12 x 6 D = 217 (8.54)
16 x 14 x 8 D = 217 (8.54)
C
L
For use on:
24 x 20 x 8 D = 406 (16)
24 x 24 x 8 D = 406 (16)
30 x 24 x 8 D = 507 (19.98)
Latch Locations
30 TYP
(1.19)
For use on
18 x 16 x 8 D = 165 (6.5)
20 x 16 x 8 D = 267 (10.52)
30 TYP
(1.19)
C
D
L
38 TYP
(1.5)
24 x 20 x 10 D = 406 (16)
24 x 24 x 10 D = 406 (16)
30 x 24 x 10 D = 507 (19.98)
C
L
D
C
L
FLAT FRONT COVER DIMENSIONS: mm (inch)
USABLE PANEL BOSS FOOT MOUNT COVER
MODEL BOX SIZE DEPTH CENTERS CENTERS SIZE WINDOW
NUMBER
OM-AM664
(6.10) (6.10) (4.18) (3.76) (4.25) (4.25) (5.01) (7.32) (7.69) (7.69) (4.25 x 4.25)
OM-AM864
(8.00) (6.13) (4.13) (3.68) (6.25) (4.25) (5.01) (9.19) (9.59) (7.71) (6.25 x 4.25)
OM-AM1084
(10.14) (8.26) (4.13) (3.68) (8.25) (6.25) (7.01) (11.19) (11.73) (9.85) (8.38 x 6.50)
OM-AM1086
(10.14) (8.26) (6.13) (5.68) (8.25) (6.25) (7.01) (11.19) (11.73) (9.85) (8.38 x 6.50)
OM-AM1206
(12.14) (10.26) (6.13) (5.68) (10.25) (8.25) (9.01) (13.19) (13.73) (11.85) (10.38 x 8.50)
OM-AM1426
(14.13) (12.26) (6.13) (5.68) (12.25) (10.25) (11.01) (15.19) (15.73) (13.85) (12.38 x 10.50)
OM-AM1648
(16.27) (14.4) (8.13) (7.68) (14.25) (12.25) (13.01) (17.19) (17.87) (15.99) (13.00 x 11.00)
OM-AM1868
(18.40) (16.40) (8.13) (7.68) (16.25) (14.25) (14.97) (19.28) (20.00) (18.00) (14.00 x 12.00)
OM-AM2068
(20.00) (16.00) (8.13) (7.68) (17.81) (13.81) (14.54) (20.84) (21.59) (17.95) (15.00 x 11.00)
A B C F S Z H L U W
155 155 106 96 108 108 127 186 195 195 108 x 108
203 156 105 93 159 108 127 233 244 196 159 x 108
258 210 105 93 210 159 178 284 298 250 213 x 159
258 210 156 144 210 159 178 284 298 250 213 x 159
308 261 156 144 260 210 229 335 349 301 264 x 216
359 311 156 144 311 260 280 386 400 352 314 x 267
413 366 207 195 362 311 330 437 454 406 330 x 279
467 417 207 195 413 362 380 490 508 457 356 x 305
508 406 207 195 452 351 369 529 548 447 381 x 279
HEIGHT X WIDTH
D
RAISED FRONT COVER DIMENSIONS: mm (inch)
USABLE PANEL BOSS FOOT MOUNT COVER
MODEL BOX SIZE DEPTH CENTERS CENTERS SIZE WINDOW
NUMBER A B C F S Z H L K M U W HEIGHT X WIDTH
OM-AM664 155 155 106 134 108 108 127 186 154 154 195 195 108 x 108
(6.10) (6.10) (4.18) (5.26) (4.25) (4.25) (5.01) (7.32) (6.08) (6.08) (7.69) (7.69) (4.25 x 4.25)
OM-AM864 203 156 105 132 159 108 127 233 155 203 244 196 159 x 108
(8.00) (6.13) (4.13) (5.21) (6.25) (4.25) (5.01) (9.19)) (6.11) (7.98) (9.59) (7.71) (6.25 x 4.25)
OM-AM1084 258 210 105 132 210 159 178 284 214 262 298 250 213 x 159
(10.14) (8.26) (4.13) (5.21) (8.25) (6.25) (7.01) (11.19) (8.44) (10.32) (11.73) (9.85) (8.38 x 6.50)
OM-AM1086 258 210 156 183 210 159 178 284 214 262 298 250 213 x 159
(10.14) (8.26) (6.13) (7.21) (8.25) (6.25) (7.01) (11.19) (8.44) (10.32) (11.73) (9.85) (8.38 x 6.50)
OM-AM1206 308 261 156 183 260 210 229 335 265 313 349 301 264 x 216
(12.14) (10.26) (6.13) (7.21) (10.25) (8.25) (9.01) (13.19) (10.45) (12.32) (13.73) (11.85) (10.38 x 8.50)
OM-AM1426 359 311 156 183 311 260 280 386 316 364 400 352 314 x 267
(14.13) (12.26) (6.13) (7.21) (12.25) (10.25) (11.01) (15.19) (12.45) (14.32) (15.73) (13.85) (12.38 x 10.50)
OM-AM1648 413 366 207 234 362 311 330 437 352 400 454 406 330 x 279
(16.27) (14.4) (8.13) (9.21) (14.25) (12.25) (13.01) (17.19) (13.86) (15.73) (17.87) (15.99) (13.00 x 11.00)
OM-AM1868 467 417 207 234 413 362 380 490 403 454 508 457 356 x 305
(18.40) (16.40) (8.13) (9.21) (16.25) (14.25) (14.97) (19.28) (15.86) (17.86) (20.00) (18.00) (14.00 x 12.00)
OM-AM2068 508 406 207 234 452 351 369 529 392 494 548 447 381 x 279
(20.00) (16.00) (8.13) (9.21) (17.81) (13.81) (14.54) (20.84) (15.43) (19.43) (21.59) (17.95) (15.00 x 11.00)
N-2
Page 3

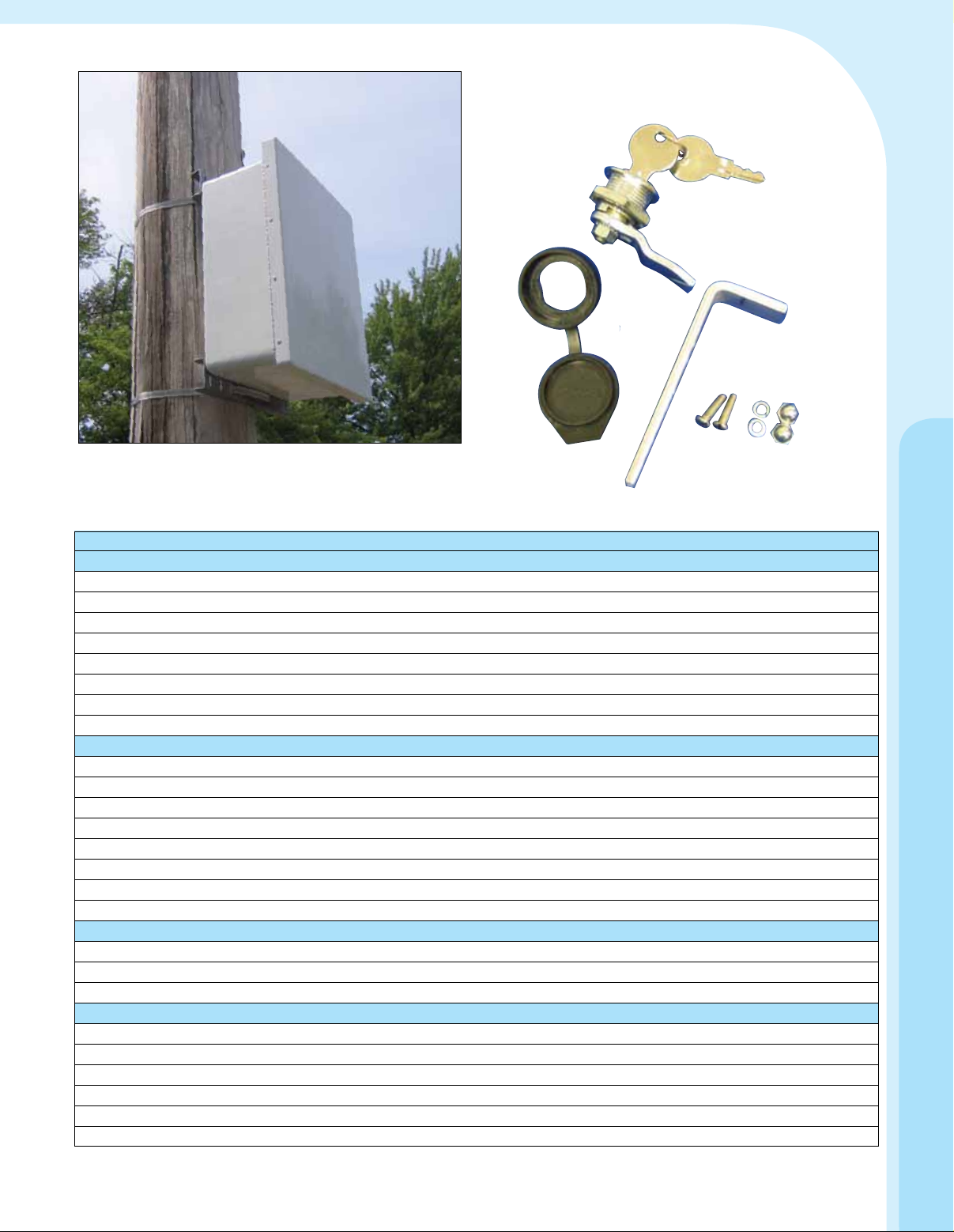

Pole mount kits for
up to 406 mm (16")
dia. poles available.
See accessories
chart below.
Pole mount kits are 14 gauge (0.075") galvannealed steel
with 48" SS pole clamp and includes #10-32 SS screws,
washers and lock nuts.
OM-AMKEYLOCKFC, key lock
kit with water tight cover.
ACCESSORIES
SUB-PANELS
FIBERGLASS ALUMINUM STEEL DESCRIPTION
OM-PF66 OM-PA66 SCE-6P6 Sub-panel for 6 x 6" enclosure
OM-PF86 OM-PA86 SCE-8P6 Sub-panel for 8 x 6" enclosure
OM-PF108 OM-PA108 SCE-10P8 Sub-panel for 10 x 8" enclosure
OM-PF120 OM-PA120 SCE-12P10 Sub-panel for 12 x 10" enclosure
OM-PF142 OM-PA142 SCE-14P12 Sub-panel for 14 x 12" enclosure
OM-PF164 OM-PA164 SCE-16P14 Sub-panel for 16 x 14" enclosure
OM-PF186 OM-PA186 OM-P186 Sub-panel for 18 x 16" enclosure
OM-PF206 OM-PA206 OM-P206 Sub-panel for 20 x 16" enclosure
FRONT-PANELS DESCRIPTION
OM-HFPU66 Aluminum front-panel for 6 x 6" for raised cover enclosure
OM-HFPU86 Aluminum front-panel for 8 x 6" for raised cover enclosure
OM-HFPU108 Aluminum front-panel for 10 x 8" for raised cover enclosure
OM-HFPU120 Aluminum front-panel for 12 x 10" for raised cover enclosure
OM-HFPU142 Aluminum front-panel for 14 x 12" for raised cover enclosure
OM-HFPU164 Aluminum front-panel for 16 x 14" for raised cover enclosure
OM-HFPU186 Aluminum front-panel for 18 x 16" for raised cover enclosure
OM-HFPU206 Aluminum front-panel for 20 x 16" for raised cover enclosure
KEY LOCK KITS DESCRIPTION
OM-AMKEYLOCKFC Key lock kit for flat cover enclosures, 6 x 6 thru 20 x 16"
OM-AMKEYLOCKRC Key lock kit for raised cover enclosures, 6 x 6 thru 20 x 16"
OM-AMKEYLOCKRCHFP
POLE MOUNT KIT DESCRIPTION
OM-AMPOLEMNT6 Pole mount kit for 6" wide fiberglass enclosures
OM-AMPOLEMNT8 Pole mount kit for 8" wide fiberglass enclosures
OM-AMPOLEMNT10 Pole mount kit for 10" wide fiberglass enclosures
OM-AMPOLEMNT12 Pole mount kit for 12" wide fiberglass enclosures
OM-AMPOLEMNT14 Pole mount kit for 14" wide fiberglass enclosures
OM-AMPOLEMNT16 Pole mount kit for 16" wide fiberglass enclosures
Note: Key lock kits cannot be used on window models. Water tight cover and 2 keys included
Key lock kit for raised cover enclosures with front panels, 10 x 8 thru 20 x 16"
Enclosures
N-3
Page 4
OM-AM1648RTW,
fiberglass enclosure
with stainless steel
hinge, viewing window
and padlocking twist
OM-AM1086R, fiberglass
raised front enclosure with
stainless steel hinge and
2 screws closure.
latch. Shown with
OM-HFPU164 front
dead panel sold
separately.
To Order
NON-METALLIC FIBERGLASS ENCLOSURES
RAISED COVER SCREW CLOSURE MODELS
MODEL NO. MODEL NO. DIMENSIONS: INCHES
WITHOUT HINGES WITH HINGES HEIGHT WIDTH DEPTH
OM-AM664R OM-AM664RH 6 6 4
OM-AM664RW OM-AM664RHW 6 6 4
OM-AM864R OM-AM864RH 8 6 4
OM-AM864RW OM-AM864RHW 8 6 4
OM-AM1084R OM-AM1084RH 10 8 4
OM-AM1084RW OM-AM1084RHW 10 8 4
OM-AM1086R OM-AM1086RH 10 8 6
OM-AM1086RW OM-AM1086RHW 10 8 6
OM-AM1206R OM-AM1206RH 12 10 6
OM-AM1206RW OM-AM1206RHW 12 10 6
OM-AM1426R OM-AM1426RH 14 12 6
OM-AM1426RW OM-AM1426RHW 14 12 6
OM-AM1648R OM-AM1648RH 16 14 8
OM-AM1648RW OM-AM1648RHW 16 14 8
OM-AM1868R OM-AM1868RH 18 16 8
OM-AM1868RW OM-AM1868RHW 18 16 8
OM-AM2068R OM-AM2068RH 20 16 8
OM-AM2068RW OM-AM2068RHW 20 16 8
RAISED COVER PADLOCKING LATCH CLOSURE MODELS
MODEL NO. MODEL NO. DIMENSIONS: INCHES
WITH SNAP LATCHES WITH TWIST LATCHES HEIGHT WIDTH DEPTH
OM-AM664RL OM-AM664RT 6 6 4
OM-AM664RLW OM-AM664RTW 6 6 4
OM-AM864RL OM-AM864RT 8 6 4
OM-AM864RLW OM-AM864RTW 8 6 4
OM-AM1084RL OM-AM1084RT 10 8 4
OM-AM1084RLW OM-AM1084RTW 10 8 4
OM-AM1086RL OM-AM1086RT 10 8 6
OM-AM1086RLW OM-AM1086RTW 10 8 6
OM-AM1206RL OM-AM1206RT 10 8 6
OM-AM1206RLW OM-AM1206RTW 12 10 6
OM-AM1426RL OM-AM1426RT 14 12 6
OM-AM1426RLW OM-AM1426RTW 14 12 6
OM-AM1648RL OM-AM1648RT 16 14 8
OM-AM1648RLW OM-AM1648RTW 16 14 8
OM-AM1868RL OM-AM1868RT 18 16 8
OM-AM1868RLW OM-AM1868RTW 18 16 8
OM-AM2068RL OM-AM2068RT 20 16 8
OM-AM2068RLW OM-AM2068RTW 20 16 8
Note: “W” indicates model with viewing window. Color can be special ordered for 20.32 to 35.56 cm (8 to 14") heights, add “-R” for red,
“-B” for blue, “-Y” for yellow and “-W” for white.
N-4
Page 5
OM-AM664, fiberglass
enclosure with 4 screws
closure.
OM-AM864LW, fiberglass
enclosure with stainless steel
hinge, viewing window and
padlocking snap latch.
To Order
NON-METALLIC FIBERGLASS ENCLOSURES
FLAT COVER SCREW CLOSURE MODELS
MODEL NO. MODEL NO. DIMENSIONS: INCHES
WITHOUT HINGES WITH HINGES HEIGHT WIDTH DEPTH
OM-AM664 OM-AM664H 6 6 4
OM-AM664W OM-AM664HW 6 6 4
OM-AM864 OM-AM864H 8 6 4
OM-AM864W OM-AM864HW 8 6 4
OM-AM1084 OM-AM1084H 10 8 4
OM-AM1084W OM-AM1084HW 10 8 4
OM-AM1086 OM-AM1086H 10 8 6
OM-AM1086W OM-AM1086HW 10 8 6
OM-AM1206 OM-AM1206H 12 10 6
OM-AM1206W OM-AM1206HW 12 10 6
OM-AM1426 OM-AM1426H 14 12 6
OM-AM1426W OM-AM1426HW 14 12 6
OM-AM1648 OM-AM1648H 16 14 8
OM-AM1648W OM-AM1648HW 16 14 8
OM-AM1868 OM-AM1868H 18 16 8
OM-AM1868W OM-AM1868HW 18 16 8
OM-AM2068 OM-AM2068H 20 16 8
OM-AM2068W OM-AM2068HW 20 16 8
FLAT COVER PADLOCKING LATCH CLOSURE MODELS
MODEL NO. MODEL NO. DIMENSIONS: INCHES
WITH SNAP LATCHES WITH TWIST LATCHES HEIGHT WIDTH DEPTH
OM-AM664L OM-AM664T 6 6 4
OM-AM664LW OM-AM664TW 6 6 4
OM-AM864L OM-AM864T 8 6 4
OM-AM864LW OM-AM864TW 8 6 4
OM-AM1084L OM-AM1084T 10 8 4
OM-AM1084LW OM-AM1084TW 10 8 4
OM-AM1086L OM-AM1086T 10 8 6
OM-AM1086LW OM-AM1086TW 10 8 6
OM-AM1206L OM-AM1206T 12 10 6
OM-AM1206LW OM-AM1206TW 12 10 6
OM-AM1426L OM-AM1426T 14 12 6
OM-AM1426LW OM-AM1426TW 14 12 6
OM-AM1648L OM-AM1648T 16 14 8
OM-AM1648LW OM-AM1648TW 16 14 8
OM-AM1868L OM-AM1868T 18 16 8
OM-AM1868LW OM-AM1868TW 18 16 8
OM-AM2068L OM-AM2068T 20 16 8
OM-AM2068LW OM-AM2068TW 20 16 8
Note: “W” indicates model with viewing window. Color can be special ordered for 8 to 14” heights, add “-R” for red,
”-B” for blue, “-Y” for yellow and “-W” for white.
All OM-AM Series enclosures come complete with 304 stainless steel mounting feet and screws.
Ordering Examples: OM-AM664, 6 x 6 x 4" flat fiberglass enclosure.
OM-AM1206RLW, raised cover fiberglass enclosure with UV resistant polycarbonate viewing window and snap latches
2 x 10 x 6", and SCE-12P10, steel sub-panel for 12 x 10" enclosure.
N-5
Enclosures
Loading...
