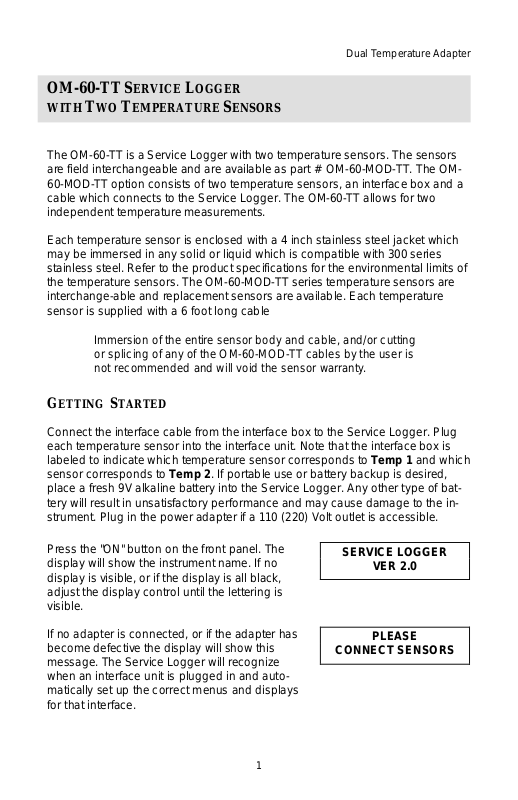

Dual Temperature Adapter

OM-60-TT SERVICE LOGGER

TWO TEMPERATURE SENSORS

WITH

The OM-60-TT is a Service Logger with two temperature sensors. The sensors are field interchangeable and are available as part # OM-60-MOD-TT. The OM60-MOD-TT option consists of two temperature sensors, an interface box and a cable which connects to the Service Logger. The OM-60-TT allows for two independent temperature measurements.

Each temperature sensor is enclosed with a 4 inch stainless steel jacket which may be immersed in any solid o r li q u i d w h i ch i s co mpatible with 300 series stainless steel. Refer to the product specifications for the environmental limits of the temperature sensors. The OM-60-MOD-TT series temperature sensors are interchange-able and replacement sensors are available. Each temperature sensor is supplied with a 6 foot long cable

Immersion of the entire sensor body and cable, and/or cutting or splicing of any of the OM-60-MOD-TT cables by the user is not recommended and will void th e sensor warranty.

GETTING STARTED

Connect the interface cable from the interface box to the Service Logger. Plug each temperature sensor into the interface unit. Note that the interface box is labeled to indicate which temperature sensor corresponds to Temp 1 and which sensor corresponds to Temp 2. If portable use or battery backup is desired, place a fresh 9V alkaline battery into the Service Logger. Any other type of battery will result in unsatisfactory performance and may cause damage to the instrument. Plug in the power ad a p ter i f a 110 (220) Vo lt o u tlet i s a ccessi b le.

Press the "ON" button on the front panel. The display will show the instrument name. If no display is visible, or if the display is all black, adjust the display control until the lettering is visible.

If no adapter is connected, or if the adapter has become defective the display will show this message. The Service Logger will recognize when an interface unit is plugged in and automatically set up the correct menus and displays for that interface.

SERVICE LOGGER

VER 2.0

PLEASE

CONNECT SENSORS

Page 2

Dual Temperature Adapter

This is the Operating Mode display for the OM-60-MOD-TT sensor. The temperature of each sensor is continuously measured and displayed.

TEMP 1 TEMP 2

74°F 50°F

This is the mode the Service Logger will go to after it is turned on.

If one or both temperature sensors are not connected or become defe cti ve, th e d i splay will indicate which sensor is not responding.

Temperature sensor #1 is not responding.

TEMP 1 TEMP 2

**** 50°F

Temperature sensor #2 is not responding.

TEMP 1 TEMP 2

74°F ****

Both temperature sensors are not responding.

TEMP 1 TEMP 2

**** ****

CHANGING SETTINGS

Every function of the Service Logger can be set through a series of menus. Settings are stored in memory and remain there even without the main or backup power source until altered by the user. Each sensor will have settings unique to its function and the Service Logger will select and display the correct menus for each sensor that is plugged in.

Changing Recording Time and Sampling Rate

RECORD

ENTER

button until the

button to change the

Press and hold the display changes to the Recording Rate men u . The user may select the sampling rate and recording time for the Service Logger. Use the

STATUS

or recording time and sampling rate according to the table listed below.

RECORDING RATE

15HR EVERY 15SEC

Page 3

Dual Temperature Adapter

Recording Time Sampling Rate

40 Days 15 Minutes 2 Weeks 5 Minutes 60 Hours 1 Minute 30 Hours 30 Seconds 15 Hours 15 Seconds 5 Hours 5 Seconds

When the

ENTER

button is pressed 3 more times (to cycle thro u g h th e remaining functions), the recording time and the sampling rate will be saved into memory and the Service Logger will return to the operating mode. Otherwise the unit will return to the operating mode after approximately 1 minute and changes will be saved in to memory.

Changing Scale to °F or °C

Press the

ENTER

button until the display

reads: or

TEMPERATURE SET

TO FAHRENHEIT

Use the

STATUS

RECORD

buttons to

change the setting to the desired scale. Th e

TEMPERATURE SET

TO CELSIUS

changes will be applied to both temperature channels.

When the

ENTER

button is pressed twice more (to cycle through the remaining functions), the temperature scale setting will be saved into memory, and the Service Logger will return to the operating mode. Otherwise the unit will return to the operating mode after approximately 1 minute and changes will be saved into memory.

RECORDING DATA

One of the most important functions of the Service Logger is to record information over a period of time. This function is like a chart recorder except that the information is stored in memory rather than being printed on paper. The user can choose to print the informati o n, transfer the information to a computer fo r advanced analysis or long term storage, or review the information on the Service Logger’s display.

Page 4

Dual Temperature Adapter

In the case of the OM-60-MOD-TT Sensor, the temperature of each sensor will be recorded. Different sensors will, of course, record different information depending on the function of that sensor. The Service Logger has a memory capacity to record up to 4000 samples o f d a ta . It i s th e o p ti o n o f th e u ser to reco rd data to the maximum capacity of the Service Logg er o r to termi n ate a reco rd i n g when sufficient information has been gathered.

IMPORTANT ! Each new recording will erase any previously recorded information. It i s th e responsibility of the user to either print or store a previ ous recording prior to starting a new recording.

The first step in making a recording is to select the proper recording time and sample rate. If a sampling rate of 15 seconds is being used, then every 15 seconds the temperature of each temperature sensor will be measured and stored into digital memory. No record of information is made between each sample even though the display will continuously show the environment the OM-60MOD-TT Sensors are exposed to.

For a recording to accurately reflect a series of events, it is u p to the u ser to select a recording interval that best suits the particular application. In some situations maximum record i n g time may be sacrificed so tha t mo r e f r eq u e n t sa mpling may be accomplished. Long term monitoring will require less frequent sampling in favor of longer recording times.

The next step is to select how the Service Logger will record the information from the OM-60-MOD-TT sensor. There are 3 possible ways to record information.

Press and hold

cording modes can be scrolled and changed by using

1. Record Information to Memory Only. This option stores information into the Service

RECORD

button until the record display appears. The four re-

STATUS

button:

RECORD ON, REAL

TIME PRINT OFF

Logger memory. No printer or computer connection is required for this function.

2. Record Information to a Printer. This option does not store information into memory, but

RECORD OFF, REAL

TIME PRINT ON

does print each sample as it is recorded to a printer. This is referred to as REAL TIME PRINTING. A printer must be connected for this function! If no printer is connected, or if the printer is off-line, or if the printer is out of paper an error message will be displayed to

Page 5

alert the user to a problem. Switching to this option will terminate recording if the Service Logger was set to record previously.

Dual Temperature Adapter

3. Record Information to Memory and to a Printer. This is a combination of options 1 and 2. Information is stored in memory and at the same time each sample is recorded to a printer. As in option 2, a printer must be connected and functioning or an error mess age will be displayed.

4. If a recording is in progress, this option will

terminate all recording functions. This option may also be used if the user decides to cancel a recording session and return to the operating mode. In order to terminate a recording press

ENTER

the

Press the

button again at this time.

RECORD

button after selecting a recording mode. This will display the starting time of the recording. The display will show the starting time of the last recording and allo w the user to enter a new starting time.

STATUS

The

button will advance the item that is flashing. Press and hold the

RECORD ON, REAL

TIME PRINT ON

RECORD OFF, REAL

TIME PRINT OFF

DAY HOUR MIN

FRI 15 16

STATUS

button to scroll this item. Press the

RECORD

button to change to the next item which will then start to flash. This will set the starting time of the recording which will appear on the display or printout after a recording has been made. Note that the previous starting time is always displayed when a new recording is started.

When the Service Logger is in the recording mode, it will prevent the user from changing the settings. The user will only be allowed to check the recording rate

when they press the

Press

ENTER

button.

button to return to the operating mo d e and b eg i n th e reco rd -

ing.

Page 6

Dual Temperature Adapter

If option 1 or 3 is selected, an "R" will be displayed in the upper right hand corner of the

TEMP 1 TEMP 2 R

74°F 52°F

display. The "R" indicates that a recording is in progress.

While you are recording it is possible to check how much memory has been used. Press and

hold the

STATUS

button until the display

shows the percent of available remaining

WED:14:22:20

78% MEM. LEFT

memory. As the recording continues this number will decrease. The Service Logger will continue to record until the recording is terminated manually or when all of the available memory has been used. When 0% Memory Le ft is displayed, this will indicate that almost all of the available memory has been used and the Service Logger will shortly terminate the record i n g au to mati cally.

Sample of a typical printout at the beginning of recording:

The time is specified using the format D(ays):H(ours):M(inutes):S(econds). This convention is used in the printout and the display.

Service Logger

Temp 1 Temp 2 Time (D:H:M:S)

72 71 WED:14:03:00 72 71 WED:14:03:05 72 72 WED:14:03:10 72 72 WED:14:03:15 72 72 WED:14:03:20

PRINTING RECORDED DATA

After a recording has been made the user will probably want some way to view and analyze the recorded information. This is most easily accomplished by printing out the data samples. The printed data can be analyzed or stored fo r future reference. Several print options are available.

Filtering Printed Recordings

If the user were to print a recording which used all of the memory capacity of the Service Logger, this would b e a very lo n g reco rd o f 4000 d ata sa mp les. To print this out line by line on a standard computer printer would use over 60 sheets of paper! Obviously this would be a cumbersome and time consuming process. In most cases the information required from the record is only when the temperature changes. If the temperature remains constant, it is not necessary to print line after line of the same information.

Page 7

Dual Temperature Adapter

The Service Logger allows the user to select from 1° to 10° of temperature change from either temperature sensor to print on. What this means is that data samples that are less than the selected temperature change are ignored during the printing process and only when the temperature has changed by the selected amount is a sample printed out. That temperature becomes the new value to compare to and the temperature will ha ve to chan g e ag ain b y th e selected amount before another sample is printed.

One important point to remember is that even if a data sample is not printed the Service Logger still has to recall it from memory and compare it to the filter selection. Therefore, a printout may take up to 10 minutes for a scan of all 4000 data samples. This may sound complicated, but is easy to understand by using an example recording.

Example:

A recording has been made of 2 rooms in a building over a 30 hour period to determine whether or not heat is reaching both rooms. This means that a one data sample is recorded every 30 seconds. For the printout the user has selected a change of 2° from temperature sensor #1. Shown below would be a typical printout of the data using the above selections. (In a real printout there would be no spaces between the lines of printing, but in our example these were added to allow room for comments to be inserted.)

Service Logger

Temp1(F) Temp2(F) Time(D:H:M:S)

--------------------------------------------------------- 74 72 MON:08:25:00 This is the first data record and

starting time is Monday,

8:25a.m.

76 74 MON:10:25:00 Temperature #1 has warmed up

2° at 10:25 a.m. on the same day.

78 75 MON:15:25:30 Temperature #1 continued to

increase by 2° at 15:25 (3:25 p.m.) on the same day.

76 75 MON:23:37:30 Temperatu r e # 1 d ecrea sed 2° a t

23:37 (11:37 p.m.) on the same day.

74 74 TUE:01:10:00 Temperature #1 decreased an

additional 2° at 1:10 a . m. on the Tuesday of the same week.

Page 8

Dual Temperature Adapter

72 73 TUE:13:57:00 Temperature #1 continued to

decrease at 13:57 (1:57 p.m.) on the Tuesday of the same week.

End of Data This indicates the end of the

recording and shows that the temperature remained within 2° of 72°F for the remainder of the recording period.

The above example shows that by using the filtering function the user can take a printout that would consume over 60 pages of paper and condense it into a single page.

*Note that only ONE sensor may be used as a temperature filter.

How to Send Recorded Data to a Printer

Press

ENTER

several times until this display appears. This is where the print function is accessed.

PUSH MENU TO RUN

OTHERS TO PRINT

Press

STATUS

the print options until this display appears.

RECORD

to scroll through

SEND RECORDED

DATA TO PRINTER

To Print Out the Temperatures Based on Temp 1 Data Do the Following:

Press selection.

This is the first filter option. Selecting this will print every data sample of the Temperature 1 channel that has recorded data.

Press

Each press of the

advance the degree of change, otherwise press

ENTER

STATUS

to advance to the next print

to select a filter function.

STATUS

button will

SEND OUT ALL OF

THE TEMP 1 DATA

SEND TEMP 1 ON

X DEGREE CHANGE

ENTER

to continue.

Page 9

Dual Temperature Adapter

To Print Out the Temperatures Based on Temp 2 Data Do the Following:

Press

ENTER

and then every data sample of the Temperature 2 channel that has recorded data.

Press

Each press of the

RECORD

to select a filter function.

the degree of change, otherwise press to continue.

ENTER

is pushed, the Service Logger will

return to the operating mode.

RECORD

to print

button will advance

ENTER

SEND OUT ALL OF

THE TEMP 2 DATA

SEND TEMP 2 ON

X DEGREE CHANGE

PUSH ^ START PRT

PUSH MENU QUIT

STATUS

begin

is pushed, the printing will

PRINTING

PLEASE WAIT…

and the flashing dots indicate printing functions. When the Service Logger is finished printing it

will return to the Operating Mode.

Printer Error Messages

If a printer is not connected and set to operate, an error messa ge will be displayed to alert the user to a printer problem.

There are several possible problems that may occur if the printer is not ready. The Service Logger will alert the user to a problem with the printer. As each printer has its own set of controls and settings, the user is recommended to consult the owners manual supplied with the printer.

This is an error message that appears when the printer is not connected or turned off. Make sure the printer cable is attached to both the

PLEASE CONNECT

THE PRINTER

Page 10

printer and the Service Logger and that power is supplied to the printer.

Dual Temperature Adapter

This is an error message to alert the user that the printer has run out of paper. Refer to the

PRINTER IS OUT

OF PAPER

owners manual of the printer for instructions on paper replacement.

This is an error message to indicate that the printer has not been set to ON LINE. Refer to the owners manual for specific instructions on

PRINTER IS NOT

ON LINE

setting the printer controls.

VIEWING RECORDED DATA

One of the features of the Service Logger is that recorded information may be read directly on the display. The same filter functions that are available for printing data are also available for reading data on the display. This allows the user to let the Service Logger scan the recorded data and display only the information that is of interest to the user. Without this function the user would have to manually scan a poten ti a l 4000 d a ta sa mp les to fi n d th e i n f o r mati on of interest.

Press and hold appears. The actual recording rate is unimportant.

Press

ENTER

As before, the scale does not pertain to the viewing function.

ENTER

until this display

again to go to the next screen.

RECORDING RATE

XX HR EVERY XX SEC

TEMPERATURE SET

TO FAHRENHEIT

This is where the viewing function is accessed.

Press

STATUS

RECORD

to access this

menu.

Press the

RECORD

button once to scroll to this

function.

Press

ENTER

to advance to the next display selection.

PUSH MENU TO RUN

OTHERS TO PRINT

READ RECORDED

DATA FROM SCREEN

Page 11

Dual Temperature Adapter

To View Temperatures Based on Temp 1 Data Do the Following:

Press selection. This is the first filter option. Selecting

ENTER

to advance to the next

SEND OUT ALL OF

THE TEMP 1 DATA

this will allow the user to view every data sample of Temperature 1 channel that has been recorded.

Press

STATUS

to select a filter function. Each

SEND TEMP 1 ON

X DEGREE CHANGE

press of the

degree of change, otherwise press

STATUS

button will advance the

ENTER

continue.

To View Temperatures Based on Temp 2 Data Do the Following:

Press

ENTER

and then the

RECORD

to view every data sample of Temperature 2 channel that has been recorded data.

Press

Each press of the

the degree of change, otherwise press

RECORD

to select a filter function.

RECORD

button will advance

ENTER

to continue.

This is the first data sample. Press

STATUS

advance forward through the data samples.

Press

RECORD

to go backwards through th e

data samples.

SEND OUT ALL OF

THE TEMP 2 DATA

SEND TEMP 2 ON

X DEGREE CHANGE

WED:14:23:55

72°F 55°F

Page 12

Dual Temperature Adapter

This indicates the end of a data recording. Press

STATUS

recording or

Press

to return to the beginning of the data

ENTER

RECORD

to go to the last previous data sample.

at any time to return to the Operating Mode.

REACHED THE END

OF RECORDED DATA

TRANSFERRING DATA TO A COMPUTER

After a recording has been made, the user may download the data to any PC compatible computer. The advantage of doing this is that it allows the use of more sophisticated analysis tools as well as a long term storage. Unlike the Print and View functions no filtering options are available in this mode. The entire recording is sent to the computer. The supplied software will convert the data recording to an ASCII file which can then be imported into a variety of data analysis software, word pro cessin g , a n d d a ta b a se p r o g ra ms. It i s su g g ested th a t i f the user plans to download recorded da ta o n a reg ular b a si s to co p y the tran sfer program to the users hard disk.

To start the transfer program, insert the supplied d i skette i n dr ive A. Typ e “A:SUPCO” and follow the instructions on the computer screen. A README file is also included on the floppy diskette which has detailed instructions on the use of the transfer program and reflects the latest informatio n th at i s no t i ncluded in this manual.

IMPORTANT! To use this function the 25 pin cable (DB25 Male-M ale) must be c onnected to the Service Logger and the PC compatible computer printer port. If you are unsure of which connector is the printer port, c onsult the ow ners manual which was supplied with the computer.

The computer transfer cable can be purchased from OMEGA as part # OMCC6.
