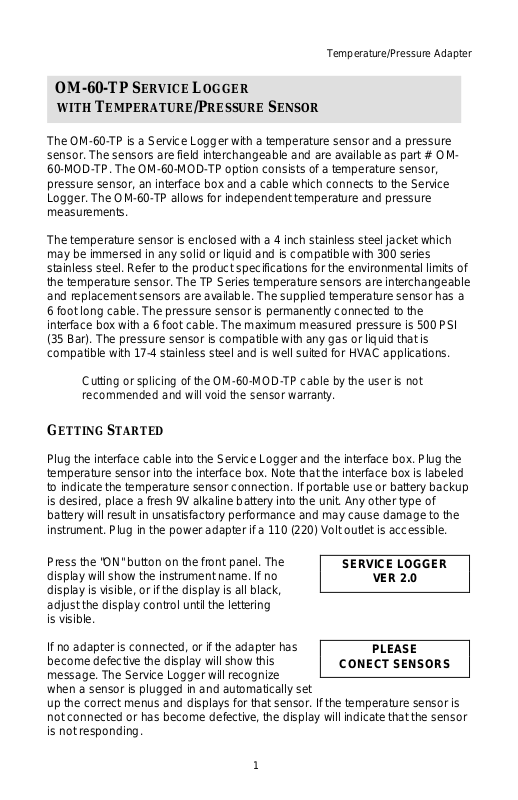

Omega OM-60-TP User guide

Temperature/Pressure Adapter

OM-60-TP SERVICE LOGGER

WITH

The OM-60-TP is a Service Logger with a temperature sensor and a pressure sensor. The sensors are field interchangeable and are available as part # OM60-MOD-TP. The OM-60-MOD-TP option consists of a temperature sensor, pressure sensor, an interface box and a cable which connects to the Service Logger. The OM-60-TP allows for independent temperature and pressure measurements.

The temperature sensor is enclosed with a 4 inch stainless steel jacket which may be immersed in any solid o r li q u i d a n d i s co mp a ti b le w i th 300 seri es stainless steel. Refer to the product specifications for the environmental limits of the temperature sensor. The TP Series temperature sensors are interchangeable and replacement sensors are available. The supplied temperature sensor has a 6 foot long cable. The pressure sensor is permanently connected to the interface box with a 6 foot ca b le. Th e ma xi mu m mea su red pressure is 500 PSI (35 Bar). The pressure sensor is compatible with any gas or liquid that is compatible with 17-4 stainless steel and is well suited for HVAC applications.

GETTING STARTED

TEMPERATURE/PRESSURE SENSOR

Cutting or splicing of the OM-60-MOD-TP cable by the user is not recommended and will void th e s ensor warranty.

Plug the interface cable into the Service Logger and the interface box. Plug the temperature sensor into the interface box. Note that the interface box is labeled to indicate the temperature sensor connection. If portable use or battery backup is desired, place a fresh 9V alkaline battery into the unit. Any other type of battery will result in unsatisfactory performance and may cause damage to the instrument. Plug in the power a d a p ter if a 110 (220) Vo lt o u tlet i s accessi b le.

Press the "ON" button on the front panel. The display will show the instrument name. If no display is visible, or if the display is all black, adjust the display control until the lettering is visible.

If no adapter is connected, or if the adapter has become defective the display will show this message. The Service Logger will recognize when a sensor is plugged in and automatically set up the correct menus and displays for that sensor. If the temperature sensor is not connected or has become defective, the display will indicate that the sensor is not responding.

1

SERVICE LOGGER

VER 2.0

PLEASE

CONECT SENSORS

Temperature/Pressure Adapter

Temperature sensor is not responding.

TEMP PRESSURE

**** 0 PSI

This is the Operating Mode display for the OM-60-MOD-TP adapter. Temperature and pressure are continuously measured and

TEMP PRESSURE

74°F 0 PSI

displayed. This is the mode the Service Logger will go to after it is turned on.

CHANGING SETTINGS

Every function of the Service Logger can be set through a series of menus. Settings are stored in memory and remain there even without the main and backup power source until altered by the user. Each sensor will have settings unique to its function and the Service Logger will select and display the correct menus for each sensor that is plugged in.

Changing Recording Time and Sampling Rate

MENU

Press and hold the display changes to the Recording Rate men u . The user may select the sampling rate and recording time for the Service Logger. Use

ENTER

button until the

RECORDING RATE

15HR EVERY 15 SEC

the

STATUS

or

RECORD

buttons to change the recording time and sampling rate according to the table listed below.

Recording Time Sampling Rate

40 Days 15 Minutes 2 Weeks 5 Minutes 60 Hours 1 Minute 30 Hours 30 Seconds 15 Hours 15 Seconds 5 Hours 5 Seconds

MENU

When the

ENTER

button is pressed 4 more times (to cycle thro u g h th e remaining functions), the recording time and the sampling rate will be saved into memory and the Service Logger will return to the operating mode. Otherwise the unit will return to the operating mode after approximately 1 minute and changes will be saved in to memory.

2

Temperature/Pressure Adapter

CHANGING SCALE TO °F OR °C

MENU

Press the

ENTER

button until the display

reads:

or

Use the

STATUS

or

RECORD

buttons to

change the setting to the desired scale.

MENU

When the

ENTER

button is pressed three more times (to cycle th ro u g h th e remaining functions), the temperature scale setting will be saved into memory and the Service Logger will return to the operating mode. Otherwise the unit will return to the operating mode after approximately 1 minute and changes will be saved into memory.

Changing Scale to PSI or BAR

MENU

STATUS

ENTER

button until the display

or

RECORD

or

buttons to

Press the reads:

Use the change the setting to the desired scale.

TEMPERATURE SET

TO FAHRENHEIT

TEMPERATURE SET

TO CELSIUS

PRESSURE SCALE

IS SET TO PSI

PRESSURE SCALE

IS SET TO BAR

MENU

When the

ENTER

button is pressed twice more (to cycle through the remaining functions), the temperature and pressure scale setting will be saved into memory, and the Service Logger will return to the operating mode. Otherwise the unit will return to the operating mode after approximately 1 minute and changes will be saved in to memory.

3

Temperature/Pressure Adapter

SETTING PRESSURE SENSOR TO 0 PSI

Under certain conditions and over a period of time the pressure sensor may drift slightly off 0 PSI.

To re-zero the pressure sensor, press an d h o ld

STATU S

while in the Operating Mode until the

INITIAL

ZERO PRESSURE

display indicates Initial Zero Pressure.

Release the

STATU S

button. The sensor has now b een reset to zero . No te that for this adjustment to maintain the accuracy of the pressure sensor, the pressure must actually be at 0 PSI when setting the zero point.

RECORDING DATA

One of the most important functions of the Service Logger is to record information over a period of time. This function is like a chart recorder except that the information is stored in memory rather than being printed on paper. The user can choose to print the informati o n, transfer the information to a computer fo r advanced analysis or long term storage, or review the information on the Service Logger’s display.

In the case of the OM-60-MOD-TP option, the temperature and pressure will be recorded. Different sensors will, of course, record different information depending on the function of that sensor. The Service Logger has a memory capacity to record up to 4000 samples o f d a ta . It i s th e o p ti o n o f th e u ser to reco rd data to the maximum capacity of the Service Logg er o r to termi n ate a reco rd i n g when sufficient information has been gathered.

IMPORTANT ! Each new recording will erase any previously recorded information. It is th e responsibility of the user to either print out or store a previous recording prior to starting a new recording.

The first step in making a recording is to select the proper recording time and sample rate. If a sampling rate of 15 seconds is being used, then every 15 seconds the temperature and pressure will be measured and stored into digital memory. No record of information is made between each sample even tho ugh the d i splay will continuously show the environment the OM-60-MOD-TP sensors are exposed to.

For a recording to accurately reflect a series of events, it is u p to the u ser to select a recording interval that best suits the particular application. In some situations maximum record i n g time may be sacrificed so tha t more frequent sam-

4

Temperature/Pressure Adapter

pling be accomplished. Long term monitoring will require less frequent sampling in favor of longer recording times. The next step is to select how the Service Logger will record the information from the OM-60-MOD-TP sensor. There are 3 possible ways to record information.

Press and hold

RECORD

button until the record display appears. The four re-

cording modes can be scrolled and changed by using buttons:

1. Record information to memory only. This option stores information into the Service Logger’s memory. No printer or computer connection is required for this function.

2. Record information to a printer. This option does not store information into memory, but does print each sample as it is recorded to a printer. This is referred to as REAL TIME PRINTING. A printer must be connected for this function! If no printer is connected, or if the printer is off-line, or if the printer is out of paper an error message will be displayed to alert the user to a problem. Switching to this option will terminate recording if the Service Logger was set to record previously.

3. Record information to memory and to a printer. This is a combination of options 1 and 2. Information is stored in memory and at the same time each sample is recorded to a printer. As in option 2., a printer must be connected and functioning or an error message will be displayed.

STATUS

or

RECORD

RECORD ON, REAL

TIME PRINT OFF

RECORD OFF, REAL

TIME PRINT ON

RECORD ON, REAL

TIME PRINT ON

4. If a recording is in progress, this option will

terminate all recording functions. This option may also be used if the user decides to cancel a recording session and return to the operating mode. In order to terminate a record-

MENU

RECORD

ENTER

button again at this time.

button after selecting the

ing, press

Press the

5

RECORD OFF, REAL

TIME PRINT OFF

DAY HOUR MIN

FRI 15 16

Temperature/Pressure Adapter

recording mode. This will display the starting time of the recording. The display will show the starting time of the last recording and allow the user to enter a new starting time.

STATUS

The

button will advance the item that is flashing. Press and hold the

STATUS

button to scroll this item. Press the

RECORD

button to change to the next item which will then start to flash. This will set the starting time of the recording which will appear on the display or printout after a recording has been made. Note that the previous starting time is always displayed when a new recording is started.

When the Service Logger is in the recording mode, it will prevent the user from changing the settings. The user will only be allowed to check the recording rate

MENU

when they press the

MENU

Press the

ENTER

button.

button to return to the operating mo d e an d b egi n th e re-

cording. If option 1 or 3 is selected, an "R" will be dis-

played in the upper right hand corner of the

TEMP PRESSURE R

76°F 0 PSI

display. An "R" indicates a recording is in progress.

While you are recording it is possible to check how much memory has been used. Press and

hold the

STATUS

button until the display

MON:10:35:0

56% MEM. LEFT

shows the percent of available remaining memory and the starting time of the recording.

As the recording continues this number will decrease. The Service Logger will continue to record until the recording is terminated manually or when all of the available memory has been used. When 0% Memory Left is displayed, this will indicate that almost all of the available memory has been used and the Service Logger will shortly terminate the recordi n g au to mati cally.

Sample of a typical printout at the beginning of recording:

The time is specified using the format D(ays):H(ours):M(inutes):S(econds). This convention is used in the printout and the display.

Service Logger

Temp (F) Pressure PSI Time (D:H:M:S)

6

Temperature/Pressure Adapter

75 25 MON:10:35:00 74 27 MON:10:35:05 76 26 MON:10:35:10 75 49 MON:10:35:15

PRINTING RECORDED DATA

After a recording has been made the user will probably want some way to view and analyze the recorded information. This is most easily accomplished by printing out the data samples. The printed data can be analyzed or stored fo r future reference. Several print options are available.

Filtering Printed Record

If the user were to print out a recording which used all of the memory capacity of the Service Logger, this woul d b e a very lo n g reco rd o f 4000 d a ta sa mp les. To print this out line by line on a standard computer printer would use over 60 sheets of paper! Obviously this would be a cumbersome and time consuming process. In most cases the information required from the record is only when the temperature or pressure changes. If the temperature or pressure remains constant, it is not necessary to print line after line of the same information.

The Service Logger allows the user to select from 1° to 10° of temperature change or 1 to 10 PSI (0.0 to 1.0 BAR) of pressure change to print on. What this means is that data samples that are less than the selected temperature o r p ressure change are ignored during the printing process and only when the temperature or pressure has changed by the selected amount is a sample printed out. That temperature or pressure becomes the new value to compare to and the temperature or pressure will have to change again by the selected amount before another sample is printed.

One important point to remember is that even if a data sample is not printed the Service Logger still has to recall it from memory and compare it to the filter selection. Therefore, a printout may take up to 10 minutes for a scan of all 4000 data samples. This may sound complicated, but is easy to understand by using an example recording.

Example:

A recording has been made of water temperature and pressure over a 30 hour period. This means that a data sample is recorded every 30 seconds. For the printout the user has selected a change of 2°. Shown below would be a typical printout of the data using the above selections. In a real printout there will be no spaces between the lines of printing, but in our example these were added to allow room for comments to be inserted.

7

Temperature/Pressure Adapter

Service Logger

Temp(F) Pressure(PSI) Time(D:H:M:S)

------------------------------------------------------------------- 54 32 TUE:11:00:00 This is the first data record

and the starting time is Tuesday, 11:00 a.m.

56 27 TUE:15:30:00 The water has warmed up 2°

at 15:30 (3:30 p.m.)on the same day.

54 29 TUE:17:54:30 The water temperature

dropped 2° at 17:54 (5:54 p.m.) on the same day.

52 30 WED:11:05:30 The water temperature low-

ered an additional 2° at 11:05 a.m. on the Wednesda y of the same week.

50 28 WED:13:17:00 The water continued to cool 2°

at 13:17 (1:17 p.m.)on the Wednesday of the same week.

End of Data This indicates the end of the

recording and shows that the temperature remained within 2° of 50°F for the remainder of the recording period.

The above example shows that by using the filtering function the user can take a printout that would consume over 60 pages of paper and condense it into a single page.

How to Send Recorded Data to a Printer

MENU

Press appears. This is where the print function is accessed.

8

ENTER

several times until this display

PUSH MENU TO RUN

OTHERS TO PRINT

Temperature/Pressure Adapter

Press

STATUS

or

RECORD

to scroll through

the print options until this display appears.

MENU

Press

ENTER

to advance to the next print

selection. This is the first filter option. Selecting this will

print every data sample that has recorded data.

Press

STATUS

to select a temperature filter function, from 1° to 10° can be selected as a filter function.

or

Press

RECORD

to select a pressure filter function, from 1 to 10 PSI or 0.0 to 1.0 BAR can be selected as a filter function. Then press

MENU

ENTER

If

MENU

ENTER

to continue.

is pushed, the Service logger will

return to the operating mode.

SEND RECORDED

DATA TO PRINTER

SEND OUT ALL OF

THE TEMP DATA

SEND TEMP ON

X DEGREE CHANGE

SEND PRESSURE

ON X PSI CHANGE

PUSH ^ START PRT

PUSH MENU QUIT

If and

STATUS

is pushed, the printing will begin

PRINTING

PLEASE WAIT…

the flashing dots indicate printing functions. When the Service Logger is finished printing it will return to the Operating Mode.

Printer Error Messages

If a printer is not connected and set to operate, an error messa ge will be displayed to alert the user to a printer problem.

There are several possible problems that may occur if the printer is not ready. The Service Logger will alert the user to a problem with the printer. As each printer has its own set of controls and settings, the user is recommend to consult the owners manual supplied with the printer.

9

Temperature/Pressure Adapter

This is an error message that appears when the printer is not connected or turned off. Make sure

PLEASE CONNECT

THE PRINTER

the printer cable is attached to both the printer and the Service Logger and that power is supplied to the printer.

This is an error message to alert the user that the printer has run out of paper. Refer to the

PRINTER IS OUT

OF PAPER

owners manual of the printer for instructions on paper replacement.

This is an error message which indicates that the printer has not been set to ON LINE. Refer to the

PRINTER IS NOT

ON LINE

owners manual for specific instructions on setting the printer controls.

VIEWING RECORDED DATA

One of the features of the Service Logger is that recorded information may be read directly on the display. The same filter functions that are available for printing data are also available for reading data on the display. This allows the user to let the Service Logger scan the recorded data and display only the information that is of interest to the user. Without this function the user would have to manually scan a poten ti a l 4000 d a ta sa mp les to fi n d th e i n f o r mati on of interest.

MENU

Press and hold appears. The actual recording rate is unimportant.

ENTER

until this display

RECORDING RATE

XX HR EVERY XX SEC

MENU

Press

ENTER

again to cycle to the next screen. As before, the scale does not pertain to the viewing function.

This is where the viewing function is accessed.

Press

STATUS

or

RECORD

to access this

menu.

Press the

RECORD

button once to scroll to this

function.

10

TEMPERATURE SET

TO FAHRENHEIT

PUSH MENU TO RUN

OTHERS TO PRINT

READ RECORDED

DATA FROM SCREEN

Temperature/Pressure Adapter

MENU

Press

ENTER

to advance to the next display selection. This is the first filter option. Selecting this will

print every data sample that has been recorded.

Press

function otherwise press

Use the

temperature change, then press

STATUS

to select a temperature filter

MENU

ENTER

to continue.

button to select 1 to 10° of

MENU

ENTER

to

continue.

or

Press

RECORD

to select a pressure filter function from 1 to 10 PSI (0.0 to 1.0 BAR),

MENU

then press

This is the first data sample. Press

ENTER

to continue.

STATUS

to

advance forward through the data samples.

Press

RECORD

to go backwards through th e data samples.

SEND OUT ALL OF

THE TEMP DATA

SEND TEMP ON

X DEGREE CHANGE

SEND PRESSURE

ON X PSI CHANGE

TUE:14:22:25

73°F 37 PSI

This indicates the end of a data recording. Press

STATUS

recording or

to return to the beginning of the data

RECORD

to go to the last previous

data sample.

MENU

Press

ENTER

11

at any time to return to the Operating Mode.

REACHED THE END

OF RECORDED DATA

Temperature/Pressure Adapter

TRANSFERRING DATA TO A COMPUTER

After a recording has been made, the user may download the data to any PC compatible computer. The advantage of doing this is that it allows the use of more sophisticated analysis tools as well as a long term storage. Unlike the Print and View functions no filtering options are available in this mode. The entire recording is sent to the computer. The supplied software will convert the data recording to an ASCII file which can then be imported into a variety of data analysis software, word pro cessin g , a n d d a ta b a se p r o g ra ms. It i s su g g ested th a t i f the user plans to download recorded da ta o n a reg ular b a si s to co p y the tran sfer program to the users hard disk.

To start the transfer program insert the supplied di skette i n d rive A. Typ e “A:SUPCO” and follow the instructions on the computer screen. A README file is also included on the floppy diskette which has detailed instructions on the use of the transfer program and reflects the latest informatio n th at i s no t i ncluded in this manual.

IMPORTANT! To use this function the 25 pin cable (DB25 Male-M ale) must be c onnected to the Service Logger and the PC compatible computer printer port. If you are unsure of which connector is the printer port, c onsult the ow ners manual which was supplied with the computer.

The computer transfer cable can be purchased from OMEGA as part # OMCC6.
