Omega OM-144 User guide

User’s Guide

Shop online at

omega.com

e-mail: [email protected]

For latest product manuals:

omegamanual.info

SM

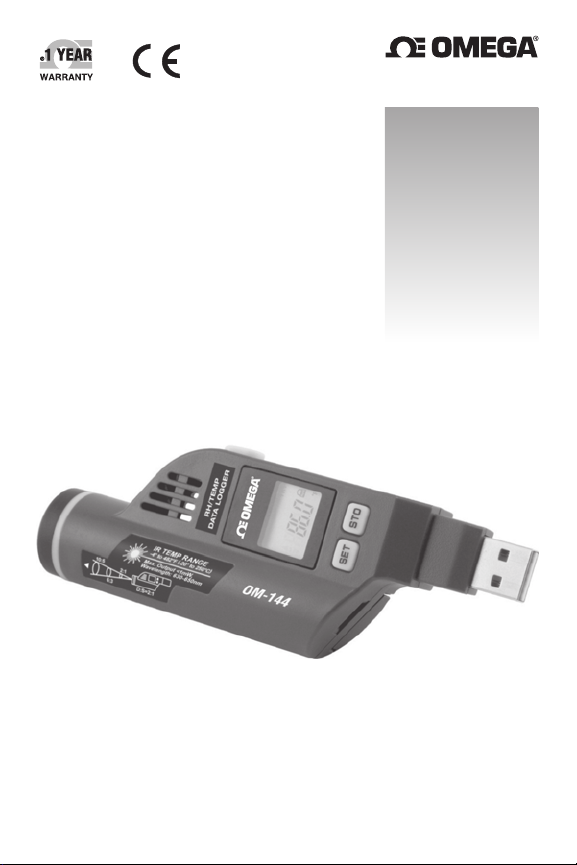

OM-144

USB RH/Temperature/GPP

Data Logger with LCD and IRT

omega.com [email protected]

Servicing North America:

U.S.A.: Omega Engineering, Inc., One Omega Drive, P.O. Box 4047

Stamford, CT 06907-0047 USA

Toll-Free: 1-800-826-6342 (USA & Canada only)
Customer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: [phone] Fax: [phone]
e-mail: [email protected]

For Other Locations Visit omega.com/worldwide

The information contained in this document is believed to be correct, but OMEGA accepts no
liability for any errors it contains, and reserves the right to alter specifications without notice.

TABLE OF CONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 –4

Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 –5

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

What’s in the Blister Pack. . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 –7

Setup Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 –13

Installing/Replacing the Battery . . . . . . . . . . . . . . . . . 8

Install Software and Drivers. . . . . . . . . . . . . . . . . 8 –9

Configure the Unit . . . . . . . . . . . . . . . . . . . . . . 10 –13

Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . 14 –19

Deploy the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Stop Logging and Import Logs . . . . . . . . . . . . . . . . . 15

Viewing, Printing and Exporting Data Logs. . . . 15 –17

Using the IR Thermometer . . . . . . . . . . . . . . . . . . . . 17

Other Indications . . . . . . . . . . . . . . . . . . . . . . . 18 –19

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 –20

Maintenance Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

INTRODUCTION

Thank you for purchasing the OM-144 USB RH/Temp/GPP
Data Logger with LCD & IRT. Please read this user’s manual

carefully and thoroughly before using the instrument.

2

The OM-144 is a low-cost, compact, battery-powered thermo­hygrometer capable of unattended logging (recording) of the
ambient temperature and relative humidity (RH) of an
environment for days, weeks or months. It can also measure
and optionally log surface temperatures spot-checked by a
technician using the unit’s integral infrared (IR) thermometer.
In addition, the OM-144 can also calculate and display absolute
humidity levels in units of grains per pound (GPP) or g/kg.
Also called mixing ratio, GPP is a more useful moisture metric
than RH to water damage restorers. Using RH alone, a
restorer might unknowingly introduce moist air—with a low
RH but a high GPP—during a job’s drying phase).

Data logging can be started or stopped by pushing a button
on the unit, eliminating the need to bring a laptop to the
job site. After a data log has been captured and stored, it can

®

7 or

be uploaded as a .txt file to any PC running the Windows

®

Windows

XP operating system after plugging the OM-144 into
one of the computer’s USB ports. The OM-144’s internal flash
memory is large enough to store 16,300 pairs of RH and
temperature readings or nearly 10,000 sets of RH, ambient
temperature and surface temperature readings.

Included with the product is a mini-disc with the drivers
needed to interface the unit to the computer, as well as
software that can display a data log file as a table or graph
and/or export it to Microsoft Excel. Exporting to Excel is
recommended for sophisticated trending and analysis of
humidity and temperature data and easy detection of
unexpected excursions.

Windows®7 and Windows®XP are registered trademarks of Microsoft Corporation.

3

Applications for the OM-144 include:

• Water damage restoration—Because the OM-144 is designed

to be deployed and left in place over the duration of the job,
it is always in equilibrium with the environment.

• Process control—The OM-144 enables, simplifies and cuts the

cost of environmental monitoring of office buildings,
greenhouses, food and equipment storage facilities,
wineries, freezers, shipping containers, HVAC/R installations,
computer rooms, labs, libraries, museums, and saunas.

• Electronics manufacturing—Alerts provided by the low-

humidity alarm function of the OM-144 can mitigate the risk
of damaging high-voltage static discharges.

KEY FEATURES

• One button starts/stops data logging without a PC

• Plug-and-play USB 2.0 interface; no need for cables,

cradles or docks

• Large storage capacity: 16,300 pairs of RH and

temperature readings or nearly 10,000 sets of RH, ambient

temperature and surface temperature readings

• 3-1/2-digit LCD displays real-time temperature and RH

readings, absolute humidity readings—in grains per pound

(GPP) or g/kg—and device working and alarm status and

“memory full”

• Built-in IR thermometer with 2:1 Distance-to-Spot ratio and

measurement range of -4° to 482°F (-20° to 250°C)

• Included software is used to set: Sampling time from

10 seconds to 12 hours; Hi/Lo alarm setpoints for humidity,
ambient temperature and surface temperature;
Temperature unit (°F or °C)

4

• Software also calculates and plots GPP and dew point and

wet bulb temperatures and displays data logs as time­based graphs synchronized to your PC’s clock

• One-click exporting of logs to Excel or Word

• Long battery life (up to one year)

• Includes USB extension cable

• One-year warranty

SAFETY INSTRUCTIONS

CAUTION - Use of controls or adjustments or performance of
procedures other than those specified herein may result in
dangerous radiation exposure. The OM-144’s targeting laser
ia a Class 2 type that emits less than 1mW of power at a
wavelength of 655nm. Avoid direct eye contact with laser
light radiation. U.S. law prohibits pointing a laser beam at
aircraft; doing so is punishable by a fine of up to $10,000 and
imprisonment.

Do not use the OM-144 in the presence of flammable or
explosive gases.

WHAT’S IN THE BLISTER PACK

The OM-144 comes in a blister pack that also contains

• One “1/2 AA” battery. Replacement batteries
(Part No. OM-EL-BATT) are available from Omega

• A disc with software drivers for Windows7 and Windows
XP computers, the ELusb V1.21.1 program for capturing
data logs and displaying them as curves, and a PDF of
this user’s manual

• A USB extension cable

• A hard copy of this user’s manual (inside the fold-over card)

5

PRODUCT OVERVIEW

Fig.1a below shows the main components, controls and
connectors of the OM-144. Fig. 1b (on the facing page) shows
all possible indications on the OM-144’s display. Familiarize
yourself with their names and functions before moving on to
the Setup Instructions.

F

E

D

C

J

B
A

G

Fig. 1A

H

I

The components, controls and connector of the OM-144

A. IR sensor window
B. Laser pointer window
C. Battery compartment (opens from rear of unit)
D.

3-1/2-digit LCD (displays real-time temperature, RH and GPP

readings; also indicates device working status and “memory fill”)
E. USB plug
F. Protective cap
G. SET and STO buttons (used to turn LCD on and switch

between GPP, temperature and RH readings and units; also

used to start/stop logging and check unit’s working status)
H. Meas button (when pressed and held, activates

IR thermometer and laser pointer)
I. Ambient temperature and humidity sensor window

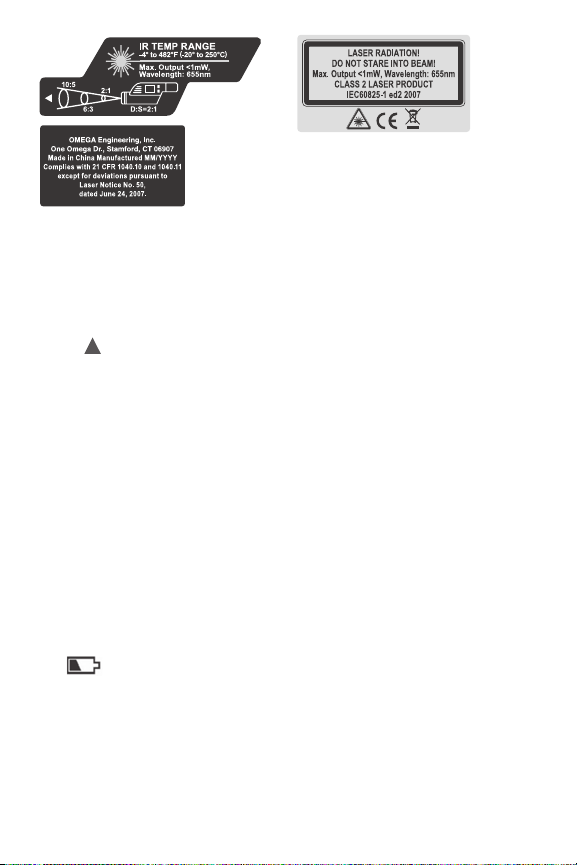

J. Laser identification/certification/warning/safety labels

(see top of next page)

6

Fig. 1b. All possible

display indications

on the OM-144

Display Legend

: indicates reading is

higher than high alarm setpoint for that parameter

▼

: indicates reading is lower than low alarm setpoint for

that parameter

%RH: relative humidity unit

°C: Celsius temperature unit

°F: Fahrenheit temperature unit

IRT: Indicates operation in IRT mode

Hold: Indicates that IRT measurement is being held on the

display

GPP: Absolute humidity (mixing ratio) value in Imperial units

(grains per pound)

g/kg:

Absolute humidity (mixing ratio) value in metric units

: Low battery icon

[-]888.8: Humidity or temperature value or one of the following

four working status indications

LOG: Unit is logging data

- - -: Unit is in standby mode, ready to log data
FUL: Internal memory is full (and logging has been stopped)

CON: Unit needs to be configured by software

7

SETUP INSTRUCTIONS

INSTALLING/REPLACING THE BATTERY

The OM-144 uses a 3.6VDC “1/2 AA” Lithium-ion battery
To open the battery compartment, turn the unit over and
slide the battery compartment cover (which is clearly marked)
toward the front of the unit, in the direction opposite the
arrow on the cover. Remove the old battery and insert a fresh
battery in the correct orientation. Then replace the cover,
pushing it forward until you feel and hear a click.

After you replace the battery, the LCD will “wake up” and
begin displaying real-time readings. If the SET or STO button
is not pressed within 60 seconds, the LCD will be
automatically powered off.

Note: If the battery is removed from a unit before it has been
set up from software or while it is recording, the unit must be
reconfigured before it can be reactivated. If it is not
reconfigured, the unit will remain in standby mode.

INSTALL SOFTWARE AND DRIVERS

1. Place mini-disc in tray of CD/DVD drive, shiny side
down. Close tray.

2. When the AutoPlay window appears, click on

“Open folder to view files using Windows Explorer.”

3. Windows Explorer will indicate that there are two

“Files Currently on the Disc”. One is actually a folder

containing an electronic file of this user’s manual. Copy
the OM-144 manual to your computer’s hard drive for
permanent storage. The other file is a Windows Installer
Package (.msi file) named “EL USB_V1.21.1.msi”.
Double-click its icon.

8

4. A window titled “Welcome to ELUsb Installation Wizard”
will appear. Click Next to continue.

5. Within the Software License Agreement window that
appears next, click the I agree (T) box.

6. The next three windows advise that the ELusb application
will be installed in your computer’s C:\Program Files
folders in a new subfolder named <ELusb>, and that
shortcuts to the program will be created on your desktop
and Quick Launch bar. If you want to install the software
elsewhere, click Browse and choose another location.
Within each window, after selecting either the default
location or another location, click Next(N) to continue.

7. When the “Ready to install ELUsb” window appears,
click Install to continue.

8. Before the installation begins, a User Account Control
window may appear and ask, “Do you want to allow
[ELUSB V1.21.1.msi] to make changes to this computer?”
Click Yes to continue.

9. The ELUsb Setup Wizard will now install the program
on your computer. On the next window that appears,
click the Completed (F) box.

10. At the bottom of the Device Driver Installation Wizard that
appears next, click Next to continue.

11. The next window to appear is a Windows Security
window. Click on “Install this driver software anyway”
to continue.

12. The next Device Driver Installation Wizard window will
advise you that an OM-141/143/144 driver from Omega
or Kecheng Laboratories was successfully installed and
that your device is now “Ready to use.” Click Finish
to continue.

9

CONFIGURE THE UNIT

Note that the software installation has added a icon to
your desktop. To facilitate access to the program, right-click
on the icon and pin it to both your Start button and the Quick
Start area at the left of your taskbar. You can now eject the
installation mini-disc and store it with your other important
software.

Plug the OM-144 into an available USB port of your computer.

If your computer is a laptop and the only available USB
jack does not have enough vertical clearance to
accommodate the OM-144 without mechanically stressing
its USB plug, do not plug the OM-144 directly into the jack.
You do not want the plug of the OM-144 to support any of
the weight of the laptop. If that is the case, plug the OM-144

into the jack of the included USB extension cable and insert
the plug of the extension cable into the computer’s USB jack.

The first time you plug the OM-144 into your computer, your
system tray will notify you that the computer is “Installing
Device Driver Software”. When the notification disappears,
open the ELusb program by selecting it via your Start button,
clicking on its icon on your taskbar, or double-clicking its
desktop icon.

If the software has installed correctly and you have plugged
the OM-144 into a working USB port of your computer, the
following screen should appear on your computer’s display.

10

Device OM-144 is connected!

Fig. 2. The three options made available by

plugging the OM-144 into a USB port

Note: If you have already used your OM-144 to log data
and it is still in recording mode, plugging the unit in
will cause the following window to appear.

Click Yes to stop recording and import all data recorded to
that point in time. Click No to continue to Setup without
importing recorded data (meaning it will be lost). Click
Cancel to go back and unplug the unit from the USB port.

11

You can now use the software to “configure” your OM-144.
Configuring the device means choosing five key parameters:

• Sampling time—How often it makes and stores

humidity and temperature measurements.

• Temperature unit—degrees Fahrenheit or Celsius

(°F or °C).

• High and low (ambient) temperature alarm setpoints

• High and low humidity alarm setpoints

• High and low surface (IR) temperature setpoints

To begin, click on “Set up the USB Data Logger” in the
window shown in the figure above. Doing so will cause the
following window to appear.

Device OM-144 is connected!

Fig. 3. The OM-144 configuration (Setup) window

Using your mouse, trackball or touchpad, first choose your
Temp Scale and Sample Rate (sampling time). With regard to
sampling time, using the shortest setting of 10 seconds may

12

result in too much essentially identical data being stored in
memory, potentially limiting its capacity to capture important
events such as an unexpected excursion of temperature or
humidity. Conversely, using the longest sampling time setting
of 12 hours will likely cause important events to go
undetected.

If you are an experienced data logger, you already know how
to choose the optimum sampling time for your application. If
you are a novice, pick a sampling time closer to the minimum
sampling time than the maximum, on the assumption that
the OM-144 probably has enough memory (16,300 pairs of
humidity and temperature readings, if you choose not to log
IR thermometer measurements) to store all the data you ask
the meter to log—unless you use it to log data for months,
rather than weeks or days.

Be aware that if you do manage to fill up the OM-144's memory
(by logging for a very long time at a very short sampling time,
for example), the device will simply stop recording. It will not
continue recording by overwriting the oldest saved data with
new data.

If you wish, you can also drag the sliders shown in the figure to
set—from top to bottom— high and low alarm setpoints for
(ambient) temperature, humidity, and IRT (surface)
temperature.

Once you have chosen your data logging parameters, click
Setup. A window will appear advising that “The device is set
up successfully.” Clicking Setup also synchronizes the
OM-144’s internal clock with your computer’s clock, giving all
data logs to be captured an absolute time reference.

You can now unplug the OM-144 from your computer’s USB
port. The unit is in “standby” mode, ready to begin logging data.

13

OPERATING INSTRUCTIONS

DEPLOY THE UNIT

The OM-144 is particularly easy to deploy on a job site because
the unit does not need to be plugged into a computer to be
activated (ready to start logging data). Working together, the
SET and STO buttons and the LCD serve as the control and
indicators needed to: 1) start and stop data logging and

2) verify and change the unit’s working status.

That leaves only two things to be sure of when choosing a
place to deploy the OM-144:

• The temperature and humidity sensor window

(Fig. 1a, Callout I) is not covered

• The humidity and temperature values at the unit’s

location are “representative” of the room

The OM-144—with its protective cap on—can be deployed
either by laying it on a horizontal surface or by hanging it
vertically within the included plastic mounting bracket.
The back of the bracket features both a magnet and a
hanger hole.

Once you have deployed the OM-144, you can initiate data
logging. To start logging ambient temperature and
humidity data (but not IRT measurements), press and hold
the SET button for at least 3 seconds. The LCD will display

the word “LOG” to confirm that logging has begun. To
start logging ambient temperature and humidity data as
well as IRT measurements, press the hold the STO button
for at least 3 seconds. The LCD will display the words
“LOG” and “IRT” to confirm that logging has begun.

14

STOP LOGGING AND IMPORT LOGS

To stop data logging, press and hold the SET or STO button
for at least 3 seconds. The LCD will display three dashes
(- - -) to confirm that logging has stopped.

That is how you should stop data logging if you plan to initiate
another logging session later without uploading logged data
to your computer in the interim. If you allow logging to
continue and you do not upload your data to your computer
soon, you risk filling up the OM-144’s memory.

A simpler and safer way to stop data logging is to plug the
OM-144 into your computer’s USB port immediately after
completing a logging session and then use the ELUSB
software to stop logging.

Each time you plug the OM-144 into the USB port, the window
shown in Fig. 2 will appear. When you plug in the unit, it
makes no difference whether it is still logging; the procedure
for uploading (importing) data logs is identical. Just click on
the middle selection—Stop the USB Data Logger and
download data—to instantly execute both functions. The
data will be imported as a .txt file. A “Save As” window will
appear, asking you to identify where you want the file to be
stored and what you want to name it.

VIEWING, PRINTING AND EXPORTING
DATA LOGS

Immediately after you close the “Save AS” window by
clicking on Save, the uploaded data log will automatically be
displayed as a set of curves representing all loggable values.
Fig. 4 is a typical example. The initial display includes all
parameters, including dew point and GPP or g/kg (which the
software automatically calculates) and alarm setpoints that

15

you may have entered during Setup. To remove any
parameter or horizontal and vertical grid lines from the overall
plot, uncheck its box at right.

Fig. 4. A typical initial plot of an imported data log

There are several features shown in Fig. 4 worth noting:

• To mark the position of every recorded data point on the

curve, check the “Mark Points” box at the top of the
sidebar at right.

• To get a higher-resolution view of the data recorded

during a specific period of time, scale up and down the
curves by dragging the slider at the bottom of the
window to the left and right.

• Hovering the cursor over a particular point of the curve

displays all data related to this point—including the
maximum, minimum and average values of the entire
curve—in a shaded box at upper left.

• The dates and times shown on the x-axis scale and in

the upper left corner are in sync with your computer’s
clock.

16

• To print the .txt file of any data log, click the Print virtual
button.

• To open a previously saved data log, click the Open
button. This function is also available as the “View
previously saved data” option shown in Fig. 2.

• To export a file to Excel for advanced trending and
analysis, click the Export to Excel button.

USING THE IR THERMOMETER

The OM-144 has an integral IR thermometer that can be used
to spot-check the temperature of any surface from a distance.
This function would, for example, enable an HVAC/R system
installer to quickly check the temperature of air exiting a duct
without having to use an anemometer-thermometer.

To activate the IRT, press and hold the Meas button (Fig. 1a,
Callout H) while aiming the laser pointer at the surface of
interest. The measured temperature will instantly appear on
the LCD in the currently selected unit, along with the
indication IRT in the upper right corner.

When you release the Meas button, the “Hold” icon (a lock;
see Fig. 1b) will also appear on the display to indicate that the
displayed value is being held. The reading will be held for
10 seconds. At that time, the OM-144 will exit IRT mode and
resume displaying temperature, humidity or working status
on its LCD.

The OM-144’s IRT has a distance-to-spot (D:S) ratio of 2:1 and
assumes that its target has an emissivity of 0.95 (a valid
assumption for most materials). Include these specifications
when considering how close you must be to a target to
measure its temperature accurately, without including the
temperature of its surroundings.

17

OTHER INDICATIONS

As mentioned earlier, the SET and STO buttons and the LCD
can be used together to display real-time temperature, RH
and GPP readings, and to indicate the current working status
of the OM-144.

Circuitry inside the OM-144 automatically shuts down the LCD
(to conserve battery life) if the SET or STO button has not
been pressed within the past 60 seconds. That is the case
even when the unit is logging data. In other words, the LCD is
normally “asleep”.

To wake up the LCD, briefly press the SET or STO button.
This first press of the button will cause the LCD to resume
displaying the same indication that was on-screen when the
LCD was last put to sleep.

Pressing the SET button briefly can produce four possible
display indications: (1) The current temperature, (2) the
current relative humidity level, (3) the current absolute
humidity level (mixing ratio in GPP or g/kg), and (4) the
OM-144’s current working status. Each press of the SET button
changes the display to the next indication in the sequence;
pressing the SET button when the LCD is displaying the unit’s
current working status (4) resets the cycle to (1).

There are four possible working status indications:

• LOG: The unit is currently logging data

• - - -: The unit is in standby mode, ready to log data

• FUL: The unit’s internal memory is full and logging has

been stopped

• CON: The unit needs to be configured by software

18

The STO button has a third function, in addition to waking up
the LCD and adding IRT readings to sets of temperature and
humidity data logs. When the OM-144’s LCD is on, brief presses
of the STO button toggle displayed temperature readings
between °C and °F, and displayed mixing ratio readings
between GPP and g/kg.

When the LCD is displaying a temperature or humidity
reading, it also gives an indication if the reading is outside the
“acceptable” range of readings for that parameter—
assuming that high and/or low alarm setpoints were entered
during the Setup procedure. If an “up” arrow appears at the
left of the reading (see Fig. 1b on p. 7), the measured value of
that parameter is higher than its high alarm setpoint. If a
“down” arrow appears at the left of the reading, it is lower
than the low alarm setpoint for that parameter.

SPECIFICATIONS

Ambient Temperature -4° to 158°F (-20° to 70°C)
Measurement Range

Ambient Temperature ±1.8°F (1°C)
Measurement Accuracy from 14° to 104°F

(-10° to 40°C); ±3.6°F (2°C)
elsewhere in range

Ambient Temperature Measurement ±0.2°F (0.1°C)
Resolution and Repeatability

Relative Humidity (RH) 0 to 100%
Measurement Range

RH Measurement Accuracy ±3% from 20 to 80%RH,

±3.5% elsewhere

RH Measurement Resolution ±0.1%
and Repeatability

19

IR (Surface) Temperature -4° to 482°F (-20° to 250°C)
Measurement Range

IR Temperature ±4°F (3°C)
Measurement Accuracy

IR Temperature ±0.2°F (0.1°C)
Measurement Resolution

Distance-to-Spot (D:S) Ratio 2:1

Emissivity 0.95 (fixed)

Internal Storage Capacity 16,300 pairs of ambient

temperature and RH readings or
nearly 10,000 sets of ambient
temperature, RH and IR (surface)
temperature readings

Display 3-1/2-digit LCD with 60 second

auto power off

Temperature Response Time 0.5 seconds

Humidity Response Time 5 seconds

Interface USB 1.0/2.0

Laser Class, Power Output, Class 2, <1mW @ 655nm
Wavelength

Dimensions 4.92 x 1.69 x 0.94 in.

(125 x 43 x 24 mm)

Weight <7 oz. (<200g)

Power Source 3.6V non-rechargeable

(1/2 AA) 1200mAh
Lithium-ion battery

Current Consumption 1mA (laser off); <20mA (laser on)

Battery Life (typical) 1 year

20

MAINTENANCE TIPS

• Avoid dropping the unit. Do not subject it to violent shock or
vibration or expose it to strong electromagnetic fields (for
example, near arc welders or induction heaters).

• Keep the unit out of direct sunlight.

• Do not use chemicals or abrasive cloth to clean the display
window or housing.

• Before storing the OM-144 for an extended period of time
(several months or more), remove the battery to avoid
having it leak and damage the unit.

21

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and
workmanship for a period of 13 months from date of purchase. OMEGA’s Warranty adds
an additional one (1) month grace period to the normal one (1) year product warranty to
cover handling and shipping time. This ensures that OMEGA’s customers receive maximum
coverage on each product.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer
Service Department will issue an Authorized Return (AR) number immediately upon phone
or written request. Upon examination by OMEGA, if the unit is found to be defective, it
will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects
resulting from any action of the purchaser, including but not limited to mishandling,
improper interfacing, operation outside of design limits, improper repair, or unauthorized
modification. This WARRANTY is VOID if the unit shows evidence of having been tampered
with or shows evidence of having been damaged as a result of excessive corrosion; or
current, heat, moisture or vibration; improper specification; misapplication; misuse or
other operating conditions outside of OMEGA’s control. Components in which wear is not
warranted, include but are not limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products.
However, OMEGA neither assumes responsibility for any omissions or errors
nor assumes liability for any damages that result from the use of its products
in accordance with information provided by OMEGA, either verbal or written.
OMEGA warrants only that the parts manufactured by the company will be as
specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR
REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED,
EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY
WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of purchaser
set forth herein are exclusive, and the total liability of OMEGA with respect to
this order, whether based on contract, warranty, negligence, indemnification,
strict liability or otherwise, shall not exceed the purchase price of the component
upon which liability is based. In no event shall OMEGA be liable for consequential,
incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used:
(1) as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation
or activity; or (2) in medical applications or used on humans. Should any Product(s) be
used in or with any nuclear installation or activity, medical application, used on humans, or
misused in any way, OMEGA assumes no responsibility as set forth in our basic WARRANTY/
DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and hold
OMEGA harmless from any liability or damage whatsoever arising out of the use of the
Product(s) in such a manner.

WARRANTY/ DISCLAIMER

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department.
BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN
AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT
(IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be
marked on the outside of the return package and on any correspondence. The purchaser is
responsible for shipping charges, freight, insurance and proper packaging to prevent breakage in
transit.

FOR WARRANTY RETURNS, please have
the following information available BEFORE
contacting OMEGA:

1. Purchase Order number under which the
product was PURCHASED,

2. Model and serial number of the product
under warranty, and

3. Repair instructions and/or specific
problems relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement
is possible. This affords our customers the latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2016 OMEGA ENGINEERING, INC. All rights reserved. This document may not
be copied, photocopied, reproduced, translated, or reduced to any electronic medium or
machine-readable form, in whole or in part, without the prior written consent of OMEGA
ENGINEERING, INC.

RETURN REQUESTS/ INQUIRIES

FOR NON-WARRANTY REPAIRS,
OMEGA for current repair charges. Have
the following information available BEFORE
contacting OMEGA:

1. Purchase Order number to cover the COST
of the repair,

2. Model and serial number of the product, and

3. Repair instructions and/or specific problems

relative to the product.

consult

Where Do I Find Everything I Need for

Process Measurement and Control?

OMEGA…Of Course!

Shop online at omega.com

SM

TEMPERATURE

MU

Thermocouple, RTD & Thermistor

Probes, Connectors, Panels &
Assemblies

MU

Wire: Thermocouple, RTD &

Thermistor

MU

Calibrators & Ice Point References

MU

Recorders, Controllers & Process

Monitors

MU

Infrared Pyrometers

PRESSURE, STRAIN AND
FORCE

MU

Transducers & Strain Gages

MU

Load Cells & Pressure Gages

MU

Displacement Transducers

MU

Instrumentation & Accessories

FLOW/LEVEL

MU

Rotameters, Gas Mass Flowmeters

& Flow Computers

MU

Air Velocity Indicators

MU

Turbine/Paddlewheel Systems

MU

Totalizers & Batch Controllers

pH/CONDUCTIVITY

MU

pH Electrodes, Testers &

Accessories

MU

Benchtop/Laboratory Meters

MU

Controllers, Calibrators, Simulators

& Pumps

MU

Industrial pH & Conductivity

Equipment

DATA ACQUISITION

MU

Data Acquisition & Engineering

Software

MU

Communications-Based Acquisition

Systems

MU

Plug-in Cards for Apple, IBM &

Compatibles

MU

Data Logging Systems

MU

Recorders, Printers & Plotters

HEATERS

MU

Heating Cable

MU

Cartridge & Strip Heaters

MU

Immersion & Band Heaters

MU

Flexible Heaters

MU

Laboratory Heaters

ENVIRONMENTAL
MONITORING AND CONTROL

MU

Metering & Control

Instrumentation

MU

Refractometers

MU

Pumps & Tubing

MU

Air, Soil & Water Monitors

MU

Industrial Water & Wastewater

Treatment

MU

pH, Conductivity & Dissolved

Oxygen Instruments

M5566/0416
