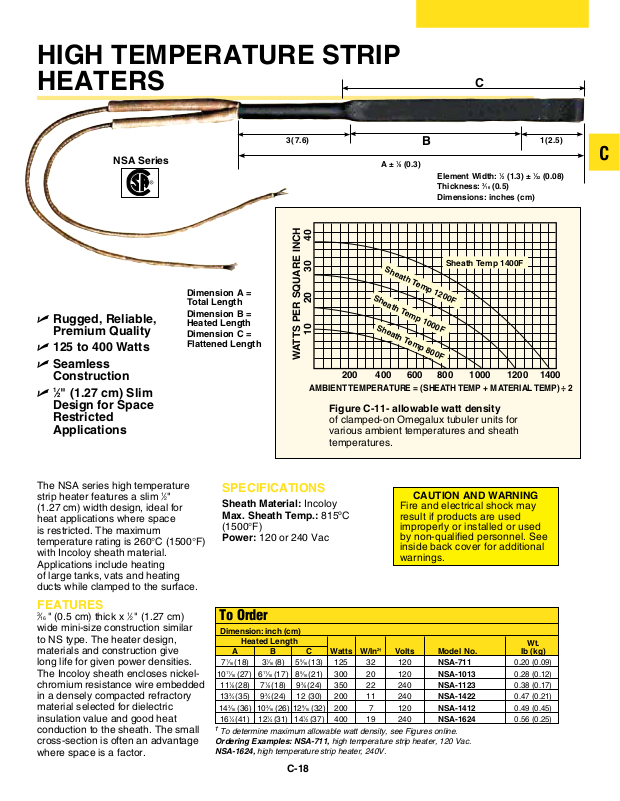

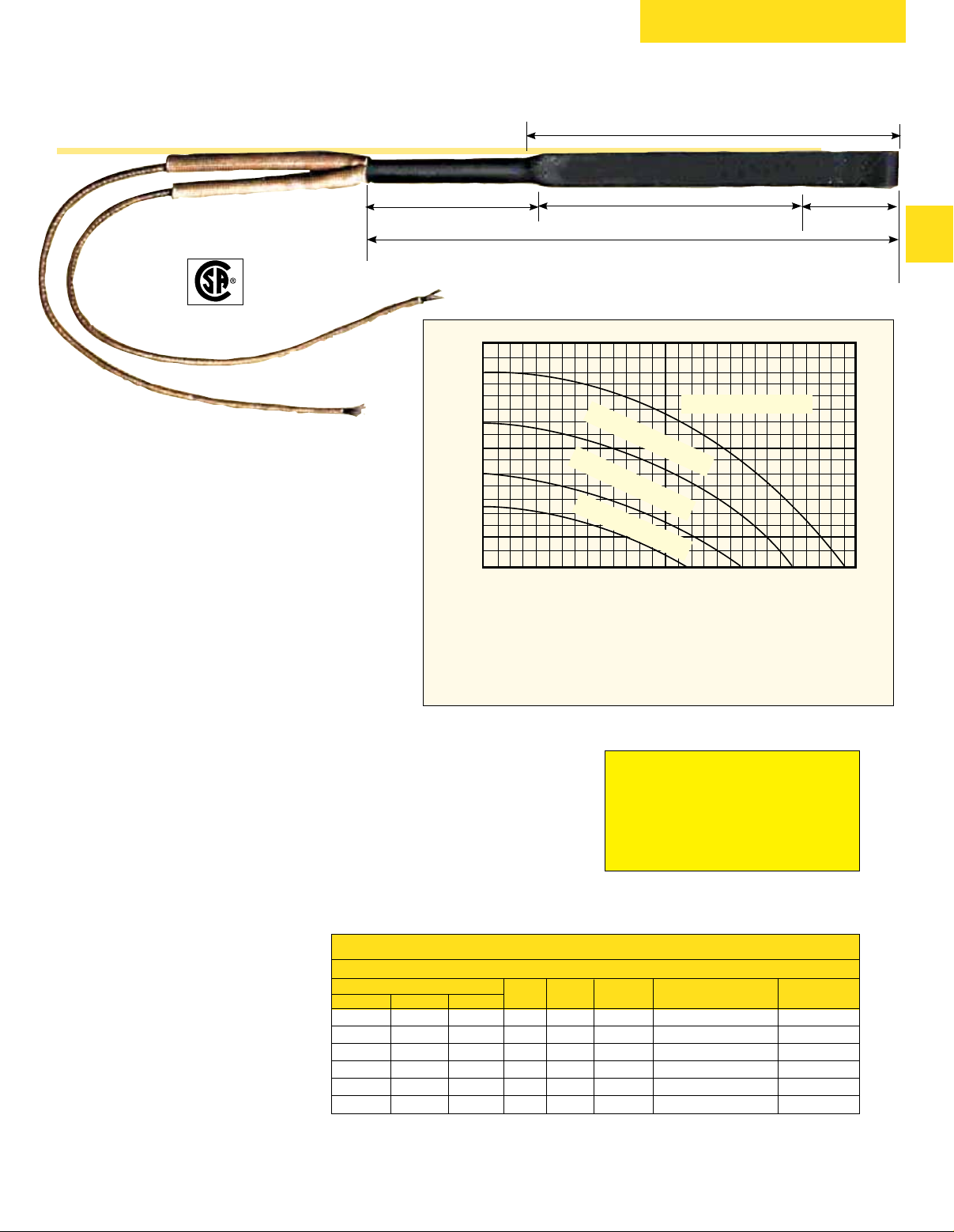

HIGH TEMPERATURE STRIP
HEATERS
NSA Series
U Rugged, Reliable,
Premium Quality
U 125 to 400 Watts
U Seamless
Construction
1
U
⁄2" (1.27 cm) Slim
Design for Space
Restricted
Applications
Dimension A =
Total Length
Dimension B =
Heated Length
Dimension C =
Flattened Length
C
3(7.6)
A ± 1⁄8 (0.3)
Sheath Temp 1200F
Sheath Temp 1000F
10 20 30 40
Sheath Temp 800F
WATTS PER SQUARE INCH
200 400 600 800 1000 1200 1400
AMBIENT TEMPERATURE = (SHEATH TEMP + MATERIAL TEMP) ÷ 2
Figure C-11- allowable watt density
of clamped-on Omegalux tubuler units for
various ambient temperatures and sheath
temperatures.
B
Element Width: 1⁄2 (1.3) ± 1⁄32 (0.08)
Thickness: 3⁄16 (0.5)
Dimensions: inches (cm)
Sheath Temp 1400F
1(2.5)
C
The NSA series high temperature
strip heater features a slim
1
⁄2"
(1.27 cm) width design, ideal for
heat applications where space
is restricted. The maximum
temperature rating is 260°C (1500°F)
with Incoloy sheath material.
Applications include heating
of large tanks, vats and heating
ducts while clamped to the surface.
FEATURES
3
⁄16 " (0.5 cm) thick x 1⁄2 " (1.27 cm)
wide mini-size construction similar
to NS type. The heater design,
materials and construction give
long life for given power densities.
The Incoloy sheath encloses nickelchromium resistance wire embedded
in a densely compacted refractory
material selected for dielectric
insulation value and good heat
conduction to the sheath. The small
cross-section is often an advantage
where space is a factor.
SPECIFICATIONS
Sheath Material: Incoloy
Max. Sheath Temp.: 815ºC
(1500°F)
Power: 120 or 240 Vac
CAUTION AND WARNING
Fire and electrical shock may
result if products are used
improperly or installed or used
by non-qualified personnel. See
inside back cover for additional
warnings.
To Order
Dimension: inch (cm)
Heated Length
A B C Watts W/In2† Volts Model No.
71⁄16 (18) 31⁄16 (8) 55⁄16 (13) 125 32 120 NSA-711
1011⁄16 (27) 611⁄16 (17) 85⁄16 (21) 300 20 120 NSA-1013
111⁄8 (28) 71⁄8 (18) 93⁄8 (24) 350 22 240 NSA-1123
133⁄4 (35) 93⁄4 (24) 12 (30) 200 11 240 NSA-1422
143⁄16 (36) 103⁄16 (26) 129⁄16 (32) 200 7 120 NSA-1412
161⁄4 (41) 121⁄4 (31) 141⁄2 (37) 400 19 240 NSA-1624
†
To determine maximum allowable watt density, see Figures online.
Ordering Examples: NSA-711, high temperature strip heater, 120 Vac.
NSA-1624, high temperature strip heater, 240V.
Wt.
C-18
Ib (kg)
0.20 (0.09)
0.28 (0.12)
0.38 (0.17)
0.47 (0.21)
0.49 (0.45)
0.56 (0.25)
