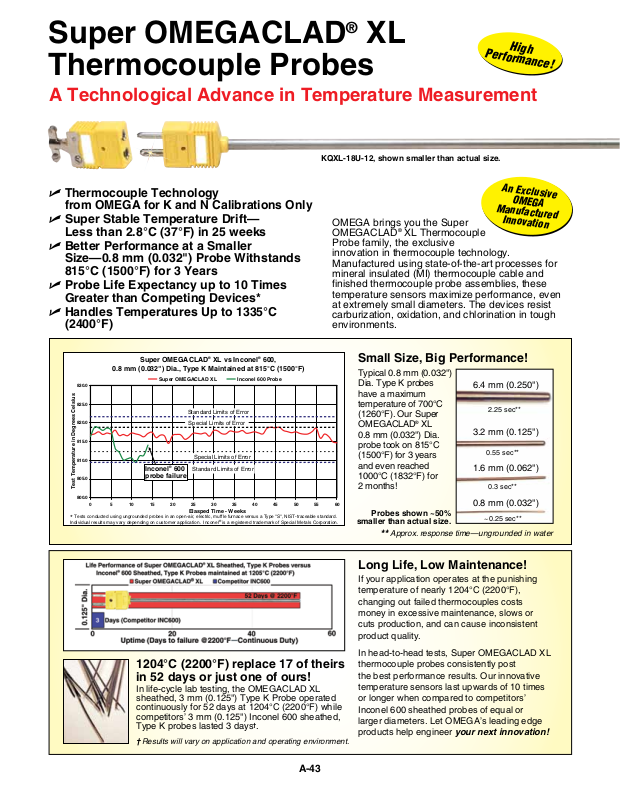

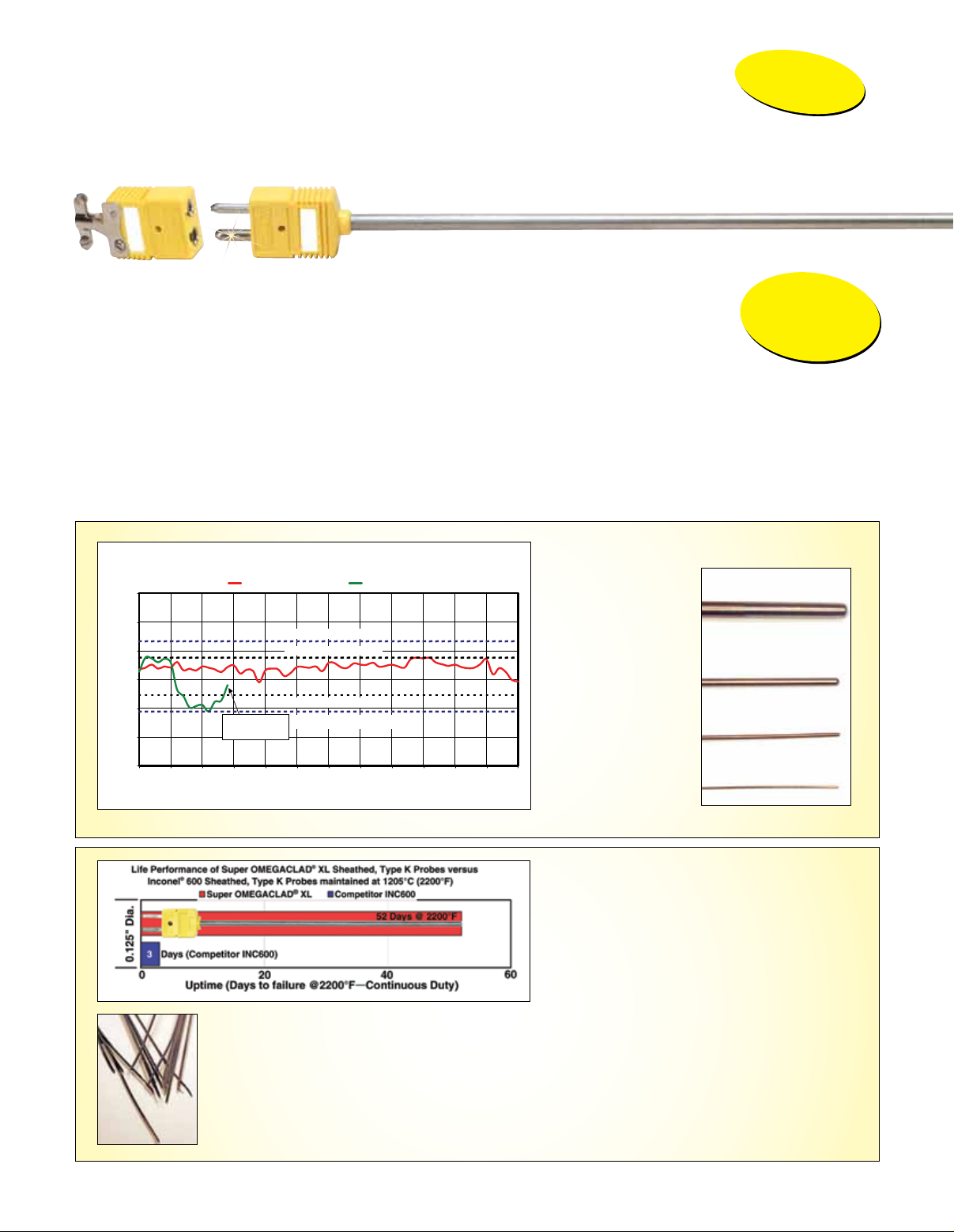

Super OMEGACLAD® XL
High
Performance!
Thermocouple Probes
A Technological Advance in Temperature Measurement
KQXL-18U-12, shown smaller than actual size.
U
Thermocouple Technology
from OMEGA for K and N Calibrations Only
U Super Stable Temperature Drift—
Less than 2.8°C (37°F) in 25 weeks
U Better Performance at a Smaller
Size—0.8 mm (0.032") Probe Withstands
815°C (1500°F) for 3 Years
U Probe Life Expectancy up to 10 Times
Greater than Competing Devices*
U Handles Temperatures Up to 1335°C
(2400°F)
Super OMEGACLAD® XL vs Inconel® 600,
0.8 mm (0.032") Dia., Type K Maintained at 815°C (1500°F)
830.0
s u i s l e C s e e r g e D n i e r u t a r e p m e T t s e T
825.0
820.0
815.0
810.0
805.0
800.0
0510 15 20 25 30 35 40 45 50 55 60
Tests conducted using ungrounded probes in an open-air, electric, muffle furnace versus a Type "S", NIST-traceable standard.
*
Individual results may vary depending on customer application. Inconel
Super OMEGACLAD XL Inconel 600 Probe
Standard Limits of Error
Standard Limits of Error
Special Limits of Error
Special Limits of Error
Super OMEGACLAD® XL probe
Special Limits of Error
Special Limits of Error
Inconel® 600
Inconel® 600
probe failure
probe failure
Standard Limits of Error
Standard Limits of Error
Elasped Time - Weeks
®
is a registered trademark of Special Metals Corporation.
An Exclusive
OMEGA
Manufactured
OMEGA brings you the Super
Innovation
OMEGACLAD® XL Thermocouple
Probe family, the exclusive
innovation in thermocouple technology.
Manufactured using state-of-the-art processes for
mineral insulated (MI) thermocouple cable and
finished thermocouple probe assemblies, these
temperature sensors maximize performance, even
at extremely small diameters. The devices resist
carburization, oxidation, and chlorination in tough
environments.
Small Size, Big Performance!
Typical 0.8 mm (0.032")
Dia. Type K probes
have a maximum
tempera ture of 700°C
(1260°F). Our Super
OMEGACLAD
®
XL
0.8 mm (0.032") Dia.
probe took on 815°C
(1500°F) for 3 years
and even reached
1000°C (1832°F) for
2 months!
Probes shown ~50%
smaller than actual size.
Approx. response time—ungrounded in water
**
6.4 mm (0.250")
2.25 sec**
3.2 mm (0.125")
0.55 sec**
1.6 mm (0.062")
0.3 sec**
0.8 mm (0.032")
~0.25 sec**
1204°C (2200°F) replace 17 of theirs
in 52 days or just one of ours!
In life-cycle lab testing, the OMEGACLAD XL
sheathed, 3 mm (0.125") Type K Probe operated
continuously for 52 days at 1204°C (2200°F) while
competitors’ 3 mm (0.125") Inconel 600 sheathed,
Type K probes lasted 3 days†.
† Results will vary on application and operating environment.
A-43
Long Life, Low Maintenance!
If your application operates at the punishing
temperature of nearly 1204°C (2200°F),
changing out failed thermocouples costs
money in excessive maintenance, slows or
cuts production, and can cause inconsistent
product quality.
In head-to-head tests, Super OMEGACLAD XL
thermocouple probes consistently post
the best performance results. Our innovative
temperature sensors last upwards of 10 times
or longer when compared to competitors’
Inconel 600 sheathed probes of equal or
larger diameters. Let OMEGA’s leading edge
products help engineer your next innovation!

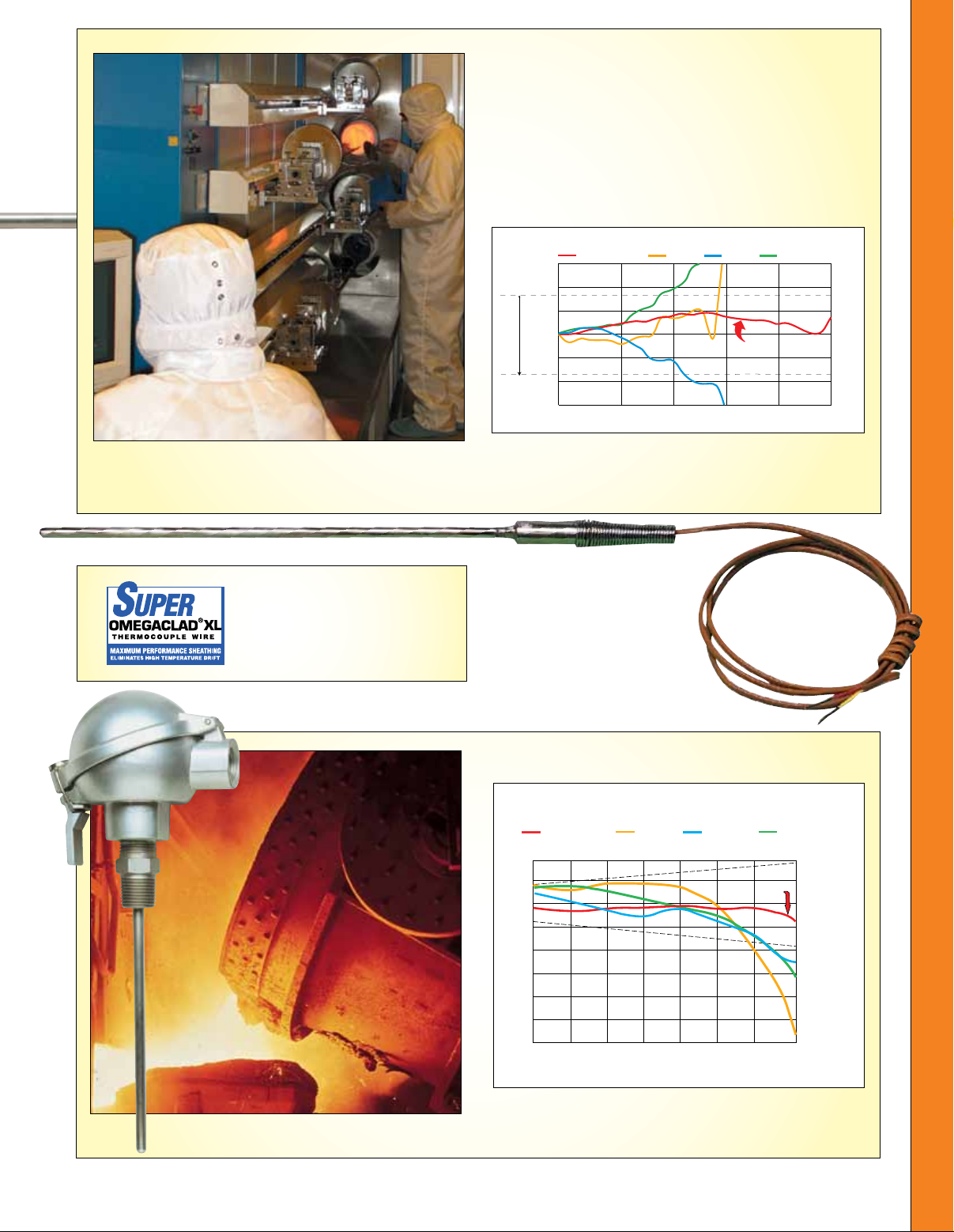

Page 2
OMEGA’s products making OMEGA’s products. OMEGA uses
Super OMEGACLAD XL thermocouple probes in its Class 10
clean rooms to monitor critical process temperatures and
achieve consistent, high-quality products.
Low Drift, Reliable Temperatures!
Super OMEGACLAD® XL’s low-drift characteristic
ensures reliability of temperature readings longer
than any other brand or sheath material. Within
15 weeks, Brands A, B, and C exhibited more than
8.3°C (47°F) drift. At 25 weeks, OMEGACLAD XL’s
drift was less than 2.8°C (37°F).*
Long-Term EMF Drift Test @ 1149°C (2100°F) K Calibration, 3.2 mm (1/8 in)
Diameter Probes Super OMEGACLAD
®
OMEGACLAD
15
10
5
0
4.6°C (8.4°F)
@ 1149°C (2100°F)
Special Limits of Error
-5
Long-Term Drift°F
-10
-15
Tests conducted using ungrounded probes in an open-air,
*
electric, muffle furnace versus a Type “S”, NIST-traceable
XL
Elapsed Time - Weeks
standard. Individual results may vary depending on customer
application. Inconel® is a registered trademark of Special Metals
Corporation.
®
XL vs. Competitors
Brand BBrand A
OMEGACLAD® XL
INCONEL® 600
8.3
5.6
2.8
-2.8
-5.6
-8.3
2520151050
A
0
Long-Term Drift°C
Available as
Look for this logo to
identify probes available
in Super OMEGACLAD XL
sheathed thermocouple
wire and probes
TJ36-CAXL-18U-12, shown
smaller than actual size. Visit
OMEGA for Super OMEGACLAD®
XL probe offerings.
Take on High Temperatures!
Typical OMEGACLAD XL Type K Calibration 1.6 mm (
Performance vs Competitors and Inconel
5
0
-5
-10
-15
Deviation °F
-20
-25
-30
Measurements are taken at 1-hour intervals from 538 to 1338°C (1000 to 2400°F )
OMEGACLAD® XL
1
/16'') Diameter
®
600
Inconel® 600Brand BBrand AOMEGACLAD® XL
133812041093982871760649538°C
24002200200018001600140012001000°F
5.5
2.8
-2.8
-5.5
-8.3
-11.1
-13.9
-16.6
°C10°F
0
Deviation °C
NB3-CAXL-14U-12, shown
smaller than actual size.
In tests up to 1338°C (2400°F), Super OMEGACLAD XL
outperformed both the Inconel 600 and other
competing high-temperature models.
A-44

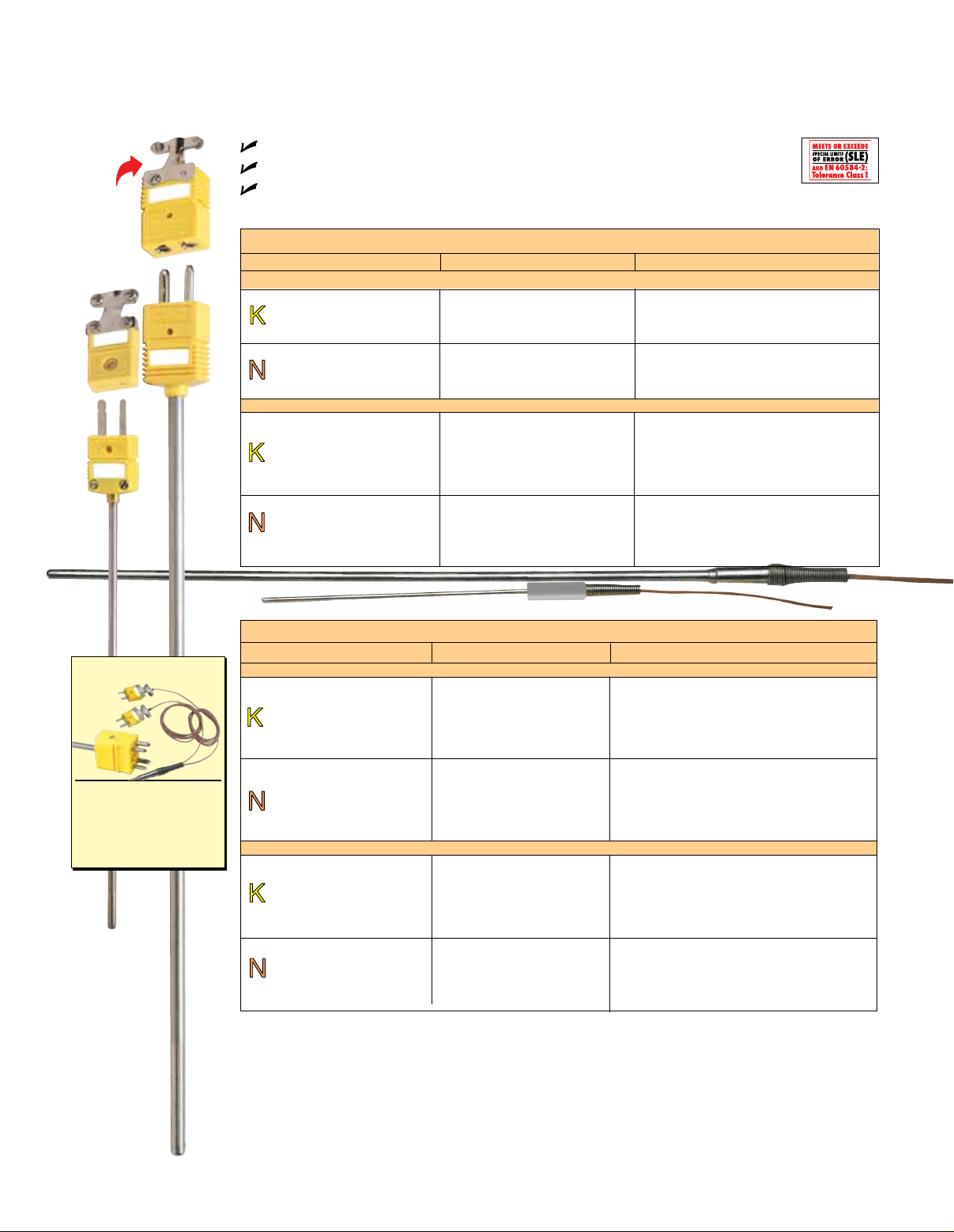

Page 3
Super OMEGACLAD® XL Probes
Very Low Drift at High Temperatures
Super Accurate, Super Stable, Super Value—Standard Dimensions
For Use Up to 1338°C (2400°F)
Excellent Long-Term Stability at High Temperatures
Universal
connector
and clamp
included.
Larger Diameter Available (Consult Sales)
Standard Dimension—Quick-Connect Probes
To Order
ANSI
Color Code/Alloy Sheath Dia. inches Model Number ANSI Color Code
MOLDED STANDARD CONNECTOR
CHROMEGA®-ALOMEGA®
XL Sheath
OMEGA-P
XL Sheath
MINIATURE CONNECTOR
0.010 KMQXL-010[*]-[**]
0.020 KMQXL-020[*]-[**]
CHROMEGA
XL Sheath 0.040 KMQXL-040[*]-[**]
0.062 KMQXL-062[*]-[**]
0.125 KMQXL-125[*]-[**]
0.020 NMQXL-020[*]-[**]
OMEGA-P
XL Sheath 0.040 NMQXL-040[*]-[**]
0.062 NMQXL-062[*]-[**]
0.125 NMQXL-125[*]-[**]
®
-OMEGA-N®
®
-ALOMEGA® 0.032 KMQXL-032[*]-[**]
®
-OMEGA-N® 0.032 NMQXL-032[*]-[**]
1
⁄16 KQXL-116[*]-[**]
1
⁄8 KQXL-18[*]-[**]
3
⁄16 KQXL-316[
1
⁄4 KQXL-14[
1
⁄16 NQXL-116[*]-[**]
1
⁄8 NQXL-18[*]-[**]
3
⁄16 NQXL-316[
1
⁄4 NQXL-14[
*
]-[**]
*
*
]-[**]
*
]-[**]
]-[**]
Dual Elements
The probes shown on
this page are also
available in our dual
element configuration.
Please contact OMEGA
for more details.
Miniature
size.
Both models
include mating
connector with
cable clamp
shown smaller
than actual
size.
Standard
size.
Heavy-duty style
Standard Dimension—Transition Junction Probes
To Order
ANSI
Color Code/Alloy Sheath Dia. (inches) Model Number ANSI Color Code
HEAVY DUTY TRANSITION JUNCTION PROBE
CHROMEGA
XL Sheath
OMEGA-P
XL Sheath
MINIATURE TRANSITION JUNCTION PROBE
0.010 KMTXL-010[*]-[**]
0.020 KMTXL-020[*]-[**]
CHROMEGA
XL Sheath 0.040 KMTXL-040[*]-[**]
0.062 KMTXL-062[*]-[**]
0.125 KMTXL-125[*]-[**]
0.020 NMTXL-020[*]-[**]
OMEGA-P
XL Sheath 0.040 NMTXL-040[*]-[**]
0.062 NMTXL-062[*]-[**]
0.125 NMTXL-125[*]-[**]
Note: Probes with 0.032" diameter and larger are supplied with molded transition joints. Smaller-sized probes are
supplied with stainless steel transition joints. Stripped leads standard.
[*] Specify junction type: “G” (Grounded), “E” (Exposed) or “U” (Ungrounded).
[**] Specify length in inches: “6”, “12”, “18” or “24”.
For a male straight M8 plug add “M8-S-M” to the model number, for a male straight M12 plug add “M12-S-M” to
the model number, for a male right-angled M8 plug add “M8-R-M” to the model number, for a male right-angled
M12 plug add “M12-S-M” to the model number and additional cost to the price.
Ordering Example for Quick-Connect Probes: KQXL-18U-12, molded quick-connect probe, Type K
(CHROMEGA-ALOMEGA), SUPER OMEGACLAD
Ordering Example for Transition Junction Probes: TJ36-CAXL-14G-12, heavy-duty transition junction probe,
Type K (CHROMEGA-ALOMEGA), SUPER OMEGACLAD XL sheath, 1⁄4" OD, grounded junction, 12".
®
-ALOMEGA®
®
-OMEGA-N®
®
-ALOMEGA® 0.032 KMTXL-032[*]-[**]
®
-OMEGA-N® 0.032 NMTXL-032[*]-[**]
1
⁄16 TJ36-CAXL-116[*]-[**]
1
⁄8 TJ36-CAXL-18[*]-[**]
3
⁄16 TJ36-CAXL-316[
1
⁄4 TJ36-CAXL-14[
5
⁄16 TJ36-CAXL-516[
3
⁄8 TJ36-CAXL-38[*]-[**]
1
⁄16 TJ36-NNXL-116[*]-[**]
1
⁄8 TJ36-NNXL-18[*]-[**]
3
⁄16 TJ36-NNXL-316[
1
⁄4 TJ36-NNXL-14[
5
⁄16 TJ36-NNXL-516[
3
⁄8 TJ36-NNXL-38[*]-[**]
XL sheath, 1⁄8" OD, ungrounded junction,12".
Miniature style
*
]-[**]
*
*
*
]-[**]
*
*
]-[**]
]-[**]
]-[**]
]-[**]
A-45

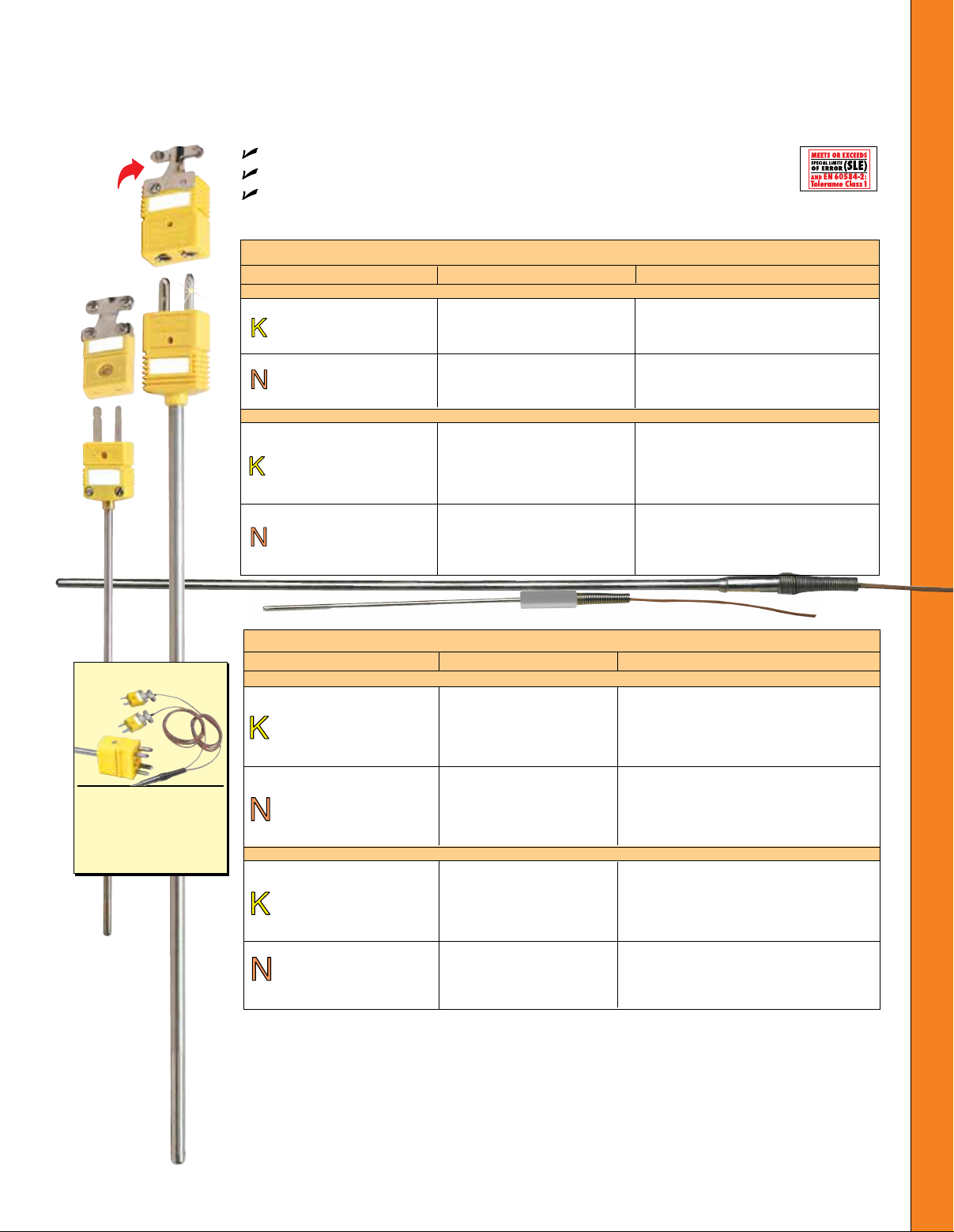

Page 4
Super OMEGACLAD® XL Probes
Very Low Drift at High Temperatures
Super Accurate, Super Stable, Super Value—Metric Dimensions
For Use Up to 1338°C (2400°F)
Excellent Long-Term Stability at High Temperatures
Universal
connector
and cable
clamp
included.
Larger Diameter Available (Consult Sales)
Metric Dimension—Quick-Connect Probes
To Order
ANSI
Color Code/Alloy Sheath Dia. (mm) Model Number ANSI Color Code
MOLDED STANDARD CONNECTOR
1.5 KQXL-M15[*]-[**]
CHROMEGA
XL Sheath 4.5 KQXL-M45[*]-[**]
6.0 KQXL-M60[*]-[**]
1.5 NQXL-M15[*]-[**]
OMEGA-P
XL Sheath 4.5 NQXL-M45[*]-[**]
6.0 NQXL-M60[*]-[**]
MINIATURE CONNECTOR
0.25 KMQXL-M025[*]-[**]
0.5 KMQXL-M050[*]-[**]
CHROMEGA
XL Sheath 1.0 KMQXL-M100[*]-[**]
1.5 KMQXL-M150[*]-[**]
3.0 KMQXL-M300[*]-[**]
0.5 NMQXL-M050[*]-[**]
OMEGA-P
XL Sheath 1.0 NMQXL-M100[*]-[**]
1.5 NMQXL-M150[*]-[**]
3.0 NMQXL-M300[*]-[**]
®
-ALOMEGA® 3.0 KQXL-M30[*]-[**]
®
-OMEGA-N® 3.0 NQXL-M30[*]-[**]
®
-ALOMEGA® 0.75 KMQXL-M075[*]-[**]
®
-OMEGA-N® 0.75 NMQXL-M075[*]-[**]
A
Dual Elements
The probes shown on
this page are also
available in our dual
element configuration.
Please contact OMEGA
for more details.
Miniature
size.
Both models
include mating
connector with
cable clamp
shown smaller
than actual size.
Standard
size.
Heavy-duty style
Metric
Dimension—Transition Junction Probes
To Order
ANSI
Color Code/Alloy Sheath Dia. (mm) Model Number ANSI Color Code
Miniature style
HEAVY-DUTY TRANSITION JUNCTION PROBE
1.5 TJ36-CAXL-M15[*]-[**]
3.0 TJ36-CAXL-M30[*]-[**]
CHROMEGA
XL Sheath 6.0 TJ36-CAXL-M60[*]-[**]
8.0 TJ36-CAXL-M80[*]-[**]
9.5 TJ36-CAXL-M95[*]-[**]
1.5 TJ36-NNXL-M15[*]-[**]
3.0 TJ36-NNXL-M30[*]-[**]
OMEGA-P
XL Sheath 6.0 TJ36-NNXL-M60[*]-[**]
8.0 TJ36-NNXL-M80[*]-[**]
9.5 TJ36-NNXL-M95[*]-[**]
MINIATURE TRANSITION JUNCTION PROBE
0.25 KMTXL-M025[*]-[**]
0.5 KMTXL-M050[*]-[**]
CHROMEGA
XL Sheath 1.0 KMTXL-M100[*]-[**]
1.5 KMTXL-M150[*]-[**]
3.0 KMTXL-M300[*]-[**]
0.5 NMTXL-M050[*]-[**]
OMEGA-P
XL Sheath 1.0 NMTXL-M100[*]-[**]
1.5 NMTXL-M150[*]-[**]
3.0 NMTXL-M300[*]-[**]
Note: Probes with 0.75 mm diameter and larger are supplied with molded transition joints. Smaller-sized probes
are supplied with stainless steel transition joints. Stripped leads standard.
[*] Specify junction type: “G” (Grounded), “E” (Exposed) or “U” (Ungrounded)
[**] Specify length in millimeters: “150” mm, “300” mm, “450” mm, or “600” mm.
For a male straight M8 plug add “M8-S-M” to the model number, for a male straight M12 plug add “M12-S-M” to
the model number, for a male right-angled M8 plug add “M8-R-M” to the model number, for a male right-angled
M12 plug add “M12-S-M” to the model number and additional cost to the price.
Ordering Example for Quick-Connect Probes: KQXL-M30U-300, molded quick connect probe, Type K
(CHROMEGA-ALOMEGA), SUPER OMEGACLAD
Ordering Example for Transition Junction Probes: TJ36-CAXL-M60G-300, heavy-duty transition junction probe,
Type K (CHROMEGA-ALOMEGA), SUPER OMEGACLAD XL sheath, 6 mm OD, grounded junction,
300 mm length.
®
-ALOMEGA® 4.5 TJ36-CAXL-M45[*]-[**]
®
-OMEGA-N® 4.5 TJ36-NNXL-M45[*]-[**]
®
-ALOMEGA® 0.75 KMTXL-M075[*]-[**]
®
-OMEGA-N® 0.75 NMTXL-M075[*]-[**]
XL sheath, 3 mm OD, ungrounded junction, 300 mm length.
A-46
Page 5

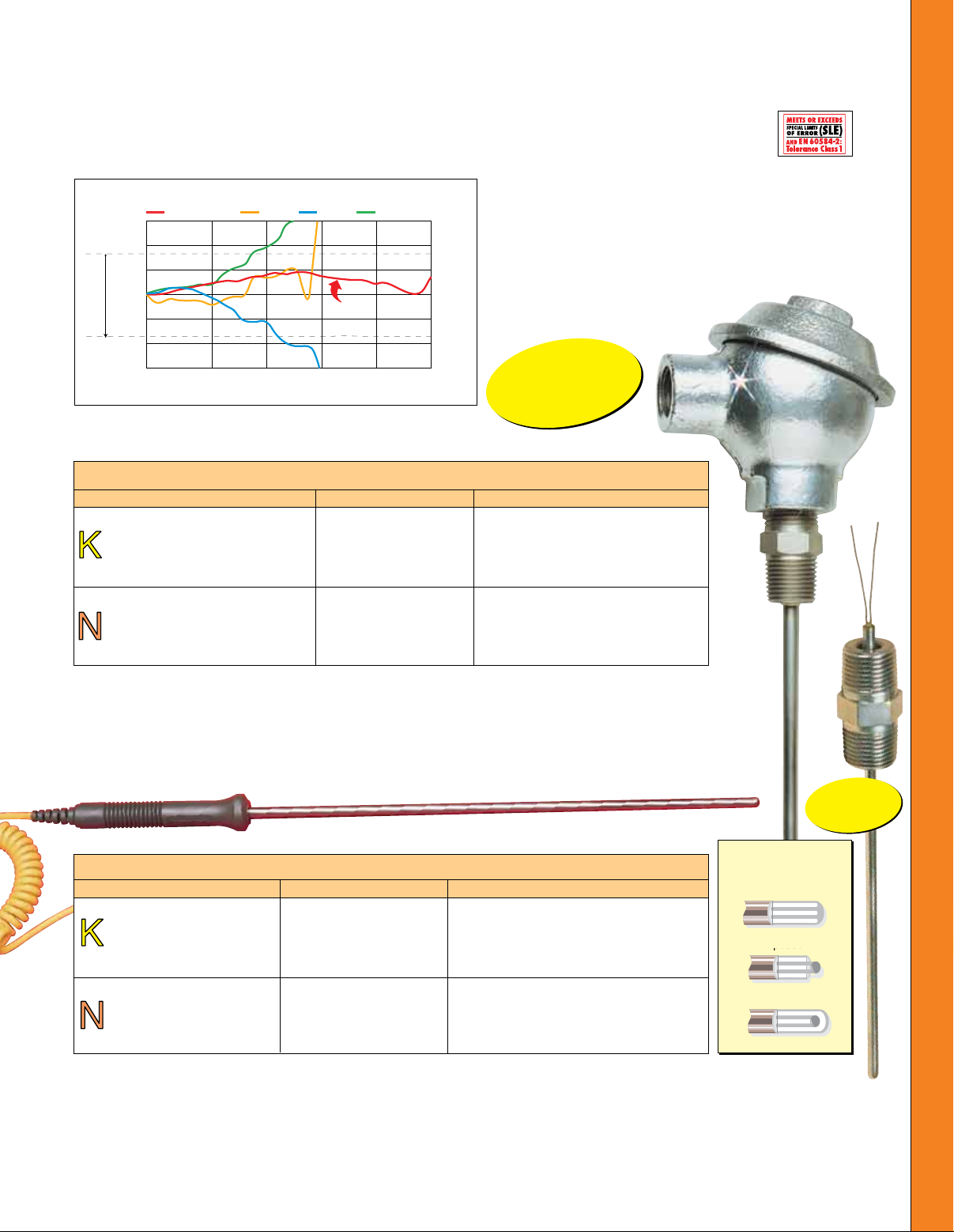

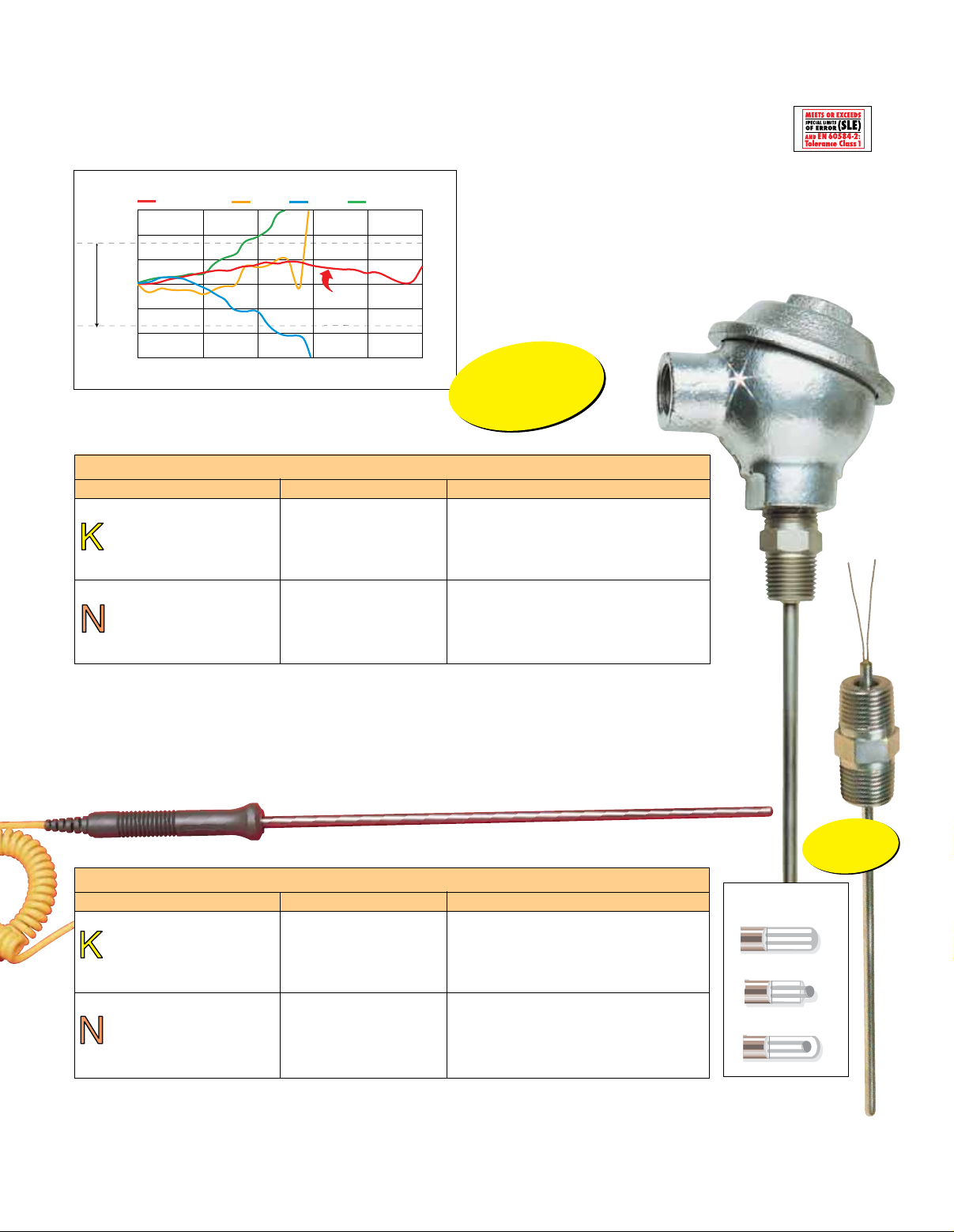

Super OMEGACLAD® XL Probes
Grounded Exposed Ungrounded
Available in Most Thermocouple Probe
Styles and Designs with Standard Dimensions
U Standard- and Miniature-Size Quick-Connect
8.3
5.6
2.8
0
-2.8
-5.6
-8.3
and Molded Transition Junction Probes
U Rugged Industrial Head Styles
Probes, and Utility Handle Probes
U All Standard Lengths
Available—6, 12, 18, and 24"
Long-Term Drift°C
All Industrial Head
Probe Styles Are Available
in Super Omegaclad
Design!
®
XL
4.6°C (8.4°F)
@ 1149°C (2100°F)
Special Limits of Error
Long-Term Drift°F
Long-Term EMF Drift Test @ 1149°C (2100°F) K Calibration, 3.2 mm (1/8 in)
Diameter Probes Super OMEGACLAD
®
XL
Elapsed Time - Weeks
-10
-15
15
10
5
0
-5
OMEGACLAD
®
XL vs. Competitors
Brand BBrand A
OMEGACLAD® XL
INCONEL® 600
2520151050
Standard Dimension—Industrial Head Probe
Assemblies and Replacement Probes
To Order
ANSI Color Code/Alloy Sheath Dia. (inches) Model Number ANSI Color Code
CHROMEGA®-ALOMEGA®
XL Sheath
OMEGA-P®-OMEGA-N®
XL Sheath
(*) Specify head style: 1 (NB1), 2 (NB2), 3 (NB3), 4 (NB4), 5 (NB5), 6 (NB6), 7 (NB7), 8 (NB8), 9 (NB9),
10 (NB10), 11 (NB11), 12 (NB12). Note: NB4, 8, 10, 11 not offered with
[*] Specify junction type: G (Grounded), E (Exposed), U (Ungrounded) or S (Surface).
[**] Specify length in inches: 6, 12, 18 or 24.
Spring loaded designs available, add “-SL” to the model number, no additional charge.
Ordering Example: NB1-CAXL-14G-12, industrial head probe, NB1-style head, Type K
(CHROMEGA-ALOMEGA) SUPER OMEGACLAD XL sheath, (1⁄4") OD, grounded junction,12" length.
To order a replacement probe for a head assembly, add “-RP” to the part number and subtract from the price.
Ordering Example: NB1-CAXL-14G-12-RP, industrial head replacement probe, for NB1-style head assembly,
Type K (CHROMEGA-ALOMEGA), SUPER OMEGACLAD XL sheath, 1⁄4" OD, grounded junction, 12" length.
1
⁄16 NB(*)-CAXL-116[*]-[**]
1
⁄8 NB(*)-CAXL-18[*]-[**]
3
⁄16 NB(*)-CAXL-316[
1
⁄4 NB(*)-CAXL-14[
5
⁄16 NB(*)-CAXL-516[
3
⁄8 NB(*)-CAXL-38[*]-[**]
1
⁄16 NB(*)-NNXL-116[*]-[**]
1
⁄8 NB(*)-NNXL-18[*]-[**]
3
⁄16 NB(*)-NNXL-316[
1
⁄4 NB(*)-NNXL-14[
5
⁄16 NB(*)-NNXL-516[
3
⁄8 NB(*)-NNXL-38[*]-[**]
3
⁄8" diameter probes.
*
]-[**]
*
*
*
]-[**]
*
*
]-[**]
]-[**]
]-[**]
]-[**]
,
Replacement
Models
shown
smaller
than
actual
size.
NB1 Style
Shown.
Standard Dimension—Utility Handle Probes
To Order
ANSI Color Code/Alloy Sheath Dia. (inches) Model Number ANSI Color Code
CHROMEGA®-ALOMEGA®
XL Sheath
OMEGA-P®-OMEGA-N®
XL Sheath
[*] Specify junction type: “G” (Grounded), “E” (Exposed), “U” (Ungrounded) or “S” (Surface). [**] Specify length in inches: 6, 12, 18 or 24.
For a male straight M8 plug add “M8-S-M” to the model number, for a male straight M12 plug add“M12-S-M” to the model number,
for a male right-angled M8 plug add “M8-R-M” to the model number, for a male right-angled M12 plug add “M12-S-M” to the model
number and additional cost to the price.
Ordering Example: KHXL-14G-RSC-12, utility handle probe, Type K (CHROMEGA-ALOMEGA), SUPER OMEGACLAD XL sheath,
1
⁄4" OD, grounded junction, 12" length, supplied with a miniature connector (SMP) termination.
†
Please Note: These diameters will be manually assembled, not molded.
1
⁄16 KHXL-116[*]-RSC-[**]
1
⁄8 KHXL-18[*]-RSC-[**]
3
⁄16 KHXL-316[
1
⁄4 KHXL-14[
5
⁄16
3
⁄8
1
⁄16 NHXL-116[*]-RSC-[**]
1
⁄8 NHXL-18[*]-RSC-[**]
3
⁄16 NHXL-316[
1
⁄4 NHXL-14[
5
⁄16
3
⁄8
†
KHXL-516[*]-RSC-[**]
†
KHXL-38[*]-RSC-[**]
†
NHXL-516[*]-RSC-[**]
†
NHXL-38[*]-RSC-[**]
]-RSC-[**]
*
]-RSC-[**]
*
]-RSC-[**]
*
]-RSC-[**]
*
A-47
Replacement
Probes Available
Junction Types
Grounded
Exposed
Ungrounded
Page 6
Super OMEGACLAD® XL Probes
Grounded Exposed Ungrounded
Available in Most Thermocouple Probe
Styles and Designs with Metric Dimensions
A
U Standard- and Miniature-Size Quick-Connect
and Molded Transition Junction Probes
U Rugged Industrial Head Styles
Probes, and Utility Handle Probes
U All Standard Lengths Available—
150, 300, 450 and 600 mm
Long-Term Drift°C
All Industrial Head
Probe Styles Are Available
in Super Omegaclad
Design!
®
XL
4.6°C (8.4°F)
@ 1149°C (2100°F)
Special Limits of Error
Long-Term Drift°F
Long-Term EMF Drift Test @ 1149°C (2100°F) K Calibration, 3.2 mm (1/8 in)
Diameter Probes Super OMEGACLAD
®
XL
Elapsed Time - Weeks
-10
-15
15
10
5
0
-5
OMEGACLAD
®
XL vs. Competitors
Brand BBrand A
OMEGACLAD® XL
INCONEL® 600
8.3
5.6
2.8
0
-2.8
-5.6
-8.3
2520151050
Metric Dimension—Industrial Head Probe
Assemblies and Replacement Probes
To Order
ANSI
Color Code/Alloy Sheath Dia. (mm) Model Number ANSI Color Code
1.5 NB(*)-CAXL-M15[*]-[**]
3.0 NB(*)-CAXL-M30[*]-[**]
CHROMEGA®-ALOMEGA® 4.5 NB(*)-CAXL-M45[*]-[**]
XL Sheath 6.0 NB(*)-CAXL-M60[*]-[**]
8.0 NB(*)-CAXL-M80[*]-[**]
9.5 NB(*)-CAXL-M95[*]-[**]
1.5 NB(*)-NNXL-M15[*]-[**]
3.0 NB(*)-NNXL-M30[*]-[**]
OMEGA-P
XL Sheath 6.0 NB(*)-NNXL-M60[*]-[**]
8.0 NB(*)-NNXL-M80[*]-[**]
9.5 NB(*)-NNXL-M95[*]-[**]
(*) Specify head style: 1 (NB1), 2 (NB2), 3 (NB3), 4 (NB4), 5 (NB5), 6 (NB6), 7 (NB7), 8 (NB8), 9 (NB9),
10 (NB10), 11 (NB11), 12 (NB12). Note: NB4, 8, 10, 11 not offered with 9.5 mm diameter probes.
[*] Specify junction type: G (Grounded), E (Exposed), U (Ungrounded) or S (Surface).
[**] Specify length in millimeters: 150 mm, 300 mm, 450 mm or 600 mm.
Ordering Example: NB1-CAXL-M60G-300 industrial head probe, NB1-style head, Type K (CHROMEGA-ALOMEGA)
SUPER OMEGACLAD
To order a replacement probe for a head assembly, add “-RP” to the model number and subtract from the price above.
Ordering Example: NB1-CAXL-M60G-300-RP, industrial head replacement probe, for NB1-style head assembly,
Type K (CHROMEGA-ALOMEGA), SUPER OMEGACLAD XL sheath, 6 mm OD, grounded junction, 300 mm length.
®
-OMEGA-N® 4.5 NB(*)-NNXL-M45[*]-[**]
XL sheath, 6 mm OD, grounded junction, 300 mm length.
Models
shown
smaller
than
actual
size.
,
Replacement
NB1 Style
Shown.
Replacement
Probes Available
Metric Dimension—Utility Handle Probes
To Order
ANSI
Color Code/Alloy Sheath Dia. (mm) Model Number ANSI Color Code
1.5 KHXL-M15[*]-RSC-[**]
3.0 KHXL-M30[*]-RSC-[**]
CHROMEGA®-ALOMEGA® 4.5 KHXL-M45[*]-RSC-[**]
XL Sheath 6.0 KHXL-M60[*]-RSC-[**]
8.0
9.5
1.5 NHXL-M15[*]-RSC-[**]
3.0 NHXL-M30[*]-RSC-[**]
OMEGA-P®-OMEGA-N® 4.5 NHXL-M45[*]-RSC-[**]
XL Sheath 6.0 NHXL-M60[*]-RSC-[**]
8.0
9.5
[*] Specify junction type: G (Grounded), E (Exposed), U (Ungrounded) or S (Surface). [**] Specify length in millimeters: 150 mm, 300 mm,
450 mm, or 600 mm. Order standard model number with a suffix “-PFA”. Visit us online for additional price on 300 mm (12") probes,
450 mm (18") probes and 600 mm (24") probes. 200°C (400°F) max. Note: These diameters will be assembled manually, not molded.
For a male straight M8 plug add “M8-S-M” to the model number, for a male straight M12 plug add “M12-S-M” to the model number, for a male
right-angled M8 plug add “M8-R-M” to the model number, for a male right-angled M12 plug add “M12-S-M” to the model number and additional
cost to the price.
Ordering Example: KHXL-M60G-RSC-300, utility handle probe, Type K (CHROMEGA-ALOMEGA), SUPER OMEGACLAD ® XL sheath,
6 mm OD, grounded junction, 300 mm length, supplied with a miniature connector (SMP) termination.
A-48
†
KHXL-M80[*]-RSC-[**]
†
KHXL-M95[*]-RSC-[**]
†
NHXL-M80[*]-RSC-[**]
†
NHXL-M95[*]-RSC-[**]
Junction Types
Grounded
Exposed
Ungrounded
Loading...
