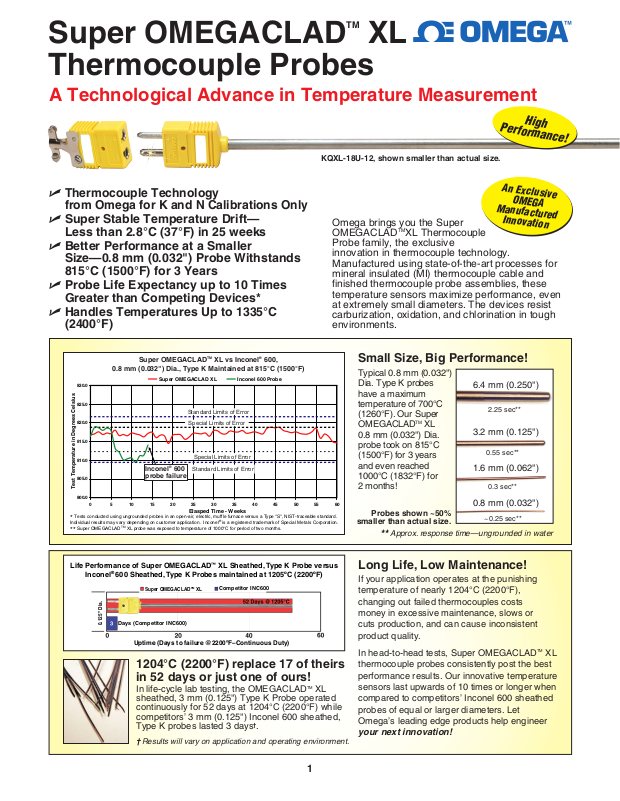

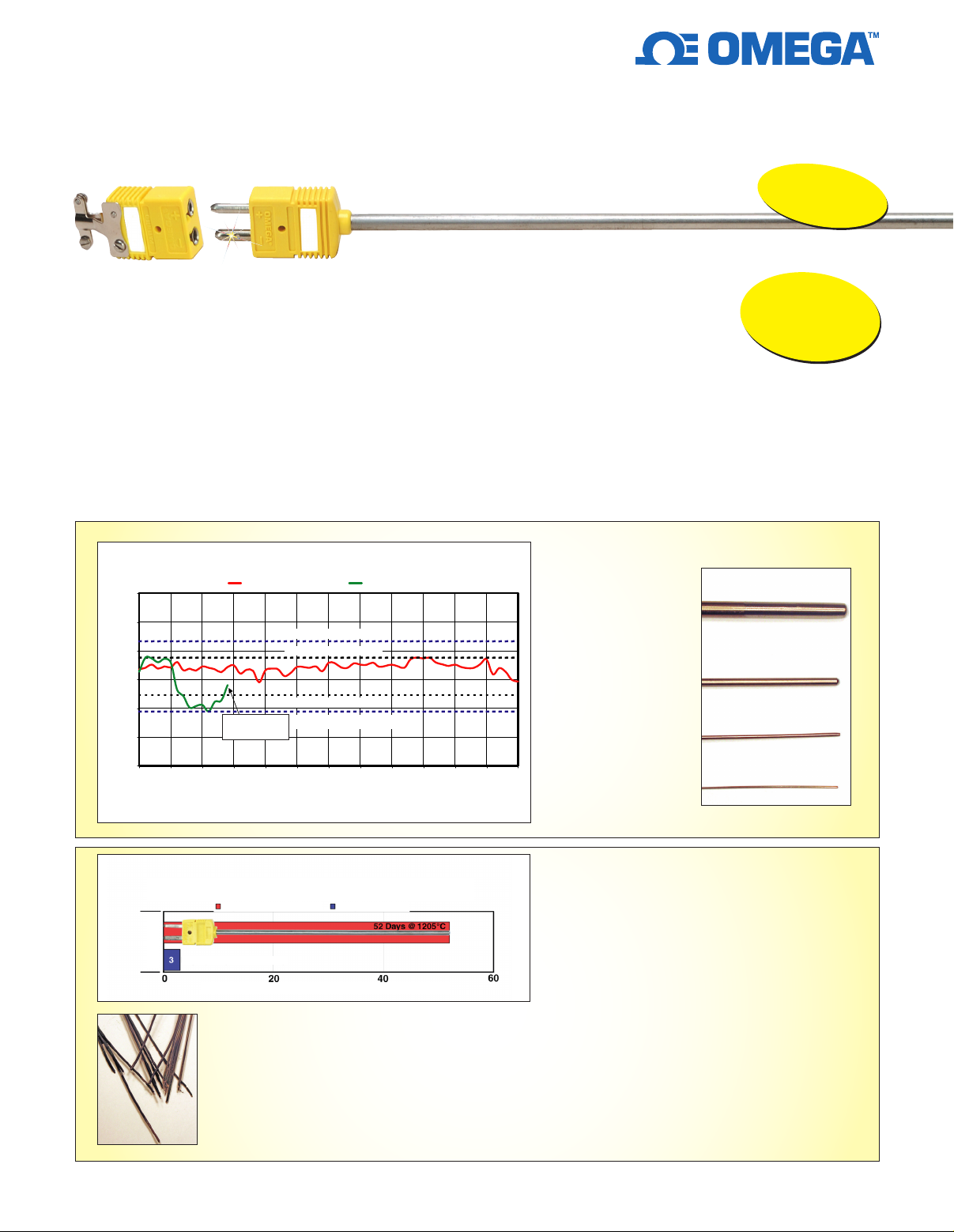

Page 1
Super OMEGACLADTM XL
Thermocouple Probes
A Technological Advance in Temperature Measurement
High
Performance!
KQXL-18U-12, shown smaller than actual size.
U
Thermocouple Technology
from Omega for K and N Calibrations Only
U Super Stable Temperature Drift—
Less than 2.8°C (37°F) in 25 weeks
U Better Performance at a Smaller
Size—0.8 mm (0.032") Probe Withstands
815°C (1500°F) for 3 Years
U Probe Life Expectancy up to 10 Times
Greater than Competing Devices*
U Handles Temperatures Up to 1335°C
(2400°F)
Super OMEGACLADTM XL vs Inconel® 600,
0.8 mm (0.032") Dia., Type K Maintained at 815°C (1500°F)
830.0
suisleC seergeD ni erutarepmeT tseT
825.0
820.0
815.0
810.0
805.0
800.0
0510 15 20 25 30 35 40 45 50 55 60
Tests conducted using ungrounded probes in an open-air, electric, muffle furnace versus a Type "S", NIST-traceable standard.
*
Individual results may vary depending on customer application. Inconel
Super OMEGACLADTM XL probe was exposed to temperature of 1000°C for period of two months.
**
Super OMEGACLAD XL Inconel 600 Probe
Standard Limits of Error
Standard Limits of Error
Special Limits of Error
Special Limits of Error
Super OMEGACLAD® XL probe
Special Limits of Error
Special Limits of Error
Inconel® 600
Inconel® 600
probe failure
probe failure
Standard Limits of Error
Standard Limits of Error
Elasped Time - Weeks
®
is a registered trademark of Special Metals Corporation.
An Exclusive
OMEGA
Manufactured
Omega brings you the Super
Innovation
OMEGACLADTMXL Thermocouple
Probe family, the exclusive
innovation in thermocouple technology.
Manufactured using state-of-the-art processes for
mineral insulated (MI) thermocouple cable and
finished thermocouple probe assemblies, these
temperature sensors maximize performance, even
at extremely small diameters. The devices resist
carburization, oxidation, and chlorination in tough
environments.
Small Size, Big Performance!
Typical 0.8 mm (0.032")
Dia. Type K probes
have a maximum
tempera ture of 700°C
(1260°F). Our Super
OMEGACLADTM XL
0.8 mm (0.032") Dia.
probe took on 815°C
(1500°F) for 3 years
and even reached
1000°C (1832°F) for
2 months!
Probes shown ~50%
smaller than actual size.
Approx. response time—ungrounded in water
**
6.4 mm (0.250")
2.25 sec**
3.2 mm (0.125")
0.55 sec**
1.6 mm (0.062")
0.3 sec**
0.8 mm (0.032")
~0.25 sec**
Life Performance of Super OMEGACLAD™ XL Sheathed, Type K Probe versus
®
Inconel
600 Sheathed, Type K Probes maintained at 1205ºC (2200ºF)
Super OMEGACLADTM XL
0.125" Dia.
Days (Competitor INC600)
Uptime (Days to failure @2200ºF–Continuous Duty)
Competitor INC600
1204°C (2200°F) replace 17 of theirs
in 52 days or just one of ours!
In life-cycle lab testing, the OMEGACLADTM XL
sheathed, 3 mm (0.125") Type K Probe operated
continuously for 52 days at 1204°C (2200°F) while
competitors’ 3 mm (0.125") Inconel 600 sheathed,
Type K probes lasted 3 days†.
† Results will vary on application and operating environment.
1
Long Life, Low Maintenance!
If your application operates at the punishing
temperature of nearly 1204°C (2200°F),
changing out failed thermocouples costs
money in excessive maintenance, slows or
cuts production, and can cause inconsistent
product quality.
In head-to-head tests, Super OMEGACLADTM XL
thermocouple probes consistently post the best
performance results. Our innovative temperature
sensors last upwards of 10 times or longer when
compared to competitors’ Inconel 600 sheathed
probes of equal or larger diameters. Let
Omega’s leading edge products help engineer
your next innovation!

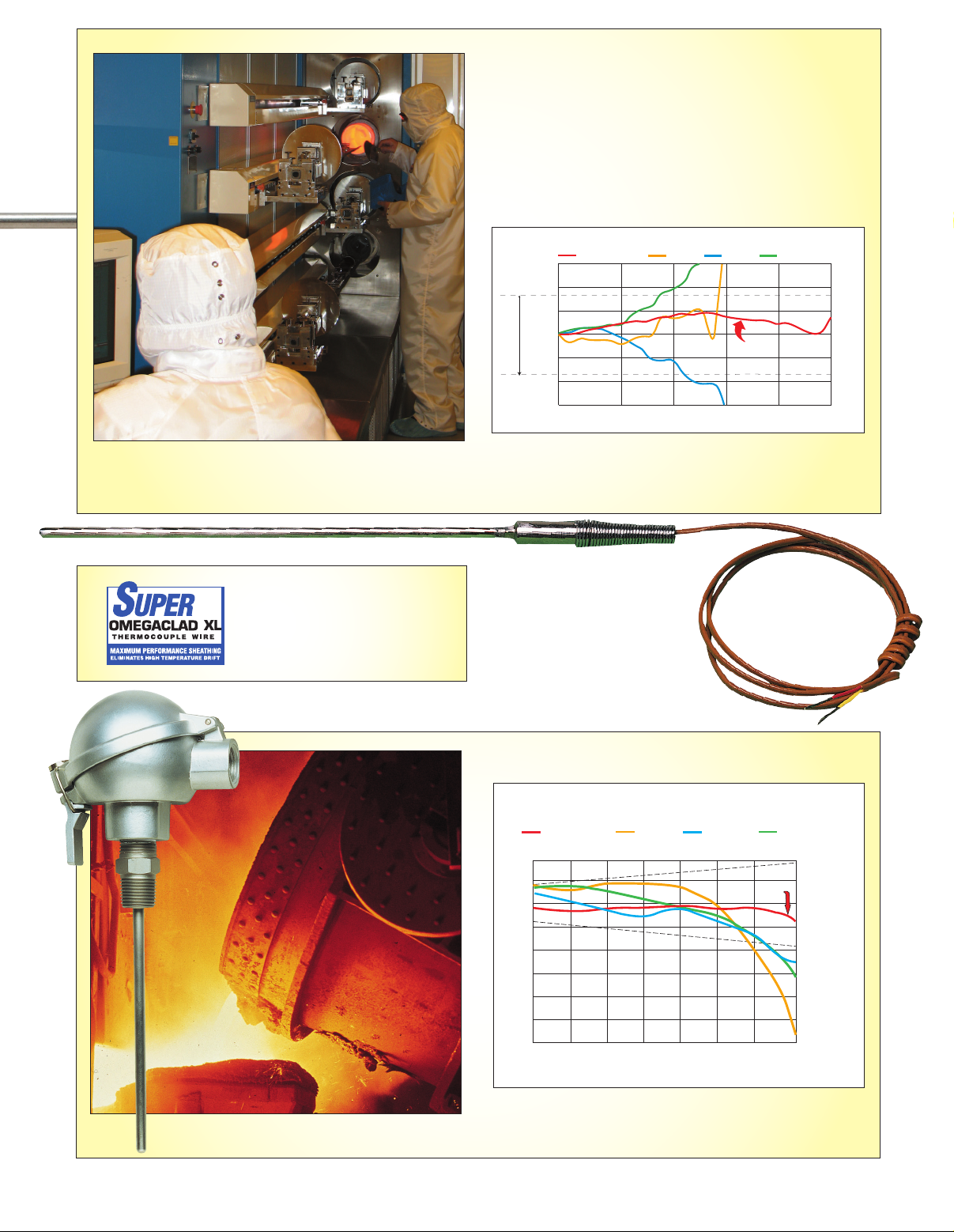

Page 2
Omega’s products making Omega’s products. Omega uses
Super OMEGACLADTM XL thermocouple probes in its Class
10 clean rooms to monitor critical process temperatures and
achieve consistent, high-quality products.
Low Drift, Reliable Temperatures!
Super OMEGACLADTM XL’s low-drift characteristic
ensures reliability of temperature readings longer
than any other brand or sheath material. Within
15 weeks, Brands A, B, and C exhibited more than
8.3°C (47°F) drift. At 25 weeks, OMEGACLADTM
XL’s drift was less than 2.8°C (37°F).*
Long-Term EMF Drift Test @ 1149°C (2100°F) K Calibration, 3.2 mm (1/8 in)
Diameter Probes Super OMEGACLAD
TM
OMEGACLAD
15
10
5
0
4.6°C (8.4°F)
@ 1149°C (2100°F)
Special Limits of Error
-5
Long-Term Drift°F
-10
-15
Tests conducted using ungrounded probes in an open-air,
*
electric, muffle furnace versus a Type “S”, NIST-traceable
XL
Elapsed Time - Weeks
standard. Individual results may vary depending on customer
application. Inconel® is a registered trademark of Special Metals
Corporation.
TM
XL vs. Competitors
Brand BBrand A
OMEGACLADTM XL
INCONEL® 600
8.3
5.6
2.8
-2.8
-5.6
-8.3
2520151050
0
Long-Term Drift° C
Available as
TM
Look for this logo to
identify probes available
in Super OMEGACLAD XL
sheathed thermocouple
wire and probes
TJ36-CAXL-18U-12, shown
smaller than actual size. Visit
OMEGA for Super OMEGACLADTM
XL probe offerings.
Take on High Temperatures!
Typical OMEGACLAD XL Type K Calibration 1.6 mm (
Performance vs Competitors and Inconel
5
0
-5
-10
-15
Deviation °F
-20
-25
-30
Measurements are taken at 1-hour intervals from 538 to 1338°C (1000 to 2400°F )
OMEGACLADTM XL
1
/16'') Diameter
®
600
Inconel® 600Brand BBrand AOMEGACLADTM XL
133812041093982871760649538°C
24002200200018001600140012001000°F
5.5
2.8
-2.8
-5.5
-8.3
-11.1
-13.9
-16.6
°C10°F
0
Deviation °C
NB3-CAXL-14U-12, shown
smaller than actual size.
In tests up to 1338°C (2400°F), Super OMEGACLADTM XL
outperformed both the Inconel 600 and other
competing high-temperature models.
2

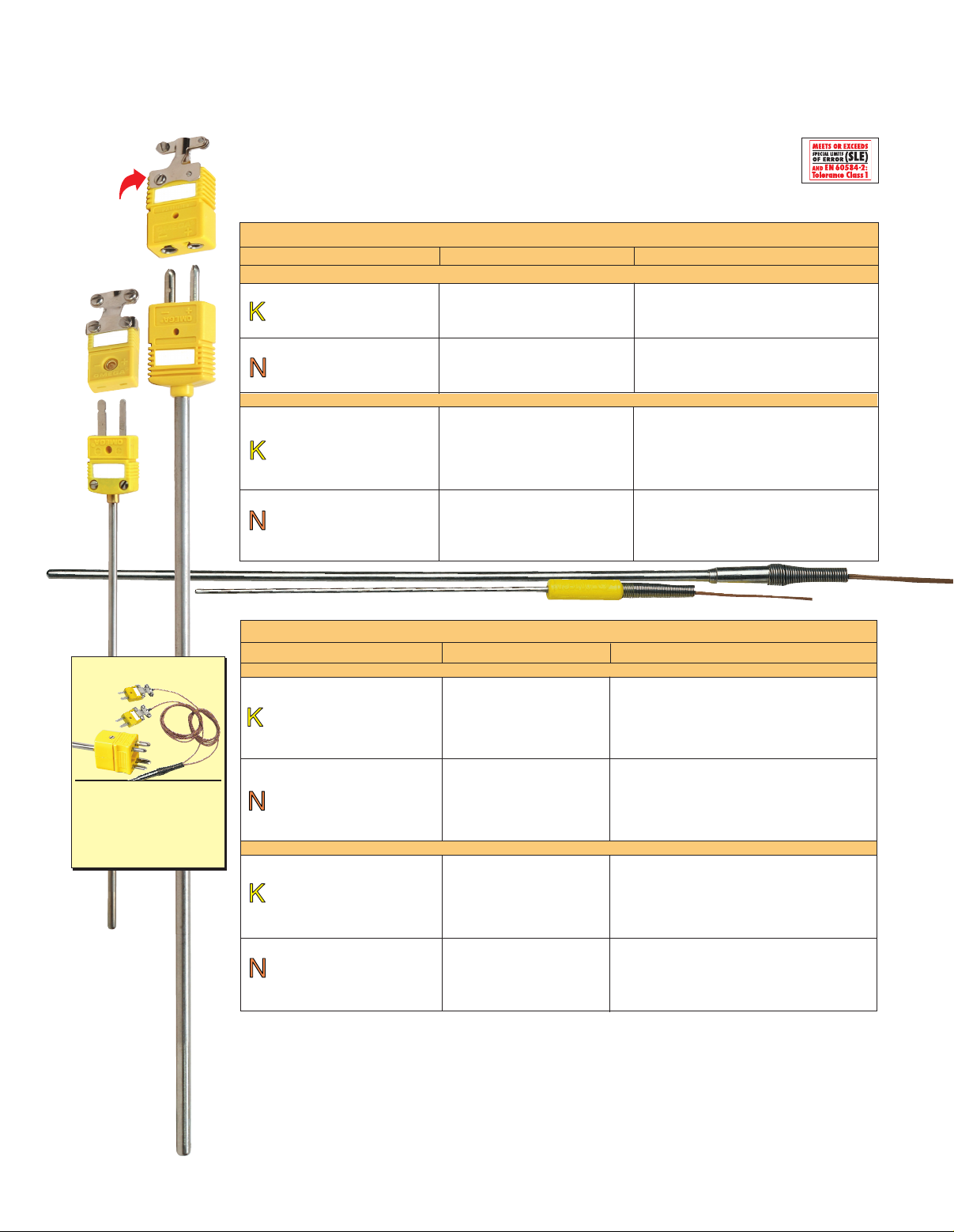

Page 3
Super OMEGACLADTM XL Probes
Very Low Drift at High Temperatures
Super Accurate, Super Stable, Super Value—Standard Dimensions
U For Use Up to 1338°C (2400°F)
U Excellent Long-Term Stability at High Temperatures
Mating
connector &
clamp sold
separately
U Larger Diameter Available (Consult Sales)
Standard Dimension—Quick-Connect Probes
To Order
ANSI
Color Code/Alloy Sheath Dia. inches Model Number ANSI Color Code
MOLDED STANDARD CONNECTOR
CHROMEGATM-ALOMEGATM
XL Sheath
OMEGA-PTM-OMEGA-NTM
XL Sheath
MINIATURE CONNECTOR
0.010 SCAXL-010[*]-[**]
0.020 SCAXL-020[*]-[**]
CHROMEGATM-ALOMEGATM 0.032 SCAXL-032[*]-[**]
XL Sheath 0.040 KMQXL-040[*]-[**]
0.062 KMQXL-062[*]-[**]
0.125 KMQXL-125[*]-[**]
0.020 SNNXL-020[*]-[**]
OMEGA-PTM-OMEGA-NTM 0.032 SNNXL-032[*]-[**]
XL Sheath 0.040 NMQXL-040[*]-[**]
0.062 NMQXL-062[*]-[**]
0.125 NMQXL-125[*]-[**]
1
⁄16 KQXL-116[*]-[**]
1
⁄8 KQXL-18[*]-[**]
3
⁄16 KQXL-316[
1
⁄4 KQXL-14[
1
⁄16 NQXL-116[*]-[**]
1
⁄8 NQXL-18[*]-[**]
3
⁄16 NQXL-316[
1
⁄4 NQXL-14[
*
]-[**]
*
*
]-[**]
*
]-[**]
]-[**]
Dual Elements
The probes shown on
this page are also
available in our dual
element configuration.
Please contact Omega
for more details.
Miniature
size.
Both models
do not include
the mating
connector
& cable
clamp, Sold
Separately.
Standard
size.
Heavy-duty style
Standard Dimension—Transition Junction Probes
To Order
ANSI
HEAVY DUTY TRANSITION JUNCTION PROBE
CHROMEGATM-ALOMEGATM
XL Sheath
OMEGA-PTM-OMEGA-NTM
XL Sheath
MINIATURE TRANSITION JUNCTION PROBE
0.010 KMTXL-010[*]-[**]
0.020 KMTXL-020[*]-[**]
CHROMEGATM-ALOMEGATM 0.032 KMTXL-032[*]-[**]
XL Sheath 0.040 KMTXL-040[*]-[**]
0.062 KMTXL-062[*]-[**]
0.125 KMTXL-125[*]-[**]
0.020 NMTXL-020[*]-[**]
OMEGA-PTM-OMEGA-NTM 0.032 NMTXL-032[*]-[**]
XL Sheath 0.040 NMTXL-040[*]-[**]
0.062 NMTXL-062[*]-[**]
0.125 NMTXL-125[*]-[**]
Note: Probes with 0.032" diameter and larger are supplied with molded transition joints. Smaller-sized probes are
supplied with stainless steel transition joints. Stripped leads standard.
[*] Specify junction type: “G” (Grounded), “E” (Exposed) or “U” (Ungrounded).
[**] Specify length in inches: “6”, “12”, “18” or “24”.
For a male straight M8 plug add “M8-S-M” to the model number, for a male straight M12 plug add “M12-S-M” to
the model number, for a male right-angled M8 plug add “M8-R-M” to the model number, for a male right-angled
M12 plug add “M12-S-M” to the model number and additional cost to the price.
See accessory charts on page 7 for ordering the compatible mating connectors.
Ordering Example for Quick-Connect Probes: KQXL-18U-12, molded quick-connect probe, Type K
(CHROMEGA-ALOMEGA), SUPER OMEGACLAD XL sheath, 1⁄8" OD, ungrounded junction,12".
Color Code/Alloy Sheath Dia. (inches) Model Number ANSI Color Code
1
⁄16 TJ36-CAXL-116[*]-[**]
1
⁄8 TJ36-CAXL-18[*]-[**]
3
⁄16 TJ36-CAXL-316[
1
⁄4 TJ36-CAXL-14[
5
⁄16 TJ36-CAXL-516[
3
⁄8 TJ36-CAXL-38[*]-[**]
1
⁄16 TJ36-NNXL-116[*]-[**]
1
⁄8 TJ36-NNXL-18[*]-[**]
3
⁄16 TJ36-NNXL-316[
1
⁄4 TJ36-NNXL-14[
5
⁄16 TJ36-NNXL-516[
3
⁄8 TJ36-NNXL-38[*]-[**]
Miniature style
*
]-[**]
*
*
*
]-[**]
*
*
]-[**]
]-[**]
]-[**]
]-[**]
3

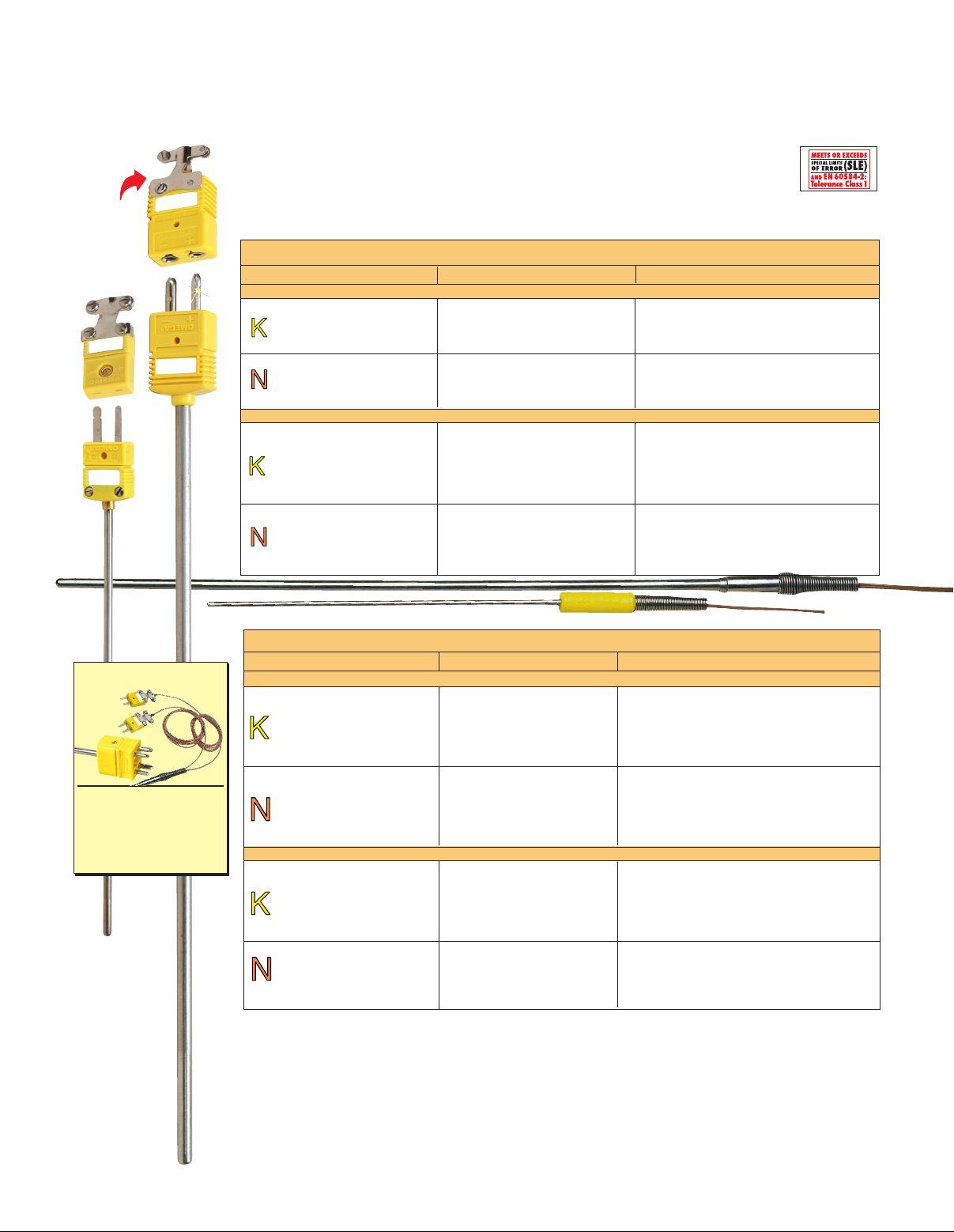

Page 4
Super OMEGACLADTM XL Probes
Very Low Drift at High Temperatures
Super Accurate, Super Stable, Super Value—Metric Dimensions
U For Use Up to 1338°C (2400°F)
U Excellent Long-Term Stability at High Temperatures
Mating
Connector &
clamp sold
separately.
U Larger Diameter Available (Consult Sales)
Metric Dimension—Quick-Connect Probes
To Order
ANSI
Color Code/Alloy Sheath Dia. (mm) Model Number ANSI Color Code
MOLDED STANDARD CONNECTOR
1.5 KQXL-M15[*]-[**]
CHROMEGATM-ALOMEGATM 3.0 KQXL-M30[*]-[**]
XL Sheath 4.5 KQXL-M45[*]-[**]
6.0 KQXL-M60[*]-[**]
1.5 NQXL-M15[*]-[**]
OMEGA-PTM-OMEGA-NTM 3.0 NQXL-M30[*]-[**]
XL Sheath 4.5 NQXL-M45[*]-[**]
6.0 NQXL-M60[*]-[**]
MINIATURE CONNECTOR
0.25 KMQXL-M025[*]-[**]
0.5 KMQXL-M050[*]-[**]
CHROMEGATM-ALOMEGATM 0.75 KMQXL-M075[*]-[**]
XL Sheath 1.0 KMQXL-M100[*]-[**]
1.5 KMQXL-M150[*]-[**]
3.0 KMQXL-M300[*]-[**]
0.5 NMQXL-M050[*]-[**]
OMEGA-PTM-OMEGA-NTM 0.75 NMQXL-M075[*]-[**]
XL Sheath 1.0 NMQXL-M100[*]-[**]
1.5 NMQXL-M150[*]-[**]
3.0 NMQXL-M300[*]-[**]
Dual Elements
The probes shown on
this page are also
available in our dual
element configuration.
Please contact Omega
for more details.
Miniature
size.
Both Models
do not include
the mating
connector
& cable
clamp,sold
separately .
Standard
size.
Heavy-duty style
Metric Dimension—Transition Junction Probes
To Order
ANSI
Color Code/Alloy Sheath Dia. (mm) Model Number ANSI Color Code
HEAVY-DUTY TRANSITION JUNCTION PROBE
1.5 TJ36-CAXL-M15[*]-[**]
3.0 TJ36-CAXL-M30[*]-[**]
CHROMEGATM-ALOMEGATM 4.5 TJ36-CAXL-M45[*]-[**]
XL Sheath 6.0 TJ36-CAXL-M60[*]-[**]
8.0 TJ36-CAXL-M80[*]-[**]
9.5 TJ36-CAXL-M95[*]-[**]
1.5 TJ36-NNXL-M15[*]-[**]
3.0 TJ36-NNXL-M30[*]-[**]
OMEGA-PTM-OMEGA-NTM 4.5 TJ36-NNXL-M45[*]-[**]
XL Sheath 6.0 TJ36-NNXL-M60[*]-[**]
8.0 TJ36-NNXL-M80[*]-[**]
9.5 TJ36-NNXL-M95[*]-[**]
MINIATURE TRANSITION JUNCTION PROBE
0.25 KMTXL-M025[*]-[**]
0.5 KMTXL-M050[*]-[**]
CHROMEGATM-ALOMEGATM 0.75 KMTXL-M075[*]-[**]
XL Sheath 1.0 KMTXL-M100[*]-[**]
1.5 KMTXL-M150[*]-[**]
3.0 KMTXL-M300[*]-[**]
0.5 NMTXL-M050[*]-[**]
OMEGA-PTM-OMEGA-NTM 0.75 NMTXL-M075[*]-[**]
XL Sheath 1.0 NMTXL-M100[*]-[**]
1.5 NMTXL-M150[*]-[**]
3.0 NMTXL-M300[*]-[**]
Note: Probes with 0.75 mm diameter and larger are supplied with molded transition joints. Smaller-sized probes
are supplied with stainless steel transition joints. Stripped leads standard.
[*] Specify junction type: “G” (Grounded), “E” (Exposed) or “U” (Ungrounded)
[**] Specify length in millimeters: “150” mm, “300” mm, “450” mm, or “600” mm.
For a male straight M8 plug add “M8-S-M” to the model number, for a male straight M12 plug add “M12-S-M” to
the model number, for a male right-angled M8 plug add “M8-R-M” to the model number, for a male right-angled
M12 plug add “M12-S-M” to the model number and additional cost to the price.
See accessory charts on page 7 for ordering the compatible mating connectors.
Ordering Example for Quick-Connect Probes: KQXL-M30U-300, molded quick connect probe, Type K
(CHROMEGA-ALOMEGA), SUPER OMEGACLAD XL sheath, 3 mm OD, ungrounded junction, 300 mm length.
Miniature style
4
Page 5

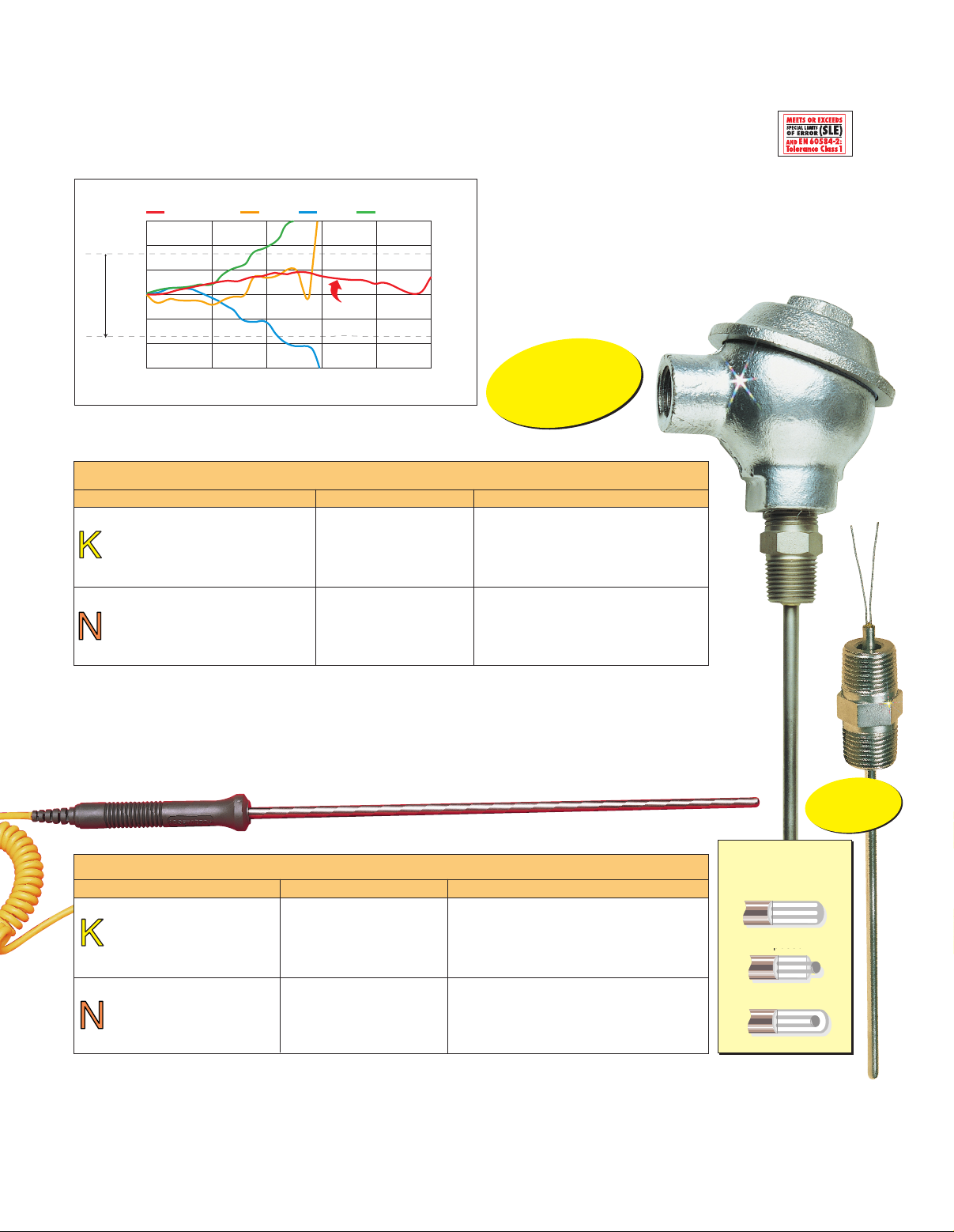

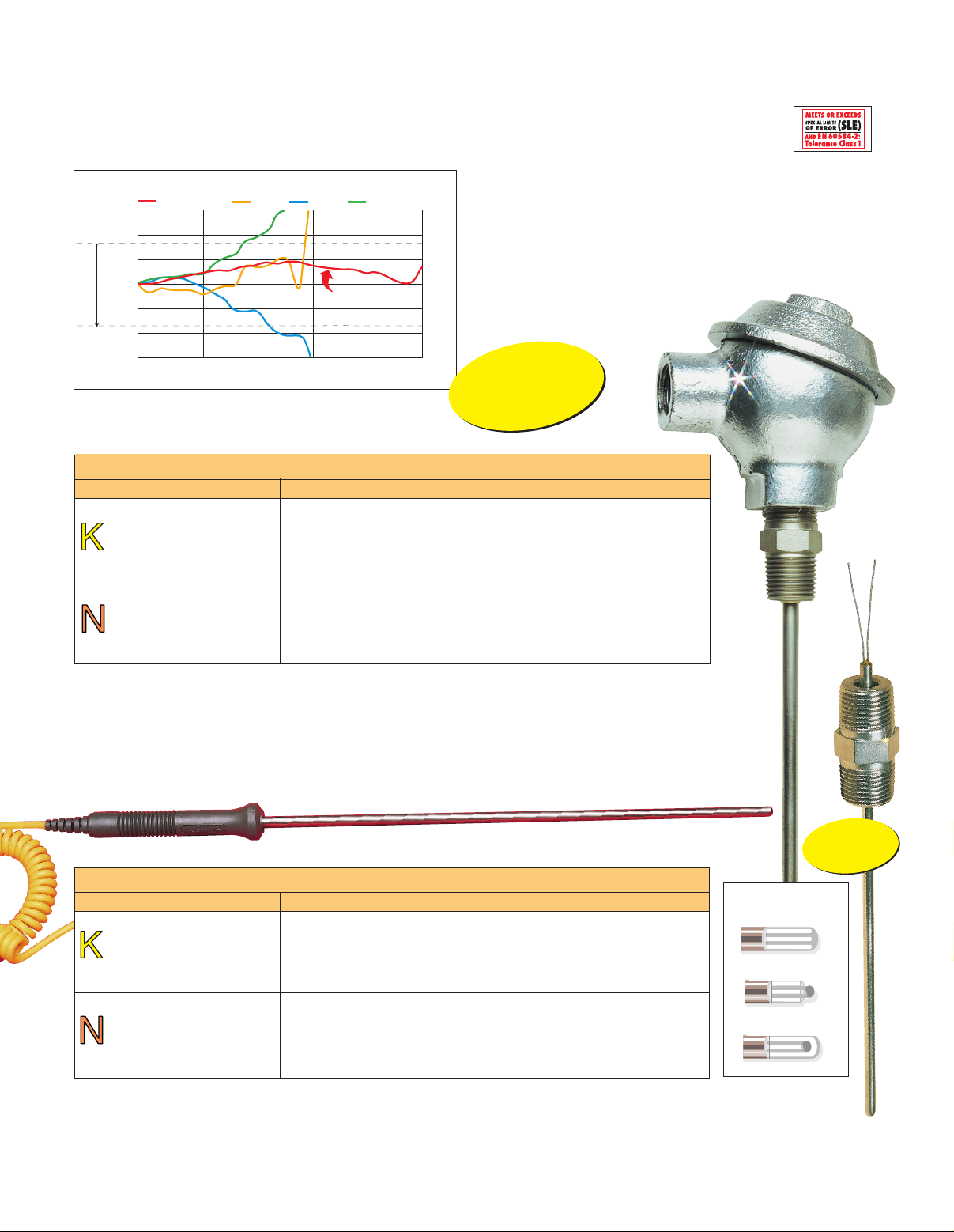

Super OMEGACLADTM XL Probes
Grounded Exposed Ungrounded
Available in Most Thermocouple Probe
Styles and Designs with Standard Dimensions
U Standard- and Miniature-Size Quick-Connect
8.3
5.6
2.8
0
-2.8
-5.6
-8.3
and Molded Transition Junction Probes
U Rugged Industrial Head Styles, Replacement
Probes, and Utility Handle Probes
U All Standard Lengths
Available—6, 12, 18, and 24"
Long-Term Drift° C
All Industrial Head
Probe Styles Are Available
in Super Omegacla
Design!
®
XL
d
4.6°C (8.4°F)
@ 1149°C (2100°F)
Special Limits of Error
Long-Term Drift°F
Long-Term EMF Drift Test @ 1149°C (2100°F) K Calibration, 3.2 mm (1/8 in)
Diameter Probes Super OMEGACLAD
TM
15
10
-10
-15
OMEGACLAD
5
0
-5
XL
Elapsed Time - Weeks
TM
XL vs. Competitors
Brand BBrand A
OMEGACLADTM XL
INCONEL® 600
2520151050
Standard Dimension—Industrial Head Probe
Assemblies and Replacement Probes
To Order
ANSI Color Code/Alloy Sheath Dia. (inches) Model Number ANSI Color Code
CHROMEGATM-ALOMEGATM
XL Sheath
OMEGA-PTM-OMEGA-NTM
XL Sheath
(*) Specify head style: 1 (NB1), 2 (NB2), 3 (NB3), 4 (NB4), 5 (NB5), 6 (NB6), 7 (NB7), 8 (NB8), 9 (NB9),
10 (NB10), 11 (NB11), 12 (NB12). Note: NB4, 8, 10, 11 not offered with
[*] Specify junction type: G (Grounded), E (Exposed), U (Ungrounded) or S (Surface).
[**] Specify length in inches: 6, 12, 18 or 24.
Spring loaded designs available, add “-SL” to the model number, no additional charge.
Ordering Example: NB1-CAXL-14G-12, industrial head probe, NB1-style head, Type K
(CHROMEGA-ALOMEGA) SUPER OMEGACLAD XL sheath, (1⁄4") OD, grounded junction,12" length.
To order a replacement probe for a head assembly, add “-RP” to the part number and subtract from the price.
Ordering Example: NB1-CAXL-14G-12-RP, industrial head replacement probe, for NB1-style head assembly,
Type K (CHROMEGA-ALOMEGA), SUPER OMEGACLAD XL sheath, 1⁄4" OD, grounded junction, 12" length.
1
⁄16 NB(*)-CAXL-116[*]-[**]
1
⁄8 NB(*)-CAXL-18[*]-[**]
3
⁄16 NB(*)-CAXL-316[
1
⁄4 NB(*)-CAXL-14[
5
⁄16 NB(*)-CAXL-516[
3
⁄8 NB(*)-CAXL-38[*]-[**]
1
⁄16 NB(*)-NNXL-116[*]-[**]
1
⁄8 NB(*)-NNXL-18[*]-[**]
3
⁄16 NB(*)-NNXL-316[
1
⁄4 NB(*)-NNXL-14[
5
⁄16 NB(*)-NNXL-516[
3
⁄8 NB(*)-NNXL-38[*]-[**]
3
⁄8" diameter probes.
]-[**]
*
]-[**]
*
]-[**]
*
]-[**]
*
]-[**]
*
]-[**]
*
NB1 Style
Shown.
Models
shown
smaller
than
actual
size.
Standard Dimension—Utility Handle Probes
To Order
ANSI Color Code/Alloy Sheath Dia. (inches) Model Number ANSI Color Code
CHROMEGATM-ALOMEGATM
XL Sheath
OMEGA-PTM-OMEGA-NTM
XL Sheath
[*] Specify junction type: “G” (Grounded), “E” (Exposed), “U” (Ungrounded) or “S” (Surface). [**] Specify length in inches: 6, 12, 18 or 24.
For a male straight M8 plug add “M8-S-M” to the model number, for a male straight M12 plug add“M12-S-M” to the model number,
for a male right-angled M8 plug add “M8-R-M” to the model number, for a male right-angled M12 plug add “M12-S-M” to the model
number and additional cost to the price.
Ordering Example: KHXL-14G-RSC-12, utility handle probe, Type K (CHROMEGA-ALOMEGA), SUPER OMEGACLAD XL sheath,
1
⁄4" OD, grounded junction, 12" length, supplied with a miniature connector (SMP) termination.
†
Please Note: These diameters will be manually assembled, not molded.
1
⁄16 KHXL-116[*]-RSC-[**]
1
⁄8 KHXL-18[*]-RSC-[**]
3
⁄16 KHXL-316[
1
⁄4 KHXL-14[
5
⁄16
3
⁄8
1
⁄16 NHXL-116[*]-RSC-[**]
1
⁄8 NHXL-18[*]-RSC-[**]
3
⁄16 NHXL-316[
1
⁄4 NHXL-14[
5
⁄16
3
⁄8
†
KHXL-516[*]-RSC-[**]
†
KHXL-38[*]-RSC-[**]
†
NHXL-516[*]-RSC-[**]
†
NHXL-38[*]-RSC-[**]
]-RSC-[**]
*
]-RSC-[**]
*
]-RSC-[**]
*
]-RSC-[**]
*
5
Replacement
Probes Available
Junction Types
Grounded
Exposed
Ungrounded
Page 6
Super OMEGACLADTM XL Probes
Grounded Exposed Ungrounded
Available in Most Thermocouple Probe
Styles and Designs with Metric Dimensions
U Standard- and Miniature-Size Quick-Connect
and Molded Transition Junction Probes
U Rugged Industrial Head Styles, Replacement
Probes, and Utility Handle Probes
U All Standard Lengths Available—
150, 300, 450 and 600 mm
Long-Term Drift° C
All Industrial Head
Probe Styles Are Available
in Super Omegacla
Design!
TM
XL
d
4.6°C (8.4°F)
@ 1149°C (2100°F)
Special Limits of Error
Long-Term Drift°F
Long-Term EMF Drift Test @ 1149°C (2100°F) K Calibration, 3.2 mm (1/8 in)
Diameter Probes Super OMEGACLAD
TM
15
10
-10
-15
OMEGACLAD
5
0
-5
XL
Elapsed Time - Weeks
TM
XL vs. Competitors
Brand BBrand A
OMEGACLADTM XL
INCONEL® 600
8.3
5.6
2.8
0
-2.8
-5.6
-8.3
2520151050
Metric Dimension—Industrial Head Probe
Assemblies and Replacement Probes
To Order
ANSI
Color Code/Alloy Sheath Dia. (mm) Model Number ANSI Color Code
1.5 NB(*)-CAXL-M15[*]-[**]
3.0 NB(*)-CAXL-M30[*]-[**]
CHROMEGATM-ALOMEGATM 4.5 NB(*)-CAXL-M45[*]-[**]
XL Sheath 6.0 NB(*)-CAXL-M60[*]-[**]
8.0 NB(*)-CAXL-M80[*]-[**]
9.5 NB(*)-CAXL-M95[*]-[**]
1.5 NB(*)-NNXL-M15[*]-[**]
3.0 NB(*)-NNXL-M30[*]-[**]
OMEGA-PTM-OMEGA-NTM 4.5 NB(*)-NNXL-M45[*]-[**]
XL Sheath 6.0 NB(*)-NNXL-M60[*]-[**]
8.0 NB(*)-NNXL-M80[*]-[**]
9.5 NB(*)-NNXL-M95[*]-[**]
(*) Specify head style: 1 (NB1), 2 (NB2), 3 (NB3), 4 (NB4), 5 (NB5), 6 (NB6), 7 (NB7), 8 (NB8), 9 (NB9),
10 (NB10), 11 (NB11), 12 (NB12). Note: NB4, 8, 10, 11 not offered with 9.5 mm diameter probes.
[*] Specify junction type: G (Grounded), E (Exposed), U (Ungrounded) or S (Surface).
[**] Specify length in millimeters: 150 mm, 300 mm, 450 mm or 600 mm.
Ordering Example: NB1-CAXL-M60G-300 industrial head probe, NB1-style head, Type K (CHROMEGA-ALOMEGA)
SUPER OMEGACLAD XL sheath, 6 mm OD, grounded junction, 300 mm length.
To order a replacement probe for a head assembly, add “-RP” to the model number and subtract from the price above.
Ordering Example: NB1-CAXL-M60G-300-RP, industrial head replacement probe, for NB1-style head assembly,
Type K (CHROMEGA-ALOMEGA), SUPER OMEGACLAD XL sheath, 6 mm OD, grounded junction, 300 mm length.
Models
shown
smaller
than
actual
size.
NB1 Style
Shown.
Replacement
Probes Available
Metric Dimension—Utility Handle Probes
To Order
ANSI
Color Code/Alloy Sheath Dia. (mm) Model Number ANSI Color Code
1.5 KHXL-M15[*]-RSC-[**]
3.0 KHXL-M30[*]-RSC-[**]
CHROMEGATM-ALOMEGATM 4.5 KHXL-M45[*]-RSC-[**]
XL Sheath 6.0 KHXL-M60[*]-RSC-[**]
8.0
9.5
1.5 NHXL-M15[*]-RSC-[**]
3.0 NHXL-M30[*]-RSC-[**]
OMEGA-PTM-OMEGA-NTM 4.5 NHXL-M45[*]-RSC-[**]
XL Sheath 6.0 NHXL-M60[*]-RSC-[**]
8.0
9.5
[*] Specify junction type: G (Grounded), E (Exposed), U (Ungrounded) or S (Surface). [**] Specify length in millimeters: 150 mm, 300 mm,
450 mm, or 600 mm. Order standard model number with a suffix “-PFA”. Visit us online for additional price on 300 mm (12") probes,
450 mm (18") probes and 600 mm (24") probes. 200°C (400°F) max. Note: These diameters will be assembled manually, not molded.
For a male straight M8 plug add “M8-S-M” to the model number, for a male straight M12 plug add “M12-S-M” to the model number, for a male
right-angled M8 plug add “M8-R-M” to the model number, for a male right-angled M12 plug add “M12-S-M” to the model number and additional
cost to the price.
Ordering Example: KHXL-M60G-RSC-300, utility handle probe, Type K (CHROMEGA-ALOMEGA), SUPER OMEGACLAD
6 mm OD, grounded junction, 300 mm length, supplied with a miniature connector (SMP) termination.
†
KHXL-M80[*]-RSC-[**]
†
KHXL-M95[*]-RSC-[**]
†
NHXL-M80[*]-RSC-[**]
†
NHXL-M95[*]-RSC-[**]
6
Junction Types
Grounded
Exposed
Ungrounded
TM
XL sheath,
Page 7
Standard KMQXL/NMQXL and KQXL/NQXL Accessories
Model Number
Mating Connector
ANSI Color Code
CHROMEGATM
ALOMEGA
TM
XL Sheath
OMEGA-P
OMEGA-N
TM
TM
XL Sheath
KQXL-116[*]-[**]
KQXL-18[*]-[**]
KQXL-316[*]-[**]
KQXL-14[*]-[**]
NQXL-116[*]-[**]
NQXL-18[*]-[**]
NQXL-316[*]-[**]
OSTW-[***]-F PCLM SFCL
NQXL-14[*]-[**]
Model No.
Cable Clamp
Model No.
Safety Clip
Model No.
CHROMEGATM
ALOMEGA
TM
XL Sheath
SCAXL-010[*]-[**]
SCAXL-020[*]-[**]
SCAXL-032[*]-[**]
KMQXL-040[*]-[**]
KMQXL-062[*]-[**]
KMQXL-125[*]-[**]
OMEGA-P
OMEGA-N
XL Sheath
TM
TM
SNNXL-020[*]-[**]
SNNXL-032[*]-[**]
NMQXL-040[*]-[**]
NMQXL-062[*]-[**]
NMQXL-125[*]-[**]
All Accessories Sold Seperately
Metric KMQXL/NMQXL and KQXL/NQXL Accessories
Model Number
ANSI Color Code
CHROMEGATM
ALOMEGA
TM
XL Sheath
KQXL-M15[*]-[**]
KQXL-M30[*]-[**]
KQXL-M45[*]-[**]
KQXL-M60[*]-[**]
OMEGA-P
OMEGA-N
XL Sheath
TM
TM
NQXL-M15[*]-[**]
NQXL-M30[*]-[**]
NQXL-M45[*]-[**]
NQXL-M60[*]-[**]
SMPW-[***]-F PCLM-SMP SMCL
Mating Connector
Model No.
Cable Clamp
Model No.
Safety Clip
Model No.
OSTW-[***]-F PCLM SFCL
CHROMEGATM
ALOMEGA
TM
XL Sheath
KMQXL-M025[*]-[**]
KMQXL-M050[*]-[**]
KMQXL-M075[*]-[**]
KMQXL-M100[*]-[**]
KMQXL-M150[*]-[**]
SMPW-[***]-F PCLM-SMP SMCL
OMEGA-P
OMEGA-N
XL Sheath
KMQXL-M300[*]-[**]
TM
TM
NMQXL-M050[*]-[**]
NMQXL-M075[*]-[**]
NMQXL-M100[*]-[**]
NMQXL-M150[*]-[**]
NMQXL-M300[*]-[**]
All accessories sold seperately.
[*] Specify junction type: “G” (Grounded), “E” (Exposed) or “U” (Ungrounded).
[**] Specify length in inches: “6”, “12”, “18” or “24”.
[***] Calibration
7
Loading...
