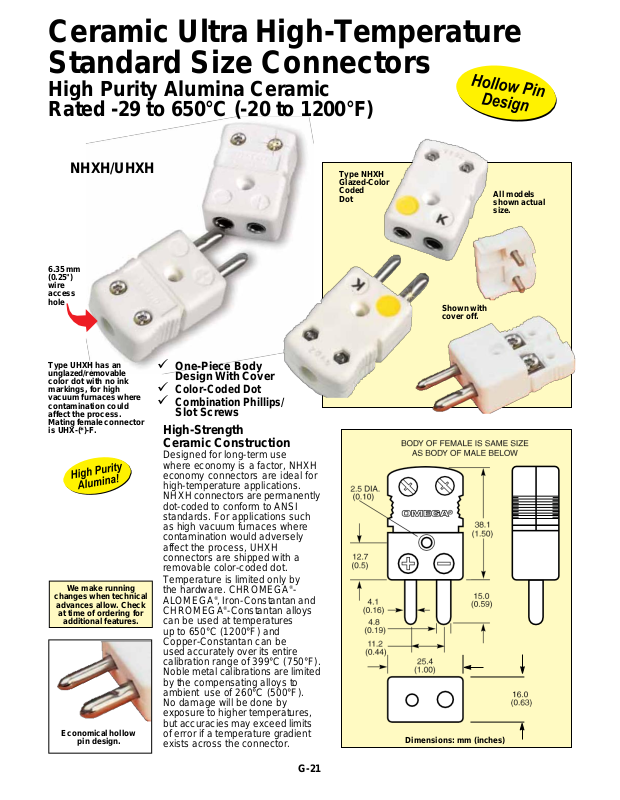

Page 1

Ceramic Ultra High-Temperature Standard Size Connectors

High Purity Alumina Ceramic

G-21

Rated -29 to 650°C (-20 to 1200°F)

NHXH/UHXH

Type NHXH Glazed-Color Coded Dot

All models shown actual size.

6.35 mm (0.25") wire access hole

Shown with cover off.

Type UHXH has an unglazed/removable color dot with no ink markings, for high vacuum furnaces where contamination could affect the process. Mating female connector is UHX-(*)-F.

✓ One-Piece Body

Design With Cover

✓

Color-Coded Dot

✓

Combination Phillips/ Slot Screws

High-Strength Ceramic Construction

Designed for long-term use where economy is a factor, NHXH economy connectors are ideal for high-temperature applications. NHXH connectors are permanently dot-coded to conform to ANSI standards. For applications such as high vacuum furnaces where contamination would adversely affect the process, UHXH connectors are shipped with a removable color-coded dot.

Temperature is limited only by the hardware. CHROMEGA®ALOMEGA®, Iron-Constantan and CHROMEGA®-Constantan alloys can be used at temperatures up to 650°C (1200°F) and Copper-Constantan can be used accurately over its entire calibration range of 399°C (750°F). Noble metal calibrations are limited by the compensating alloys to ambient use of 260°C (500°F). No damage will be done by exposure to higher temperatures, but accuracies may exceed limits of error if a temperature gradient exists across the connector.

Economical hollow

pin design.

We make running

changes when technical

advances allow. Check

at time of ordering for

additional features.

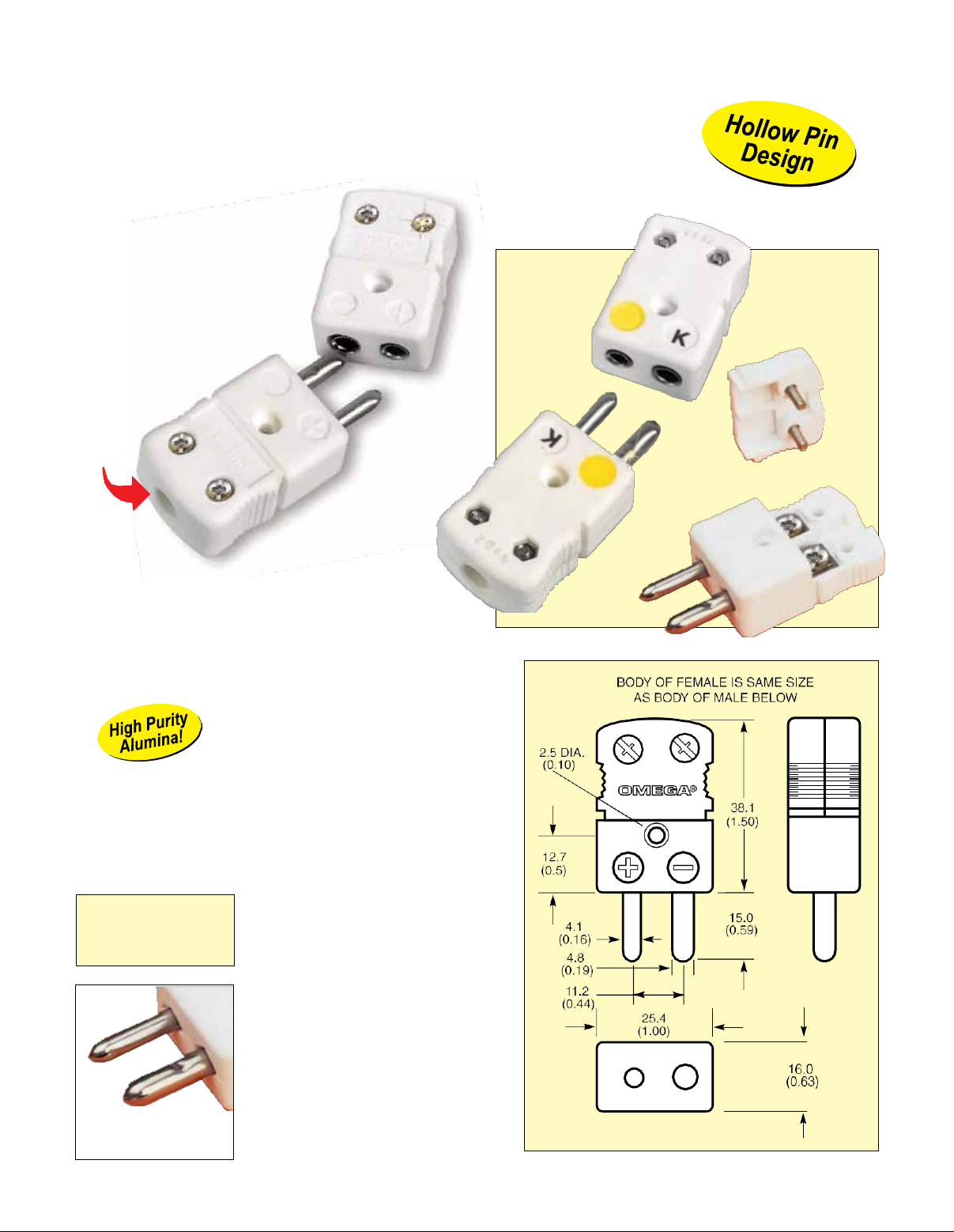

Dimensions: mm (inches)

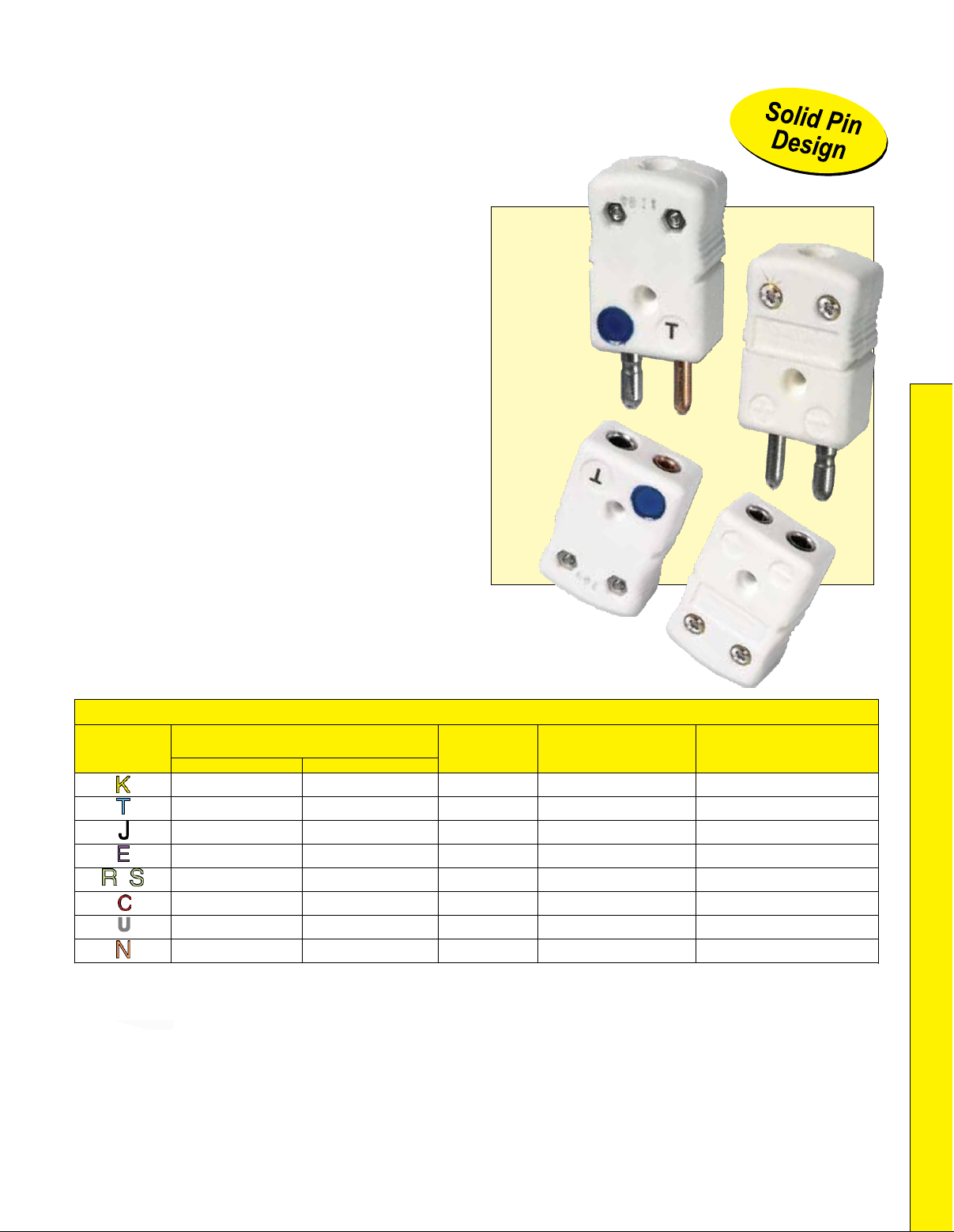

Page 2

Ceramic Ultra High-Temperature Standard Size Connectors

High Purity Alumina Ceramic

G-22

NHX-N-(*)

NHXH-N-(*)

Orange

OMEGA-

NHX-U-(*)

NHXH-U-(*)

White

Copper

NHX-C-(*)

N/A

Red

CNX

CPX

NHX-R/S-(*)

NHXH-R/S-(*)

Green

RNX/SNX

Copper

NHX-E-(*)

NHXH-E-(*)

Purple

Constantan

CHROMEGA

NHX-J-(*)

NHXH-J-(*)

Black

Constantan

Iron

NHX-T-(*)

NHXH-T-(*)

Blue

Constantan

Copper

NHX-K-(*)

NHXH-K-(*)

Yellow

ALOMEGA

CHROMEGA

–

Solid-Pin

Model Number*

Hollow-Pin

Model Number*

ANSI

Color

Code

Compensating Alloy

Used in Connector

Alloy

Code

†

To Order

-29 to 650°C (-20 to 1200°F)

✓ Extra Heavy Duty

Ceramic Construction

✓ One-Piece Body

Design

✓ Color-Coded Dot ✓ Type UHX Has

Removable Color Dot*** for Vacuum Furnace Applications

✓

Combination Philips/Slot Screws

OMEGA® NHX Ceramic Connectors are permanently color-dot coded to conform to ANSI and OMEGA standards. The one-piece body construction minimizes loose hardware.

OMEGA® UHX Ceramic Connectors are identical to the NHX models, and are also constructed to eliminate any contaminants. The UHX connector is ideally suited for applications such as high vacuum furnaces where contamination could adversely affect the process. All UHX connectors are shipped with a removable color-coding dot.

*To order, specify “M” for male connector only, or “F” for female connector only.

** The NHXH male mates with NHX female. *** To order UHX connectors with removable color dot, change “NHX” to “UHX” in model number, same price.

To order UHXH connectors with removable color dot, change “NHXH” to “UHXH” in model number, same price. †

J, K, T, E, R, S and B are ANSI designations.

OMEgALLOY®,

Type N, is generically known as Nicrosil-Nisil. ANSI color coded models shown.

Note: Type U (uncompensated) connectors are used with Type B thermocouples.

Type NHX

Type UHX

NHX/UHX
