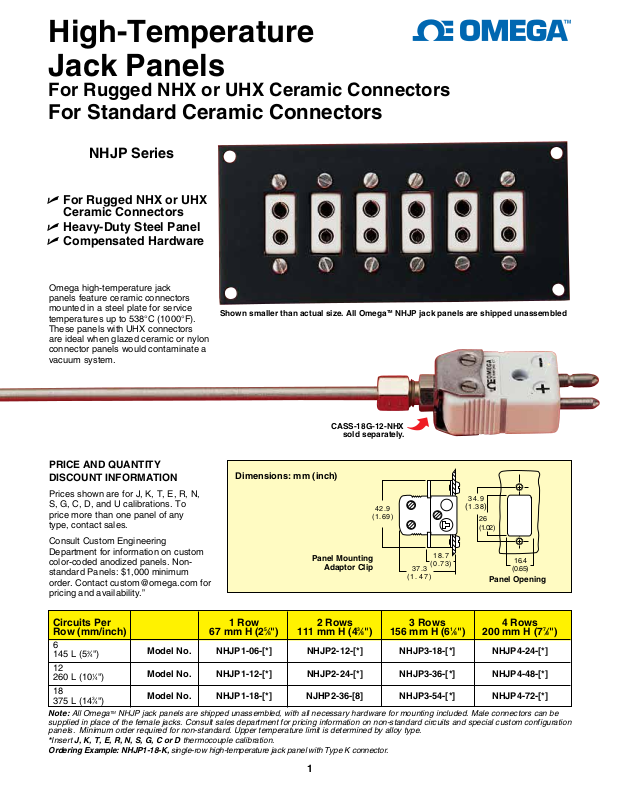

High-Temperature
Jack Panels
For Rugged NHX or UHX Ceramic Connectors
For Standard Ceramic Connectors
NHJP Series
U For Rugged NHX or UHX
Ceramic Connectors
U Heavy-Duty Steel Panel
U Compensated Hardware

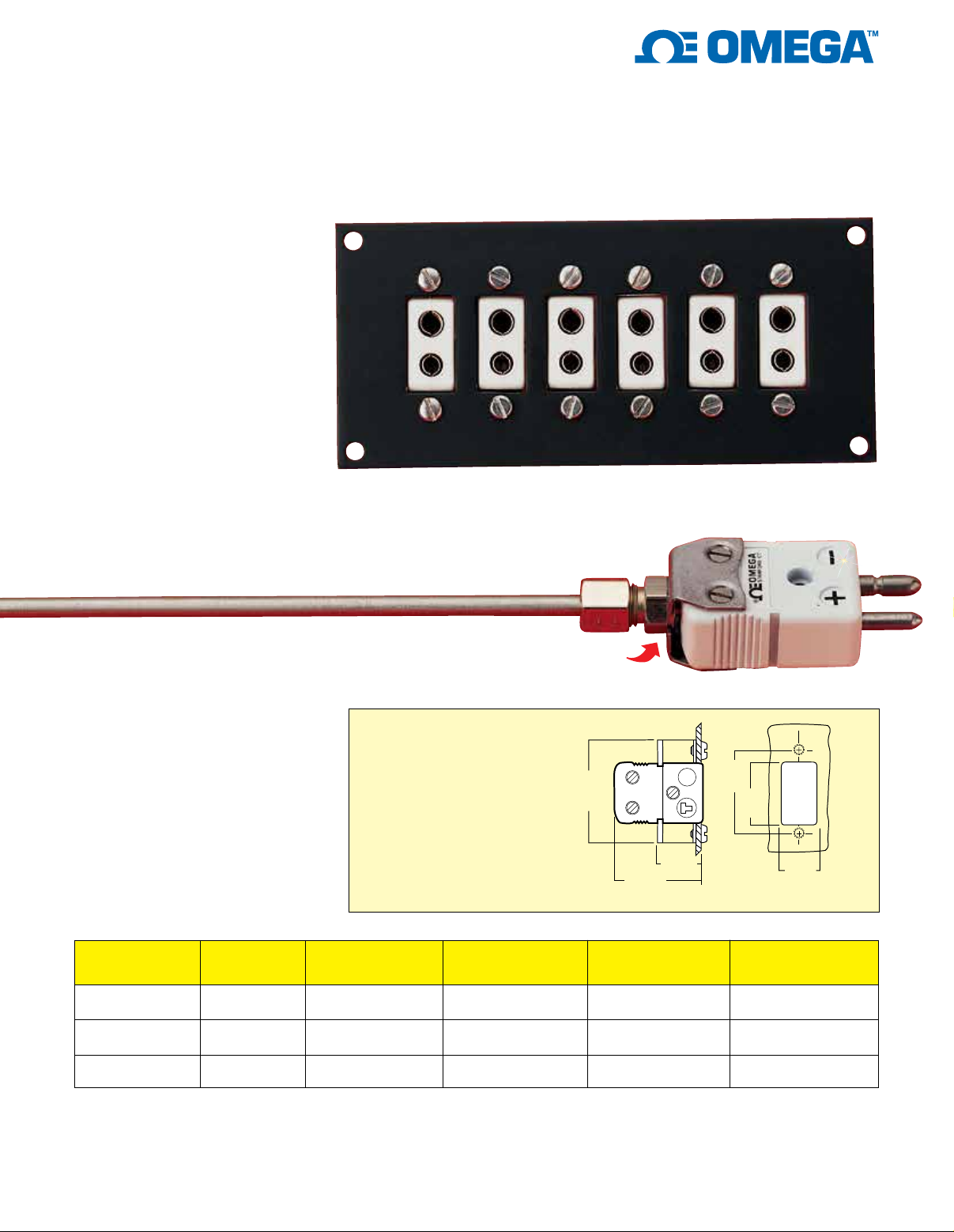

Omega high-temperature jack
panels feature ceramic connectors
mounted in a steel plate for service
temperatures up to 538°C (1000°F).
These panels with UHX connectors
are ideal when glazed ceramic or nylon
connector panels would contaminate a
vacuum system.
Shown smaller than actual size. All OmegaTM NHJP jack panels are shipped unassembled
CASS-18G-12-NHX
sold separately.
PRICE AND QUANTITY
DISCOUNT INFORMATION
Prices shown are for J, K, T, E, R, N,
S, G, C, D, and U calibrations. To
price more than one panel of any
type, contact sales.
Consult Custom Engineering
Department for information on custom
color-coded anodized panels. Nonstandard Panels: $1,000 minimum
order. Contact [email protected] for
pricing and availability.”
Dimensions: mm (inch)
Panel Mounting
Adaptor Clip
42.9
(1.69)
37.3
(1.47)
18.7
(0.73)
34.9
(1.38)
26
(1.02)
Panel Opening
16.4
(0.65)
Circuits Per 1 Row 2 Rows 3 Rows 4 Rows
Row (mm/inch) 67 mm H (25⁄8") 111 mm H (43⁄8") 156 mm H (61⁄8") 200 mm H (77⁄8")
6
145 L (53⁄4")
12
260 L (10
18
375 L (14
Note: All OmegaTM NHJP jack panels are shipped unassembled, with all necessary hardware for mounting included. Male connectors can be
supplied in place of the female jacks. Consult sales department for pricing information on non-standard circuits and special custom configuration
panels. Minimum order required for non-standard. Upper temperature limit is determined by alloy type.
*Insert J, K, T, E, R, N, S, G, C or D thermocouple calibration.
Ordering Example: NHJP1-18-K, single-row high-temperature jack panel with Type K connector.
1
3
⁄4")
⁄4")
Model No. NHJP1-06-[*] NHJP2-12-[*] NHJP3-18-[*] NHJP4-24-[*]
Model No. NHJP1-12-[*] NHJP2-24-[*] NHJP3-36-[*] NHJP4-48-[*]
Model No. NHJP1-18-[*] NJHP2-36-[8] NHJP3-54-[*] NHJP4-72-[*]
