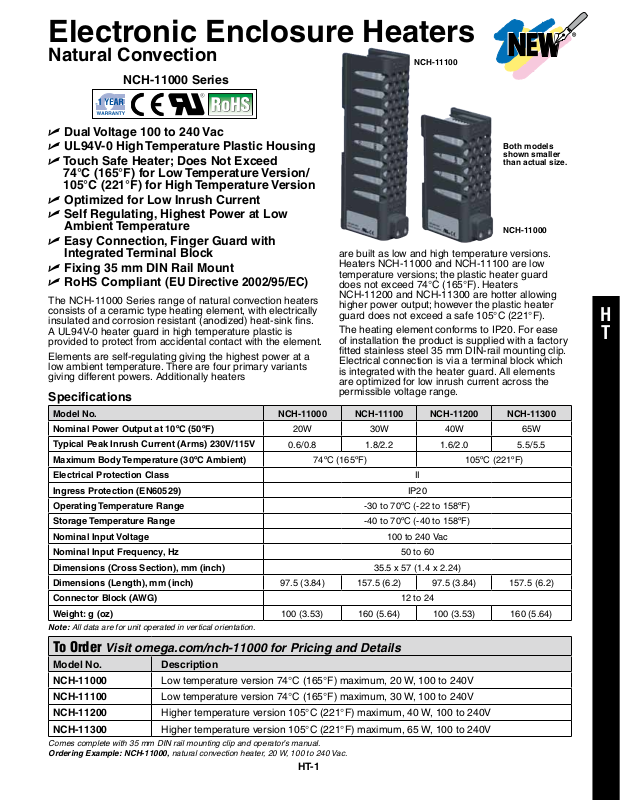

Electronic Enclosure Heaters
Natural Convection
NCH-11100
NCH-11000 Series
U Dual Voltage 100 to 240 Vac
U UL94V-0 High Temperature Plastic Housing
U Touch Safe Heater; Does Not Exceed

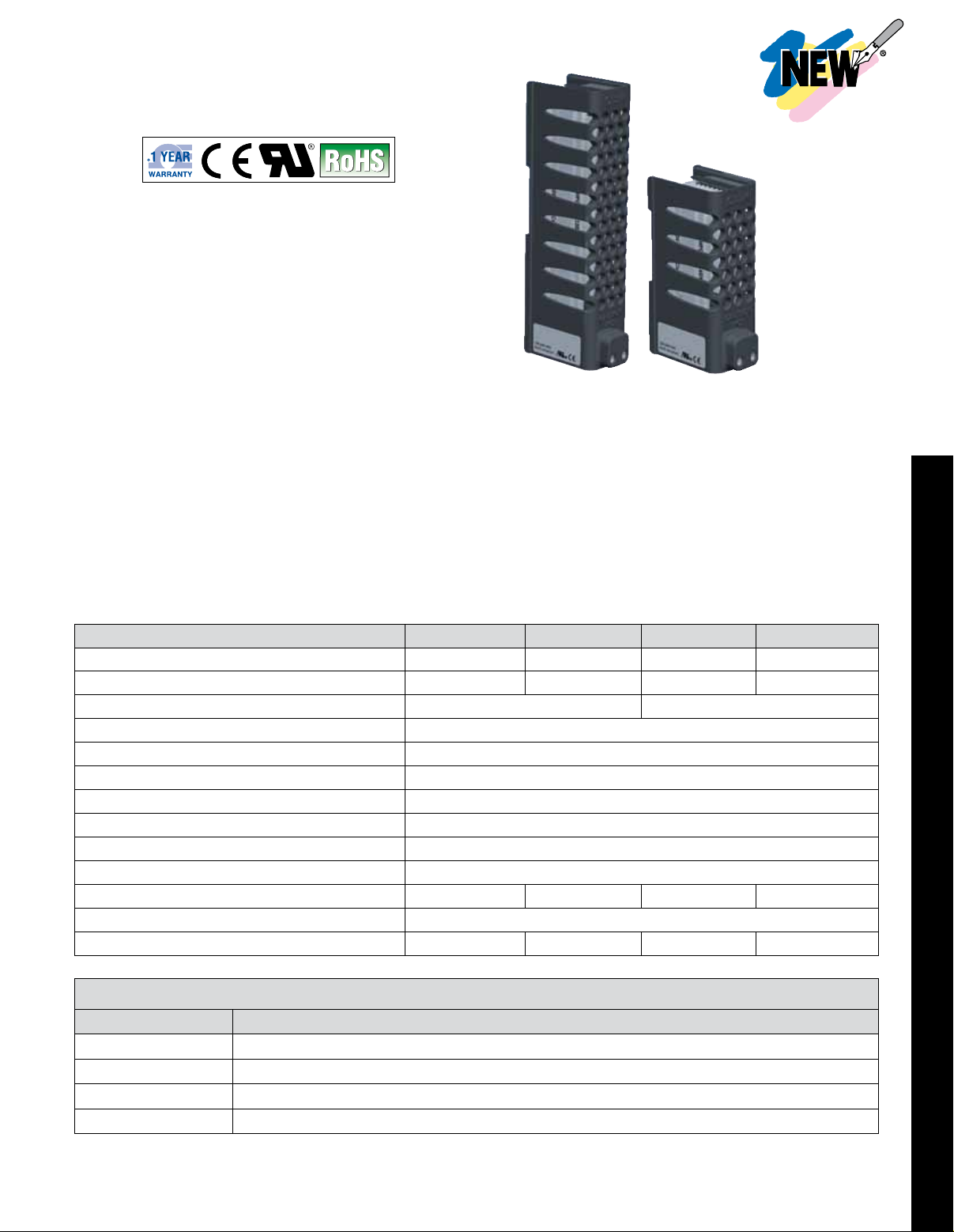

Both models
shown smaller
than actual size.
74°C (165°F) for Low Temperature Version/
105°C (221°F) for High Temperature Version
U Optimized for Low Inrush Current
U Self Regulating, Highest Power at Low
Ambient Temperature
NCH-11000
U Easy Connection, Finger Guard with
Integrated Terminal Block
U Fixing 35 mm DIN Rail Mount
U RoHS Compliant
The NCH-11000 Series range of natural convection heaters
consists of a ceramic type heating element, with electrically
insulated and corrosion resistant (anodized) heat-sink fins.
A UL94V-0 heater guard in high temperature plastic is
provided to protect from accidental contact with the element.
Elements are self-regulating giving the highest power at a
low ambient temperature. There are four primary variants
giving different powers. Additionally heaters
(EU Directive 2002/95/EC)
Specifications
Model No. NCH-11000 NCH-11100 NCH-11200 NCH-11300
Nominal Power Output at 10ºC (50ºF)
Typical Peak Inrush Current (Arms) 230V/115V
Maximum Body Temperature (30ºC Ambient)
Electrical Protection Class
Ingress Protection (EN60529)
Operating Temperature Range
Storage Temperature Range
Nominal Input Voltage
Nominal Input Frequency, Hz
Dimensions (Cross Section), mm (inch)
Dimensions (Length), mm (inch)
Connector Block (AWG)
Weight: g (oz)
Note: All data are for unit operated in vertical orientation.
20W 30W 40W 65W
0.6/0.8 1.8/2.2 1.6/2.0 5.5/5.5
97.5 (3.84) 157.5 (6.2) 97.5 (3.84) 157.5 (6.2)
100 (3.53) 160 (5.64) 100 (3.53) 160 (5.64)
are built as low and high temperature versions.
Heaters NCH-11000 and NCH-11100 are low
temperature versions; the plastic heater guard
does not exceed 74°C (165°F). Heaters
NCH-11200 and NCH-11300 are hotter allowing
higher power output; however the plastic heater
guard does not exceed a safe 105°C (221°F).
The heating element conforms to IP20. For ease
of installation the product is supplied with a factory
fitted stainless steel 35 mm DIN-rail mounting clip.
Electrical connection is via a terminal block which
is integrated with the heater guard. All elements
are optimized for low inrush current across the
permissible voltage range.
74ºC (165ºF) 105ºC (221ºF)
II
IP20
-30 to 70ºC (-22 to 158ºF)
-40 to 70ºC (-40 to 158ºF)
100 to 240 Vac
50 to 60
35.5 x 57 (1.4 x 2.24)
12 to 24
H
T
To Order Visit omega.com/nch-11000 for Pricing and Details
Model No. Description
NCH-11000 Low temperature version 74°C (165°F) maximum, 20 W, 100 to 240V
NCH-11100 Low temperature version 74°C (165°F) maximum, 30 W, 100 to 240V
NCH-11200 Higher temperature version 105°C (221°F) maximum, 40 W, 100 to 240V
NCH-11300 Higher temperature version 105°C (221°F) maximum, 65 W, 100 to 240V
Comes complete with 35 mm DIN rail mounting clip and operator’s manual.
Ordering Example: NCH-11000, natural convection heater, 20 W, 100 to 240 Vac.
HT-1
