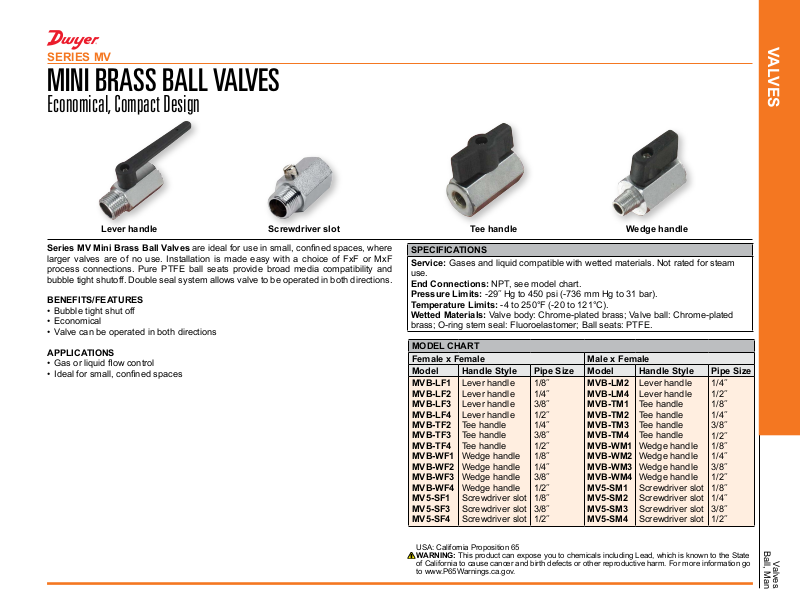

SERIES MV
MINI BRASS BALL VALVES
Economical, Compact Design

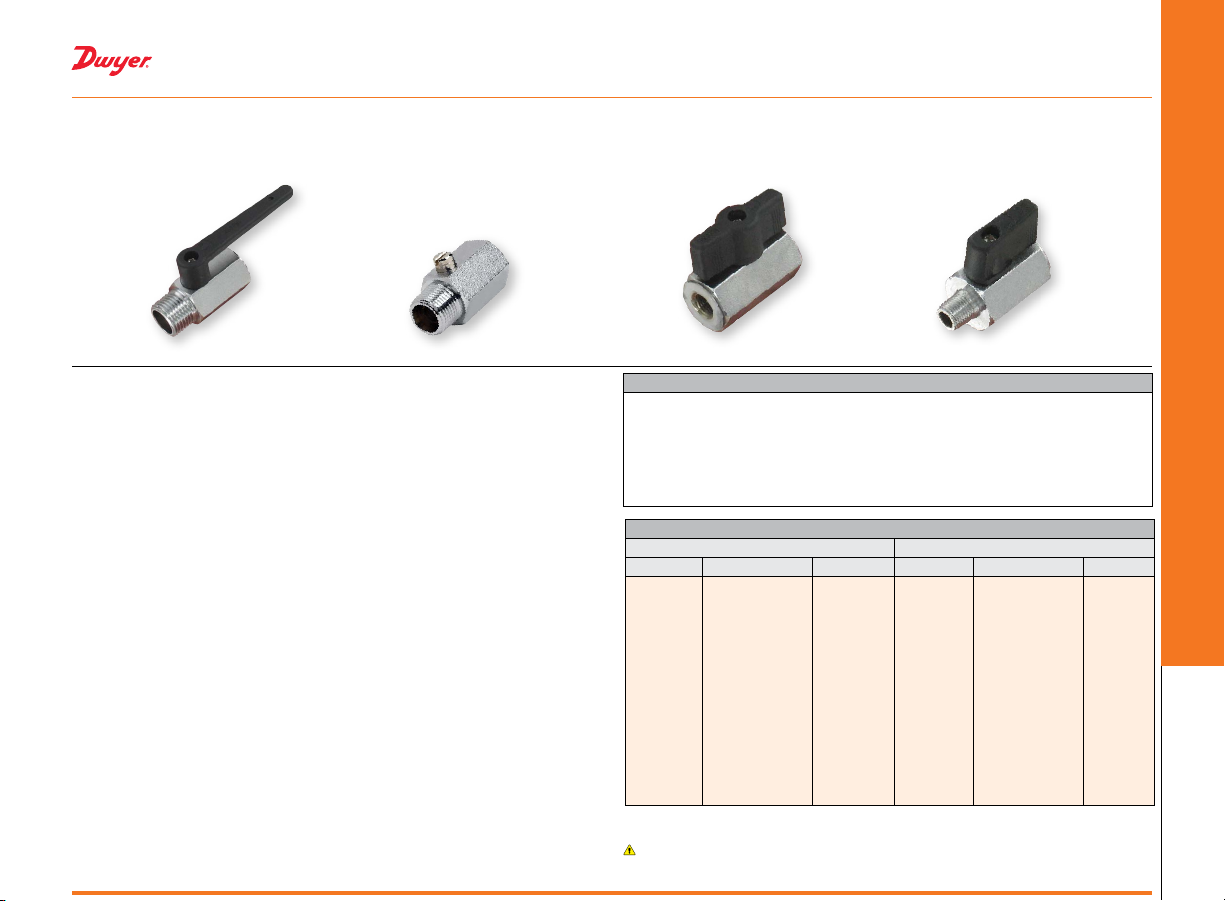

Lever handle Screwdriver slot Tee handle Wedge handle
Series MV Mini Brass Ball Valves are ideal for use in small, conned spaces, where
larger valves are of no use. Installation is made easy with a choice of FxF or MxF
process connections. Pure PTFE ball seats provide broad media compatibility and
bubble tight shutoff. Double seal system allows valve to be operated in both directions.
BENEFITS/FEATURES
• Bubble tight shut off
• Economical
• Valve can be operated in both directions
APPLICATIONS
• Gas or liquid ow control
• Ideal for small, conned spaces
SPECIFICATIONS
Service: Gases and liquid compatible with wetted materials. Not rated for steam
use.
End Connections: NPT, see model chart.
Pressure Limits: -29˝ Hg to 450 psi (-736 mm Hg to 31 bar).
Temperature Limits: -4 to 250°F (-20 to 121°C).
Wetted Materials: Valve body: Chrome-plated brass; Valve ball: Chrome-plated
brass; O-ring stem seal: Fluoroelastomer; Ball seats: PTFE.
MODEL CHART
Female x Female Male x Female
Model Handle Style Pipe Size Model Handle Style Pipe Size
MVB-LF1
MVB-LF2
MVB-LF3
MVB-LF4
MVB-TF2
MVB-TF3
MVB-TF4
MVB-WF1
MVB-WF2
MVB-WF3
MVB-WF4
MV5-SF1
MV5-SF3
MV5-SF4
Lever handle
Lever handle
Lever handle
Lever handle
Tee handle
Tee handle
Tee handle
Wedge handle
Wedge handle
Wedge handle
Wedge handle
Screwdriver slot
Screwdriver slot
Screwdriver slot
1/8˝
1/4˝
3/8˝
1/2˝
1/4˝
3/8˝
1/2˝
1/8˝
1/4˝
3/8˝
1/2˝
1/8˝
3/8˝
1/2˝
MVB-LM2
MVB-LM4
MVB-TM1
MVB-TM2
MVB-TM3
MVB-TM4
MVB-WM1
MVB-WM2
MVB-WM3
MVB-WM4
MV5-SM1
MV5-SM2
MV5-SM3
MV5-SM4
Lever handle
Lever handle
Tee handle
Tee handle
Tee handle
Tee handle
Wedge handle
Wedge handle
Wedge handle
Wedge handle
Screwdriver slot
Screwdriver slot
Screwdriver slot
Screwdriver slot
1/4˝
1/2˝
1/8˝
1/4˝
3/8˝
1/2˝
1/8˝
1/4˝
3/8˝
1/2˝
1/8˝
1/4˝
3/8˝
1/2˝
VALVES
USA: California Proposition 65
WARNING: This product can expose you to chemicals including Lead, which is known to the State
of California to cause cancer and birth defects or other reproductive harm. For more information go
to www.P65Warnings.ca.gov.
