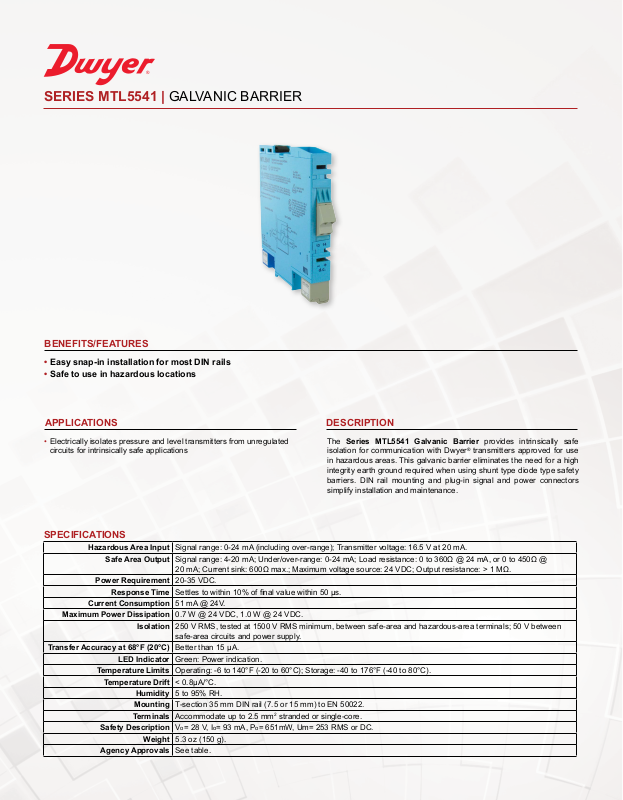

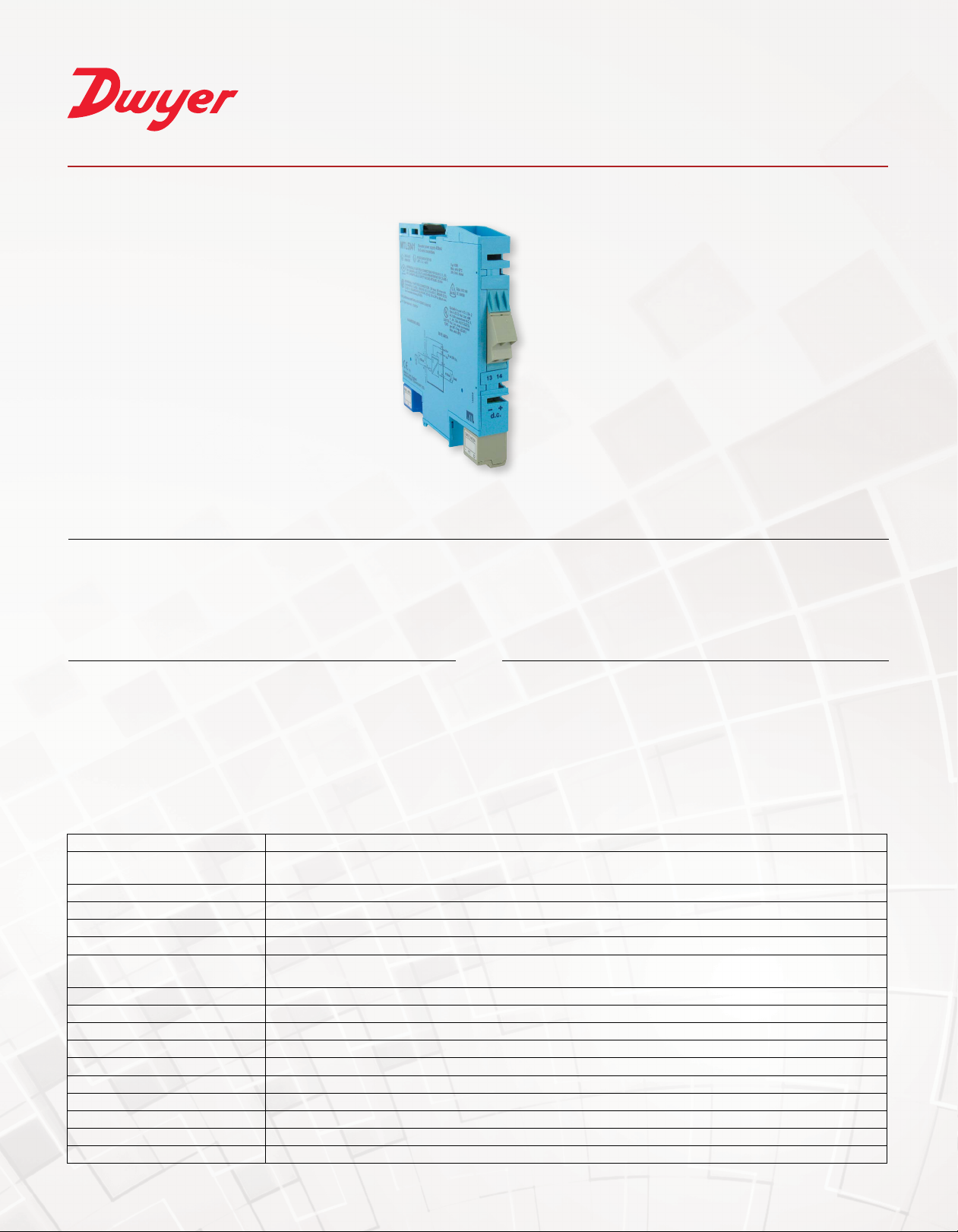

SERIES MTL5541 | GALVANIC BARRIER
®
BENEFITS/FEATURES
• Easy snap-in installation for most DIN rails
• Safe to use in hazardous locations
• Electrically isolates pressure and level transmitters from unregulated
circuits for intrinsically safe applications
SPECIFICATIONS
Hazardous Area Input Signal range: 0-24 mA (including over-range); Transmitter voltage: 16.5 V at 20 mA.
Safe Area Output Signal range: 4-20 mA; Under/over-range: 0-24 mA; Load resistance: 0 to 360Ω @ 24 mA, or 0 to 450Ω @
20 mA; Current sink: 600Ω max.; Maximum voltage source: 24 VDC; Output resistance: > 1 MΩ.
Power Requirement 20-35 VDC.
Response Time Settles to within 10% of nal value within 50 µs.
Current Consumption 51 mA @ 24V.
Maximum Power Dissipation 0.7 W @ 24 VDC, 1.0 W @ 24 VDC.
Isolation 250 V RMS, tested at 1500 V RMS minimum, between safe-area and hazardous-area terminals; 50 V between
safe-area circuits and power supply.
Transfer Accuracy at 68°F (20°C) Better than 15 µA.
LED Indicator Green: Power indication.
Temperature Limits Operating: -6 to 140°F (-20 to 60°C); Storage: -40 to 176°F (-40 to 80°C).
Temperature Drift < 0.8µA/°C.
Humidity 5 to 95% RH.
Mounting T-section 35 mm DIN rail (7.5 or 15 mm) to EN 50022.
Terminals Accommodate up to 2.5 mm
Safety Description V
Weight 5.3 oz (150 g).
Agency Approvals See table.
o= 28 V, Io= 93 mA, Po= 651mW, Um= 253 RMS or DC.
2
stranded or single-core.
DESCRIPTIONAPPLICATIONS
The Series MTL5541 Galvanic Barrier provides intrinsically safe
isolation for communication with Dwyer® transmitters approved for use
in hazardous areas. This galvanic barrier eliminates the need for a high
integrity earth ground required when using shunt type diode type safety
barriers. DIN rail mounting and plug-in signal and power connectors
simplify installation and maintenance.
Page 2

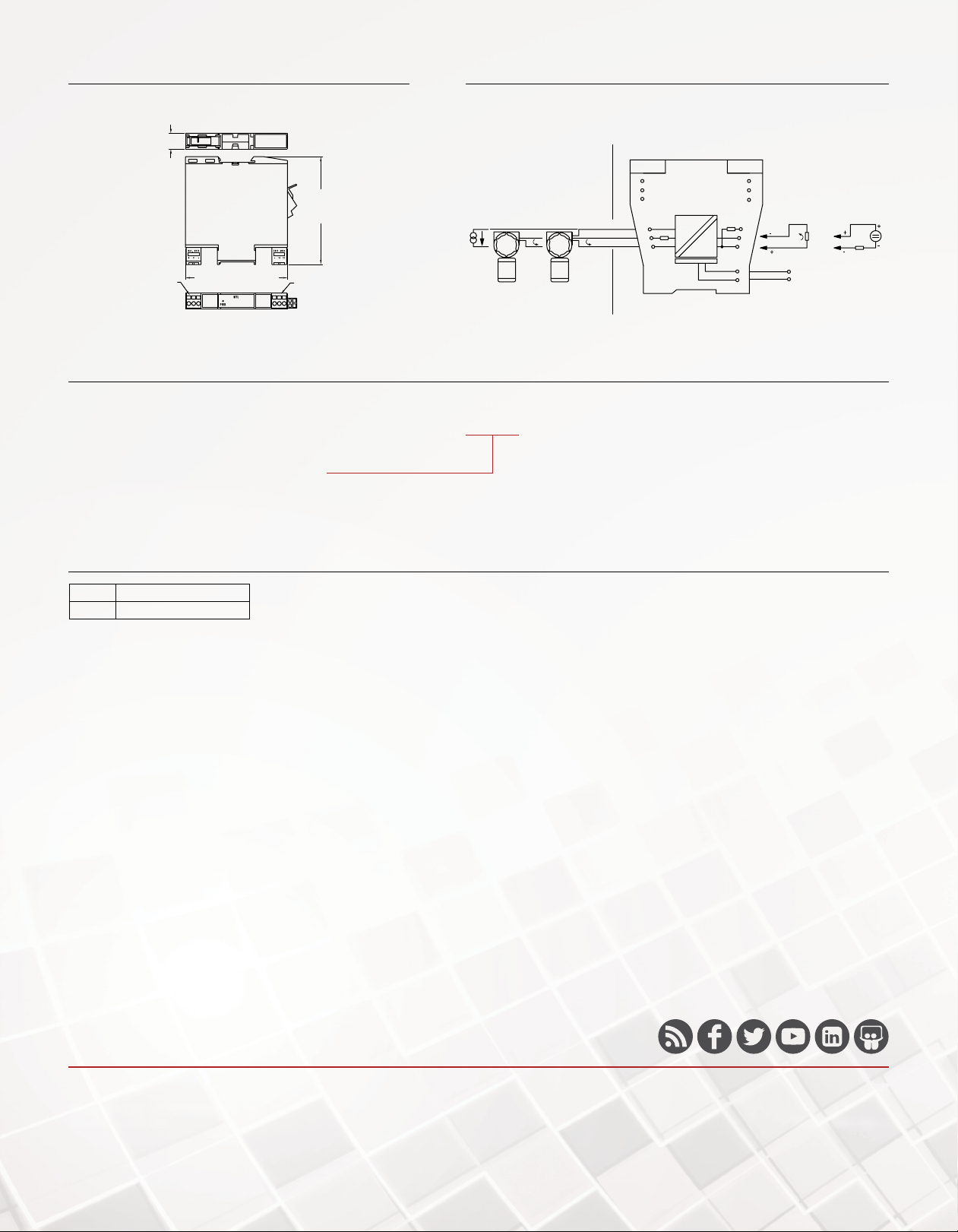

DIMENSIONS WIRING DIAGRAM
A
A
SAFE AREAHAZARDOUS AREA
S
41/64 [16.27]
4-11/32
[110.33]
HAZARDOUS
REA TERMINAL
4-3/32 [103.98]
SAFE ARE
TERMINAL
HOW TO ORDER
Use the bold characters from the chart below to construct a product code.
SERIES
MTL5541: Galvanic barrier
ACCESSORIES
Model Description
A-360 Aluminum DIN rail 1 m
MTL5541
4-20 MA
COM
TX+
INPUT
6
5
4
I
3
2
1
I
7
8
9
MTL5541MTL5541
10
11
4-20 mA
12
13
14
20-35 VDC
VSVS+
LOAD
LOAD
DWYER INSTRUMENTS, INC.
©Copyright 2021 Dwyer Instruments, Inc.
Printed in U.S.A. 7/21 DS-MTL5541 Rev. 1
