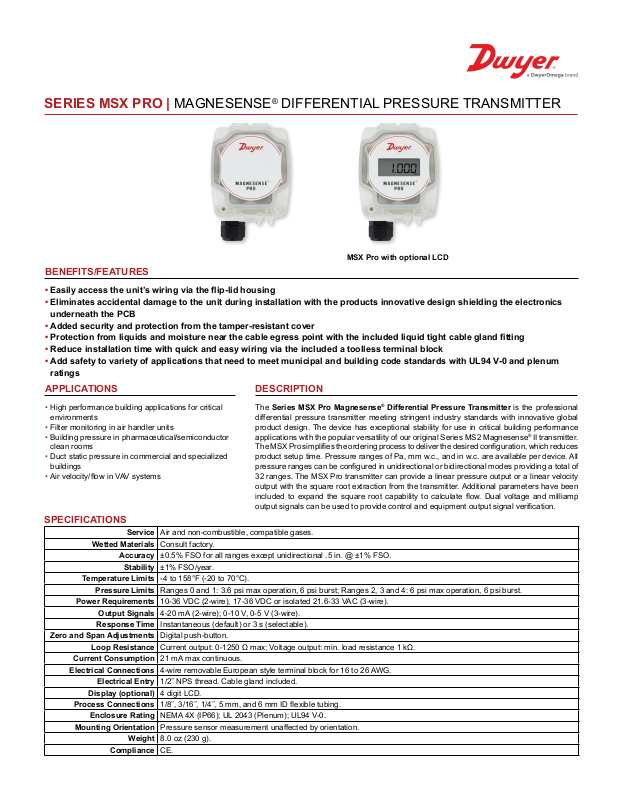

Omega MSX-Pro Data Sheet

Page 1

SERIESMSXPRO|MAGNESENSE® DIFFERENTIAL PRESSURE TRANSMITTER

MSXProwithoptionalLCD

BENEFITS/FEATURES

•Easilyaccesstheunit’swiringviatheip-lidhousing

•Eliminatesaccidentaldamagetotheunitduringinstallationwiththeproductsinnovativedesignshieldingtheelectronics

 underneaththePCB

•Addedsecurityandprotectionfromthetamper-resistantcover

•Protectionfromliquidsandmoisturenearthecableegresspointwiththeincludedliquidtightcableglandtting

•Reduceinstallationtimewithquickandeasywiringviatheincludedatoollessterminalblock

•AddsafetytovarietyofapplicationsthatneedtomeetmunicipalandbuildingcodestandardswithUL94V-0andplenum

ratings

DESCRIPTIONAPPLICATIONS

• High performance building applications for critical

environments

• Filter monitoring in air handler units

• Building pressure in pharmaceutical/semiconductor

clean rooms

• Duct static pressure in commercial and specialized

buildings

• Air velocity/ow in VAV systems

The Series MSX Pro Magnesense® Differential Pressure Transmitter is the professional differential pressure transmitter meeting stringent industry standards with innovative global product design. The device has exceptional stability for use in critical building performance applications with the popular versatility of our original Series MS2 Magnesense® II transmitter.

The MSX Pro simplies the ordering process to deliver the desired conguration, which reduces product setup time. Pressure ranges of Pa, mm w.c., and in w.c. are available per device. All pressure ranges can be congured in unidirectional or bidirectional modes providing a total of

32 ranges. The MSX Pro transmitter can provide a linear pressure output or a linear velocity

output with the square root extraction from the transmitter. Additional parameters have been included to expand the square root capability to calculate ow. Dual voltage and milliamp output signals can be used to provide control and equipment output signal verication.

SPECIFICATIONS

Service Air and non-combustible, compatible gases.

WettedMaterials Consult factory.

Accuracy ±0.5% FSO for all ranges except unidirectional .5 in. @ ±1% FSO.

Stability ±1% FSO/year.

TemperatureLimits -4 to 158°F (-20 to 70°C).

PressureLimits Ranges 0 and 1: 3.6 psi max operation, 6 psi burst; Ranges 2, 3 and 4: 6 psi max operation, 6 psi burst.

Power Requirements 10-36 VDC (2-wire), 17-36 VDC or isolated 21.6-33 VAC (3-wire).

OutputSignals 4-20 mA (2-wire); 0-10 V, 0-5 V (3-wire).

ResponseTime Instantaneous (default) or 3 s (selectable).

ZeroandSpanAdjustments Digital push-button.

LoopResistance Current output: 0-1250 Ω max; Voltage output: min. load resistance 1 kΩ.

CurrentConsumption 21 mA max continuous.

ElectricalConnections 4-wire removable European style terminal block for 16 to 26 AWG.

Electrical Entry 1/2˝ NPS thread. Cable gland included.

Display(optional) 4 digit LCD.

ProcessConnections 1/8˝, 3/16˝, 1/4˝, 5 mm, and 6 mm ID exible tubing.

Enclosure Rating NEMA 4X (IP66); UL 2043 (Plenum); UL94 V-0.

MountingOrientation Pressure sensor measurement unaffected by orientation.

Weight 8.0 oz (230 g).

Compliance CE.

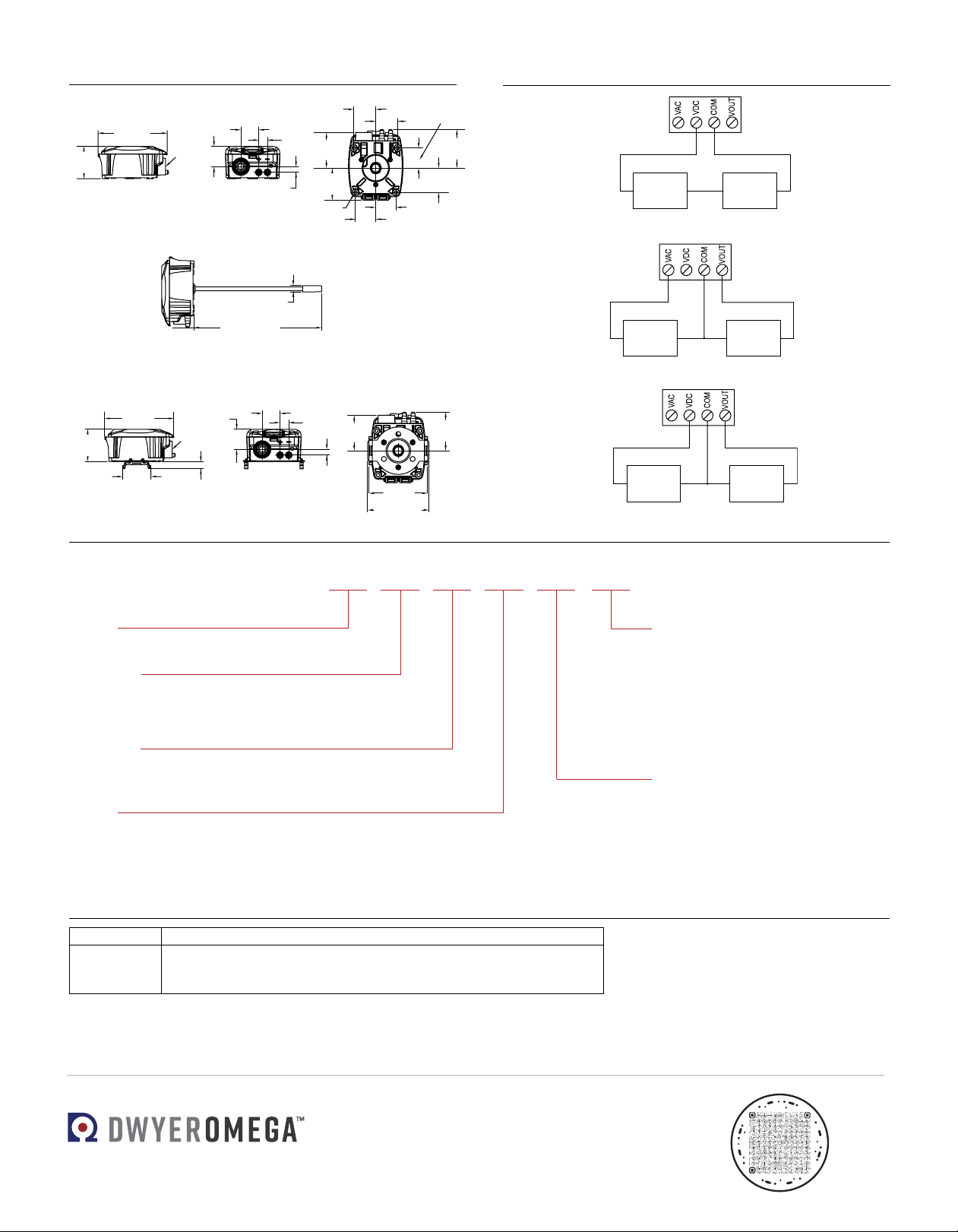

Page 2

DIMENSIONS

1-29/32 [48.43]

[57.79]

1-19/64 [33.02]

3-5/8 [92.08]

17-36 VDC

4-3/32

[103.98]

1-1/16 [26.92]

1/2

NPSM

1-3/16 [30.34]

Wallmountbracket

7-9/16 [191.90]

Ductmountbracket

33/64

2-3/32

[13.08]

[53.34]

11/32 [8.56]

[4] 13/64 [5.08] HOLES

3/8 [9.53]

1-57/64 [48.10]

1-13/64 [30.48]

1-19/64

[33.02]

1-13/64 [30.48]

1-11/64

[29.92]

1-29/64

[36.75]

2-9/32

WIRINGDIAGRAM

3-wirevoltage(withACsupply)

DC POWER +

SUPPLY

10-36 VDC

CURRENT

RECEIVER

4-20mA(DCsupplyonly)

AC POWER

SUPPLY

21.6-33 VAC

VOLTAGE

RECEIVER

1-3/16 [30.34]

1-1/16 [26.92]

33/64

[13.08]

11/32 [8.56]

2-3/32 [53.34]

3-15/32

[88.19]

2-9/32 [57.79]

1-29/32

[48.43]

4-3/32

[103.98]

1-43/64 [42.50]

1/2

NPSM

27/64 [10.84]

DINmountbracket

HOWTOORDER

Use the bold characters from the chart below to construct a product code.

MSXP -W 1 3

SERIES

MSXP: Magnesense® differential pressure transmitter

MOUNTING

-W:Wall mount

-U:Universal (wall or duct) mount

-N:DIN rail mount

DIRECTION

1: Unidirectional 2: Bidirectional

RANGE

0:.5 in w.c., 125 Pa, 12.5 mm w.c.

1: 1 in w.c., 250 Pa, 25 mm w.c. 2: 5 in w.c., 1250 Pa, 125 mm w.c. 3: 28 in w.c., 7000 Pa, 700 mm w.c.

4:15 in w.c., 4000 Pa, 400 mm w.c.

ACCESSORIES

DC POWER

SUPPLY

VOLTAGE

RECEIVER

3-wirevoltage(withDCsupply)

-LCD-IN

OPTIONS

-A481: Installer kit

-COM: BACnet/Modbus® communications

-FC: Factory calibration certicate

-FP: Filtered pickup with barb

-LCD: Liquid crystal display

-NIST: NIST traceable calibration certicate

-STX: Two (2) plastic static pressure tips

PRESSUREUNIT

-IN: Inches water column

-PA: Pascal

-MM: Millimeters water column

Model Description A-480

A-481 A-MSXP-LCD

Important Notice: Dwyer Instruments, LLC reserves the right to make changes to or discontinue any product or service identied in this publication without notice. Dwyer advises its customers to obtain the latest version of the relevant information to verify, before placing any orders, that the information being relied upon is current.

Improving the world, one measurement at a time.

Plastic static pressure tip

Installer kit, includes 2 plastic static pressure tips and 7 ft (2.1 m) of PVC tubing Replacement display for the Series MSX Pro

Modbus® is a registered trademark of Schneider Electric USA, Inc.
