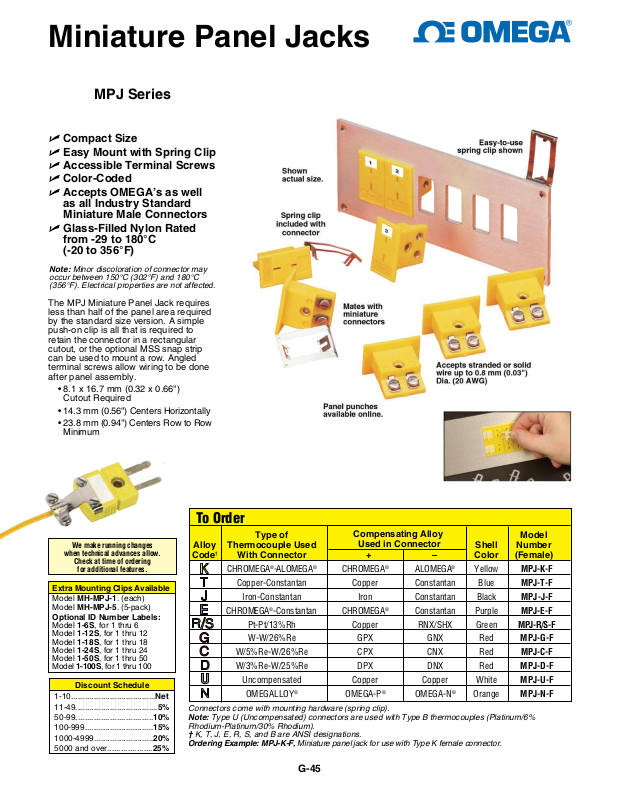

Miniature Panel Jacks

MPJ Series

U Compact Size U Easy Mount with Spring Clip U Accessible Terminal Screws U Color-Coded U Accepts OMEGA’s as well

as all Industry Standard Miniature Male Connectors

U Glass-Filled Nylon Rated

from -29 to 180°C (-20 to 356°F)

Note: Minor discoloration of connector may occur between 150°C (302°F) and 180°C (356°F). Electrical properties are not affected.

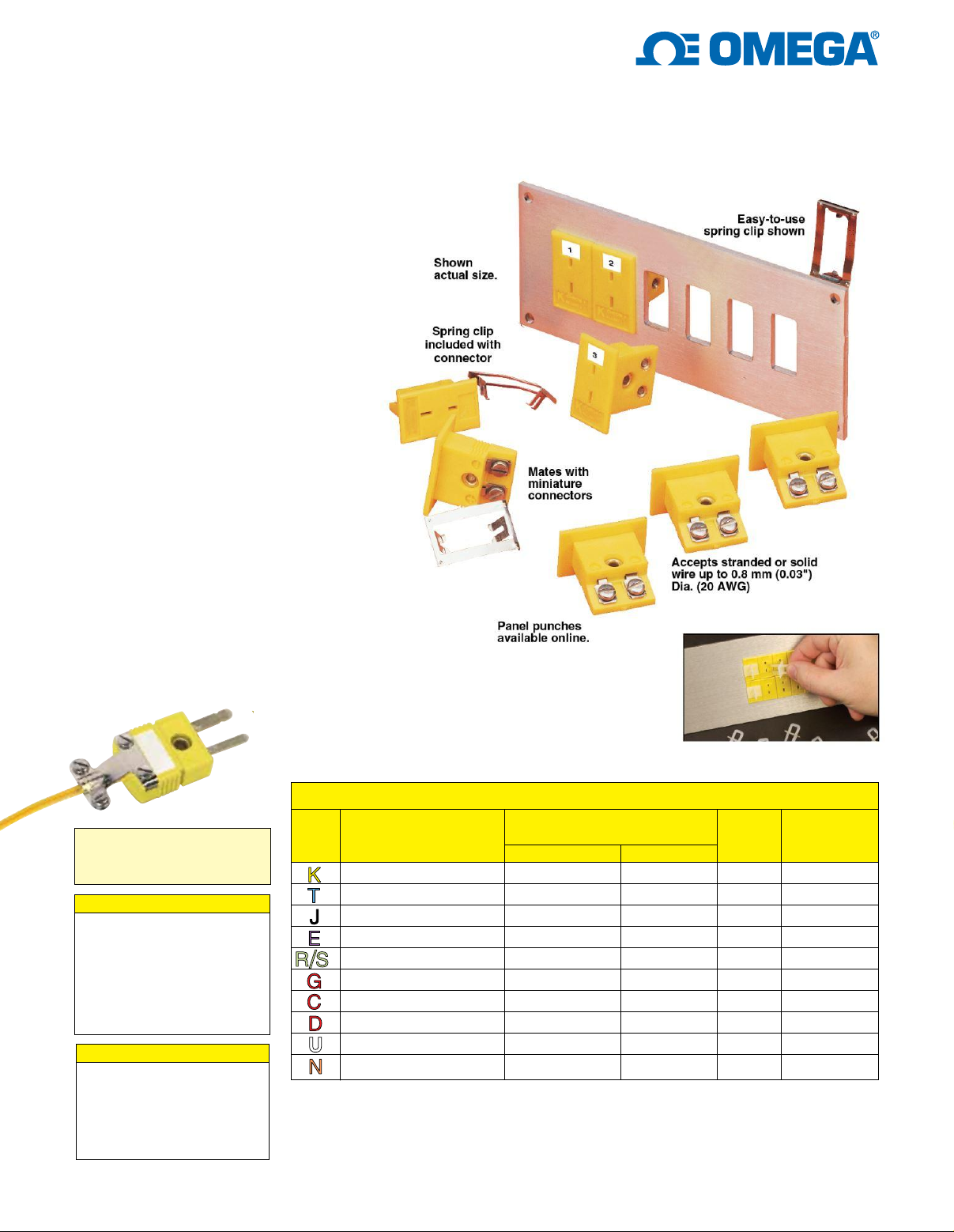

The MPJ Miniature Panel Jack requires less than half of the panel area required by the standard size version. A simple push-on clip is all that is required to retain the connector in a rectangular cutout, or the optional MSS snap strip can be used to mount a row. Angled terminal screws allow wiring to be done after panel assembly.

 •8.1x16.7mm(0.32x0.66")

Cutout Required

 •14.3mm(0.56")CentersHorizontally  •23.8mm(0.94")CentersRowtoRow

Minimum

We make running changes

when technical advances allow.

Check at time of ordering

for additional features.

Extra Mounting Clips Available

Model MH-MPJ-1.(each) Model MH-MPJ-5.(5-pack)

Optional ID Number Labels:

Model 1-6S,for1thru6 Model 1-12S,for1thru12 Model 1-18S,for1thru18 Model 1-24S,for1thru24 Model 1-50S,for1thru50 Model 1-100S,for1thru100

Discount Schedule

1-10.....................................Net

 11-49....................................5%

 50-99..................................10%

 100-999..............................15%

 1000-4999..........................20%

 5000andover....................25%

To Order

Type of

Alloy Thermocouple Used

†

Code

With Connector + – Color (Female)

CHROMEGA®-ALOMEGA® CHROMEGA® ALOMEGA® Yellow MPJ-K-F

Copper-Constantan Copper Constantan Blue MPJ-T-F Iron-Constantan Iron Constantan Black MPJ-J-F CHROMEGA®-Constantan CHROMEGA Pt-Pt/13%Rh Copper RNX/SHX Green MPJ-R/S-F W-W/26%Re GPX GNX Red MPJ-G-F W/5%Re-W/26%Re CPX CNX Red MPJ-C-F W/3%Re-W/25%Re DPX DNX Red MPJ-D-F Uncompensated Copper Copper White MPJ-U-F OMEGALLOY

Connectors come with mounting hardware (spring clip). Note: Type U (Uncompensated) connectors are used with Type B thermocouples (Platinum/6% Rhodium-Platinum/30% Rhodium).

K, T, J, E, R, S, and B are ANSI designations.

† Ordering Example: MPJ-K-F, Miniature panel jack for use with Type K female connector.

G-45

Compensating Alloy

Used in Connector

Constantan Purple MPJ-E-F

OMEGA-P® OMEGA-N

Model Shell Number

Orange MPJ-N-F
