Page 1

4-1/2

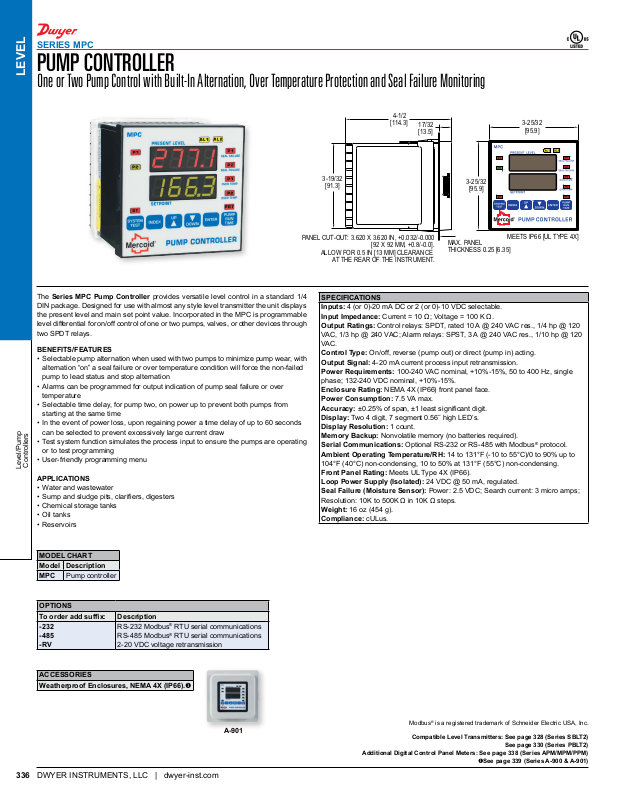

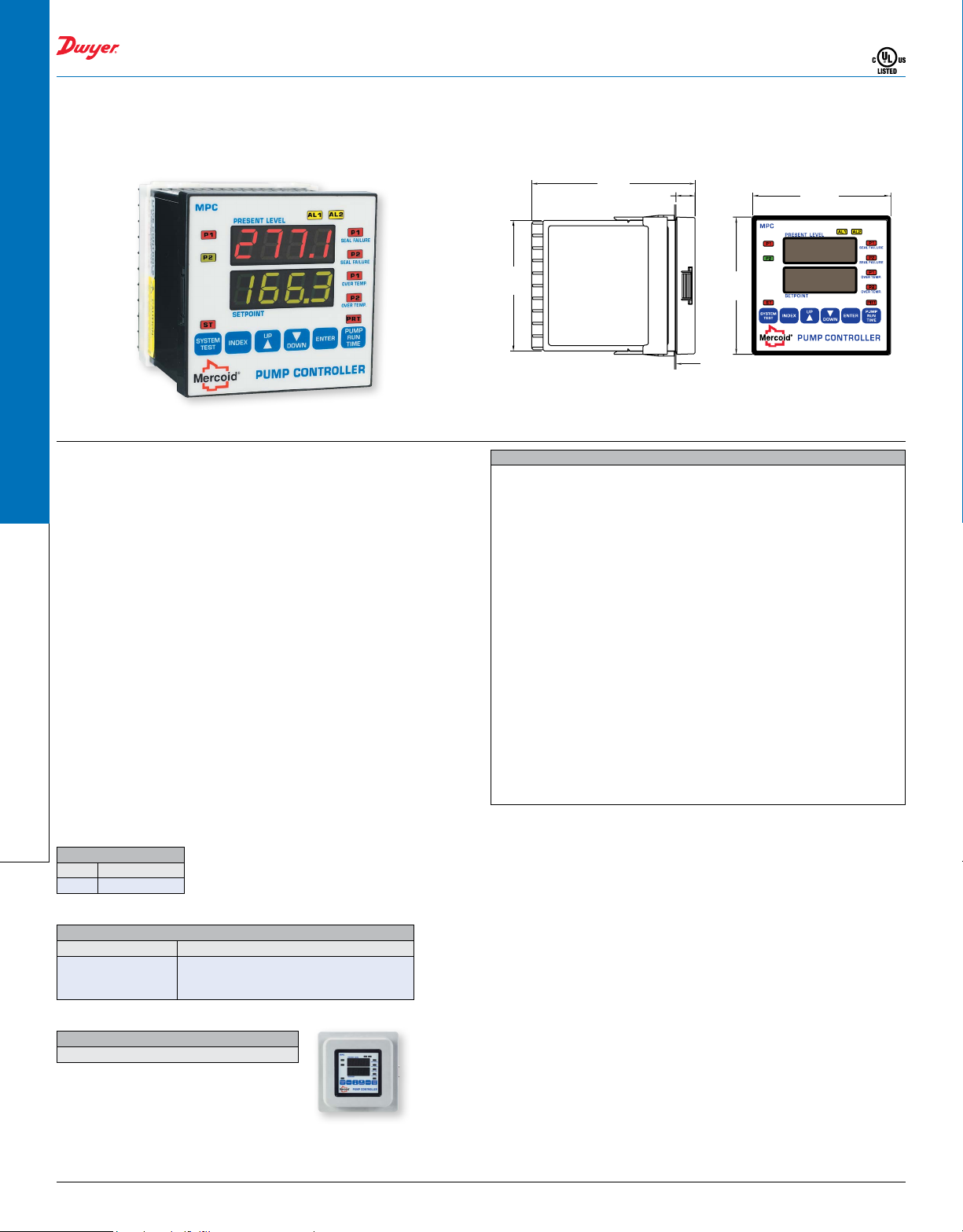

SERIES MPC

PUMP CONTROLLER

LEVEL

One or Two Pump Control with Built-In Alternation, Over Temperature Protection and Seal Failure Monitoring

The Series MPC Pump Controller provides versatile level control in a standard 1/4 DIN package. Designed for use with almost any style level transmitter the unit displays the present level and main set point value. Incorporated in the MPC is programmable level differential for on/off control of one or two pumps, valves, or other devices through two SPDT relays.

BENEFITS/FEATURES

• Selectable pump alternation when used with two pumps to minimize pump wear, with alternation “on” a seal failure or over temperature condition will force the non-failed pump to lead status and stop alternation

• Alarms can be programmed for output indication of pump seal failure or over temperature

• Selectable time delay, for pump two, on power up to prevent both pumps from starting at the same time

• In the event of power loss, upon regaining power a time delay of up to 60 seconds can be selected to prevent excessively large current draw

• Test system function simulates the process input to ensure the pumps are operating or to test programming

• User-friendly programming menu

Controllers

Level/Pump

APPLICATIONS

• Water and wastewater

• Sumpandsludgepits,clariers,digesters

• Chemical storage tanks

• Oil tanks

• Reservoirs

[114.3]

17/32 [13.5]

3-19/32

[91.3]

NEL CUT-OUT: 3.620 X 3.620 IN, +0.032/-0.000

ALLOW FOR 0.5 IN [13 MM] CLEARANCE

AT THE REAR OF THE INSTRUMENT.

SPECIFICATIONS Inputs: 4 (or 0)-20 mA DC or 2 (or 0)-10 VDC selectable. Input Impedance:Current=10Ω;Voltage=100KΩ. Output Ratings: Control relays: SPDT, rated 10 A @ 240 VAC res., 1/4 hp @ 120

VAC,1/3hp@240VAC;Alarmrelays:SPST,3A@240VACres.,1/10hp@120

VAC.

Control Type: On/off, reverse (pump out) or direct (pump in) acting. Output Signal: 4-20 mA current process input retransmission. Power Requirements: 100-240 VAC nominal, +10%-15%, 50 to 400 Hz, single

phase;132-240VDCnominal,+10%-15%.

Enclosure Rating: NEMA 4X (IP66) front panel face. Power Consumption: 7.5 VA max. Accuracy:±0.25%ofspan,±1leastsignicantdigit. Display:Two4digit,7segment0.56˝highLED’s. Display Resolution: 1 count. Memory Backup: Nonvolatile memory (no batteries required). Serial Communications: Optional RS-232 or RS-485 with Modbus Ambient Operating Temperature/RH: 14 to 131°F (-10 to 55°C)/0 to 90% up to

104°F (40°C) non-condensing, 10 to 50% at 131°F (55°C) non-condensing.

Front Panel Rating: Meets UL Type 4X (IP66). Loop Power Supply (Isolated): 24 VDC @ 50 mA, regulated. Seal Failure (Moisture Sensor):Power:2.5VDC;Searchcurrent:3microamps;

Resolution:10Kto500KΩin10KΩsteps.

Weight: 16 oz (454 g). Compliance: cULus.

[92 X 92 MM, +0.8/-0.0].

3-25/32

[95.9]

MAX. PANEL THICKNESS 0.25 [6.35]

3-25/32

[95.9]

MEETS IP66 [UL TYPE 4X]

protocol.

MODEL CHART Model Description MPC Pump controller

OPTIONS To order add sufx: Description

-232

-485

-RV

ACCESSORIES

Weatherproof Enclosures, NEMA 4X (IP66).u

DWYER INSTRUMENTS, LLC | dwyer-inst.com336

RS-232 Modbus RS-485 Modbus 2-20 VDC voltage retransmission

RTU serial communications

A-901

Modbus® is a registered trademark of Schneider Electric USA, Inc.

See page 330 (Series PBLT2)

Additional Digital Control Panel Meters: See page 338 (Series APM/MPM/PPM)

Compatible Level Transmitters: See page 328 (Series SBLT2)

uSee page 339 (Series A-900 & A-901)
