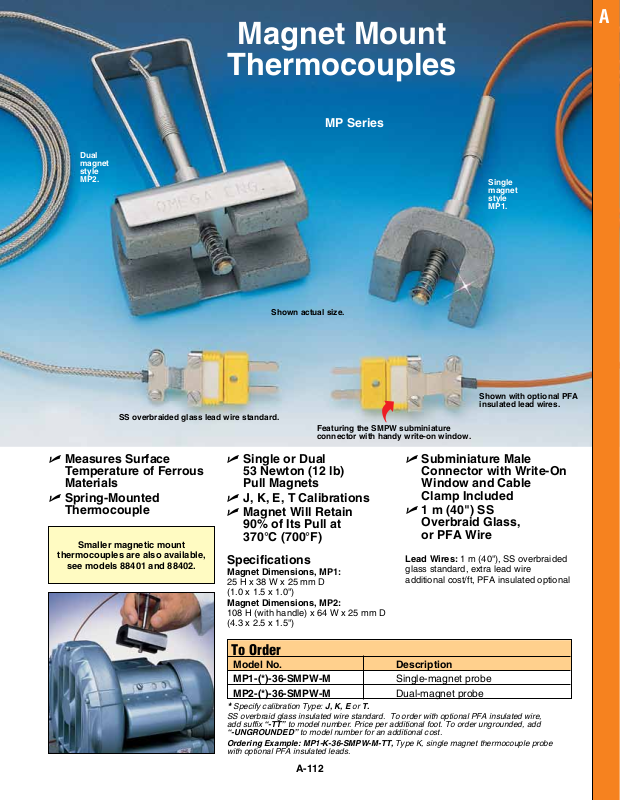

Page 1
Dual
magnet
style
MP2.
A
Magnet Mount
Thermocouples
MP Series
Single
magnet
style
MP1.
Shown actual size.
SS overbraided glass lead wire standard.
U Measures Surface
Temperature of Ferrous
Materials
U Spring-Mounted
Thermocouple
Smaller magnetic mount
thermocouples are also available,
see models 88401 and 88402.
Shown with optional PFA
insulated lead wires.
Featuring the SMPW subminiature
connector with handy write-on window.
U Single or Dual
53 Newton (12 lb)
Pull Magnets
U J, K, E, T Calibrations
U Magnet Will Retain
90% of Its Pull at
370°C (700°F)
Specifications
Magnet Dimensions, MP1:
25 H x 38 W x 25 mm D
(1.0 x 1.5 x 1.0")
Magnet Dimensions, MP2:
108 H (with handle) x 64 W x 25 mm D
(4.3 x 2.5 x 1.5")
U Subminiature Male
Connector with Write-On
Window and Cable
Clamp Included
U 1 m (40") SS
Overbraid Glass,
or PFA Wire
Lead Wires: 1 m (40"), SS overbraided
glass standard, extra lead wire
additional cost/ft, PFA insulated optional
To Order
Model No. Description
MP1-(*)-36-SMPW-M Single-magnet probe
MP2-(*)-36-SMPW-M Dual-magnet probe
Specify calibration Type: J, K, E or T.
*
SS overbraid glass insulated wire standard. To order with optional PFA insulated wire,
add suffix “-TT” to model number. Price per additional foot. To order ungrounded, add
“-UNGROUNDED” to model number for an additional cost.
Ordering Example: MP1-K-36-SMPW-M-TT, Type K, single magnet thermocouple probe
with optional PFA insulated leads.
