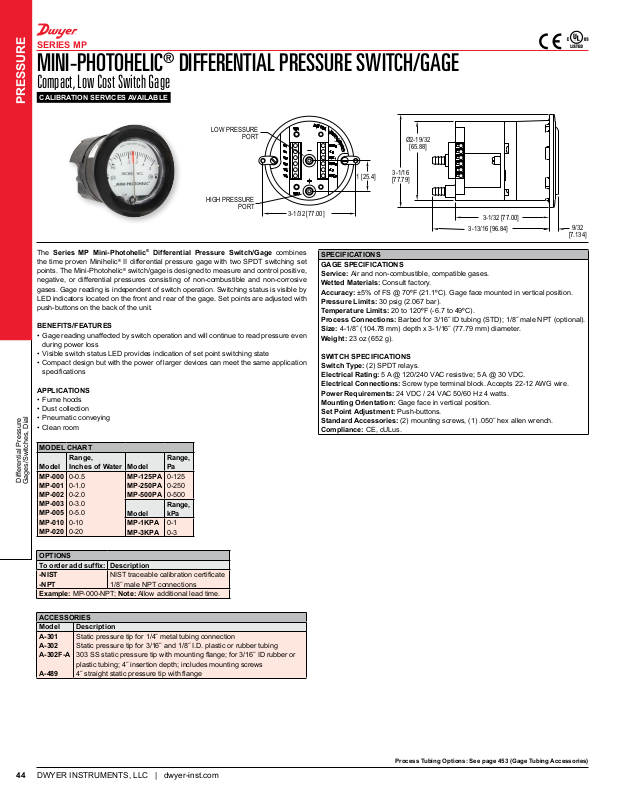

HIGH PRESSURE

SERIES MP

MINI-PHOTOHELIC® DIFFERENTIAL PRESSURE SWITCH/GAGE

Compact, Low Cost Switch Gage

CALIBRATION SERVICES AVAILABLE

PRESSURE

LOW PRESSURE

The Series MP Mini-Photohelic® Differential Pressure Switch/Gage combines the time proven Minihelic points. The Mini-Photohelic negative, or differential pressures consisting of non-combustible and non-corrosive gases. Gage reading is independent of switch operation. Switching status is visible by LED indicators located on the front and rear of the gage. Set points are adjusted with push-buttons on the back of the unit.

BENEFITS/FEATURES

• Gage reading unaffected by switch operation and will continue to read pressure even during power loss

• Visible switch status LED provides indication of set point switching state

• Compact design but with the power of larger devices can meet the same application

 specications

APPLICATIONS

• Fume hoods

• Dust collection

• Pneumatic conveying

• Clean room

II differential pressure gage with two SPDT switching set

switch/gage is designed to measure and control positive,

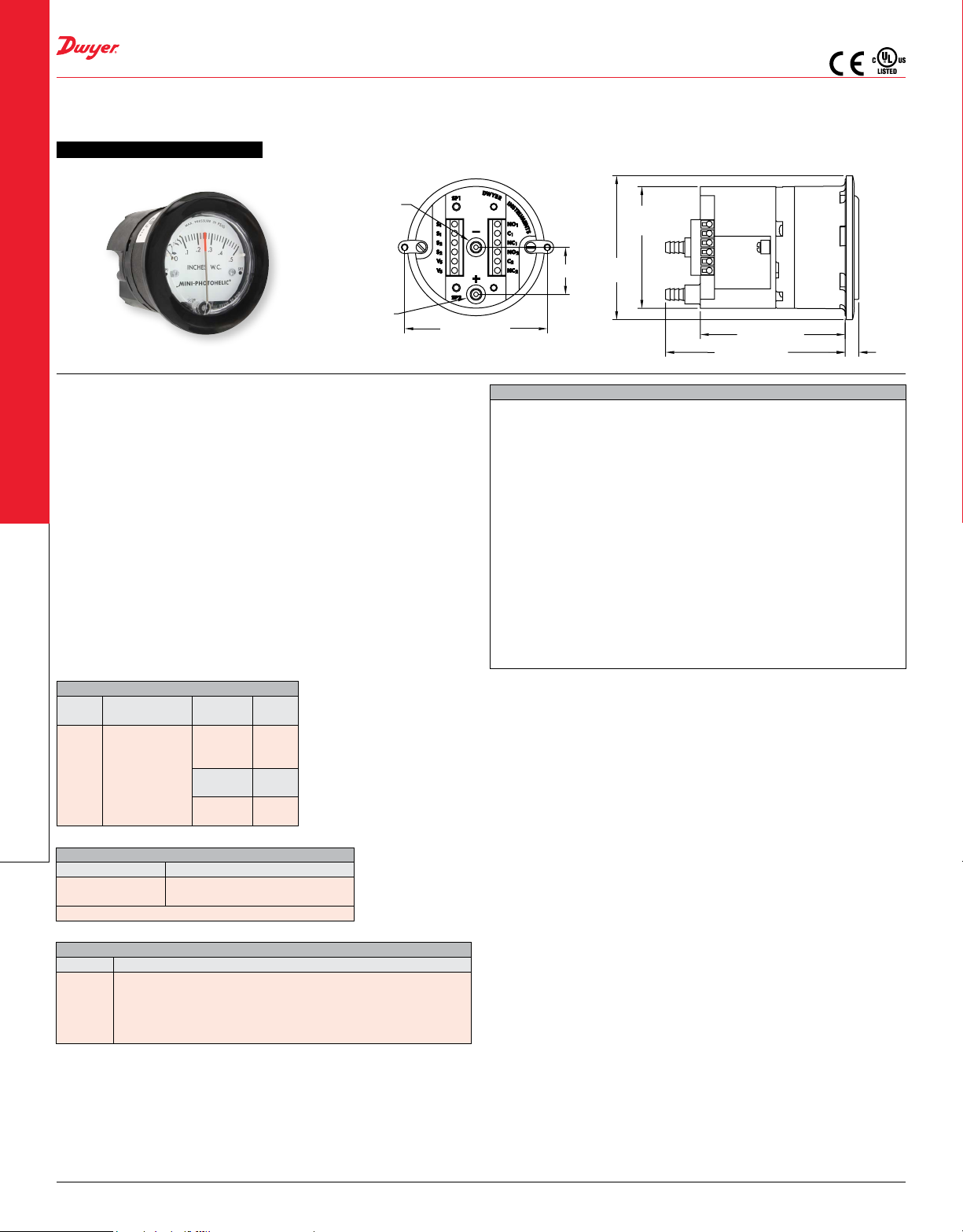

PORT

3-1/32 [77.00]

Ø2-19/32

[65.88]

1 [25.4]

SPECIFICATIONS GAGE SPECIFICATIONS Service: Air and non-combustible, compatible gases. Wetted Materials: Consult factory. Accuracy: ±5% of FS @ 70ºF (21.1ºC). Gage face mounted in vertical position. Pressure Limits: 30 psig (2.067 bar). Temperature Limits: 20 to 120ºF (-6.7 to 49ºC). Process Connections: Barbedfor3/16˝IDtubing(STD);1/8˝maleNPT(optional). Size: 4-1/8˝(104.78mm)depthx3-1/16˝(77.79mm)diameter. Weight: 23 oz (652 g).

SWITCH SPECIFICATIONS Switch Type: (2) SPDT relays. Electrical Rating: 5A@120/240VACresistive;5A@30VDC. Electrical Connections: Screw type terminal block. Accepts 22-12 AWG wire. Power Requirements: 24 VDC / 24 VAC 50/60 Hz 4 watts. Mounting Orientation: Gage face in vertical position. Set Point Adjustment: Push-buttons. Standard Accessories: (2)mountingscrews,(1).050˝hexallenwrench. Compliance: CE, cULus.

3-1/16 [77.79]

3-1/32 [77.00]

3-13/16 [96.84]

9/32

[7.134]

MODEL CHART

Range,

Model

Inches of Water Model

MP-000

Differential Pressure

Gages/Switches, Dial

0-0.5

MP-001

0-1.0

MP-002

0-2.0

MP-003

0-3.0

MP-005

0-5.0

MP-010

0-10

MP-020

0-20

OPTIONS To order add sufx: Description

-NIST

-NPT Example: MP-000-NPT;Note: Allow additional lead time.

ACCESSORIES Model Description A-301 A-302 A-302F-A

A-489

Staticpressuretipfor1/4˝metaltubingconnection Staticpressuretipfor3/16˝and1/8˝I.D.plasticorrubbertubing 303SSstaticpressuretipwithmountingange;for3/16˝IDrubberor plastictubing;4˝insertiondepth;includesmountingscrews 4˝straightstaticpressuretipwithange

MP-125PA MP-250PA MP-500PA

Model MP-1KPA MP-3KPA

NISTtraceablecalibrationcerticate 1/8˝maleNPTconnections

Range, Pa

0-125 0-250 0-500

Range, kPa

0-1 0-3

DWYER INSTRUMENTS, LLC | dwyer-inst.com44

Process Tubing Options: See page 453 (Gage Tubing Accessories)
