RED
BLACK
TEST LEADS
3-15/32
[88.00]
6-27/64
[163.00]
Model
6-27/64
[163.00]
3-15/32
[88.00]
THERMISTOR
ADAPTER
RED
BLACK
TEST LEADS

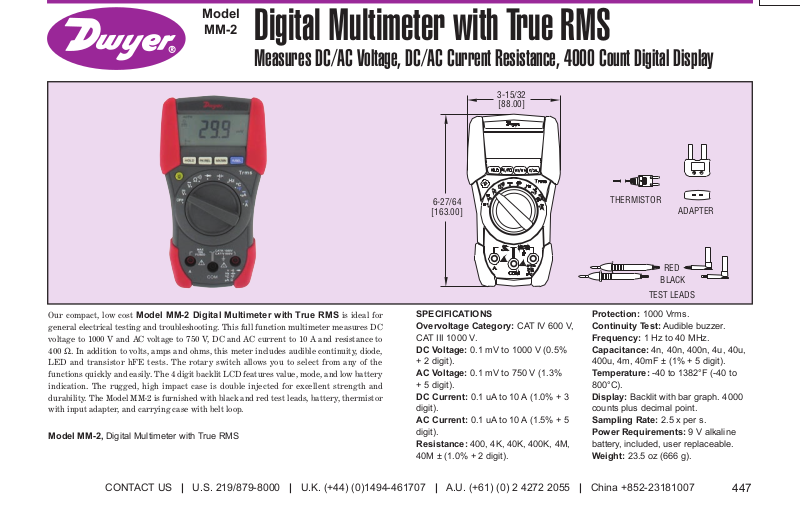

MM-2
Digital Multimeter with True RMS
Measures DC/AC Voltage, DC/AC Current Resistance, 4000 Count Digital Display
Our compact, low cost Model MM-2 Digital Multimeter with True RMS is ideal for
general electrical testing and troubleshooting. This full function multimeter measures DC
voltage to 1000 V and AC voltage to 750 V, DC and AC current to 10 A and resistance to
400 Ω. In addition to volts, amps and ohms, this meter includes audible continuity, diode,
LED and transistor hFE tests. The rotary switch allows you to select from any of the
functions quickly and easily. The 4 digit backlit LCD features value, mode, and low battery
indication. The rugged, high impact case is double injected for excellent strength and
durability. The Model MM-2 is furnished with black and red test leads, battery, thermistor
with input adapter, and carrying case with belt loop.
Model MM-2, Digital Multimeter with True RMS
CONTACT US | U.S. 219/879-8000 | U.K. (+44) (0)1494-461707 | A.U. (+61) (0) 2 4272 2055 | China +852-23181007
SPECIFICATIONS
Overvoltage Category: CAT IV 600 V,
CAT III 1000 V.
DC Voltage: 0.1 mV to 1000 V (0.5%
+ 2 digit).
AC Voltage: 0.1 mV to 750 V (1.3%
+ 5 digit).
DC Current: 0.1 uA to 10 A (1.0% + 3
digit).
AC Current: 0.1 uA to 10 A (1.5% + 5
digit).
Resistance: 400, 4K, 40K, 400K, 4M,
40M ± (1.0% + 2 digit).
Protection: 1000 Vrms.
Continuity Test: Audible buzzer.
Frequency: 1 Hz to 40 MHz.
Capacitance: 4n, 40n, 400n, 4u, 40u,
400u, 4m, 40mF ± (1% + 5 digit).
Temperature: -40 to 1382°F (-40 to
800°C).
Display: Backlit with bar graph. 4000
counts plus decimal point.
Sampling Rate: 2.5 x per s.
Power Requirements: 9 V alkaline
battery, included, user replaceable.
Weight: 23.5 oz (666 g).
