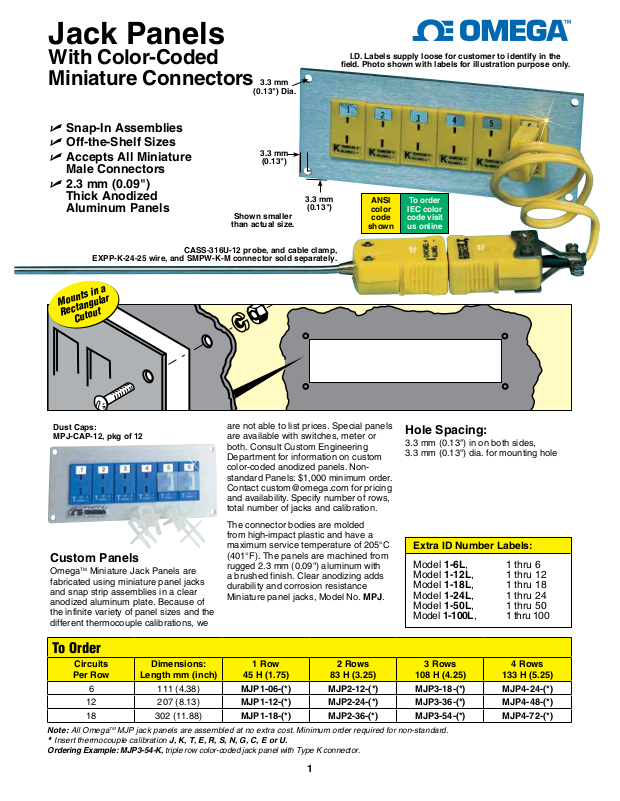

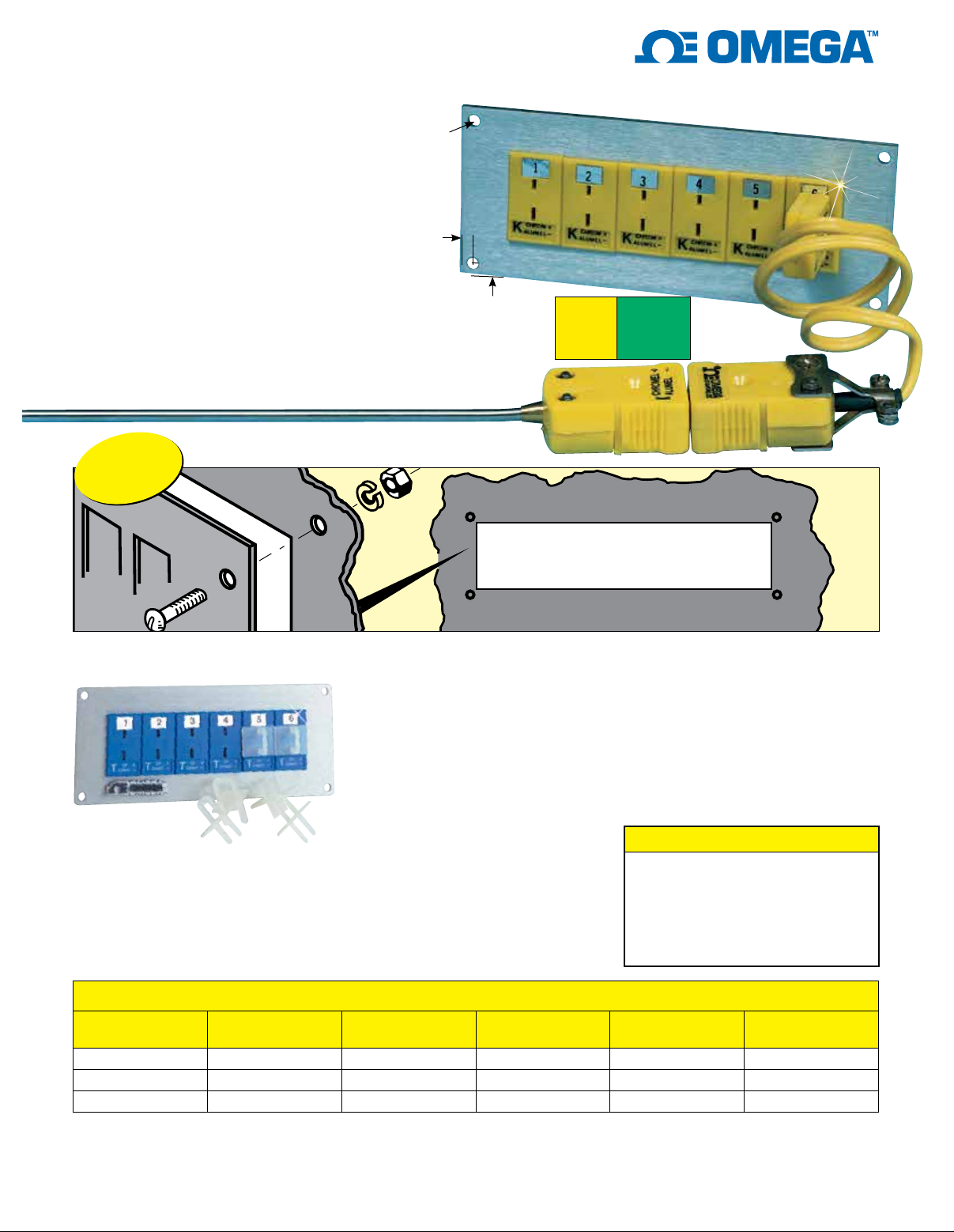

Jack Panels
With Color-Coded
I.D. Labels supply loose for customer to identify in the
field. Photo shown with labels for illustration purpose only.
Miniature Connectors
U Snap-In Assemblies
U Off-the-Shelf Sizes
U Accepts All Miniature
Male Connectors
U 2.3 mm (0.09")
Thick Anodized
Aluminum Panels
EXPP-K-24-25 wire, and SMPW-K-M connector sold separately.
Mounts in a
Rectangular
Cutout
CASS-316U-12 probe, and cable clamp,
Shown smaller
than actual size.
3.3 mm
(0.13") Dia.
3.3 mm
(0.13")
3.3 mm
(0.13")
ANSI
color
code
shown
To order
IEC color
code visit
us online
Dust Caps:
MPJ-CAP-12, pkg of 12
Custom Panels
OmegaTM Miniature Jack Panels are
fabricated using miniature panel jacks
and snap strip assemblies in a clear
anodized aluminum plate. Because of
the infinite variety of panel sizes and the
different thermocouple calibrations, we
are not able to list prices. Special panels
are available with switches, meter or
both. Consult Custom Engineering
Department for information on custom
color-coded anodized panels. Nonstandard Panels: $1,000 minimum order.
Contact [email protected] for pricing
and availability. Specify number of rows,
total number of jacks and calibration.
The connector bodies are molded
from high-impact plastic and have a
maximum service temperature of 205°C
(401°F). The panels are machined from
rugged 2.3 mm (0.09") aluminum with
a brushed finish. Clear anodizing adds
durability and corrosion resistance
Miniature panel jacks, Model No. MPJ.
Hole Spacing:
3.3 mm (0.13") in on both sides,
3.3 mm (0.13") dia. for mounting hole
Extra ID Number Labels:
Model 1-6L, 1 thru 6
Model 1-12L, 1 thru 12
Model 1-18L, 1 thru 18
Model 1-24L, 1 thru 24
Model 1-50L, 1 thru 50
Model 1-100L, 1 thru 100
To Order
Circuits
Per Row
6 111 (4.38)
12 207 (8.13)
18 302 (11.88)
Note: All OmegaTM MJP jack panels are assembled at no extra cost. Minimum order required for non-standard.
Insert thermocouple calibration J, K, T, E, R, S, N, G, C, E or U.
*
Ordering Example: MJP3-54-K, triple row color-coded jack panel with Type K connector.
Dimensions:
Length mm (inch)
1 Row
45 H (1.75)
MJP1-06-(*) MJP2-12-(*) MJP3-18-(*) MJP4-24-(*)
MJP1-12-(*) MJP2-24-(*) MJP3-36-(*) MJP4-48-(*)
MJP1-18-(*) MJP2-36-(*) MJP3-54-(*) MJP4-72-(*)
2 Rows
83 H (3.25)
3 Rows
108 H (4.25)
4 Rows
133 H (5.25)
1
