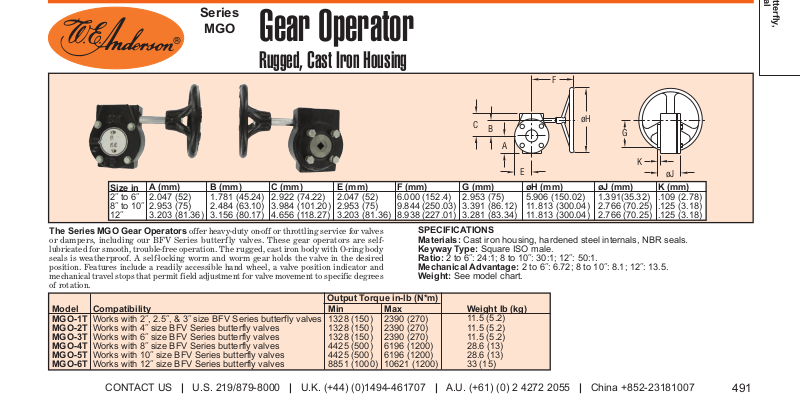

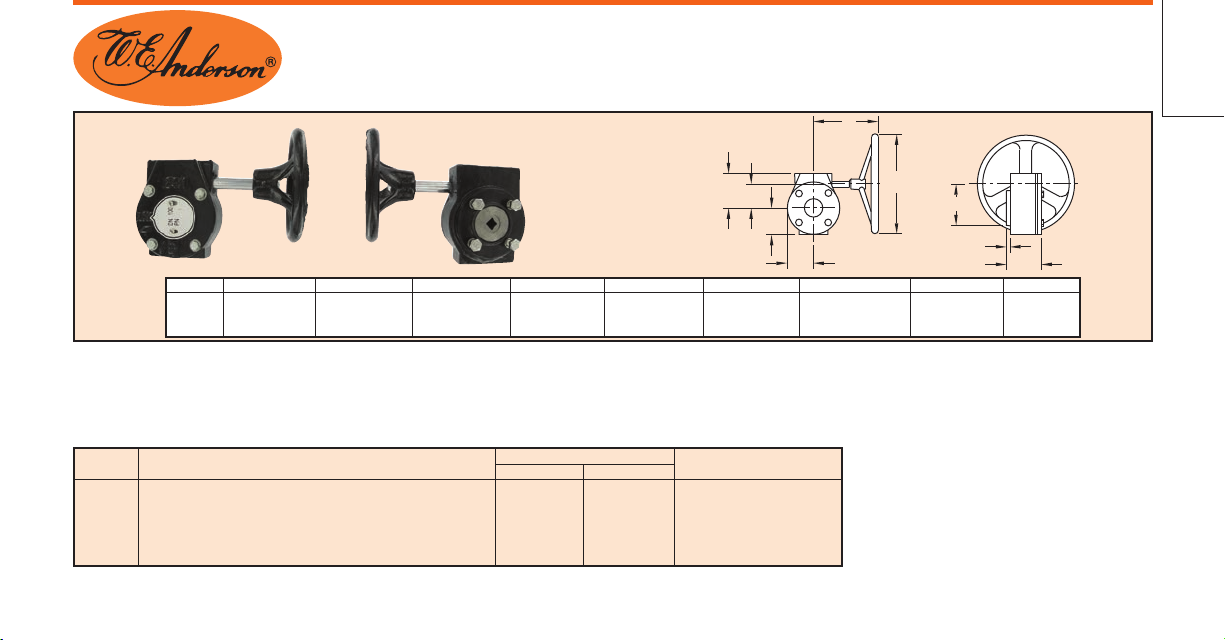

Page 1

E´

K B.C.

Series

øH

øJ

MGO

Gear Operator

Rugged, Cast Iron Housing

Size in

2˝ to 6˝ 8˝ to 10˝ 12˝

The Series MGO Gear Operators offer heavy-duty on-off or throttling service for valves or dampers, including our BFV Ser ies butterfly valves. These gear operators are selflubricated for smooth, trouble-free operation. The rugged, cast iron body with O-ring body seals is weatherproof. A self-locking worm and worm gear holds the valve in the desired position. Features include a readily accessible hand wheel, a valve position indicator and mechanical travel stops that permit field adjustment for valve movement to specific degrees of rotation.

Model MGO-1T MGO-2T MGO-3T MGO-4T MGO-5T MGO-6T

Compatibility

Works with 2˝, 2.5˝, & 3˝ size BFV Series butterfly valves Works with 4˝ size BFV Series butterfly valves Works with 6˝ size BFV Series butterfly valves Works with 8˝ size BFV Series butterfly valves Works with 10˝ size BFV Series butterfly valves Works with 12˝ size BFV Series butterfly valves

A (mm)

2.047 (52)

2.953 (75)

3.203 (81.36)

B (mm)

1.781 (45.24)

2.484 (63.10)

3.156 (80.17)

C (mm)

2.922 (74.22)

3.984 (101.20)

4.656 (118.27)

E (mm)

2.047 (52)

2.953 (75)

3.203 (81.36)

Output Torque in-lb (N*m)

Min

1328 (150) 1328 (150) 1328 (150) 4425 (500) 4425 (500) 8851 (1000)

F (mm)

6.000 (152.4)

9.844 (250.03)

8.938 (227.01)

SPECIFICATIONS Materials: Cast iron housing, hardened steel internals, NBR seals. Keyway Type: Square ISO male. Ratio: 2 to 6˝: 24:1; 8 to 10˝: 30:1; 12˝: 50:1. Mechanical Advantage: 2 to 6˝: 6.72; 8 to 10˝: 8.1; 12˝: 13.5. Weight: See model chart.

Max

2390 (270) 2390 (270) 2390 (270) 6196 (1200) 6196 (1200) 10621 (1200)

G (mm)

2.953 (75)

3.391 (86.12)

3.281 (83.34)

Weight lb (kg)

11.5 (5.2)

28.6 (13)

28.6 (13) 33 (15)

øH (mm)

5.906 (150.02)

11.813 (300.04)

øJ (mm)

1.391(35.32)

2.766 (70.25)

K (mm)

.109 (2.78) .125 (3.18) .125 (3.18)
