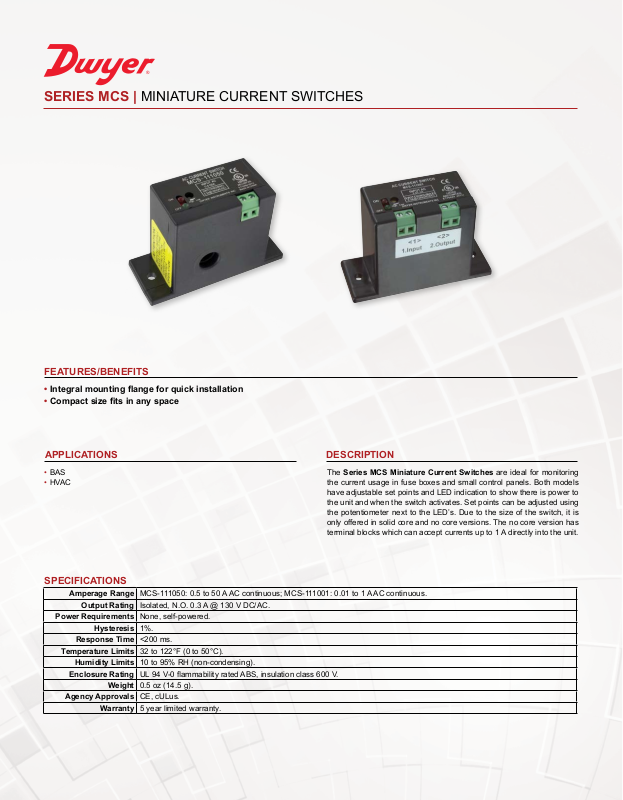

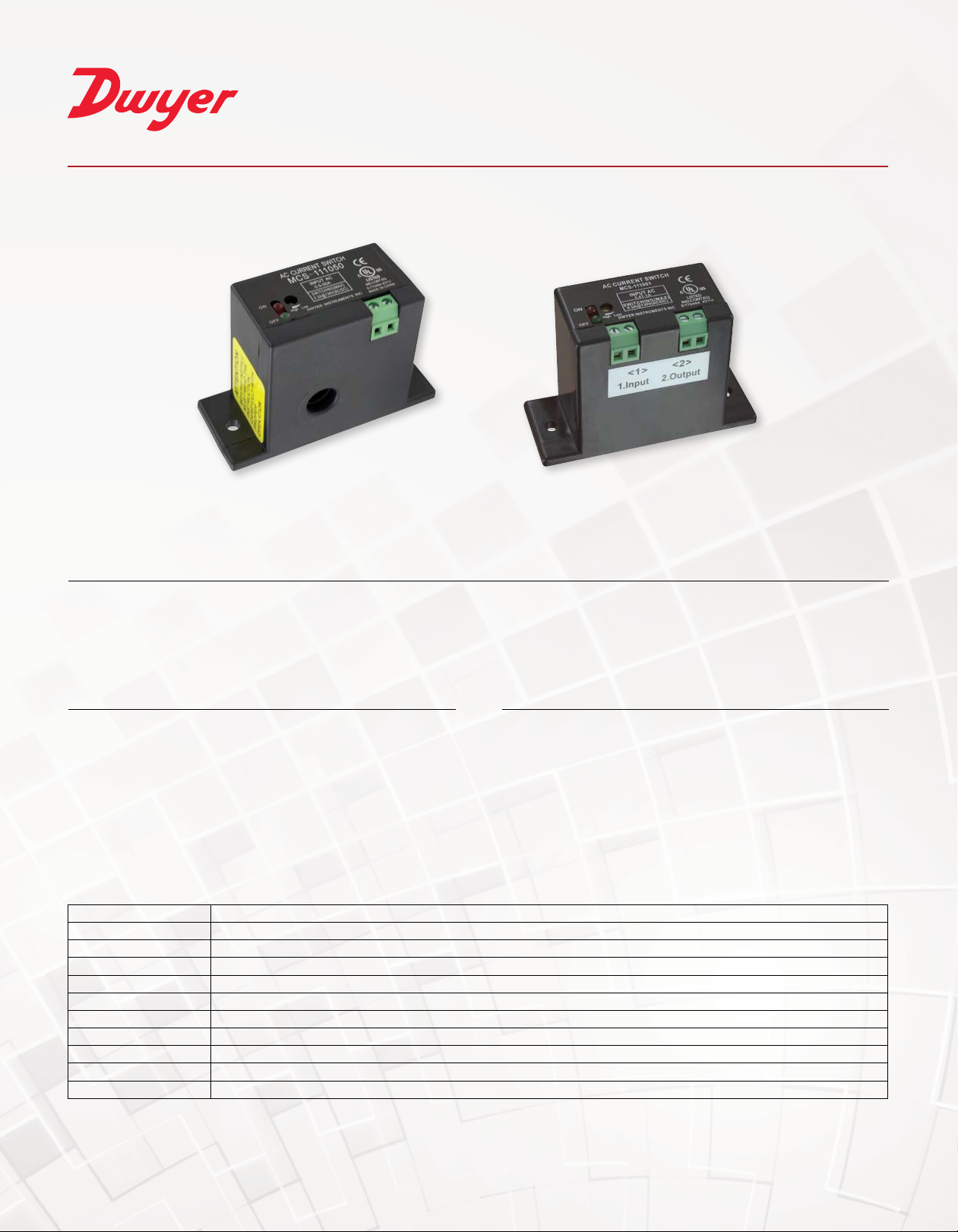

SERIES MCS | MINIATURE CURRENT SWITCHES
®
FEATURES/BENEFITS
• Integral mounting ange for quick installation
• Compact size ts in any space
DESCRIPTIONAPPLICATIONS
• BAS
• HVAC
The Series MCS Miniature Current Switches are ideal for monitoring
the current usage in fuse boxes and small control panels. Both models
have adjustable set points and LED indication to show there is power to
the unit and when the switch activates. Set points can be adjusted using
the potentiometer next to the LED’s. Due to the size of the switch, it is
only offered in solid core and no core versions. The no core version has
terminal blocks which can accept currents up to 1 A directly into the unit.
SPECIFICATIONS
Amperage Range MCS-111050: 0.5 to 50 A AC continuous; MCS-111001: 0.01 to 1 A AC continuous.
Output Rating Isolated, N.O. 0.3 A @ 130 V DC/AC.
Power Requirements None, self-powered.
Hysteresis 1%.
Response Time <200 ms.
Temperature Limits 32 to 122°F (0 to 50°C).
Humidity Limits 10 to 95% RH (non-condensing).
Enclosure Rating UL 94 V-0 ammability rated ABS, insulation class 600 V.
Weight 0.5 oz (14.5 g).
Agency Approvals CE, cULus.
Warranty 5 year limited warranty.
Page 2

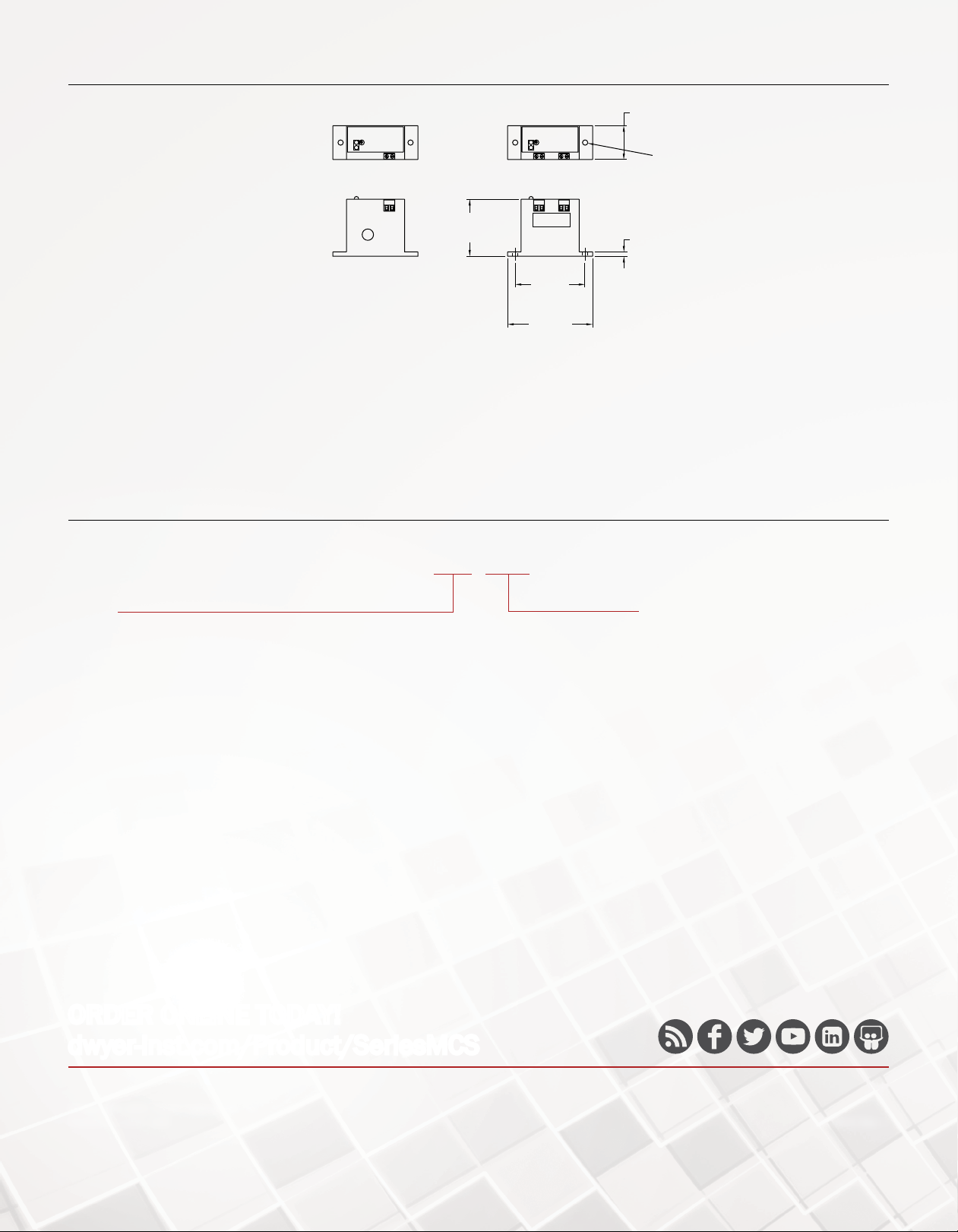

DIMENSIONS
63/64˝
]
[63.03]
[25.15]
Ø5/32˝
[Ø3.94
Solid Core No Core
HOW TO ORDER
Use the bold characters from the chart below to construct a product code.
MCS -111050
SERIES
MCS: Miniature current switches
1-21/32˝
[42.25]
2-1/32˝
[51.73]
2-31/64˝
1/8˝
[3.18]
MODEL
-111050: Solid core 0.50 minimum set point
-111001: No core 0.01 minimum set point
ORDER ONLINE TODAY!
dwyer-inst.com/Product/SeriesMCS
DWYER INSTRUMENTS, INC.
©Copyright 2020 Dwyer Instruments, Inc.
Printed in U.S.A. 3/20 DS-MCS Rev. 1
Important Notice: Dwyer Instruments, Inc. reserves the right to make changes to or discontinue any product or service identied in this publication without notice. Dwyer advises its customers to obtain the
latest version of the relevant information to verify, before placing any orders, that the information being relied upon is current.
