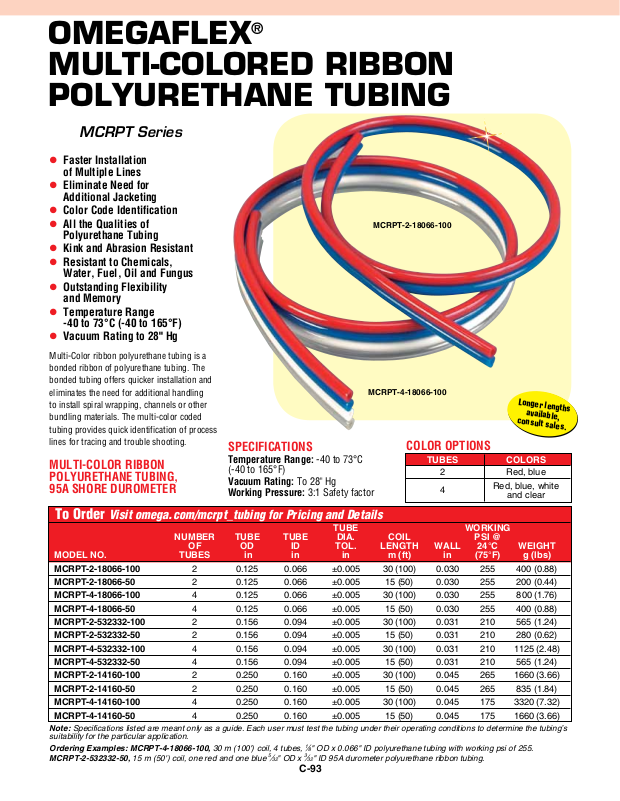

OMEGAFLEX®
MuLti-COLOrEd ribbOn
POLyurEthAnE tubinG
MCRPT Series
l Faster Installation
of Multiple Lines
l Eliminate Need for
Additional Jacketing
l Color Code Identification
l All the Qualities of
Polyurethane Tubing
l Kink and Abrasion Resistant
l Resistant to Chemicals,
Water, Fuel, Oil and Fungus
l Outstanding Flexibility
and Memory
l Temperature Range
-40 to 73°C (-40 to 165°F)
l Vacuum Rating to 28" Hg
MCRPT-2-18066-100
Multi-Color ribbon polyurethane tubing is a
bonded ribbon of polyurethane tubing. The
bonded tubing offers quicker installation and
eliminates the need for additional handling
to install spiral wrapping, channels or other
bundling materials. The multi-color coded
tubing provides quick identification of process
lines for tracing and trouble shooting.
MULTI-COLOR RIBBON
POLYURETHANE TUBING,
95A SHORE DUROMETER
To Order Visit omega.com/mcrpt_tubing for Pricing and Details
TUBE WORKING
NUMBER TUBE TUBE DIA. COIL PSI @
OF OD ID TOL. LENGTH WALL 24°C WEIGHT
MODEL NO. TUBES in in in m (ft) in (75°F) g (lbs)
MCRPT-2-18066-100 2 0.125 0.066 ±0.005 30 (100) 0.030 255 400 (0.88)
MCRPT-2-18066-50 2 0.125 0.066 ±0.005 15 (50) 0.030 255 200 (0.44)
MCRPT-4-18066-100 4 0.125 0.066 ±0.005 30 (100) 0.030 255 800 (1.76)
MCRPT-4-18066-50 4 0.125 0.066 ±0.005 15 (50) 0.030 255 400 (0.88)
MCRPT-2-532332-100 2 0.156 0.094 ±0.005 30 (100) 0.031 210 565 (1.24)
MCRPT-2-532332-50 2 0.156 0.094 ±0.005 15 (50) 0.031 210 280 (0.62)
MCRPT-4-532332-100 4 0.156 0.094 ±0.005 30 (100) 0.031 210 1125 (2.48)
MCRPT-4-532332-50 4 0.156 0.094 ±0.005 15 (50) 0.031 210 565 (1.24)
MCRPT-2-14160-100 2 0.250 0.160 ±0.005 30 (100) 0.045 265 1660 (3.66)
MCRPT-2-14160-50 2 0.250 0.160 ±0.005 15 (50) 0.045 265 835 (1.84)
MCRPT-4-14160-100 4 0.250 0.160 ±0.005 30 (100) 0.045 175 3320 (7.32)
MCRPT-4-14160-50 4 0.250 0.160 ±0.005 15 (50) 0.045 175 1660 (3.66)
Note: Specifications listed are meant only as a guide. Each user must test the tubing under their operating conditions to determine the tubing’s
suitability for the particular application.
Ordering Examples: MCRPT-4-18066-100, 30 m (100') coil, 4 tubes,
MCRPT-2-532332-50, 15 m (50') coil, one red and one blue
SPECIFICATIONS
Temperature Range: -40 to 73°C
(-40 to 165°F)
Vacuum Rating: To 28" Hg
Working Pressure: 3:1 Safety factor
1
5
⁄32" OD x 3⁄32" ID 95A durometer polyurethane ribbon tubing.
⁄8" OD x 0.066" ID polyurethane tubing with working psi of 255.
C-93
MCRPT-4-18066-100
COLOR OPTIONS
TUBES COLORS
2 Red, blue
and clear
Longer lengths
available,
consult sales.
Red, blue, white
4
