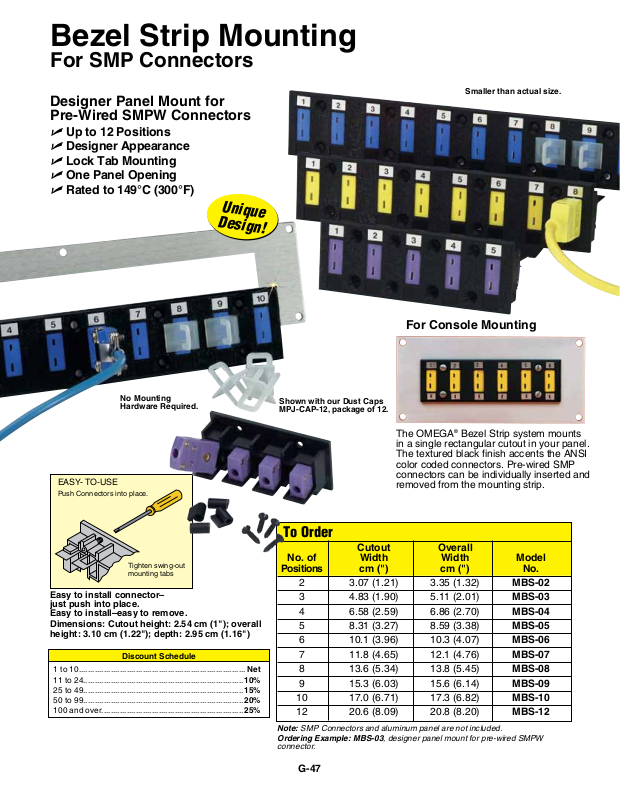

Bezel Strip Mounting
For SMP Connectors
Designer Panel Mount for
Pre-Wired SMPW Connectors
U Up to 12 Positions
U Designer Appearance
U Lock Tab Mounting
U One Panel Opening
U Rated to 149°C (300°F)
Unique
Design!
Smaller than actual size.
For Console Mounting
No Mounting
Hardware Required.
EASY- TO-USE
Push Connectors into place.
Tighten swing-out
mounting tabs
Easy to install connector–
just push into place.
Easy to install–easy to remove.
Dimensions: Cutout height: 2.54 cm (1"); overall
height: 3.10 cm (1.22"); depth: 2.95 cm (1.16")
Discount Schedule
1 to 10......................................................................... Net
11 to 24...................................................................... 10%
25 to 49...................................................................... 15%
50 to 99...................................................................... 20%
100 and over.............................................................. 25%
Shown with our Dust Caps
MPJ-CAP-12, package of 12.

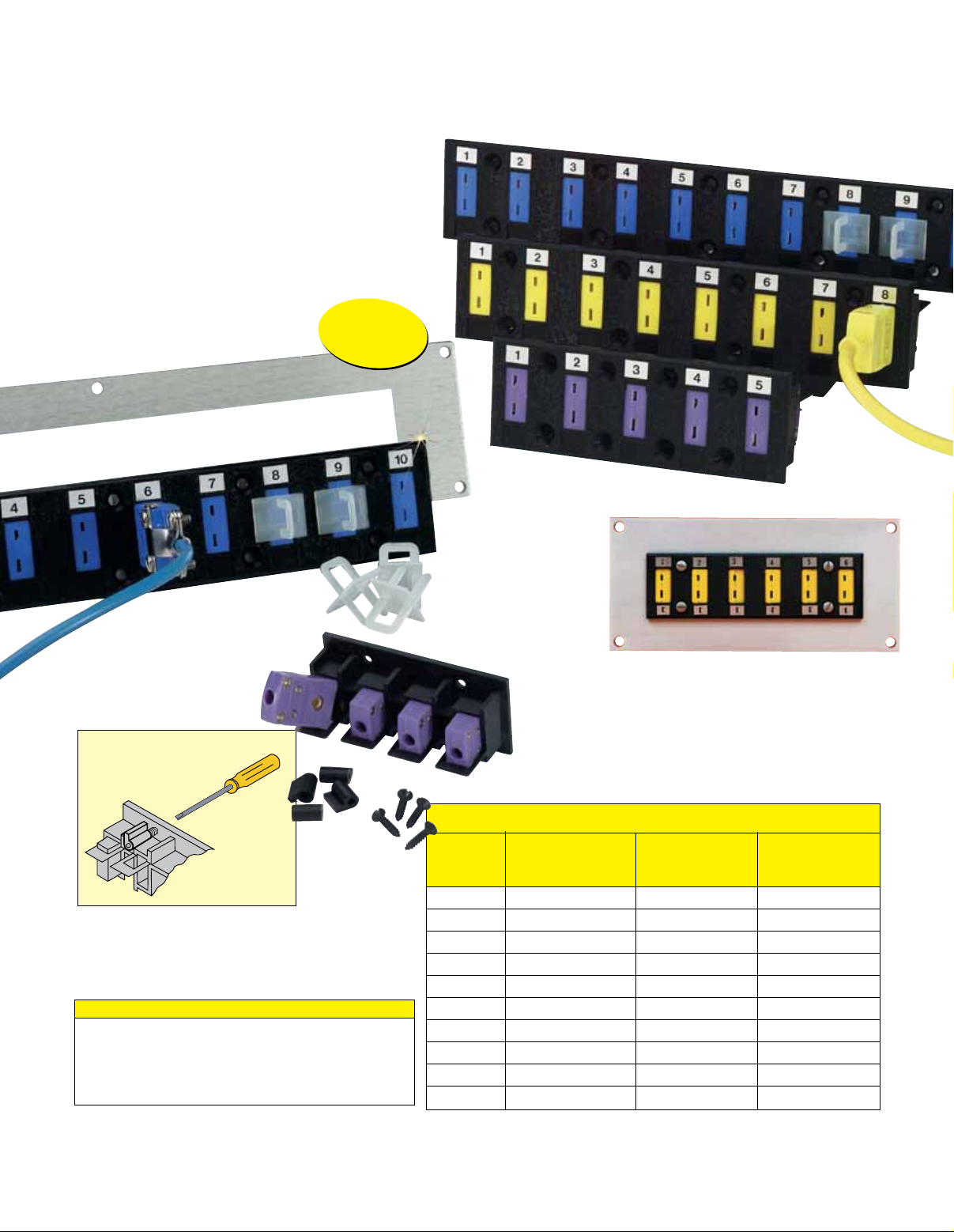

The OMEGA® Bezel Strip system mounts
in a single rectangular cutout in your panel.
The textured black finish accents the ANSI
color coded connectors. Pre-wired SMP
connectors can be individually inserted and
removed from the mounting strip.
To Order
Cutout Overall
No. of Width Width Model
Positions cm (") cm (") No.
2 3.07 (1.21) 3.35 (1.32) MBS-02
3 4.83 (1.90) 5.11 (2.01) MBS-03
4 6.58 (2.59) 6.86 (2.70) MBS-04
5 8.31 (3.27) 8.59 (3.38) MBS-05
6 10.1 (3.96) 10.3 (4.07) MBS-06
7 11.8 (4.65) 12.1 (4.76) MBS-07
8 13.6 (5.34) 13.8 (5.45) MBS-08
9 15.3 (6.03) 15.6 (6.14) MBS-09
10 17.0 (6.71) 17.3 (6.82) MBS-10
12 20.6 (8.09) 20.8 (8.20) MBS-12
Note: SMP Connectors and aluminum panel are not included.
Ordering Example: MBS-03, designer panel mount for pre-wired SMPW
connector.
