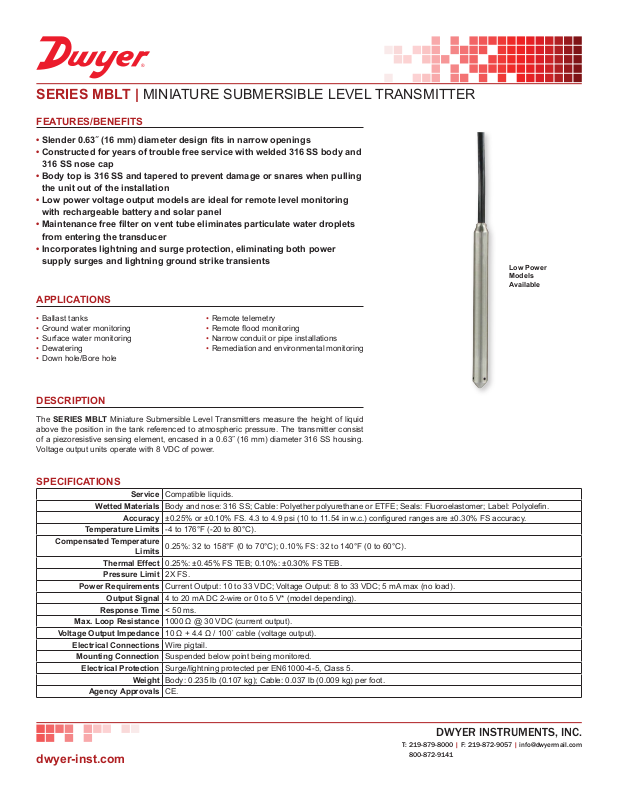

SERIES MBLT | MINIATURESUBMERSIBLELEVELTRANSMITTER

FEATURES/BENEFITS

•Slender0.63˝(16mm)diameterdesigntsinnarrowopenings

•Constructedforyearsoftroublefreeservicewithwelded316SSbodyand

 316SSnosecap

•Bodytopis316SSandtaperedtopreventdamageorsnareswhenpulling

 theunitoutoftheinstallation

•Lowpowervoltageoutputmodelsareidealforremotelevelmonitoring 

 withrechargeablebatteryandsolarpanel

•Maintenancefreelteronventtubeeliminatesparticulatewaterdroplets 

 fromenteringthetransducer

•Incorporateslightningandsurgeprotection,eliminatingbothpower 

 supplysurgesandlightninggroundstriketransients

APPLICATIONS

Low Power
Models

Available

• Ballast tanks

• Ground water monitoring

• Surface water monitoring

• Dewatering

• Down hole/Bore hole

• Remote telemetry

•Remoteoodmonitoring

• Narrow conduit or pipe installations

• Remediation and environmental monitoring

DESCRIPTION

The SERIES MBLT Miniature Submersible Level Transmitters measure the height of liquid
above the position in the tank referenced to atmospheric pressure. The transmitter consist

ofapiezoresistivesensingelement,encasedina0.63˝(16mm)diameter316SShousing.

Voltage output units operate with 8 VDC of power.

SPECIFICATIONS

Service Compatible liquids.

WettedMaterials Bodyandnose:316SS;Cable:PolyetherpolyurethaneorETFE;Seals:Fluoroelastomer;Label:Polyolen.

Accuracy ±0.25%or±0.10%FS.4.3to4.9psi(10to11.54inw.c.)conguredrangesare±0.30%FSaccuracy.

TemperatureLimits -4to176°F(-20to80°C).

CompensatedTemperature

ThermalEffect 0.25%:±0.45%FSTEB;0.10%:±0.30%FSTEB.

Pressure Limit 2XFS.

Power Requirements CurrentOutput:10to33VDC;VoltageOutput:8to33VDC;5mAmax(noload).

OutputSignal 4to20mADC2-wireor0to5V*(modeldepending).

ResponseTime < 50 ms.

Max.LoopResistance 1000Ω@30VDC(currentoutput).

VoltageOutputImpedance 10Ω+4.4Ω/100´cable(voltageoutput).

ElectricalConnections Wire pigtail.

MountingConnection Suspended below point being monitored.

ElectricalProtection Surge/lightningprotectedperEN61000-4-5,Class5.

Weight Body:0.235lb(0.107kg);Cable:0.037lb(0.009kg)perfoot.

AgencyApprovals CE.

0.25%:32to158°F(0to70°C);0.10%FS:32to140°F(0to60°C).

Limits

dwyer-inst.com

DWYER INSTRUMENTS, INC.

T: 219-879-8000 | F: 219-872-9057 | [email protected]
800-872-9141

®

DIMENSIONS WIRING DIAGRAM

6-3/4

SUBMERSIBLE

TUBE

RECEIVER

Ø5/8

[Ø15.87]

[171.45]

BREATHER

CABLE

HOW TO ORDER

Usethebold characters from the chart below to construct a product code.

MBLT -25 C -I V P P -25 -100 -FC

SERIES

MBLT - Miniature submersible

level transmitter

CIRCUIT & BODY MATERIAL

-2S -Lightning/surgeprotected&316SS

PRESSURE

TRANSMITTER

RED

BLACK

SHIELD

PRESSURE

TRANSMITTER

RECEIVER

CurrentOutput

+V

GND

VOUT

SHIELD

VoltageOutput

RED

BLACK

WHITE

+

-

-

+

POWER
SUPPLY

8-33 VDC

OPTIONS

-FC -Factorycalibration

CABLE LENGTH

-X -10to2000´

-X - 3 to 650 m

POWER
SUPPLY

10-33 VDC

V

ACCURACY

B -0.10%FS
C -0.25%FS

OUTPUT

-I -4to20mA

-L - 0 to 2 V

-H - 0 to 2.5 V

-T - 0 to 3 V

-F -0to4V

-V - 0 to 5 V

RANGE VALUE

-X -4.5to300psi

 10to693´w.c.
 3.2to211mw.c.

RANGE UNITS

F -Feetofwatercolumn
M - Meters of water

column

P - psi

-O -1to5V

REFERENCE

V - Vented

CABLE MATERIAL

E -ETFE
P -Polyurethane

ACCESSORIES

Model Description
A-297 Desiccantlterforventtube.Removeshumidityforprotectionofthesensor.Changescolortoshow

ImportantNotice:DwyerInstruments,Inc.reservestherighttomakechangestoordiscontinueanyproductorserviceidentiedinthispublication withoutnotice.Dwyeradvisesitscustomerstoobtainthe

latest version of the relevant information to verify, before placing any orders, that the information being relied upon is current.

saturation.
