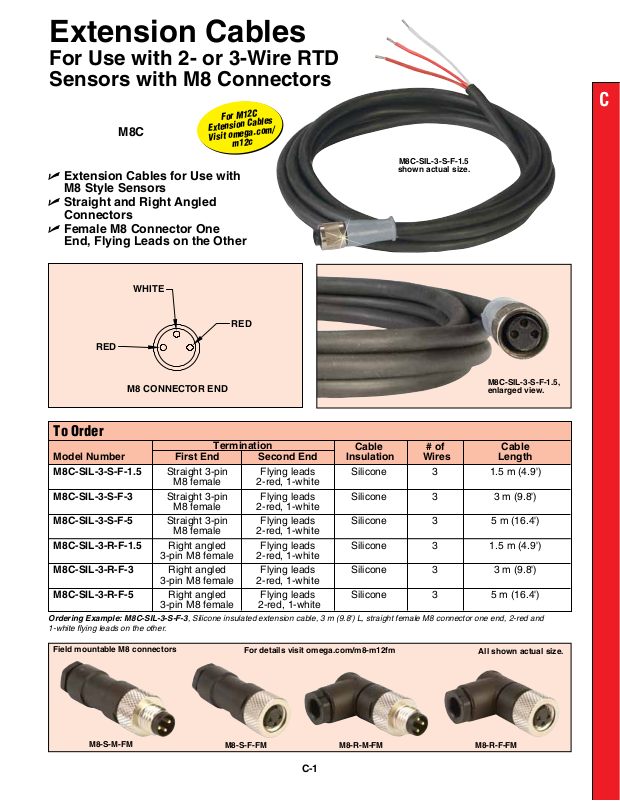

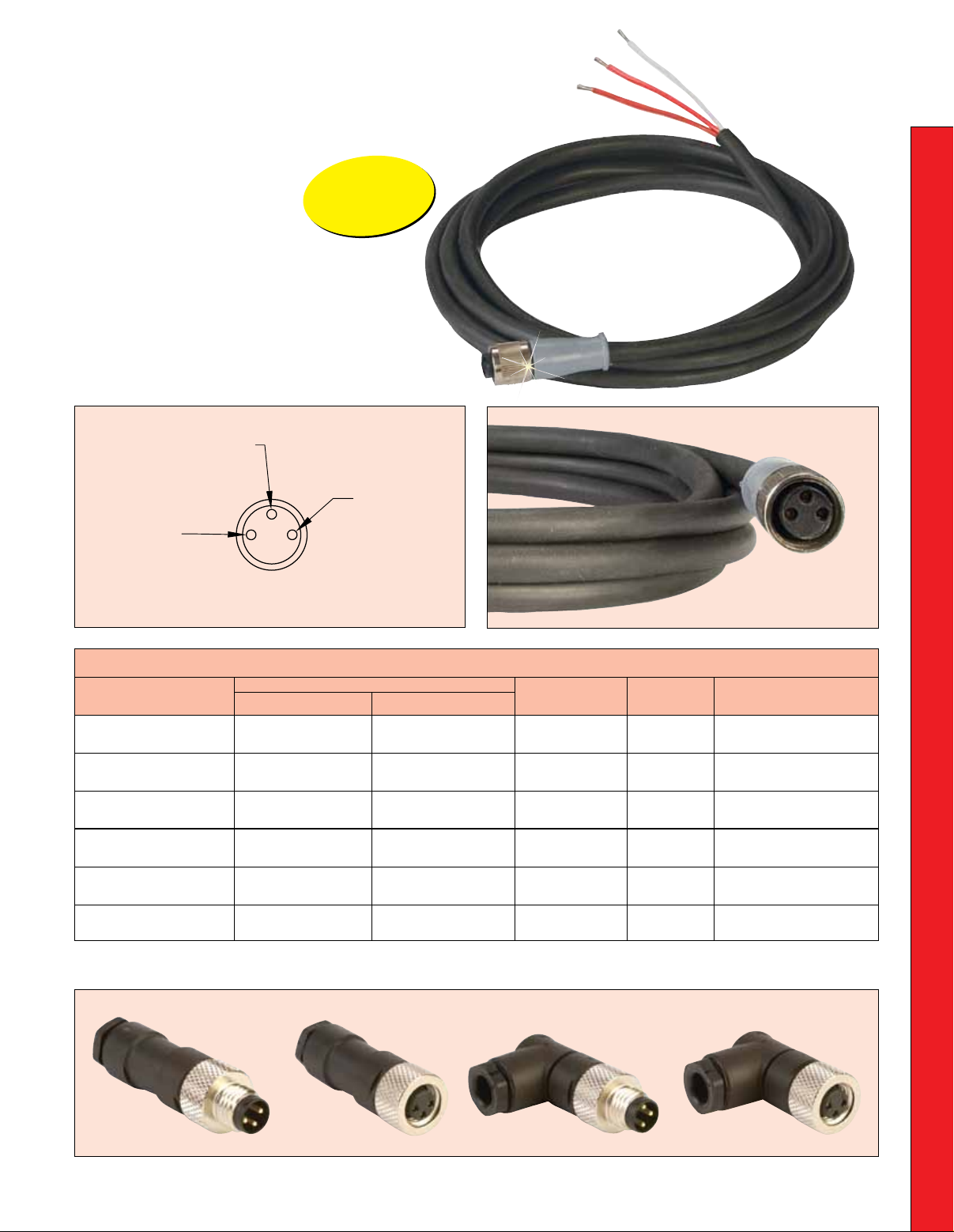

Page 1

Extension Cables

For Use with 2- or 3-Wire RTD Sensors with M8 Connectors

For M12C

M8C

U Extension Cables for Use with

M8 Style Sensors

U Straight and Right Angled

Connectors

U Female M8 Connector One

End, Flying Leads on the Other

WHITE

Extension Cables Visit omega.com/

m12c

RED

M8C-SIL-3-S-F-1.5

shown actual size.

RED

M8 CONNECTOR END

To Order

Model Number First End Second End Insulation Wires Length M8C-SIL-3-S-F-1.5 Straight 3-pin Flying leads Silicone 3 1.5 m (4.9')

M8 female 2-red, 1-white M8C-SIL-3-S-F-3 Straight 3-pin Flying leads Silicone 3 3 m (9.8')

M8 female 2-red, 1-white M8C-SIL-3-S-F-5 Straight 3-pin Flying leads Silicone 3 5 m (16.4')

M8 female 2-red, 1-white M8C-SIL-3-R-F-1.5 Right angled Flying leads Silicone 3 1.5 m (4.9')

3-pin M8 female 2-red, 1-white M8C-SIL-3-R-F-3 Right angled Flying leads Silicone 3 3 m (9.8')

3-pin M8 female 2-red, 1-white M8C-SIL-3-R-F-5 Right angled Flying leads Silicone 3 5 m (16.4')

3-pin M8 female 2-red, 1-white

Ordering Example: M8C-SIL-3-S-F-3, Silicone insulated extension cable, 3 m (9.8') L, straight female M8 connector one end, 2-red and 1-white ﬂying leads on the other.

Termination

Cable # of Cable

M8C-SIL-3-S-F-1.5, enlarged view.

Field mountable M8 connectors

M8-S-M-FM

For details visit omega.com/m8-m12fm

M8-S-F-FM

C-1

M8-R-M-FM

All shown actual size.

M8-R-F-FM
