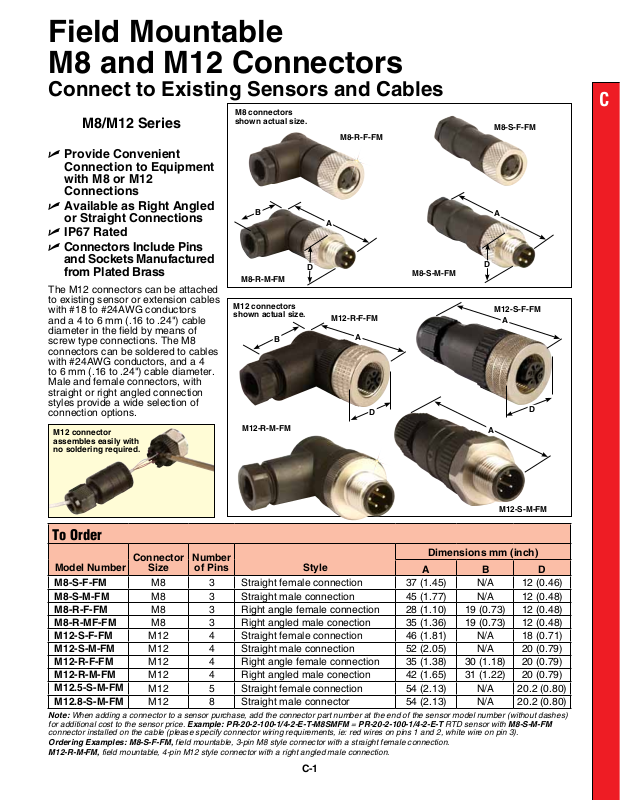

Field Mountable
M8 and M12 Connectors
Connect to Existing Sensors and Cables
M8 connectors
M8/M12 Series
U Provide Convenient
Connection to Equipment
with M8 or M12
Connections
U Available as Right Angled
or Straight Connections
U IP67 Rated
U Connectors Include Pins
and Sockets Manufactured
from Plated Brass
The M12 connectors can be attached
to existing sensor or extension cables
with #18 to #24AWG conductors
and a 4 to 6 mm (.16 to .24") cable
diameter in the field by means of
screw type connections. The M8
connectors can be soldered to cables
with #24AWG conductors, and a 4
to 6 mm (.16 to .24") cable diameter.
Male and female connectors, with
straight or right angled connection
styles provide a wide selection of
connection options.

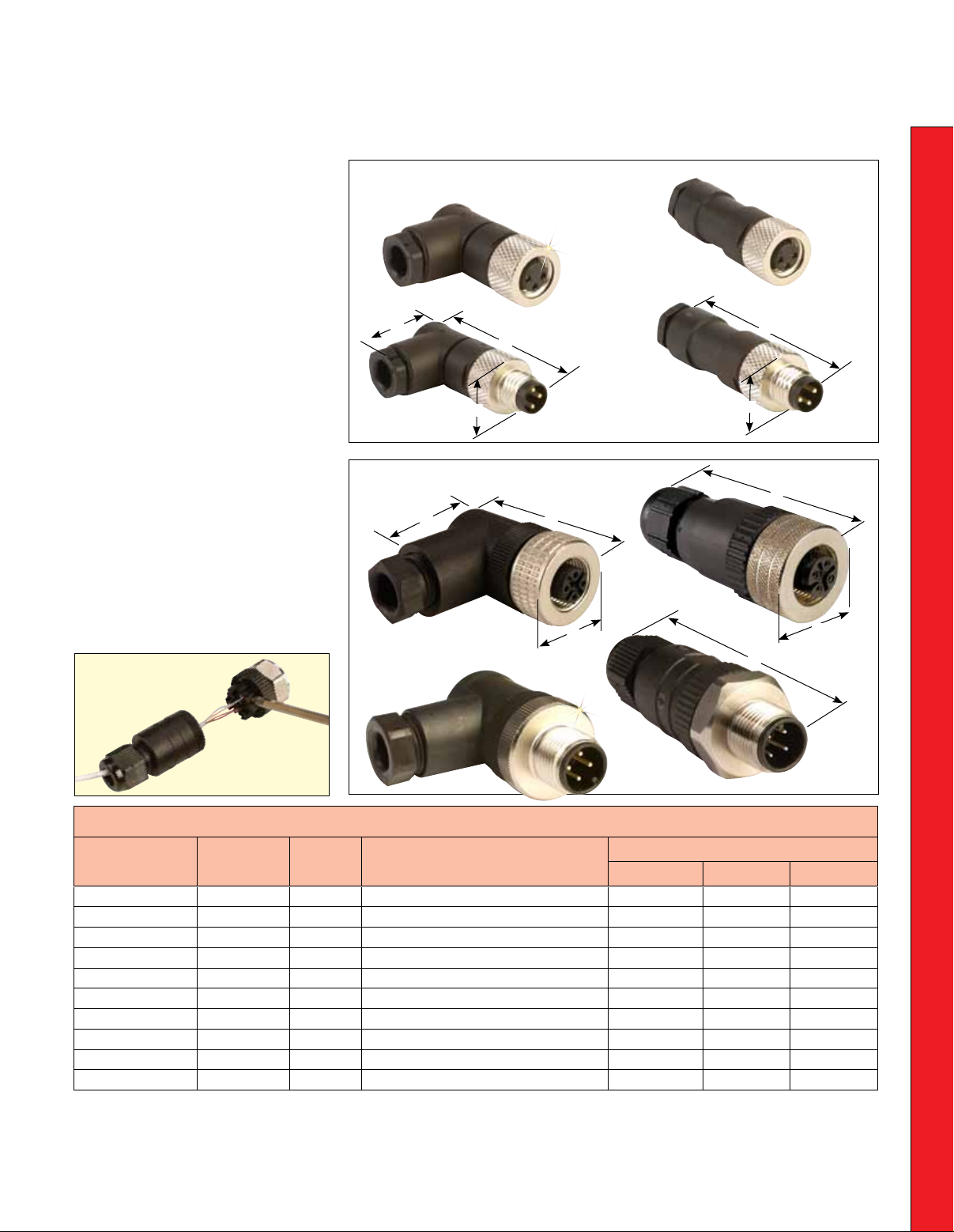

M12 connector
assembles easily with
no soldering required.
shown actual size.
B
M8-R-M-FM
M12 connectors
shown actual size.
B
M12-R-M-FM
D
M8-R-F-FM
A
M8-S-M-FM
M12-R-F-FM
A
D
C
M8-S-F-FM
A
D
M12-S-F-FM
A
D
A
M12-S-M-FM
To Order
Model Number
M8-S-F-FM
M8-S-M-FM
M8-R-F-FM
M8-R-MF-FM
M12-S-F-FM
M12-S-M-FM
M12-R-F-FM
M12-R-M-FM
M12.5-S-M-FM
M12.8-S-M-FM
Note: When adding a connector to a sensor purchase, add the connector part number at the end of the sensor model number (without dashes)
for additional cost to the sensor price. Example: PR-20-2-100-1/4-2-E-T-M8SMFM = PR-20-2-100-1/4-2-E-T RTD sensor with M8-S-M-FM
connector installed on the cable (please specify connector wiring requirements, ie: red wires on pins 1 and 2, white wire on pin 3).
Ordering Examples: M8-S-F-FM, field mountable, 3-pin M8 style connector with a straight female connection.
M12-R-M-FM, field mountable, 4-pin M12 style connector with a right angled male connection.
Connector
Size
M8 3 Straight female connection 37 (1.45) N/A 12 (0.46)
M8 3 Straight male connection 45 (1.77) N/A 12 (0.48)
M8 3 Right angle female connection 28 (1.10) 19 (0.73) 12 (0.48)
M8 3 Right angled male conection 35 (1.36) 19 (0.73) 12 (0.48)
M12 4 Straight female connection 46 (1.81) N/A 18 (0.71)
M12 4 Straight male connection 52 (2.05) N/A 20 (0.79)
M12 4 Right angle female connection 35 (1.38) 30 (1.18) 20 (0.79)
M12 4 Right angled male conection 42 (1.65) 31 (1.22) 20 (0.79)
M12 5 Straight female connection 54 (2.13) N/A 20.2 (0.80)
M12 8 Straight male connector 54 (2.13) N/A 20.2 (0.80)
Number
of Pins
Style
C-1
Dimensions mm (inch)
