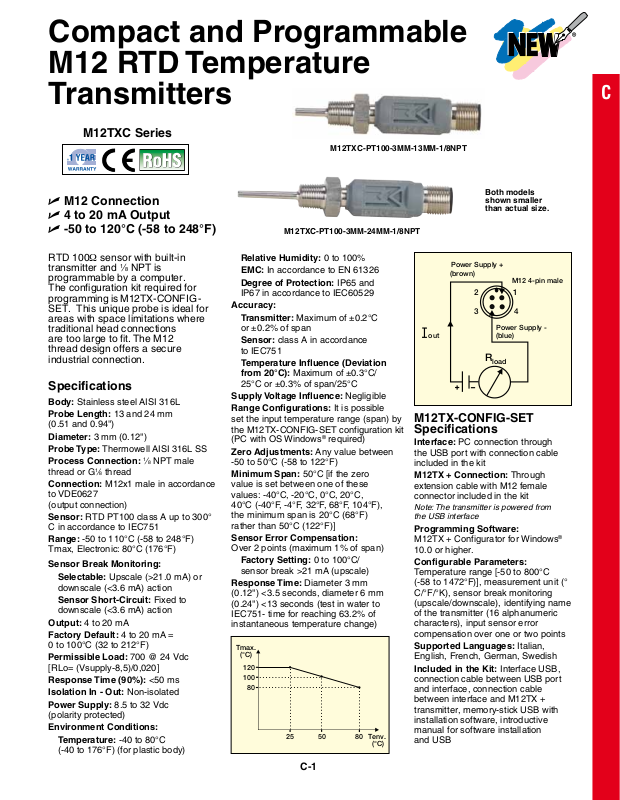

Compact and Programmable
Power Supply +
(brown)
Power Supply -
(blue)
12
34
R
load
M12 4-pin male
out
Ø16
(0.63)
64.5 (2.5)
M12x1
Ø3
(0.01)
87.5 (3.44) and 98.5 (3.87)
G¹⁄
8"
13 (0.51) and 24 (0.94)
17
M12 RTD Temperature
Transmitters
M12TXC Series
U
M12 Connection
U 4 to 20 mA Output
U -50 to 120°C (-58 to 248°F)
RTD 100Ω sensor with built-in
transmitter and 1⁄8 NPT is
programmable by a computer.
The configuration kit required for
programming is M12TX-CONFIG SET. This unique probe is ideal for
areas with space limitations where
traditional head connections
are too large to fit. The M12
thread design offers a secure
industrial connection.
Specifications
Body: Stainless steel AISI 316L
Probe Length: 13 and 24 mm
(0.51 and 0.94")
Diameter: 3 mm (0.12")
Probe Type: Thermowell AISI 316L SS
Process Connection: 1⁄8 NPT male
thread or G1⁄8 thread
Connection: M12x1 male in accordance
to VDE0627
(output connection)
Sensor: RTD PT100 class A up to 300°
C in accordance to IEC751
Range: -50 to 110°C (-58 to 248°F)
Tmax, Electronic: 80°C (176°F)
Sensor Break Monitoring:
Selectable: Upscale (>21.0 mA) or
downscale (<3.6 mA) action
Sensor Short-Circuit: Fixed to
downscale (<3.6 mA) action
Output: 4 to 20 mA
Factory Default: 4 to 20 mA =
0 to 100°C (32 to 212°F)
Permissible Load: 700 @ 24 Vdc
[RLo= (Vsupply-8,5)/0,020]
Response Time (90%): <50 ms
Isolation In - Out: Non-isolated
Power Supply: 8.5 to 32 Vdc
(polarity protected)
Environment Conditions:
Temperature: -40 to 80°C
(-40 to 176°F) (for plastic body)
M12TXC-PT100-3MM-13MM-1/8NPT
M12TXC-PT100-3MM-24MM-1/8NPT
Relative Humidity: 0 to 100%
EMC: In accordance to EN 61326
Degree of Protection: IP65 and
IP67 in accordance to IEC60529
Accuracy:
Transmitter: Maximum of ±0.2°C
or ±0.2% of span
Sensor: class A in accordance
to IEC751
Temperature Influence (Deviation
from 20°C): Maximum of ±0.3°C/
25°C or ±0.3% of span/25°C
Supply Voltage Influence: Negligible
Range Configurations: It is possible
set the input temperature range (span) by
the M12TX-CONFIG-SET configuration kit
(PC with OS Windows® required)
Zero Adjustments: Any value between
-50 to 50°C (-58 to 122°F)
Minimum Span: 50°C [if the zero
value is set between one of these
values: -40°C, -20°C, 0°C, 20°C,
40°C (-40°F, -4°F, 32°F, 68°F, 104°F),
the minimum span is 20°C (68°F)
rather than 50°C (122°F)]
Sensor Error Compensation:
Over 2 points (maximum 1% of span)
Factory Setting: 0 to 100°C/
sensor break >21 mA (upscale)
Response Time: Diameter 3 mm
(0.12") <3.5 seconds, diameter 6 mm
(0.24") <13 seconds (test in water to
IEC751- time for reaching 63.2% of
instantaneous temperature change)
Tmax.
(°C)
120
100
80
C-1
805025 Tenv.
(°C)
Both models
shown smaller
than actual size.
Power Supply +
(brown)
34
out
M12 4-pin male
12
Power Supply (blue)
R
load
M12TX-CONFIG-SET
Speci
Interface: PC connection through
the USB port with connection cable
included in the kit
M12TX + Connection: Through
extension cable with M12 female
connector included in the kit
Note: The transmitter is powered from
the USB interface
Programming Software:
M12TX + Configurator for Windows®
10.0 or higher.
Configurable Parameters:
T
(-58 to 1472°F)], measurement unit (°
C/°F/°K), sensor break monitoring
(upscale/downscale), identifying name
of the transmitter (16 alphanumeric
characters), input sensor error
compensation over one or two points
Supported Languages: Italian,
English, French, German, Swedish
Included in the Kit: Interface USB,
connection cable between USB port
and interface, connection cable
between interface and M12TX +
transmitter, memory-stick USB with
installation software, introductive
manual for software installation
and USB
fications
emperature range [-50 to 800°C
C
Page 2
Ø3
(0.11)
50 (1.96)
1/8
NPT
13 or 24
(0.5 or 0.94)
14
Dimensions: mm (inch)
ø = diameter
Ø15
(0.6)
M12x1
Standard
To Order
Model No. Description
M12TXC-PT100-3MM-13MM-1/8NPT
M12TXC-PT100-3MM-24MM-1/8NPT
Metric
Model No. Description
M12TXC-PT100-3MM-13MM-G1/8
M12TXC-PT100-3MM-24MM-G1/8
Ordering Examples: M12TXC-PT100-3MM-13MM-1/8NPT, temperature transmitter, output 4 to 20 mA, 3 mm diameter, 13 mm long.
M12TXC-PT100-3MM-24MM-1/8NPT, temperature transmitter, output 4 to 20 mA, 3 mm diameter, 24 mm long.
Temperature transmitter, output 4 to 20 mA, 3 mm (0.11") diameter,
1
13 mm (0.5") long,
⁄8 NPT
Temperature transmitter, output 4 to 20 mA, 3 mm (0.11") diameter,
24 mm (0.94") long, 1⁄8 NPT
Temperature transmitter, output 4 to 20 mA, 3 mm (0.11") diameter,
13 mm (0.5") long, G1⁄8 thread
Temperature transmitter, output 4 to 20 mA, 3 mm (0.11") diameter,
1
24 mm (0.94") long, G
⁄8 thread
M12TX-CONFIG-SET
shown smaller than
actual size.
Accessories
Model No. Description
M12C-PUR-4-S-F-10
Polyurethane cable, straight 4-pin M12 female connector one end,
flying leads one end, 10 m (32.8') long
M12TX
-CONFIG-SET
Configuration kit for M12TXC, USB serial interface, connection
cables, programming software for Windows
M12C-PUR-4-S-F-5
shown smaller
than actual size.
®
C-2
