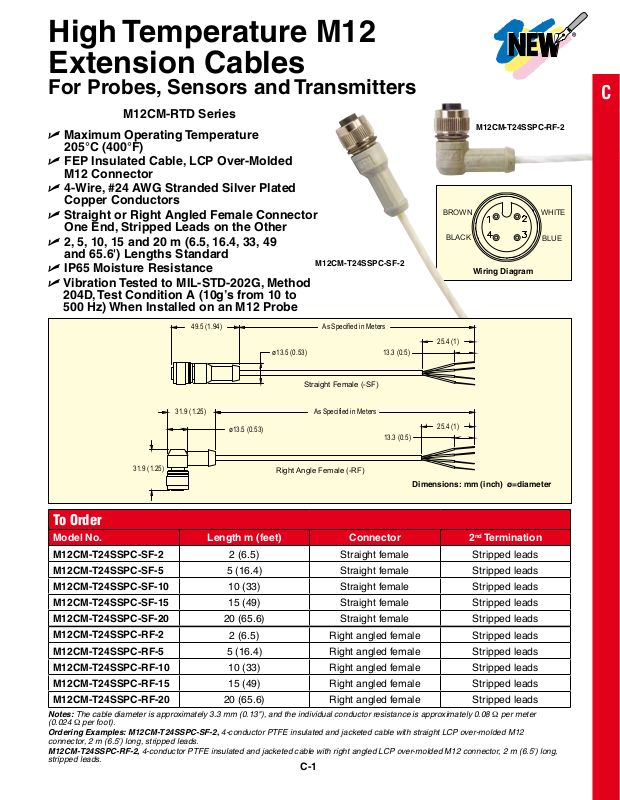

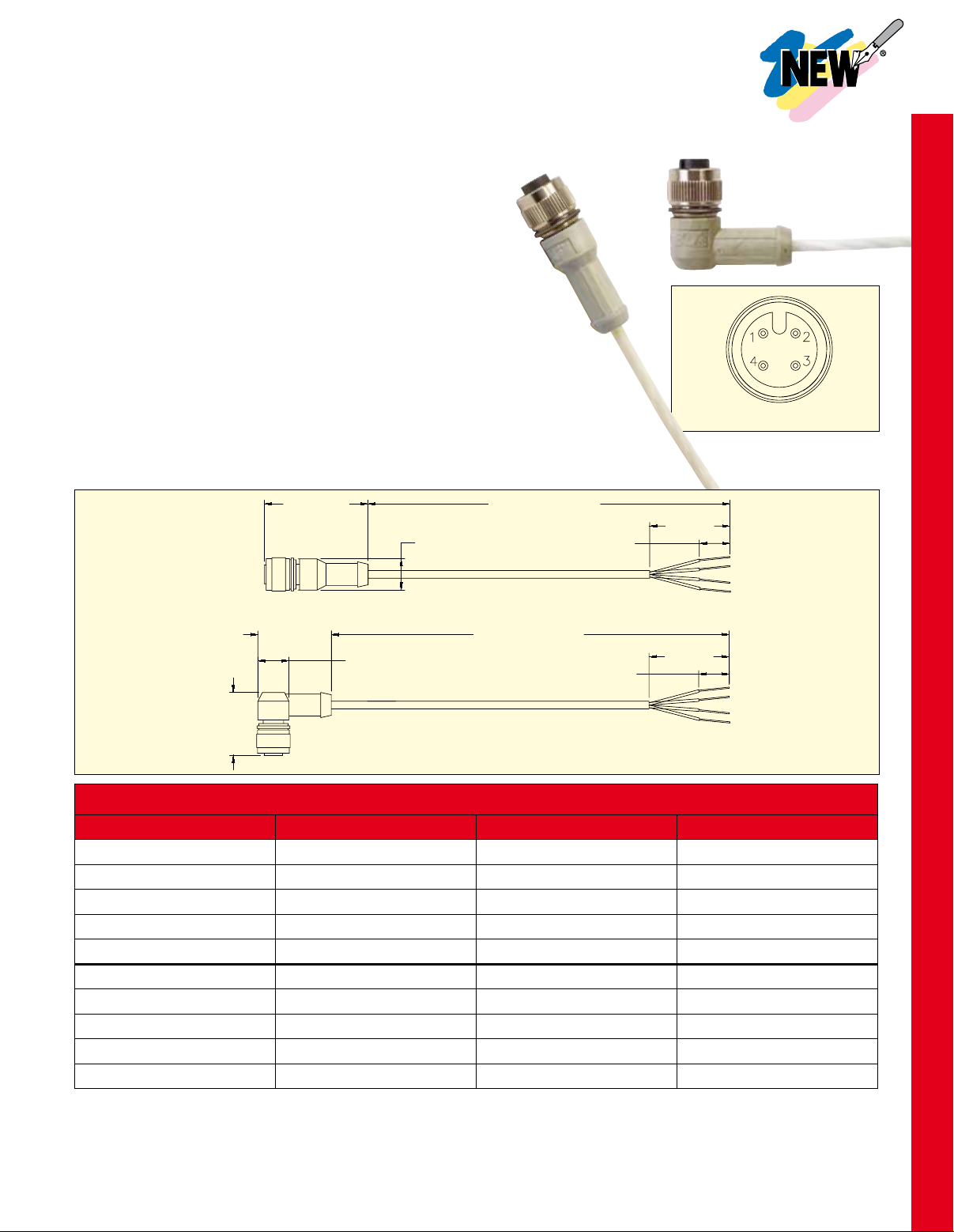

High Temperature M12
Extension Cables
For Probes, Sensors and Transmitters
M12CM-RTD Series
U Maximum Operating Temperature
205°C (400°F)
U FEP Insulated Cable, LCP Over-Molded
M12 Connector
U 4-Wire, #24 AWG Stranded Silver Plated
Copper Conductors
U Straight or Right Angled Female Connector
One End, Stripped Leads on the Other
U 2, 5, 10, 15 and 20 m (6.5, 16.4, 33, 49
and 65.6') Lengths Standard
U IP65 Moisture Resistance
U Vibration Tested to MIL-STD-202G, Method
204D, Test Condition A (10g’s from 10 to
500 Hz) When Installed on an M12 Probe
49.5 (1.94)As Specified in Meters
ø13.5 (0.53) 13.3 (0.5)
M12CM-T24SSPC-SF-2
Straight Female (-SF)
BROWN
BLACK
25.4 (1)
C
M12CM-T24SSPC-RF-2
WHITE
BLUE
Wiring Diagram
31.9 (1.25)
31.9 (1.25)
ø13.5 (0.53)
Right Angle Female (-RF)
As Specified in Meters
25.4 (1)
13.3 (0.5)
Dimensions: mm (inch) ø=diameter
To Order
Model No. Length m (feet) Connector 2nd Termination
M12CM-T24SSPC-SF-2
M12CM-T24SSPC-SF-5
M12CM-T24SSPC-SF-10
M12CM-T24SSPC-SF-15
M12CM-T24SSPC-SF-20
M12CM-T24SSPC-RF-2
M12CM-T24SSPC-RF-5
M12CM-T24SSPC-RF-10
M12CM-T24SSPC-RF-15
M12CM-T24SSPC-RF-20
Notes: The cable diameter is approximately 3.3 mm (0.13"), and the individual conductor resistance is approximately 0.08 Ω per meter
(0.024 Ω per foot).
Ordering Examples: M12CM-T24SSPC-SF-2, 4-conductor PTFE insulated and jacketed cable with straight LCP over-molded M12
connector, 2 m (6.5') long, stripped leads.
M12CM-T24SSPC-RF-2, 4-conductor PTFE insulated and jacketed cable with right angled LCP over-molded M12 connector, 2 m (6.5') long,
stripped leads.
2 (6.5) Straight female Stripped leads
5 (16.4) Straight female Stripped leads
10 (33) Straight female Stripped leads
15 (49) Straight female Stripped leads
20 (65.6) Straight female Stripped leads
2 (6.5) Right angled female Stripped leads
5 (16.4) Right angled female Stripped leads
10 (33) Right angled female Stripped leads
15 (49) Right angled female Stripped leads
20 (65.6) Right angled female Stripped leads
C-1
