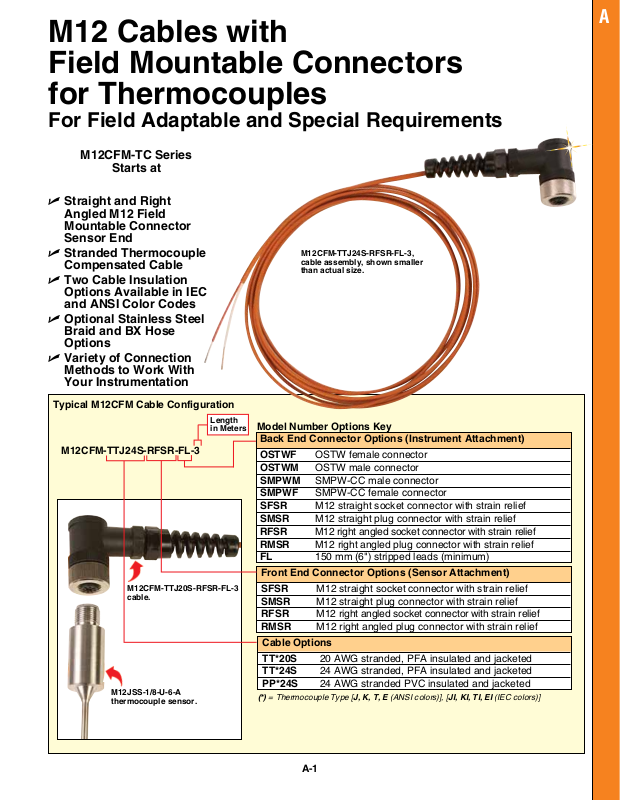

Page 1
M12 Cables with
Field Mountable Connectors
for Thermocouples
For Field Adaptable and Special Requirements
M12CFM-TC Series
Starts at
U Straight and Right
Angled M12 Field
Mountable Connector
Sensor End
U Stranded Thermocouple
Compensated Cable
U Two Cable Insulation
Options Available in IEC
and ANSI Color Codes
U Optional Stainless Steel
Braid and BX Hose
Options
U Variety of Connection
Methods to Work With
Your Instrumentation

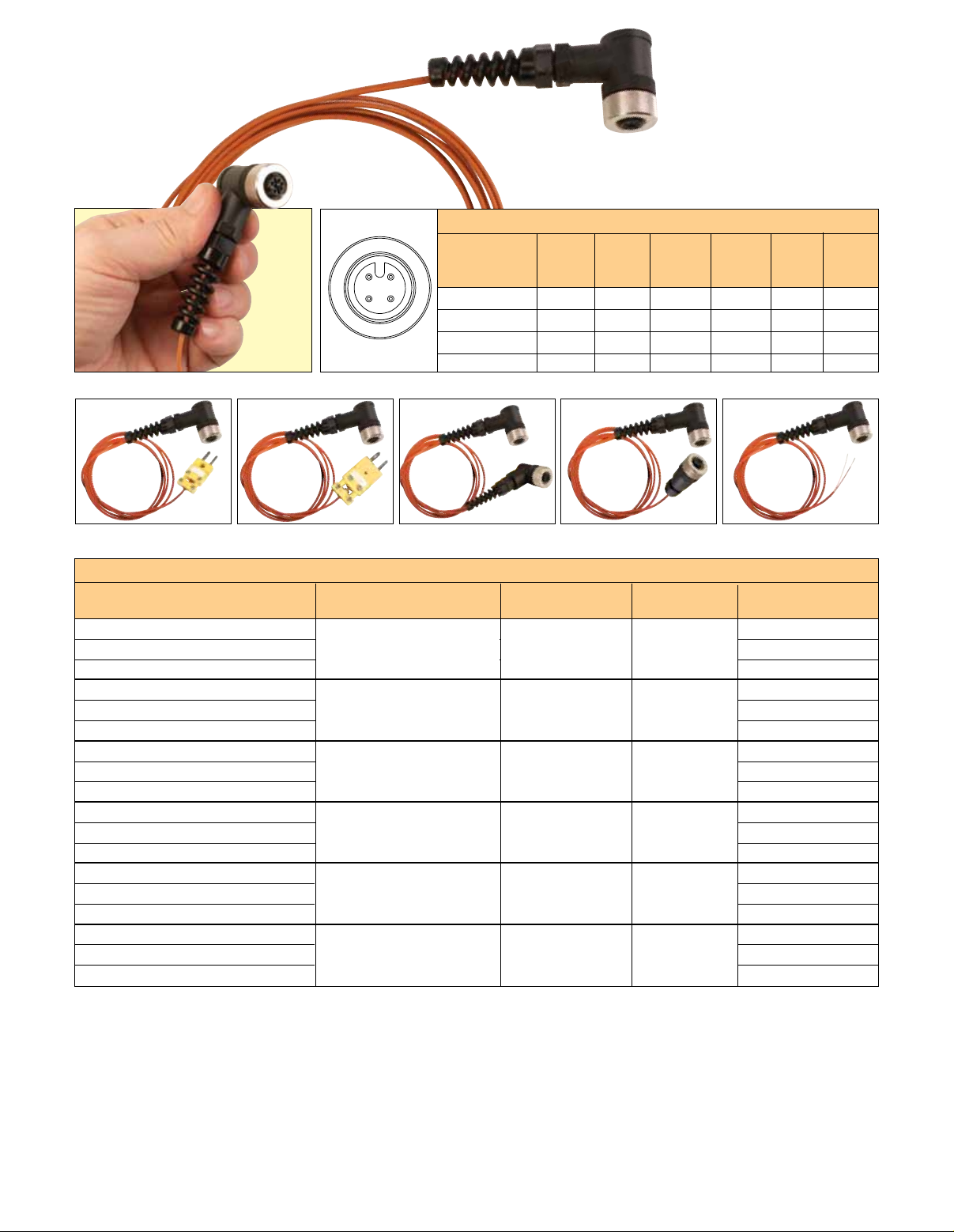

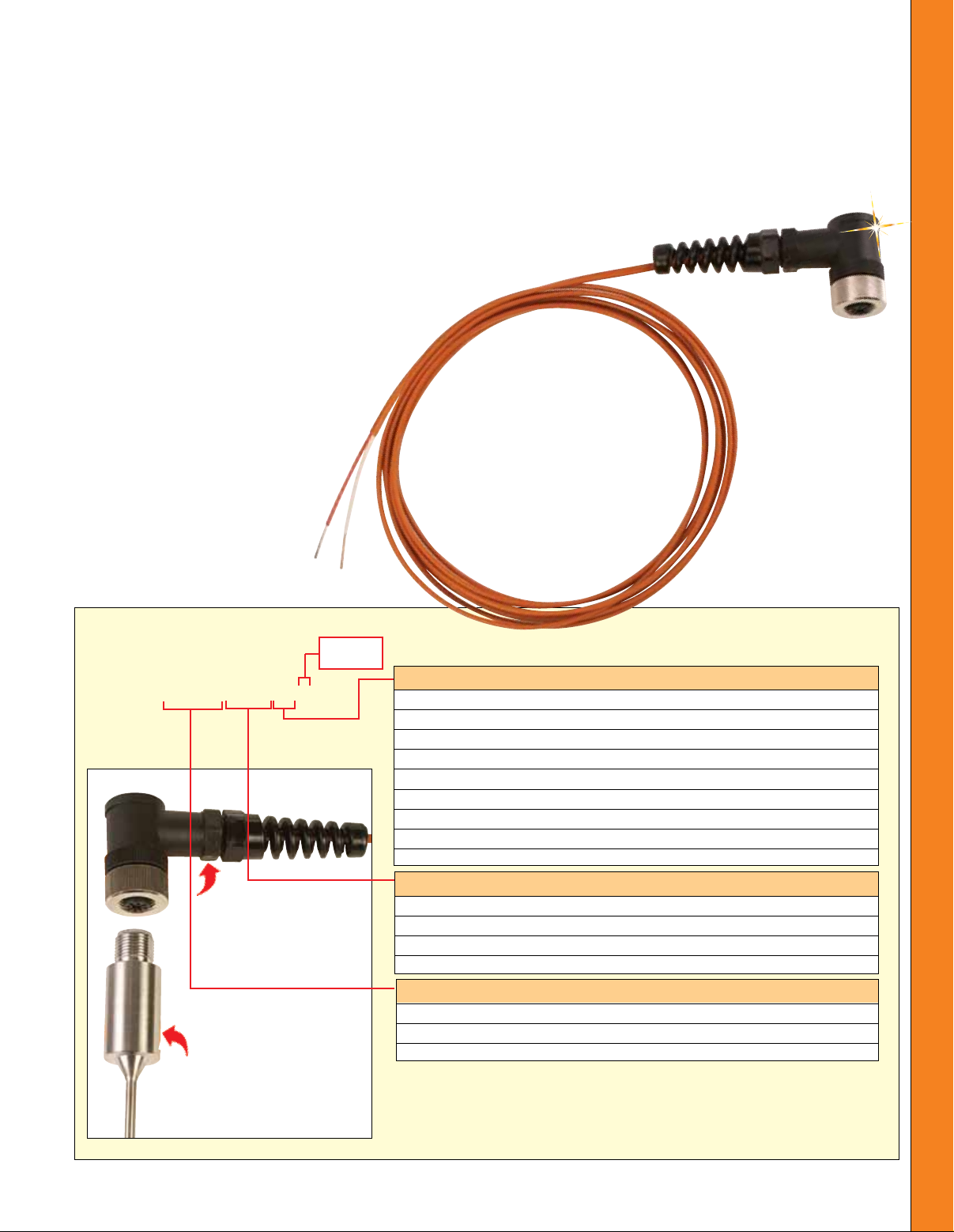

M12CFM-TTJ24S-RFSR-FL-3,
cable assembly, shown smaller
than actual size.
A
Typical M12CFM Cable Configuration
Length
in Meters
M12CFM-TTJ24S-RFSR-FL-3
M12CFM-TTJ20S-RFSR-FL-3
cable.
M12JSS-1/8-U-6-A
thermocouple sensor.
Model Number Options Key
Back End Connector Options (Instrument Attachment)
OSTWF OSTW female connector
OSTWM OSTW male connector
SMPWM SMPW-CC male connector
SMPWF SMPW-CC female connector
SFSR M12 straight socket connector with strain relief
SMSR M12 straight plug connector with strain relief
RFSR M12 right angled socket connector with strain relief
RMSR M12 right angled plug connector with strain relief
FL 150 mm (6") stripped leads (minimum)
Front End Connector Options (Sensor Attachment)
SFSR M12 straight socket connector with strain relief
SMSR M12 straight plug connector with strain relief
RFSR M12 right angled socket connector with strain relief
RMSR M12 right angled plug connector with strain relief
Cable Options
TT*20S 20 AWG stranded, PFA insulated and jacketed
TT*24S 24 AWG stranded, PFA insulated and jacketed
PP*24S 24 AWG stranded PVC insulated and jacketed
(*) = Thermocouple Type [J, K, T, E (ANSI colors)], [JI, KI, TI, EI (IEC colors)]
A-1
Page 2
M12CFM-TTJ24S-RFSR-FL-3,
cable assembly, shown smaller
than actual size.
Cable Wiring
M12
Connector Type J Type J Type K Type K
1
4
Pin Number ANSI IEC ANSI IEC OSTW SMPW
2
3
1 N/C N/C N/C N/C N/C N/C
2 White Black Yellow Green + +
3 Red White Red White – –
M12 Connector
4 N/C N/C N/C N/C N/C N/C
Cable Termination Options*
SMPW
OSTW
RFSR/RMSR
SFSR/SMSR
FL Stripped
Leads
To Order
Sensor Length
Model No. Cable Connector Termination (Meters)
M12CFM-TTJ20S-SFSR-FL-3 3
M12CFM-TTJ20S-SFSR-FL-5 5
M12CFM-TTJ20S-SFSR-FL-10 10
M12CFM-TTK20S-SFSR-FL-3 3
M12CFM-TTK20S-SFSR-FL-5 5
M12CFM-TTK20S-SFSR-FL-10 10
M12CFM-TTJ24S-SFSR-FL-3 3
M12CFM-TTJ24S-SFSR-FL-5 5
M12CFM-TTJ24S-SFSR-FL-10 10
M12CFM-TTK24S-SFSR-FL-3 3
M12CFM-TTK24S-SFSR-FL-5 5
M12CFM-TTK24S-SFSR-FL-10 10
M12CFM-PPJ24S-SFSR-FL-3 3
M12CFM-PPJ24S-SFSR-FL-5 5
M12CFM-PPJ24S-SFSR-FL-10 10
M12CFM-PPK24S-SFSR-FL-3 3
M12CFM-PPK24S-SFSR-FL-5 5
M12CFM-PPK24S-SFSR-FL-10 10
For IEC colors, add “I” after the J or K with no additional cost
For longer cables, change last number in model number to the desired length in meters and add the following to the price: For “TT” and “PP”
cables contact sales.
To add a connector to the end of the cable, replace “FL” in the model number with the connector designation in the table (on the previous
*
page) and add the following to the price: “SMPW” and “OSTW” no additional charge,“SFSR” and “RFSR”.
For Stainless Steel overbraid, add “SB” to the end of the cable callout, for pricing contact sales.
For BX hose, add “BX” to the end of the cable callout, for pricing contact sales.
Ordering Examples: M12CFM-TTK24SSB-RFSR-SMPWM-3, Type K patch cable with 24 AWG stranded conductors, PFA insulation and
jacket (ANSI color code) and stainless steel braid 3 m (9.8') long, M12 right angled plug connector with strain relief one end and SMPW-CC
male connector on the other.
M12CFM-PPJI24S-RFSR-SMSR-5, Type J 24 AWG stranded conductors, PVC insulation and jacket (IEC color code) 5 m (16.4') long,
M12 right angled socket connector with strain relief one end and M12 straight plug connector with strain relief on the other.
PFA Insulated and Jacketed
Type J Cable with #20 AWG
Stranded Conductors
PFA Insulated and Jacketed
Type K Cable with #20 AWG
Stranded Conductors
M12 straight 150 mm (6")
socket stripped leads
socket stripped leads
PVC Insulated and Jacketed
Type J Cable with #20 or
# 24 AWG Stranded
socket stripped leads
Conductors
PVC Insulated and Jacketed
Type K Cable with #20
or #24AWG Stranded
socket stripped leads
Conductors
PVC Insulated and Jacketed
Type J Cable with #24 AWG
Stranded Conductors
socket stripped leads
PVC Insulated and Jacketed
Type K Cable with #24 AWG
Stranded Conductors
socket stripped leads
M12 straight 150 mm (6")
M12 straight 150 mm (6")
M12 straight 150 mm (6")
M12 straight 150 mm (6")
M12 straight 150 mm (6")
A-2
