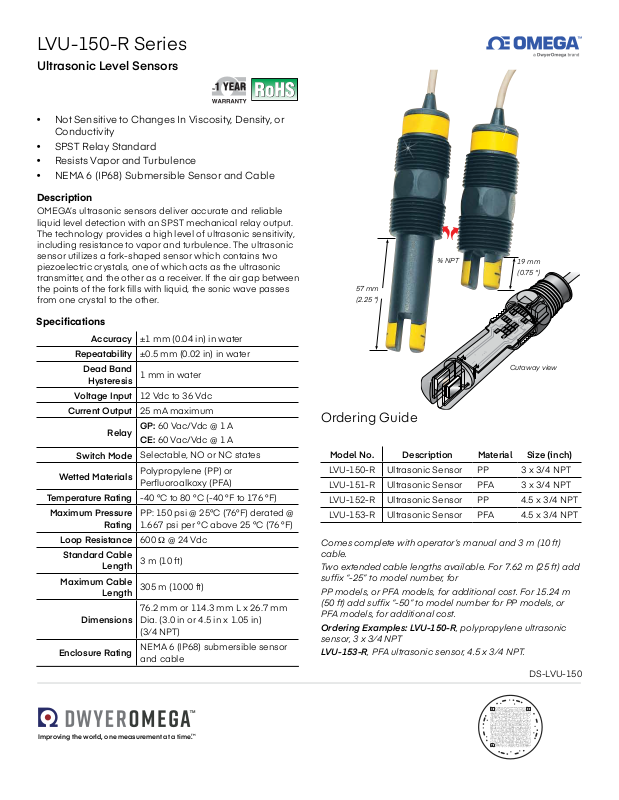

LVU-150-R Series

Ultrasonic Level Sensors

• Not Sensitive to Changes In Viscosity, Density, or Conductivity

• SPST Relay Standard

• Resists Vapor and Turbulence

• NEMA 6 (IP68) Submersible Sensor and Cable

Description

OMEGA’s ultrasonic sensors deliver accurate and reliable liquid level detection with an SPST mechanical relay output. The technology provides a high level of ultrasonic sensitivity, including resistance to vapor and turbulence. The ultrasonic sensor utilizes a fork-shaped sensor which contains two piezoelectric crystals, one of which acts as the ultrasonic transmitter, and the other as a receiver. If the air gap between

the points of the fork lls with liquid, the sonic wave passes

from one crystal to the other.

Specications

57 mm

(2.25 ")

 NPT

19 mm

(0.75 ")

Accuracy

Repeatability

Dead Band

Hysteresis

Voltage Input

Current Output

Relay

Switch Mode

Wetted Materials

Temperature Rating

Maximum Pressure

Rating

Loop Resistance

Standard Cable

Length

Maximum Cable

Length

Dimensions

Enclosure Rating

±1 mm (0.04 in) in water

±0.5 mm (0.02 in) in water

1 mm in water

12 Vdc to 36 Vdc

25 mA maximum

GP: 60 Vac/Vdc @ 1 A

CE: 60 Vac/Vdc @ 1 A

Selectable, NO or NC states

Polypropylene (PP) or

Peruoroalkoxy (PFA)

‑40 °C to 80 °C (‑40 °F to 176 °F)

PP: 150 psi @ 25°C (76°F) derated @

1.667 psi per °C above 25 °C (76 °F)

600 Ω @ 24 Vdc

3 m (10 ft)

305 m (1000 ft)

76.2 mm or 114.3 mm L x 26.7 mm

Dia. (3.0 in or 4.5 in x 1.05 in)

(3⁄4 NPT)

NEMA 6 (IP68) submersible sensor and cable

Cutaway view

Ordering Guide

Model No. Description Material Size (inch)

LVU-150-R Ultrasonic Sensor PP 3 x 3/4 NPT

LVU-151-R Ultrasonic Sensor PFA 3 x 3/4 NPT

LVU-152-R Ultrasonic Sensor PP 4.5 x 3/4 NPT

LVU-153-R Ultrasonic Sensor PFA 4.5 x 3/4 NPT

Comes complete with operator’s manual and 3 m (10 ft) cable.

Two extended cable lengths available. For 7.62 m (25 ft) add

sufx “‑25” to model number, for PP models, or PFA models, for additional cost. For 15.24 m

(50 ft) add sufx “‑50” to model number for PP models, or PFA models, for additional cost.

Ordering Examples: LVU-150-R, polypropylene ultrasonic sensor, 3 x 3⁄4 NPT

LVU-153-R, PFA ultrasonic sensor, 4.5 x 3⁄4 NPT.
