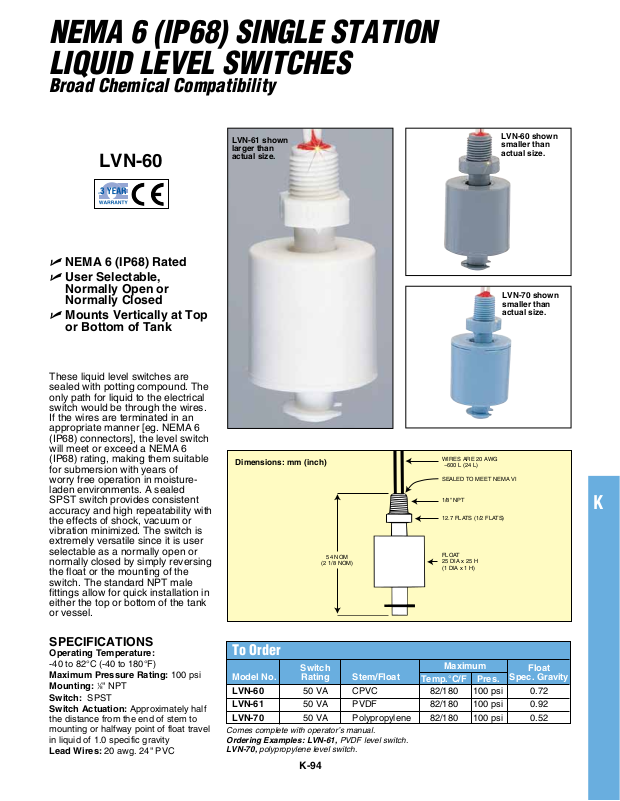

NEMA 6 (IP68) SINGLE STATION
LIQUID LEVEL SWITCHES
Broad Chemical Compatibility
LVN-60
U NEMA 6 (IP68) Rated
U User Selectable,
Normally Open or
Normally Closed
U Mounts Vertically at Top
or Bottom of Tank
These liquid level switches are
sealed with potting compound. The
only path for liquid to the electrical
switch would be through the wires.
If the wires are terminated in an
appropriate manner [eg. NEMA 6
(IP68) connectors], the level switch
will meet or exceed a NEMA 6
(IP68) rating, making them suitable
for submersion with years of
worry free operation in moistureladen environments. A sealed
SPST switch provides consistent
accuracy and high repeatability with
the effects of shock, vacuum or
vibration minimized. The switch is
extremely versatile since it is user
selectable as a normally open or
normally closed by simply reversing
the float or the mounting of the
switch. The standard NPT male
fittings allow for quick installation in
either the top or bottom of the tank
or vessel.

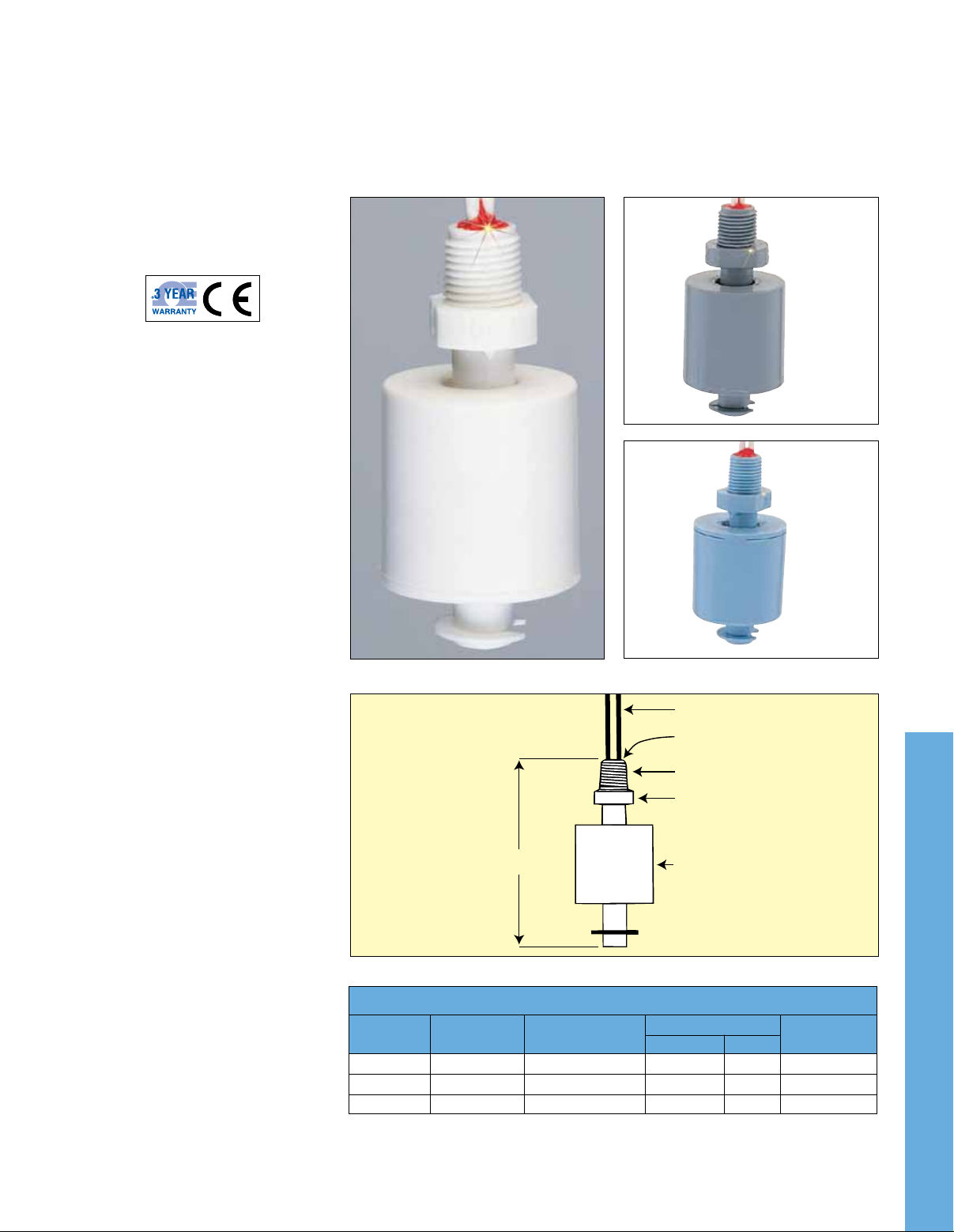

LVN-61 shown
larger than
actual size.
Dimensions: mm (inch)
54 NOM
(2 1/8 NOM)
LVN-60 shown
smaller than
actual size.
LVN-70 shown
smaller than
actual size.
WIRES ARE 20 AWG
~600 L (24 L)
SEALED TO MEET NEMA VI
1/8" NPT
12.7 FLATS (1/2 FLATS)
FLOAT
25 DIA x 25 H
(1 DIA x 1 H)
K
SPECIFICATIONS
Operating Temperature:
-40 to 82°C (-40 to 180°F)
Maximum Pressure Rating: 100 psi
Mounting:
Switch: SPST
Switch Actuation: Approximately half
the distance from the end of stem to
mounting or halfway point of float travel
in liquid of 1.0 specific gravity
Lead Wires: 20 awg. 24" PVC
1
⁄8" NPT
To Order
Switch
Model No. Rating Stem/Float
LVN-60 50 VA CPVC 82/180 100 psi 0.72
LVN-61 50 VA PVDF 82/180 100 psi 0.92
LVN-70 50 VA Polypropylene 82/180 100 psi 0.52
Comes complete with operator’s manual.
Ordering Examples: LVN-61, PVDF level switch.
LVN-70, polypropylene level switch.
Maximum
Temp.°C/F Pres.
Float
Spec. Gravity
K-94
