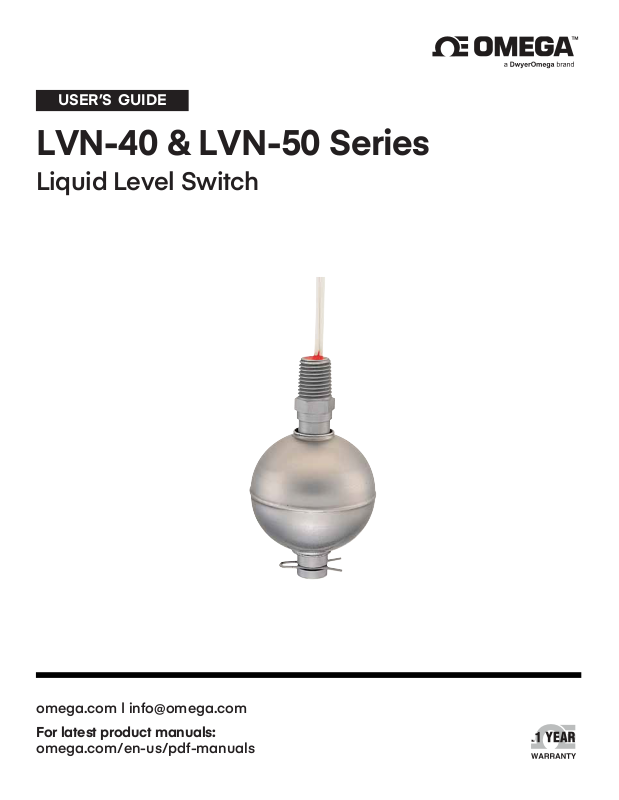

Page 1
USER’S GUIDE
LVN-40 & LVN-50 Series
Liquid Level Switch
omega.com | [email protected]
For latest product manuals:
omega.com/en-us/pdf-manuals
TM
Page 2
CONTACT
Omega Engineering, Inc.
omega.com/contact-us
Toll-Free:
1-800-826-6342 (USA & Canada only)
Customer Service:
1-800-622-2378 (USA & Canada only)
Engineering Service:
1-800-872-9436 (USA & Canada only)
Telephone:
(203) 359-1660
Fax:
(203) 359-7700
Email: [email protected]
For other locations visit:
omega.com/worldwide
The information contained in this document is believed to be correct,
but Omega accepts no liability for any errors it contains, and reserves
the right to alter specifications without notice.
Page 3
Table of Contents
1. Important Information ........................................................................................................................................................ 4
2. General Description ............................................................................................................................................................ 5
3. Specifications ....................................................................................................................................................................... 5
4. Single Station Level Switches with “NPT” Mounting ................................................................................................. 6
Table of Contents
3
Page 4
1. Important Information
Product must be maintained and installed in strict accordance with the National Electrical Code and Omega
Instructions. Failure to observe this warning could result in serious injuries or damages.
Caution
The pressure and temperature limitations shown for the specied level switches must not be exceeded. These
pressures and temperatures must take into consideration possible system surge pressures/temperatures and their
frequencies.
The liquids used must be compatible with the materials of construction. Specications of material will be given
upon request. Life expectancy of switch contacts varies with applications. Ambient temperature changes do affect
switch set points, since specic gravities of liquids vary with temperature.
Level switches have been designed to be shock and vibration resistant; however, shock and vibration should be
minimized.
Excessive contaminants in uid may inhibit oat operation and occasional wipe-down may be necessary.
Troubleshooting and maintenance of level switches should be in strict compliance with procedures set forth
in the troubleshooting and maintenance sections of the technical brochure or an installation, operation, and
maintenance bulletin.
Level switches must not be eld-repaired.
Physical damage to product may render product unserviceable.
4 LVN Series User's Guide
Page 5
2. General Description
Constructed entirely of 316 SS, the LVN-40 Single Station Level Switch is specically designed to withstand the
effects of a wide range of chemicals. The unit has a maximum operating temperature of 300 °F and can be used
to meet many level control applications, including medical and water purication requirements. Its small oat
displacement permits high accuracy and reliability in shallow tanks and reservoirs.
The LVN-50 Series Level Switches offer superlative performance and dependability under the most severe
operating conditions. The sensor incorporates a larger oat displacement and all stainless steel construction for
consistent level monitoring in liquids pressurized to a maximum 1000 PSIG. Ideal for level sensing in chemical
plants and systems, models are available for temperatures up to 300 °F.
These Switches are sealed with potting compound so that the switches will meet or exceed a NEMA-6 rating,
making them suitable for submersion with years of worry free operation in moisture-laden environments.
Caution
This instrument must not be subjected to temperatures, pressure, or electrical loads exceeding those appearing on
the name plate, and specications listed.
3. Specifications
Stem Material: 316 SS
Float Material: 316 SS
Operating Temperature: -40 to 149 °C (-40 to 300 °F)
Maximum Pressure Rating: 900 psi to 1000 psi
Mounting: 1/8” NPT for the LVN-40 and LVN-50
1/4” NPT for the LVN-52
Switch: SPST
Switch Actuation: Approximately 1/2 the distance from the end of the stem to mounting, or halfway point of the
oat travel.
Lead Wires: 20 awg. 24” PVC
Specic Gravity of Float: LVN-40: 0.72
LVN-50: 0.70
LVN-52: 0.64
5General Description
Page 6
4. Single Station Level Switches with “NPT” Mounting

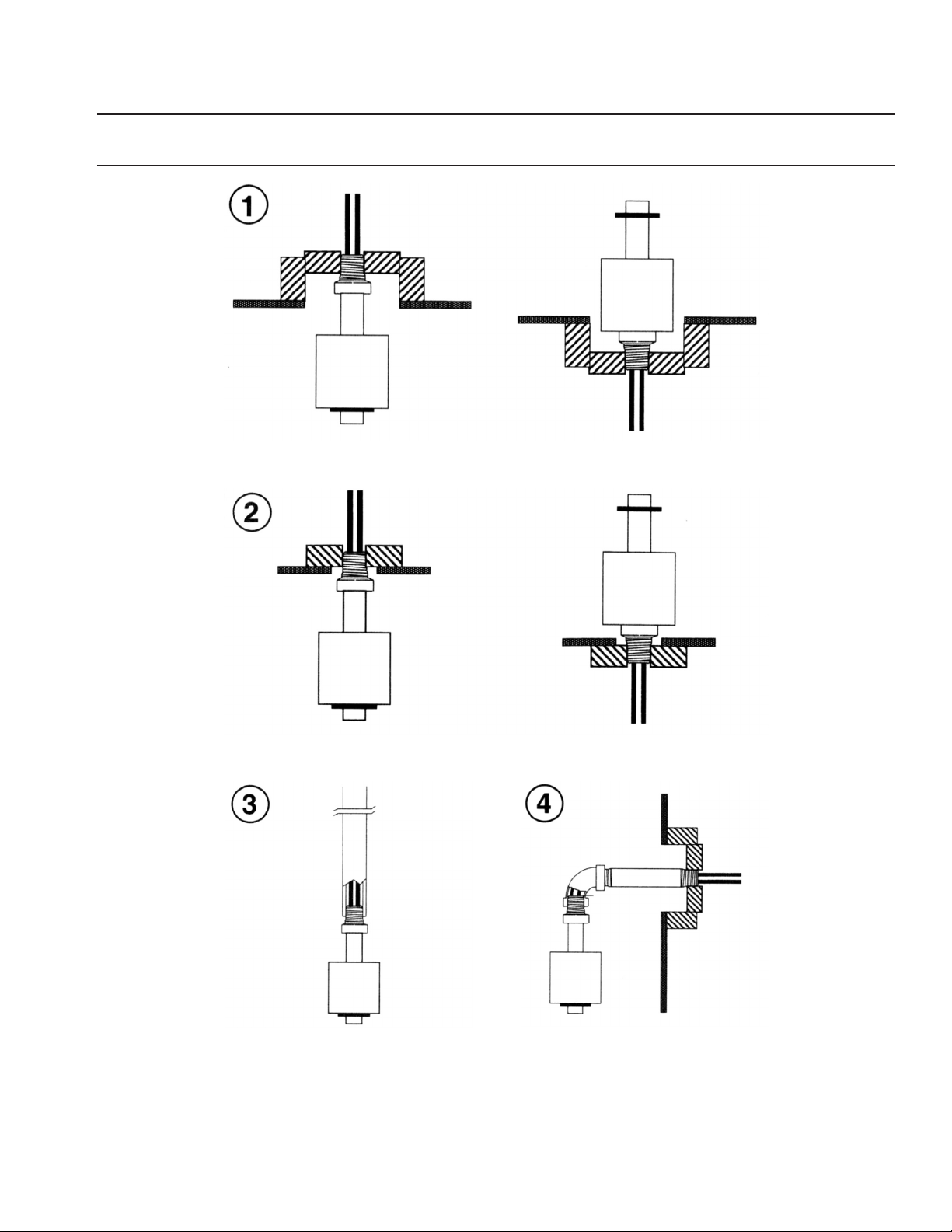

Install units vertically in tank top or bottom using Methods 1, 2, 3, or 4 (below).
Note
Units will operate normally inclined up to 30 °.
Figure 1
Figure 2
Figures 3 and 4
6 LVN Series User's Guide
Page 7

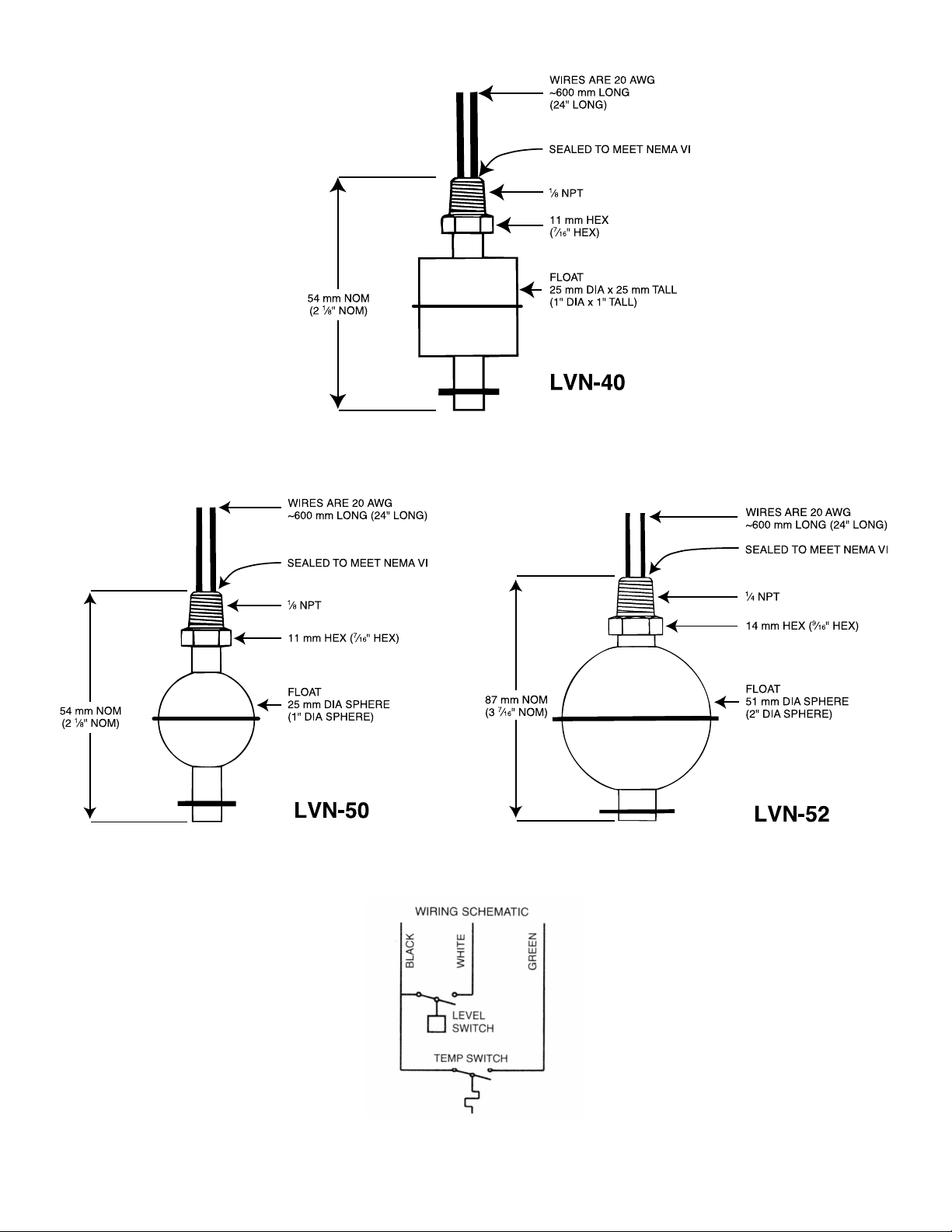

Figure 5
Figures 6 and 7
Figure 8
7Single Station Level Switches with “NPT” Mounting
