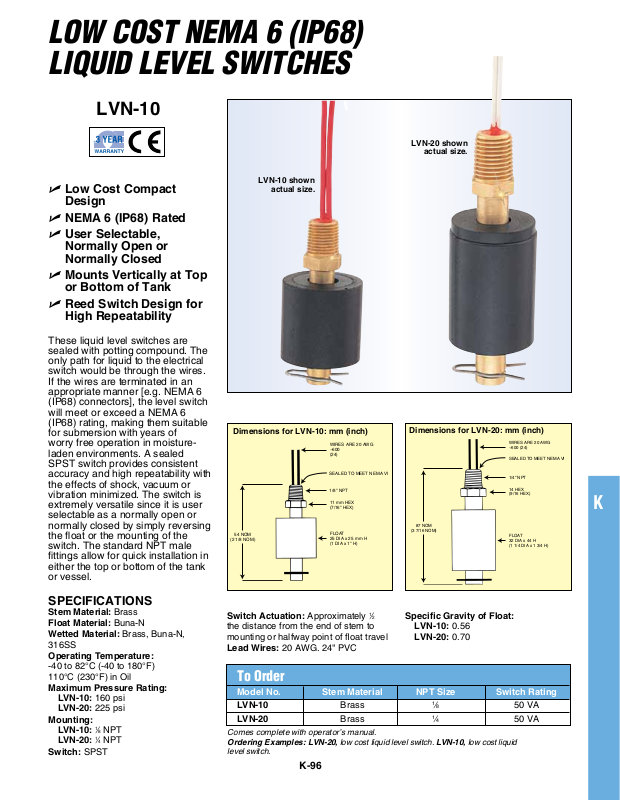

LOW COST nema 6 (IP68)
LIquId LeveL SWITCheS
LVN-10

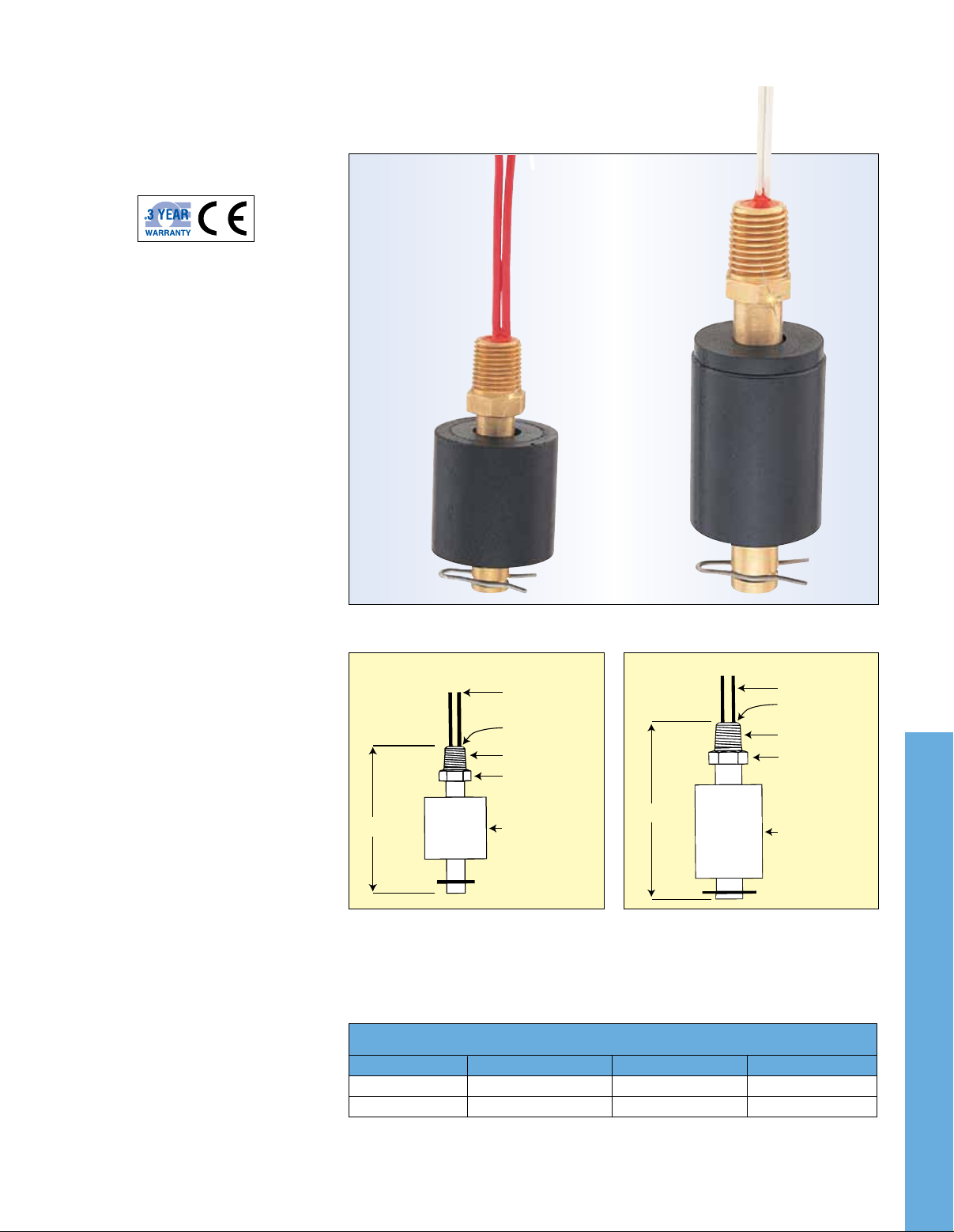

LVN-10 shown
U Low Cost Compact
Design
U NEMA 6 (IP68) Rated
U User Selectable,
Normally Open or
Normally Closed
U Mounts Vertically at Top
or Bottom of Tank
U Reed Switch Design for
High Repeatability
actual size.
LVN-20 shown
actual size.
These liquid level switches are
sealed with potting compound. The
only path for liquid to the electrical
switch would be through the wires.
If the wires are terminated in an
appropriate manner [e.g. NEMA 6
(IP68) connectors], the level switch
will meet or exceed a NEMA 6
(IP68) rating, making them suitable
for submersion with years of
worry free operation in moistureladen environments. A sealed
SPST switch provides consistent
accuracy and high repeatability with
the effects of shock, vacuum or
vibration minimized. The switch is
extremely versatile since it is user
selectable as a normally open or
normally closed by simply reversing
the float or the mounting of the
switch. The standard NPT male
fittings allow for quick installation in
either the top or bottom of the tank
or vessel.
SPECIFICATIONS
Stem Material: Brass
Float Material: Buna-N
Wetted Material: Brass, Buna-N,
316SS
Operating Temperature:
-40 to 82°C (-40 to 180°F)
110°C (230°F) in Oil
Maximum Pressure Rating:
LVN-10: 160 psi
LVN-20: 225 psi
Mounting:
LVN-10:
LVN-20:
Switch: SPST
1
⁄8 NPT
1
⁄4 NPT
Dimensions for LVN-10: mm (inch)
WIRES ARE 20 AWG
~600
(24)
SEALED TO MEET NEMA VI
1/8" NPT
11 mm HEX
(7/16" HEX)
54 NOM
(2 1/8 NOM)
Switch Actuation: Approximately
FLOAT
25 DIA x 25 mm H
(1 DIA x 1" H)
1
⁄2
the distance from the end of stem to
mounting or halfway point of float travel
Dimensions for LVN-20: mm (inch)
87 NOM
(3 7/16 NOM)
Specific Gravity of Float:
LVN-10: 0.56
LVN-20: 0.70
WIRES ARE 20 AWG
~600 (24)
SEALED TO MEET NEMA VI
1/4" NPT
14 HEX
(9/16 HEX)
FLOAT
32 DIA x 44 H
(1 1/4 DIA x 1 3/4 H)
Lead Wires: 20 AWG. 24" PVC
To Order
Model No. Stem Material NPT Size Switch Rating
LVN-10 Brass
LVN-20 Brass
Comes complete with operator’s manual.
Ordering Examples: LVN-20, low cost liquid level switch. LVN-10, low cost liquid
level switch.
1
⁄8 50 VA
1
⁄4 50 VA
K-96
