Omega LVM-30 User guide





SPECIFICATIONS StepOne

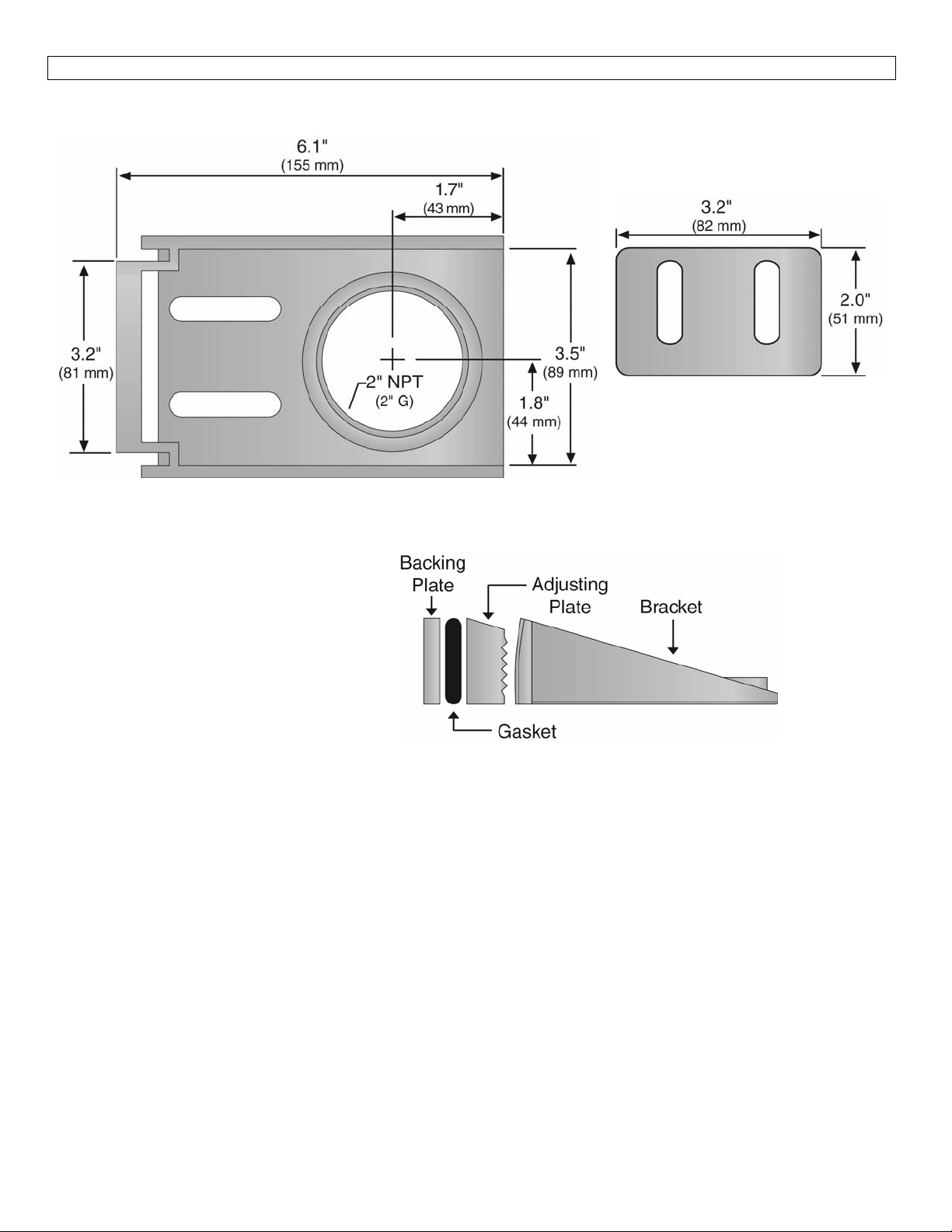

Dimensions:
Bracket:



BackingPlate:







Components:OneSideMountBracket(LVM‐30series)includesthefollowingparts:

1‐Bracket
1‐Adjustingplate
1‐Gasket
1‐BackingPlate

PartNumber Description

LVM‐30 PPBracket,2”NPTthread

Checktomakesurethatallthepartsareincludedinthe
into position, obtain two plastic, fiberglass orstainless steel 3/8" bolts of the proper length (2‐3"), nuts and
fourwashers.

Material Compatibility:The bracket components are made of 20% glass filled PP (Polypropylene, a
polyolefin), except for the gasket which
liquidswillnotharm anymaterialsthatwillbewetted.Todeterminethechemicalcompatibilitybetweenthe
componentsandyourapplicationliquids,refertotheCompassCorrosion.

 is made of closed cell neoprene.Make sure that the application

kitbeforeproceeding.Ifyouplantoboltthebracket



INSTALLATION StepTwo

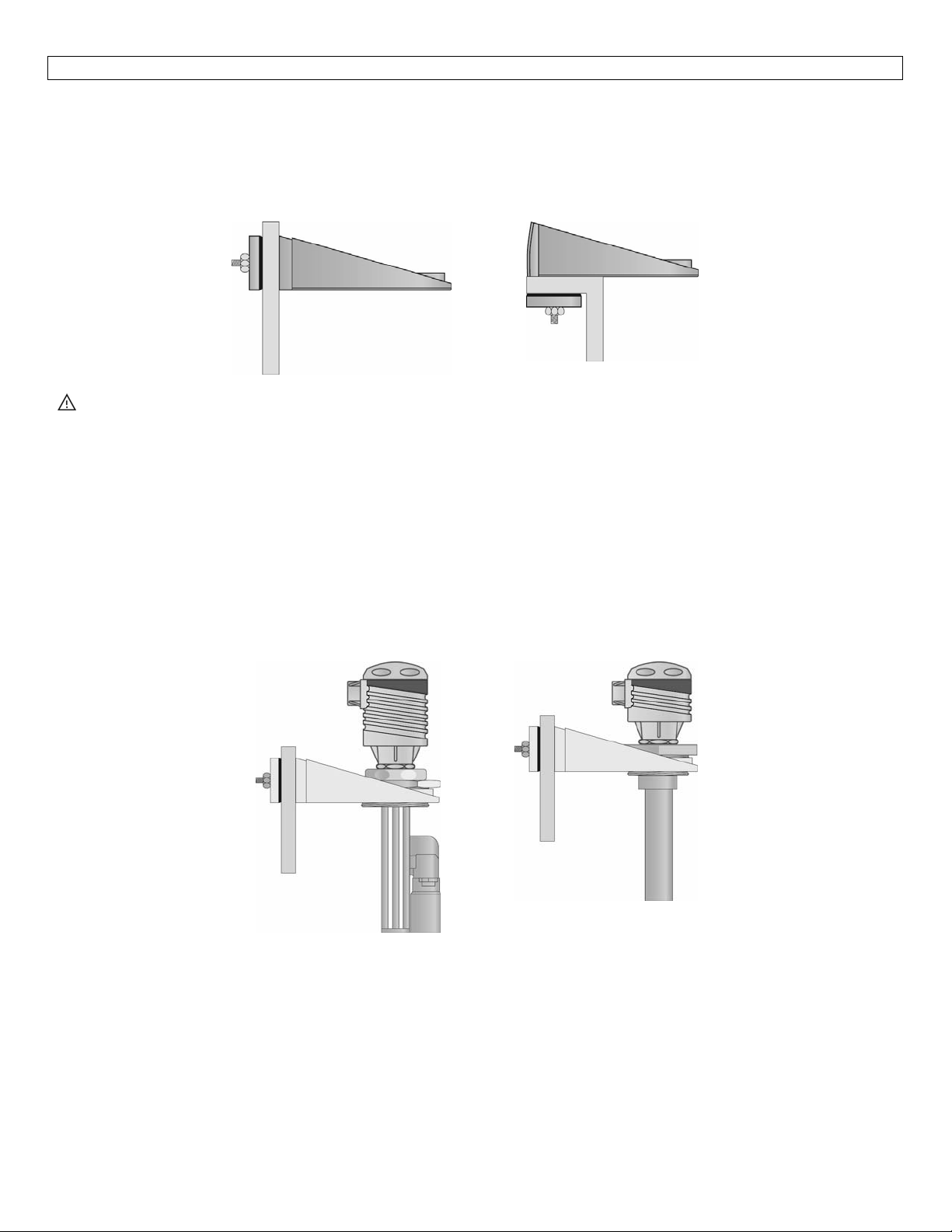

Installation:The LVM‐30 series bracket may be installed on the sidewall or lip of a tank.In sidewall

installations,theadjustingplateallowsyou totiltthebracketif desired.Theadjustingplateisnotusedwhen
mountingtothelipofa tank.Assembleasshownintheillustrations,threadingwashersontotheboltsnextto
eachheadandnut.

SideWallInstallation:

NOTE:Theindentedside,nottheflatside,ofthebackingplateshouldfacethegasket,Sidewallmountingis

NOTliquidtight;fluidshouldnotrisetotheboltlev el .

LevelTrackand Single‐SwitchFittingInstallations:TheLVM‐30seriescanbe usedwith OmegaEngineering’s
LevelTrack
mountedverticallyatapointinthetankwhereitwillnotbeexposedtoexcessivestress(suchasradialmixing
velocitiesinexcessof 1.5feetper second).Whenmountinginatankwith amixer,mount thesystemsseries
closetothetankwallwerevelocitiesarelowest.Chooseamountinglocationwherethesensorswillfunction
correctly(awayfrom inlet pipes that may sprayon the sensors causingfalse readings) and wherethesensor
technologiesfunctionbest.



(LVM‐10series)orSingle‐SwitchFitting(LVM‐50series)mountingfittings.Bothsystemsshouldbe

LVM‐10Series:

LipofTankInstallation:





LVM‐50Series:





It is the user’s responsibility to identify the proper placement and method of installation for the specific
application.







