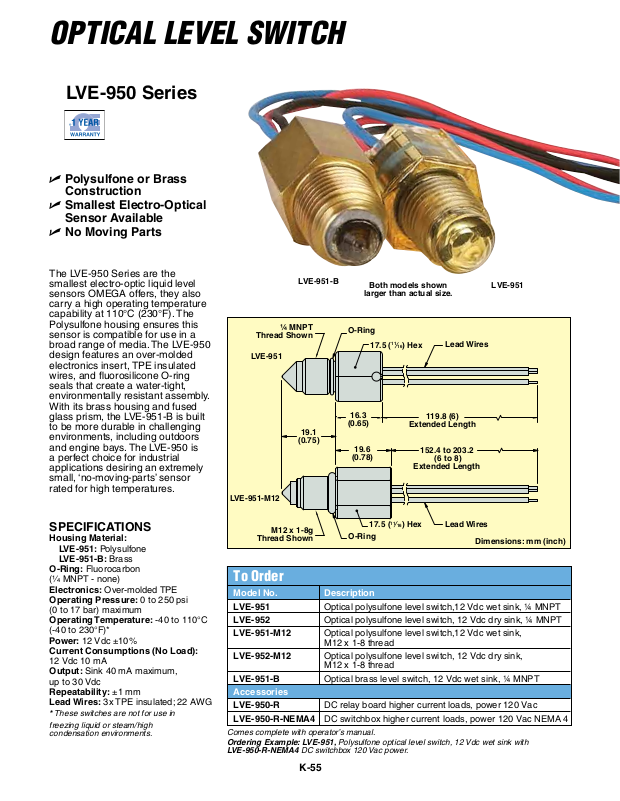

OPTICAL LEVEL SWITCH
LVE-950 Series
U Polysulfone or Brass
Construction
Smallest Electr
U
Sensor Available
U No Moving Parts
o-Optical
The LVE-950 Series are the
smallest electro-optic liquid level
sensors OMEGA offers, they also
carry a high operating temperature
capability at 110°C (230°F). The
Polysulfone housing ensures this
sensor is compatible for use in a
broad range of media. The LVE-950
design features an over-molded
electronics insert, TPE insulated
wires, and fluorosilicone O-ring
seals that create a water-tight,
environmentally resistant assembly.
With its brass housing and fused
glass prism, the LVE-951-B is built
to be more durable in challenging
environments, including outdoors
and engine bays. The LVE-950 is
a perfect choice for industrial
applications desiring an extremely
small, ‘no-moving-parts’ sensor
rated for high temperatures.
SPECIFICATIONS
Housing Material:
VE-951: Polysulfone
L
L
VE-951-B: Brass
O-Ring: Fluorocarbon
(¹⁄₄ MNPT - none)
Electronics: Over-molded TPE
Operating Pressure: 0 to 250 psi
(0 to 17 bar) maximum
Operating Temperature: -40 to 110°C
(-40 to 230°F)*
Power: 12 Vdc ±10%
Current Consumptions (No Load):
12 Vdc 10 mA
Output: Sink 40 mA maximum,
up to 30 Vdc
Repeatability: ±1 mm
Lead Wires: 3x TPE insulated; 22 AWG
* These switches are not for use in
freezing liquid or steam/high
condensation environments.

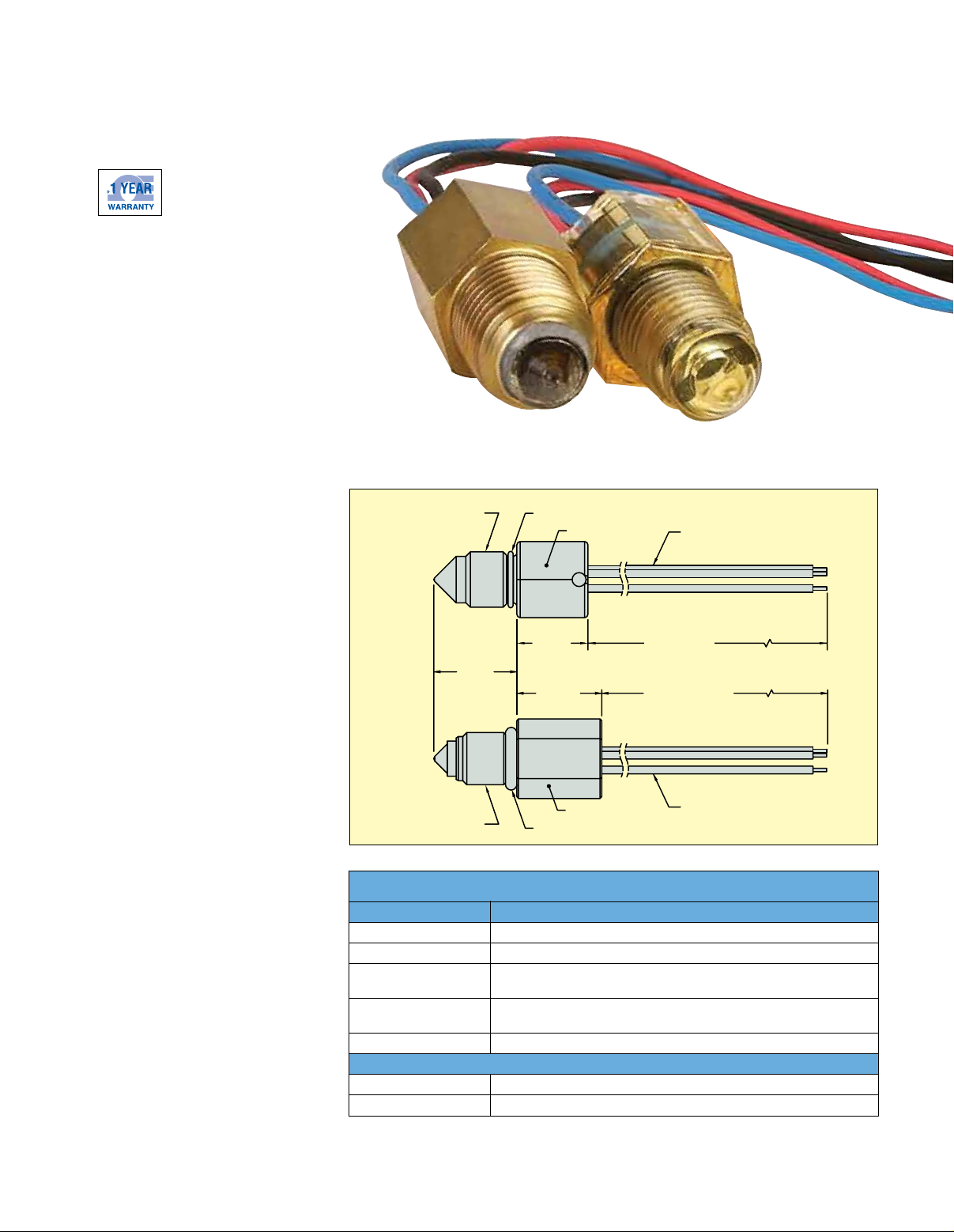

Thread Shown
LVE-951
LVE-951-M12
M12 x 1-8g
Thread Shown
LVE-951-B
¹⁄₄ MNPT
19.1
(0.75)
larger than actual size.
O-Ring
11
⁄16) Hex
17.5 (
16.3
(0.65)
19.6
(0.78)
17.5 (
O-Ring
Extended Length
11
⁄16) Hex
Lead Wires
119.8 (6)
152.4 to 203.2
(6 to 8)
Extended Length
Lead Wires
LVE-951Both models shown
Dimensions: mm (inch)
To Order
Model No. Description
LVE-951 Optical polysulfone level switch,12 Vdc wet sink, ¼ MNPT
LVE-952 Optical polysulfone level switch, 12 Vdc dry sink, ¼ MNPT
LVE-951-M12 Optical polysulfone level switch,12 Vdc wet sink,
LVE-952-M12 Optical polysulfone level switch, 12 Vdc dry sink,
M12 x 1-8 thread
LVE-951-B Optical brass level switch, 12 Vdc wet sink, ¼ MNPT
Accessories
LVE-950-R DC relay board higher current loads, power 120 Vac
LVE-950-R-NEMA4 DC switchbox higher current loads, power 120 Vac NEMA 4
Comes complete with operator’s manual.
Ordering Example: LVE-951, Polysulfone optical level switch, 12 Vdc wet sink with
LVE-950-R-NEMA4 DC switchbox 120 Vac power.
M12 x 1-8 thread
