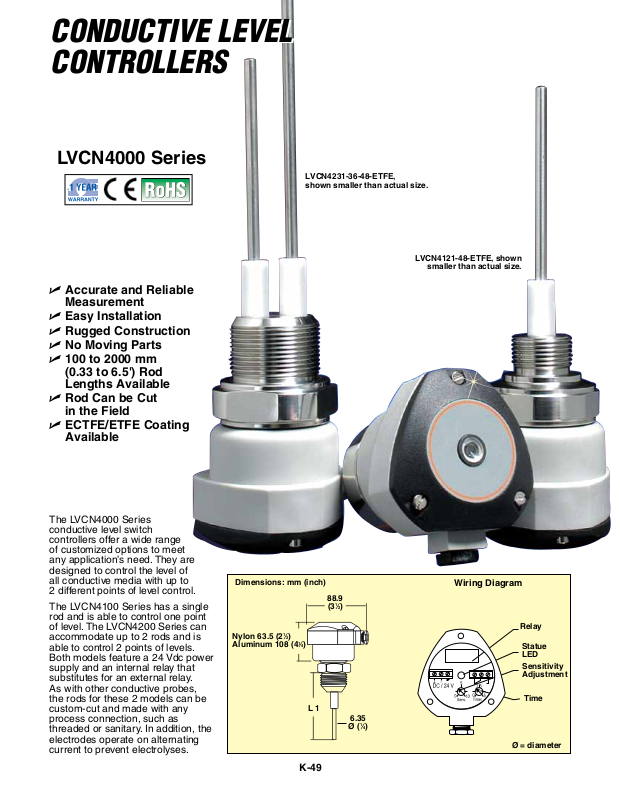

ConduCtive LeveL
ConduCtive LeveL
ControLLers
ControLLers
LVCN4000 Series
U Accurate and Reliable
Measurement
U Easy Installation
U Rugged Construction
U No Moving Parts
U 100 to 2000 mm
(0.33 to 6.5') Rod
Lengths Available
U Rod Can be Cut
in the Field
U ECTFE/ETFE Coating
Available

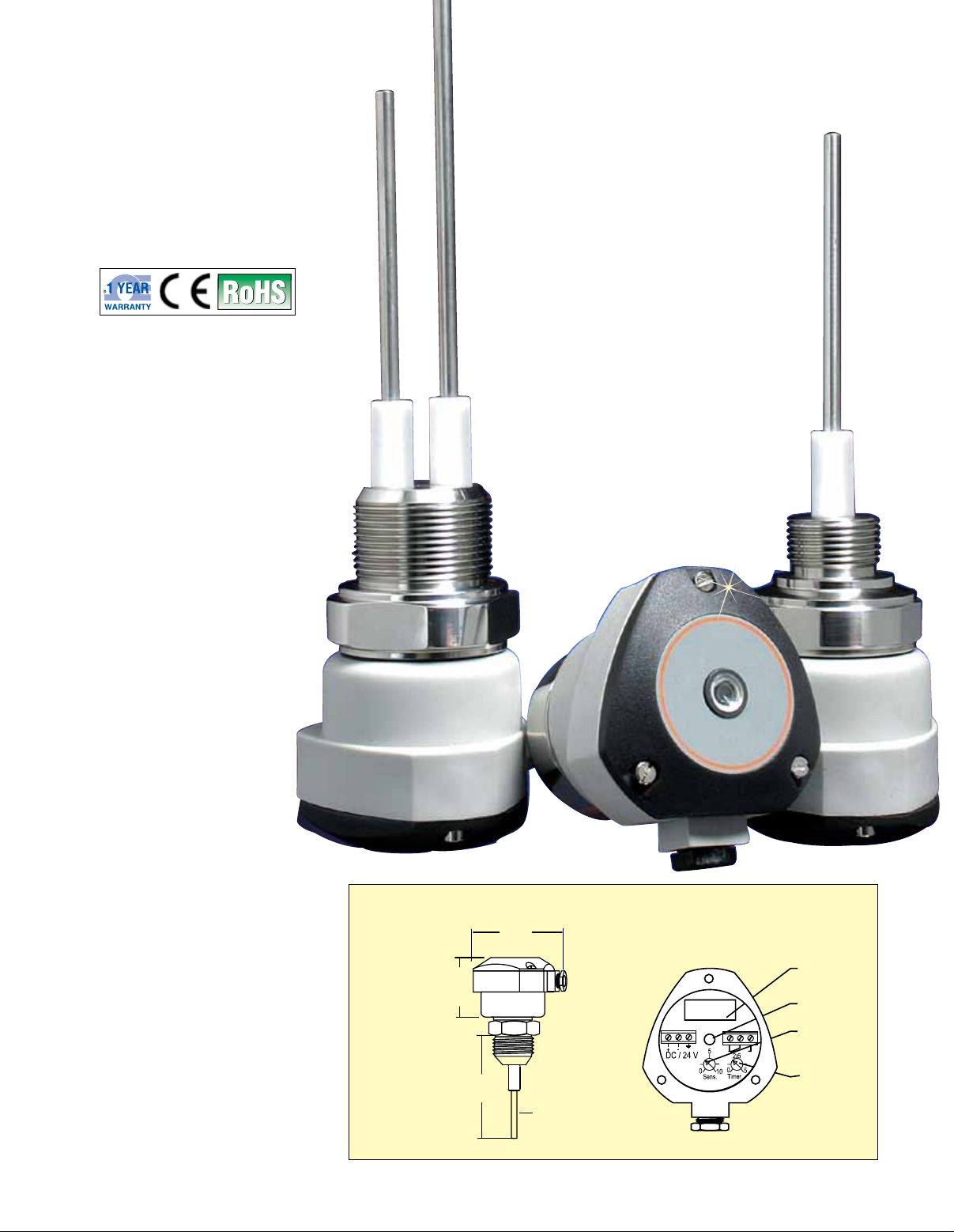

LVCN4231-36-48-ETFE,
shown smaller than actual size.
LVCN4121-48-ETFE, shown
smaller than actual size.
The LVCN4000 Series
conductive level switch
controllers offer a wide range
of customized options to meet
any application’s need. They are
designed to control the level of
all conductive media with up to
2 different points of level control.
The LVCN4100 Series has a single
rod and is able to control one point
of level. The LVCN4200 Series can
accommodate up to 2 rods and is
able to control 2 points of levels.
Both models feature a 24 Vdc power
supply and an internal relay that
substitutes for an external relay.
As with other conductive probes,
the rods for these 2 models can be
custom-cut and made with any
process connection, such as
threaded or sanitary. In addition, the
electrodes operate on alternating
current to prevent electrolyses.
Dimensions: mm (inch)
Nylon 63.5 (2
Aluminum 108 (41⁄4)
1
⁄2)
L 1
K-49
88.9
(31⁄2)
6.35
Ø (
Wiring Diagram
Relay
Statue
LED
Sensitivity
Adjustment
Time
1
⁄4)
Ø = diameter
Page 2
SPECIFICATIONS
Power Supply: 24 Vdc (±10%)
Current Consumption: Maximum 2 VA
Temperature Range:
316 SS: -10 to 82°C (-14 to 180°F)
ETFE: -10 to 120°C (-14 to 248°F)
Maximum Pressure: 290 psi (20 bar)
Wetted Materials: 316 SS
Enclosure Material: Glass-filled
nylon standard, aluminum optional
Electrical Connection:
Cable entry and
Process Connection:
1
⁄2, 3⁄4, 1, 11⁄2 NPT; Tri-GripTM (Tri-Clamp®
1
⁄2 NPT conduit
compatible) or flange
Output: 5 A SPDT relay
(250 Vac maximum)
Time Delay: 0.1 to 5 seconds nominal
Sensitivity Adjustment: 0.5 to 50 kΩ
(potentiometer)
Electrodes: 316 SS
Electrode Length:
100 to 2000 mm (3.9 to 6.5')
Output Voltage of Electrodes:
12V to 100 Hz
Weight: Approx. 2.7 kg (6 lb) for
1.2 m (4')
Protection Class: NEMA 4 (IP65)
To Order
Model No. Description of Capacitance Transmitter with 4 to 20 mA Output Standard
LVCN4121-48-ETFE
LVCN4231-36-48-ETFE
Custom Models Available*
Model No. Description
LVCN41(A)(B)-(C)
LVCN42(A)(B)-(C)
Rods must be coated when using the probes above 82°C (180°F). All conductive applications must have a reference point, such as the
*
metallic tank wall or another rod for non-metallic tanks.
Custom conductive level controller, single rod, select process connection (A), enclosure (B),
and rod length in inches (C)
Custom conductive level controller, dual rod, select process connection (A), enclosure (B),
and rod length in inches (C)
3
⁄4 NPT, 48" L, ECTFE/ETFE coated, maximum temperature 120°C (248°F), approx 680 g (1.5 lb)
1 rod,
2 rods, 1 NPT, 36" L rod and 48" L rod, ECTFE/ETFE coated, 120°C (248°F) approx 1.0 kg (2.3 lb)
Options
Ordering Suffix Description
A-Process Connection
1
2
3
4
5
6
7
8
Others
B-Enclosure
1
2
3
C-Rod Length
Specify Inches
Other Options
-ETFE
Comes complete with operator’s manual.
Ordering Examples: LVCN4121-48-ETFE, 1-rod (48") level controller,
PSU-93, unregulated power supply, 70A-1, alarm.
LVCN4231-36-48-ETFE, 2-rod (36 to 48") level controller.
1
⁄2 NPT thread
3
⁄4 NPT thread
1 NPT thread
1
⁄2 NPT thread
1
1.5" Tri-GripTM, sanitary
2" flange, ANSI, 150# 316 SS
3
⁄4" BSP thread
1" BSP thread
Consult Engineering with details
1
Glass-filled nylon with
⁄2 NPT conduit and cable gland
Aluminum die cast with 1⁄2 NPT conduit entry
Aluminum die cast with cable gland
Rod length (inch), 96" maximum
ECTFE/ETFE probe coating
K
Accessories
Model No. Description
70A-1
TX4-100
PSU-93
Continuous tone alarm
30.5 m (100') spool of 4-conductor wire
Unregulated 24 Vdc power supply
LVCN4000 Series, shown smaller than actual size.
