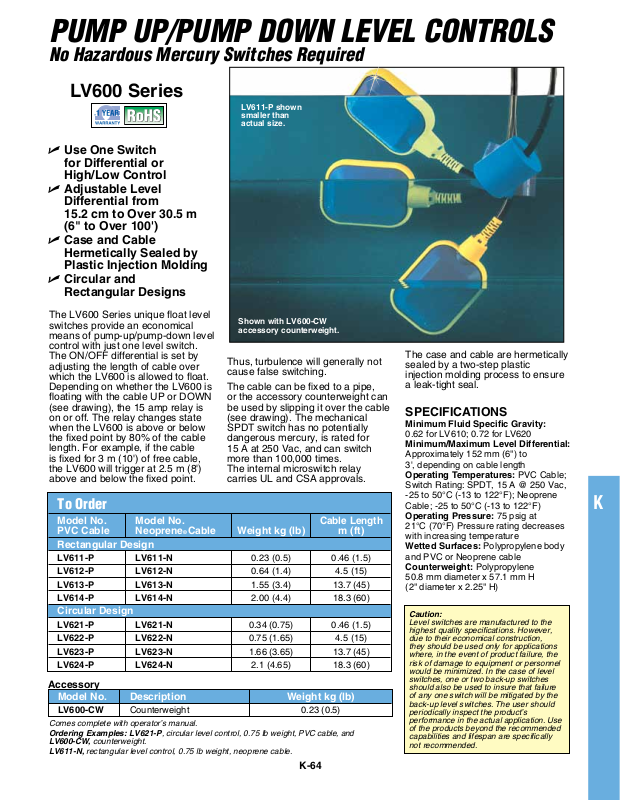

Page 1
PUMP UP/PUMP DOWN LEVEL CONTROLS
No Hazardous Mercury Switches Required
LV600 Series
LV611-P shown
smaller than
actual size.
U Use One Switch
for Differential or
High/Low Control
U Adjustable Level
Differential from
15.2 cm to Over 30.5 m
(6" to Over 100')
U Case and Cable
Hermetically Sealed by
Plastic Injection Molding
U Circular and
Rectangular Designs
The LV600 Series unique float level
switches provide an economical
means of pump-up/pump-down level

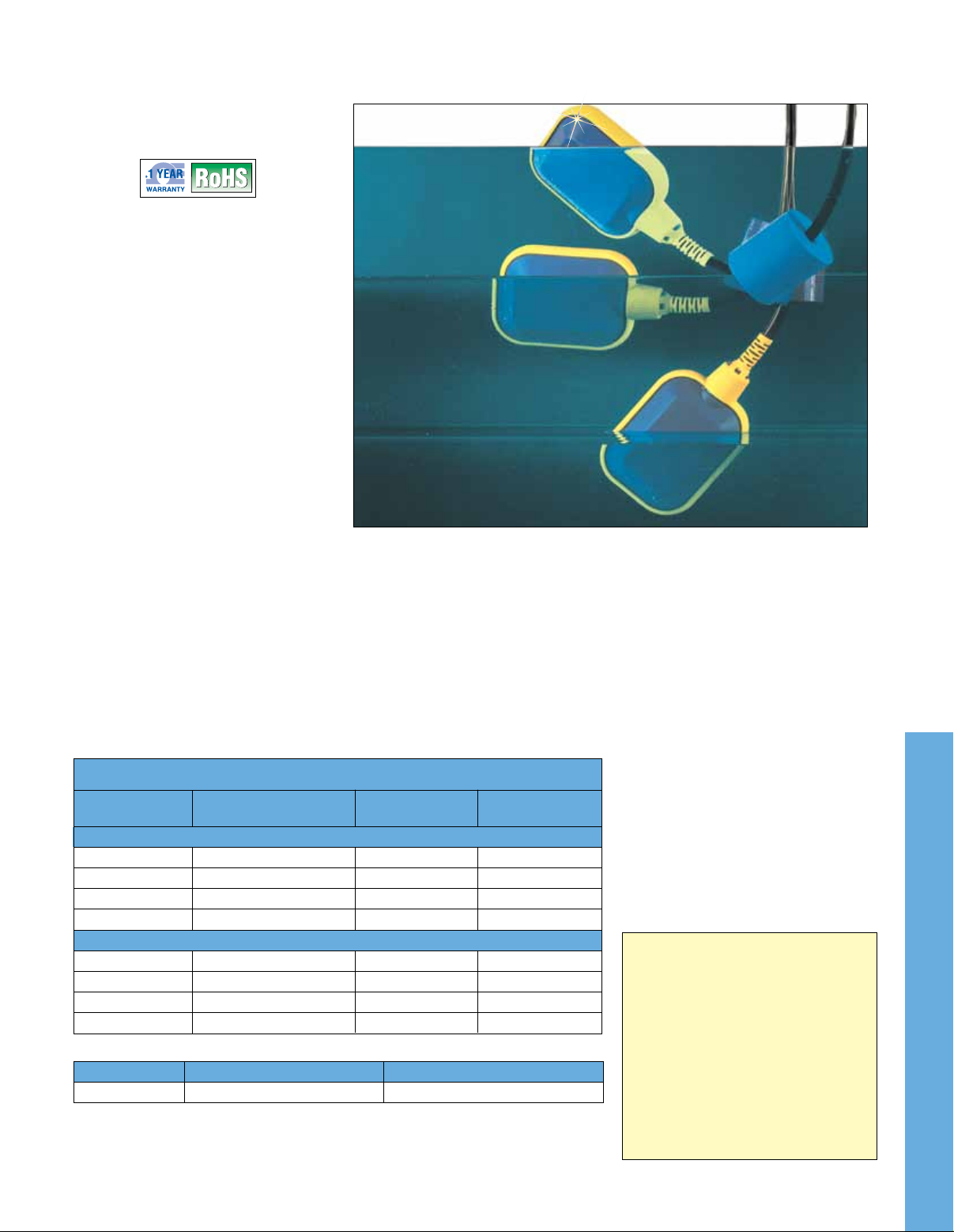

Shown with LV600-CW
accessory counterweight.
control with just one level switch.
The ON/OFF differential is set by
adjusting the length of cable over
which the LV600 is allowed to float.
Depending on whether the LV600 is
floating with the cable UP or DOWN
(see drawing), the 15 amp relay is
on or off. The relay changes state
when the LV600 is above or below
the fixed point by 80% of the cable
length. For example, if the cable
is fixed for 3 m (10') of free cable,
the LV600 will trigger at 2.5 m (8')
above and below the fixed point.
Thus, turbulence will generally not
cause false switching.
The cable can be fixed to a pipe,
or the accessory counterweight can
be used by slipping it over the cable
(see drawing). The mechanical
SPDT switch has no potentially
dangerous mercury, is rated for
15 A at 250 Vac, and can switch
more than 100,000 times.
The internal microswitch relay
carries UL and CSA approvals.
To Order
Model No. Model No.
PVC Cable Neoprene® Cable Weight kg (lb) m (ft)
Rectangular Design
LV611-P LV611-N 0.23 (0.5) 0.46 (1.5)
LV612-P LV612-N 0.64 (1.4) 4.5 (15)
LV613-P LV613-N 1.55 (3.4) 13.7 (45)
LV614-P LV614-N 2.00 (4.4) 18.3 (60)
Circular Design
LV621-P LV621-N 0.34 (0.75) 0.46 (1.5)
LV622-P LV622-N 0.75 (1.65) 4.5 (15)
LV623-P LV623-N 1.66 (3.65) 13.7 (45)
LV624-P LV624-N 2.1 (4.65) 18.3 (60)
Accessory
Model No. Description Weight kg (lb)
LV600-CW Counterweight 0.23 (0.5)
Comes complete with operator’s manual.
Ordering Examples: LV621-P, circular level control, 0.75 lb weight, PVC cable, and
LV600-CW, counterweight.
LV611-N, rectangular level control, 0.75 lb weight, neoprene cable.
Cable Length
K-64
The case and cable are hermetically
sealed by a two-step plastic
injection molding process to ensure
a leak-tight seal.
SPECIFICATIONS
Minimum Fluid Specific Gravity:
0.62 for LV610; 0.72 for LV620
Minimum/Maximum Level Differential:
Approximately 152 mm (6") to
3', depending on cable length
Operating Temperatures: PVC Cable;
Switch Rating: SPDT, 15 A @ 250 Vac,
-25 to 50°C (-13 to 122°F); Neoprene
Cable; -25 to 50°C (-13 to 122°F)
Operating Pressure: 75 psig at
21°C (70°F) Pressure rating decreases
with increasing temperature
Wetted Surfaces: Polypropylene body
and PVC or Neoprene cable
Counterweight: Polypropylene
50.8 mm diameter x 57.1 mm H
(2" diameter x 2.25" H)
Caution:
Level switches are manufactured to the
highest quality specifications. However,
due to their economical construction,
they should be used only for applications
where, in the event of product failure, the
risk of damage to equipment or personnel
would be minimized. In the case of level
switches, one or two back-up switches
should also be used to insure that failure
of any one switch will be mitigated by the
back-up level switches. The user should
periodically inspect the product’s
performance in the actual application. Use
of the products beyond the recommended
capabilities and lifespan are specifically
not recommended.
K
Page 2

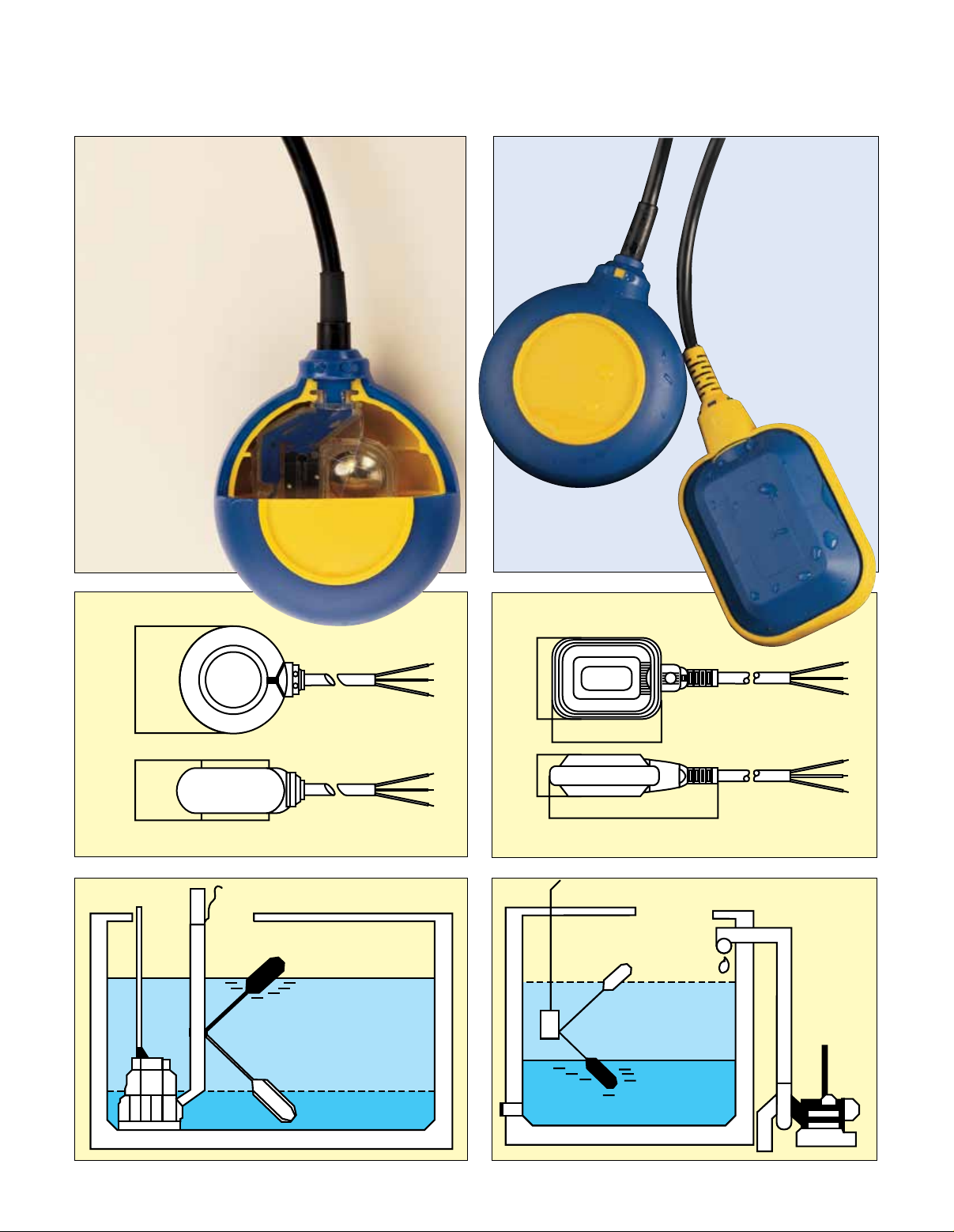

LV620 Series.K-66.ill
LV610 Series.K-66.ill
LV600 Series Tethered.K-66.ill
LV600 Series Weighted.K-66.ill
Cutaway View
LV621-P shown
smaller than
actual size.
LV611-P shown
smaller than
actual size.
LV621-P shown
smaller than
actual size.
LV620 Series
108 (4.25)54.6 (2.15)
122 (4.8)
Float Switch Tethered to Discharge Pipe
Dimensions: mm (inch)
Circular and
Rectangular Styles
Available
LV610 Series
81.3 (3.2)
105 (4.15)
40.7 (1.6)
Float Switch with Cable Weight
158.5 (6.24)
Dimensions: mm (inch)
K-64a
