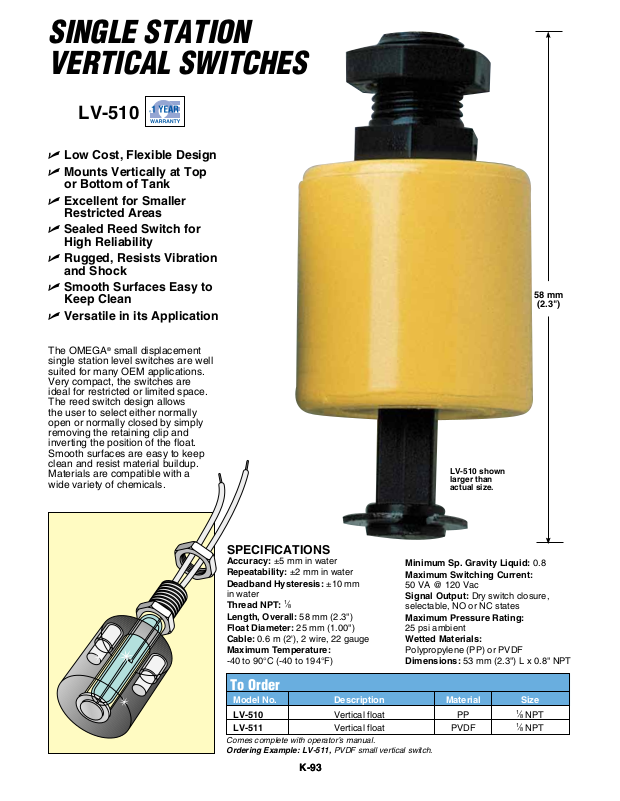

Single Station
Vertical SwitcheS
LV-510
U Low Cost, Flexible Design
U Mounts Vertically at Top
or Bottom of Tank
U Excellent for Smaller
Restricted Areas
U Sealed Reed Switch for
High Reliability
U Rugged, Resists Vibration
and Shock
U Smooth Surfaces Easy to
Keep Clean
U Versatile in its Application
58 mm
(2.3")
The OMEGA® small displacement
single station level switches are well
suited for many OEM applications.
Very compact, the switches are
ideal for restricted or limited space.
The reed switch design allows
the user to select either normally
open or normally closed by simply
removing the retaining clip and
inverting the position of the float.
Smooth surfaces are easy to keep
clean and resist material buildup.
Materials are compatible with a
wide variety of chemicals.
SPECIFICATIONS
Accuracy: ±5 mm in water
Repeatability: ±2 mm in water
Deadband Hysteresis: ±10 mm
in water
Thread NPT:
Length, Overall: 58 mm (2.3")
Float Diameter: 25 mm (1.00")
Cable: 0.6 m (2'), 2 wire, 22 gauge
Maximum Temperature:
-40 to 90°C (-40 to 194°F)
1
⁄
8

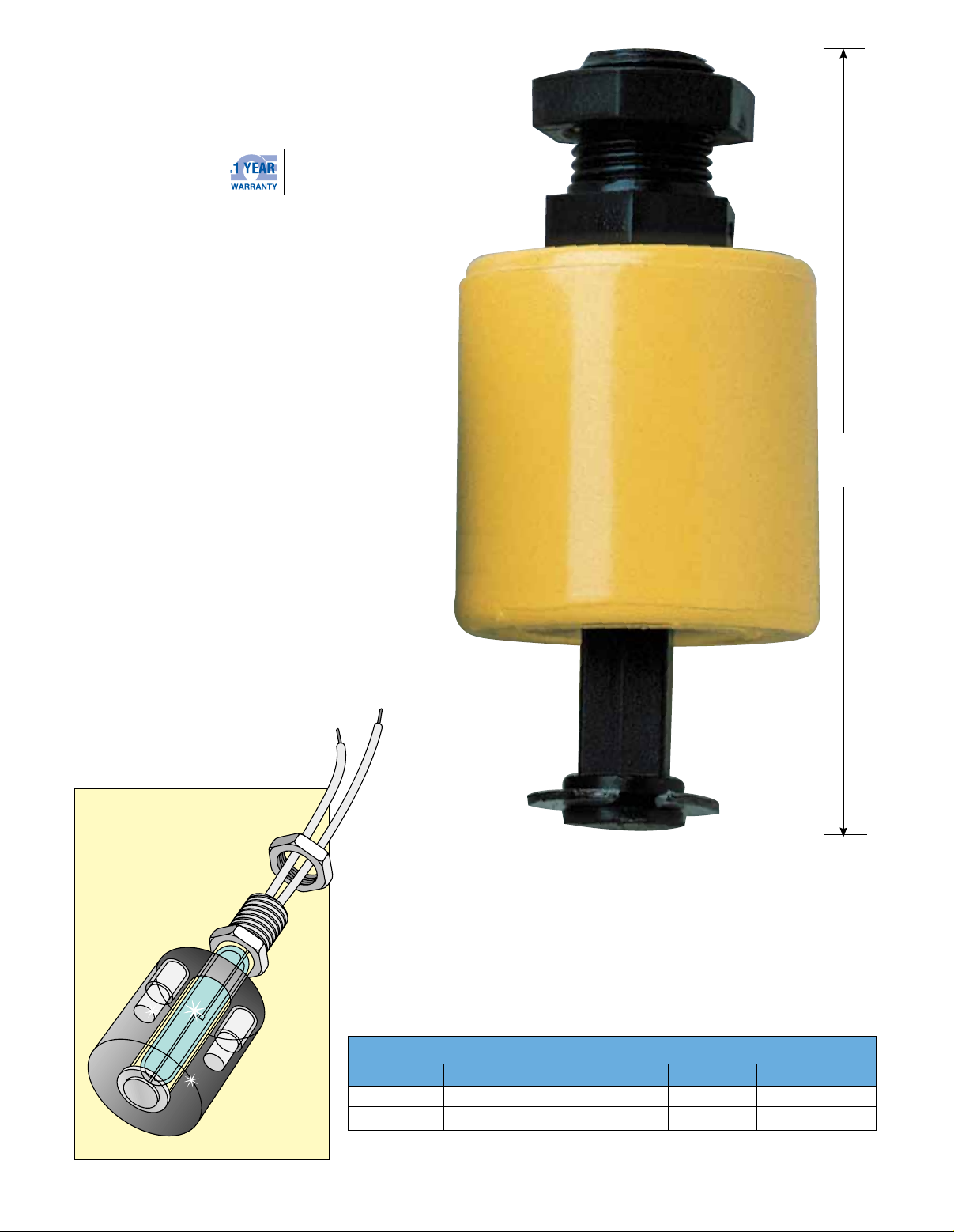

LV-510 shown
larger than
actual size.
Minimum Sp. Gravity Liquid: 0.8
Maximum Switching Current:
50 VA @ 120 Vac
Signal Output: Dry switch closure,
selectable, NO or NC states
Maximum Pressure Rating:
25 psi ambient
Wetted Materials:
Polypropylene (PP) or PVDF
Dimensions: 53 mm (2.3") L x 0.8" NPT
To Order
Model No. Description Material Size
LV-510 Vertical float PP
LV-511 Vertical float PVDF
Comes complete with operator’s manual.
Ordering Example: LV-511, PVDF small vertical switch.
K-93
K-93
1
⁄
8 NPT
1
⁄
8 NPT
