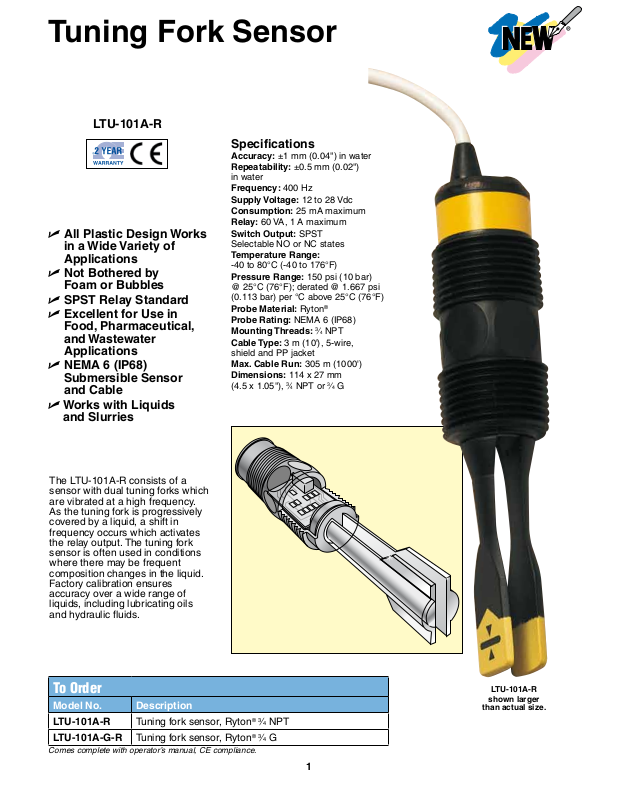

Tuning Fork Sensor
LTU-101A-R
Specifications
Accuracy: ±1 mm (0.04") in water
Repeatability: ±0.5 mm (0.02")
in water
Frequency: 400 Hz
Supply Voltage: 12 to 28 Vdc
Consumption: 25 mA maximum
Relay: 60 VA, 1 A maximum
All Plastic Design Works
in a Wide Variety of
Applications
Not Bothered by
Foam or Bubbles
SPST Relay Standard
Excellent for Use in
Food, Pharmaceutical,
and Wastewater
Applications
NEMA 6 (IP68)
Submersible Sensor
and Cable
Works with Liquids
and Slurries
Switch Output: SPST
Selectable NO or NC states
Temperature Range:
-40 to 80°C (-40 to 176°F)
Pressure Range: 150 psi (10 bar)
@ 25°C (76°F); derated @ 1.667 psi
(0.113 bar) per °C above 25°C (76°F)
Probe Material: Ryton
Probe Rating: NEMA 6 (IP68)
Mounting Threads:
Cable Type: 3 m (10'), 5-wire,
shield and PP jacket
Max. Cable Run: 305 m (1000')
Dimensions: 114 x 27 mm
(4.5 x 1.05"),
3
⁄4 NPT or 3⁄4 G
®
3
⁄4 NPT
The LTU-101A-R consists of a
sensor with dual tuning forks which
are vibrated at a high frequency.
As the tuning fork is progressively
covered by a liquid, a shift in
frequency occurs which activates
the relay output. The tuning fork
sensor is often used in conditions
where there may be frequent
composition changes in the liquid.
Factory calibration ensures
accuracy over a wide range of
liquids, including lubricating oils
and hydraulic fluids.
To Order
Model No. Description
LTU-101A-R
LTU-101A-G-R
Comes complete with operator’s manual, CE compliance.
Tuning fork sensor, Ryton® 3⁄4 NPT
Tuning fork sensor, Ryton
®
3⁄4 G
LTU-101A-R

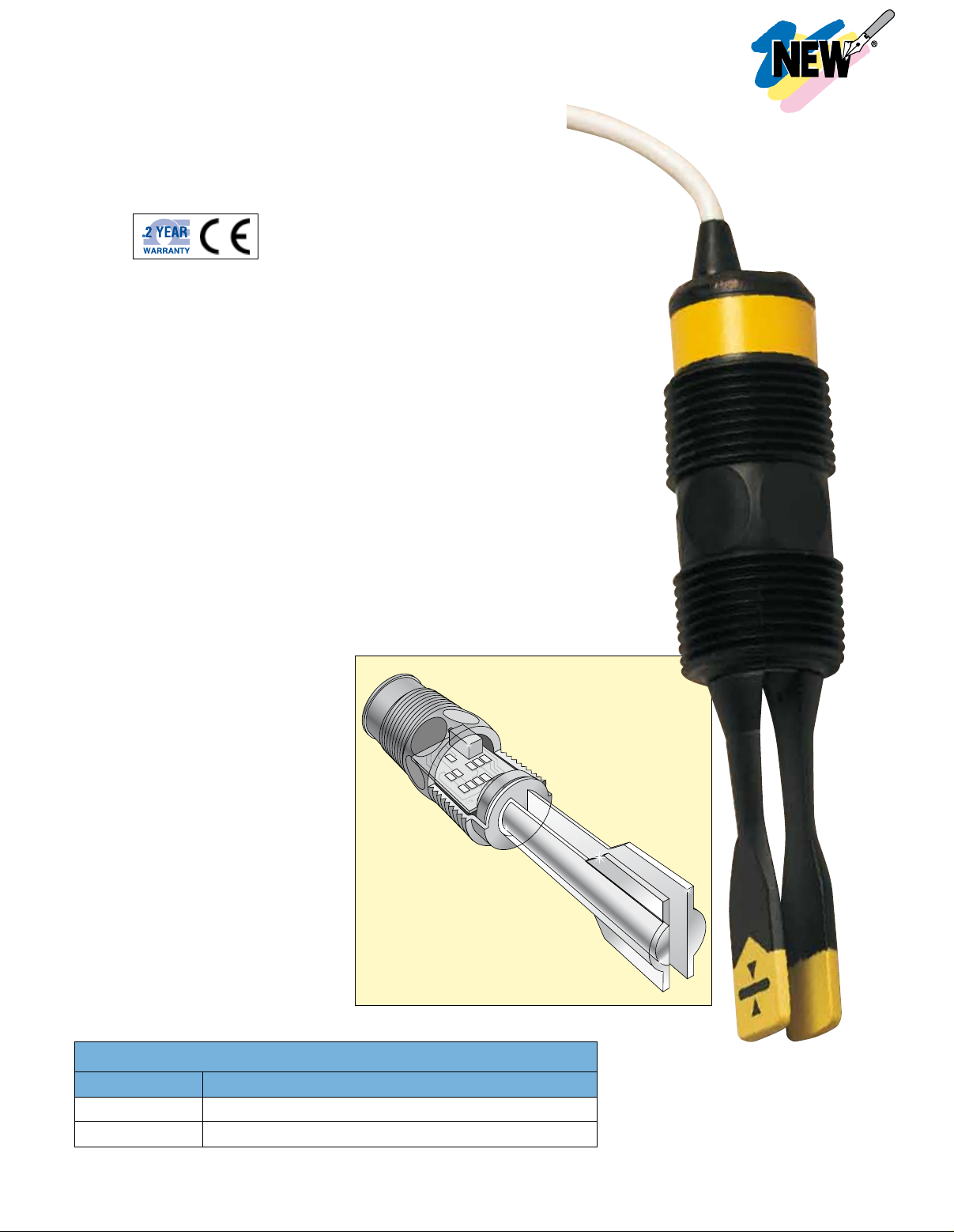

shown larger
than actual size.
