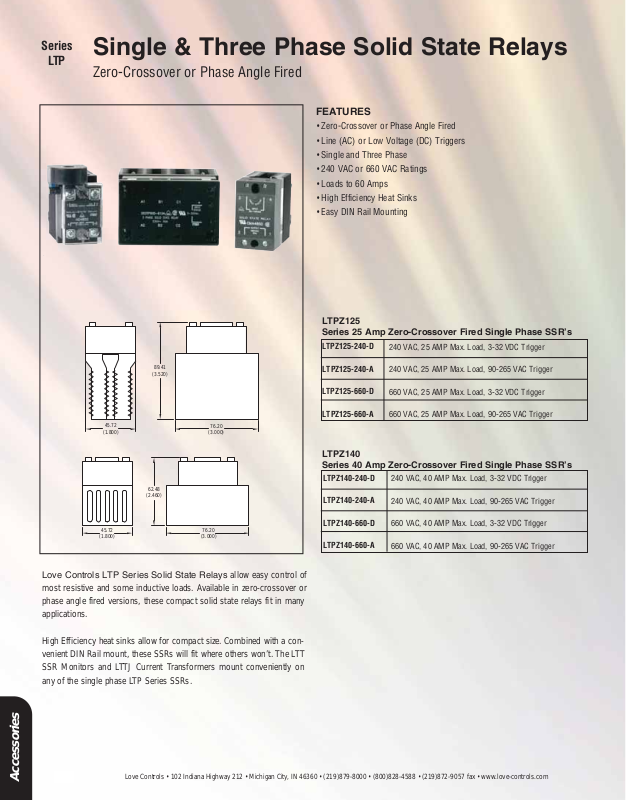

Page 1

Series

LTP

Single & Three Phase Solid State Relays

Zero-Crossover or Phase Angle Fired

FEATURES

•

Zero-Crossover or Phase Angle Fired

•

Line (AC) or Low Voltage (DC) Triggers

•

Single and Three Phase

•

240 VAC or 660 VAC Ratings

•

Loads to 60 Amps

•

High Efficiency Heat Sinks

•

Easy DIN Rail Mounting

LTPZ125 Series 25 Amp Zero-Crossover Fired Single Phase SSR’s

LTPZ125-240-D

240 VAC, 25 AMP Max. Load, 3-32 VDC Trigg

89.41

(3.520)

45.72

(1.800)

62.48

(2.460)

45.72

(1.800)

Love Controls LTP Series Solid State Relay

76.20

(3.000)

76.20

(3.000)

s allow easy control of most resistive and some inductive loads. Available in zero-crossover or phase angle fired versions, these compact solid state relays fit in many applications.

High Efficiency heat sinks allow for compact size. Combined with a convenient DIN Rail mount, these SSRs will fit where others won’t. The LTT SSR Monitors and LTTJ Current Transformers mount conveniently on any of the single phase LTP Series SSRs.

LTPZ125-240-A

LTPZ125-660-D

LTPZ125-660-A

240 VAC, 25 AMP Max. Load, 90-265 VAC T

660 VAC, 25 AMP Max. Load, 3-32 VDC Trigg

660 VAC, 25 AMP Max. Load, 90-265 VAC T

rigger

LTPZ140 Series 40 Amp Zero-Crossover Fired Single Phase SSR’s

LTPZ140-240-D

LTPZ140-240-A

LTPZ140-660-D

LTPZ140-660-A

240 VAC, 40 AMP Max. Load, 3-32 VDC Trigg

240 VAC, 40 AMP Max. Load, 90-265 VAC T

660 VAC, 40 AMP Max. Load, 3-32 VDC Trigg

660 VAC, 40 AMP Max. Load, 90-265 VAC T

rigger

Accessories

Love Controls • 102 Indiana Highway 212 • Michigan City, IN 46360 • (219)879-8000 • (800)828-4588 • (219)872-9057 fax • www.love-controls.com

Page 2

Series

114.3

(4.500)

76.2

(3.000)

70.87

(2.790)

60.96

(2.400)

76.2

(3.000)

114.3

(4.500)

LTPZ330-

LTPZ340-

LTP

Single & Three Phase Solid State Relays

Zero-Crossover or Phase Angle Fired

Series LTPZ150 50 Amp Zero-Crossover Fired Single Phase SSR’s

LTPZ150-240-D

LTPZ150-240-A

LTPZ150-660-D

LTPZ150-660-A

240 VAC, 50 AMP Max. Load, 3-32 VDC Trigg

240 VAC, 50 AMP Max. Load, 90-265 VAC T

660 VAC, 50 AMP Max. Load, 3-32 VDC Trigg

660 VAC, 50 AMP Max. Load, 90-265 VAC T

Series LTPZ160 60 Amp Zero-Crossover Fired Single Phase SSR’s

LTPZ160-240-D

LTPZ160-240-A

LTPZ160-660-D

LTPZ160-660-A

240 VAC, 60 AMP Max. Load, 3-32 VDC Trigg

240 VAC, 60 AMP Max. Load, 90-265 VAC T

660 VAC, 60 AMP Max. Load, 3-32 VDC Trigg

660 VAC, 60 AMP Max. Load, 90-265 VAC T

Series LTPZ330 30/40 Amp Zero-Crossover High Voltage Fired Three Phase SSR’s

LTPZ330-530-D

530 VAC, 30 AMP Max. Load, 3-32 VDC Trigger

rigger

76.20

(3.000)

123.44 (4.860)

96.52

(3.800)

89.41

(3.520)

76.20

(3.000)

76.2

(3.000)

LTPZ330-530-A

LTPZ340-530-D

LTPZ340-530-A

530 VAC, 30 AMP Max. Load, 90-265 VAC T

530 VAC, 40 AMP Max. Load, 3-32 VDC Trigger

530 VAC, 40 AMP Max. Load, 90-265 VAC T

Series LTPP125 Phase Angle Fired Single Phase SSR’s

LTPP125-240-4

LTPP125-660-4

LTPP125-240-P

LTPP140-660-P

240 VAC, 25 AMP Max. Load, 4-20 mA Trigger

660 VAC, 25 AMP Max. Load, 4-20 mA Trigger

240 VAC, 25 AMP Max. Load, 10 VDC or Pot. T

660 VAC, 40 AMP Max. Load, 10 VDC or Pot. T

rigger

54.36

(2.120)

109.22 (4.300)

76.20

(3.000)

Accessories
