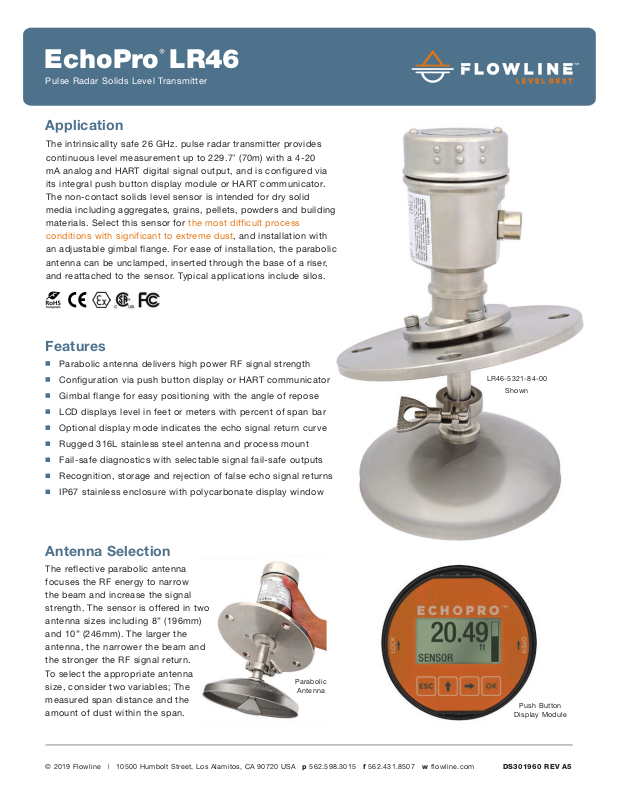

EchoPro
Pulse Radar Solids Level Transmitter
LR4 6
Application
The intrinsicallty safe 26 GHz. pulse radar transmitter provides
continuous level measurement up to 229.7’ (70m) with a 4-20
mA analog and HART digital signal output, and is configured via
its integral push button display module or HART communicator.
The non-contact solids level sensor is intended for dry solid
media including aggregates, grains, pellets, powders and building
materials. Select this sensor for the most difficult process
conditions with significant to extreme dust, and installation with
an adjustable gimbal flange. For ease of installation, the parabolic
antenna can be unclamped, inserted through the base of a riser,
and reattached to the sensor. Typical applications include silos.
Features
Parabolic antenna delivers high power RF signal strength
Configuration via push button display or HART communicator
Gimbal flange for easy positioning with the angle of repose
LCD displays level in feet or meters with percent of span bar
Optional display mode indicates the echo signal return curve
Rugged 316L stainless steel antenna and process mount
Fail-safe diagnostics with selectable signal fail-safe outputs
Recognition, storage and rejection of false echo signal returns
IP67 stainless enclosure with polycarbonate display window
Antenna Selection
The reflective parabolic antenna
focuses the RF energy to narrow
the beam and increase the signal
strength. The sensor is offered in two
antenna sizes including 8” (196mm)
and 10” (246mm). The larger the
antenna, the narrower the beam and
the stronger the RF signal return.
To select the appropriate antenna
size, consider two variables; The
measured span distance and the
amount of dust within the span.
Parabolic
Antenna

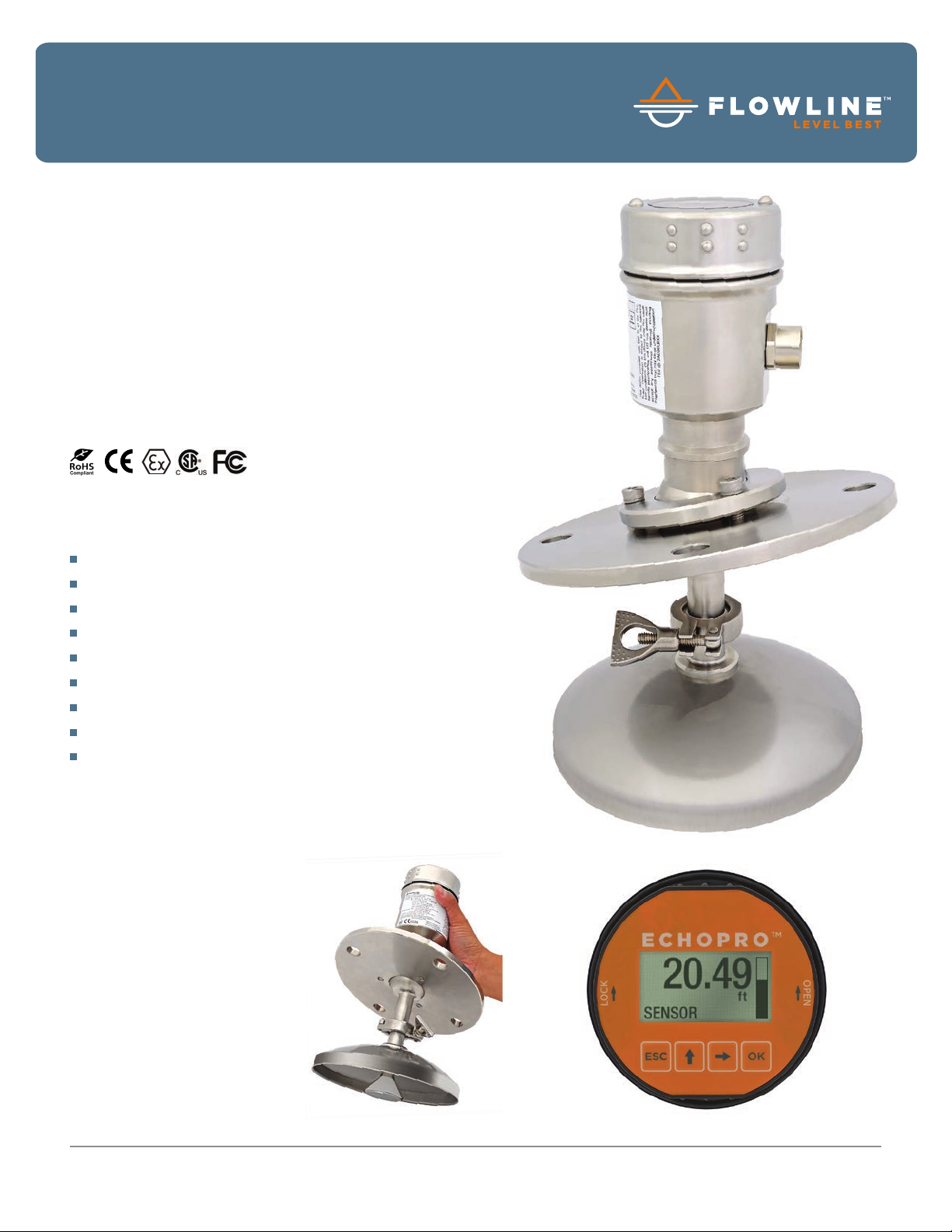

LR46-5321-84-00
Shown
Push Button
Display Module
© 2019 Flowline | 10500 Humbolt Street, Los Alamitos, CA 90720 USA p 562.598.3015 f 562.431.8507 w flowline.com DS301960 REV A5

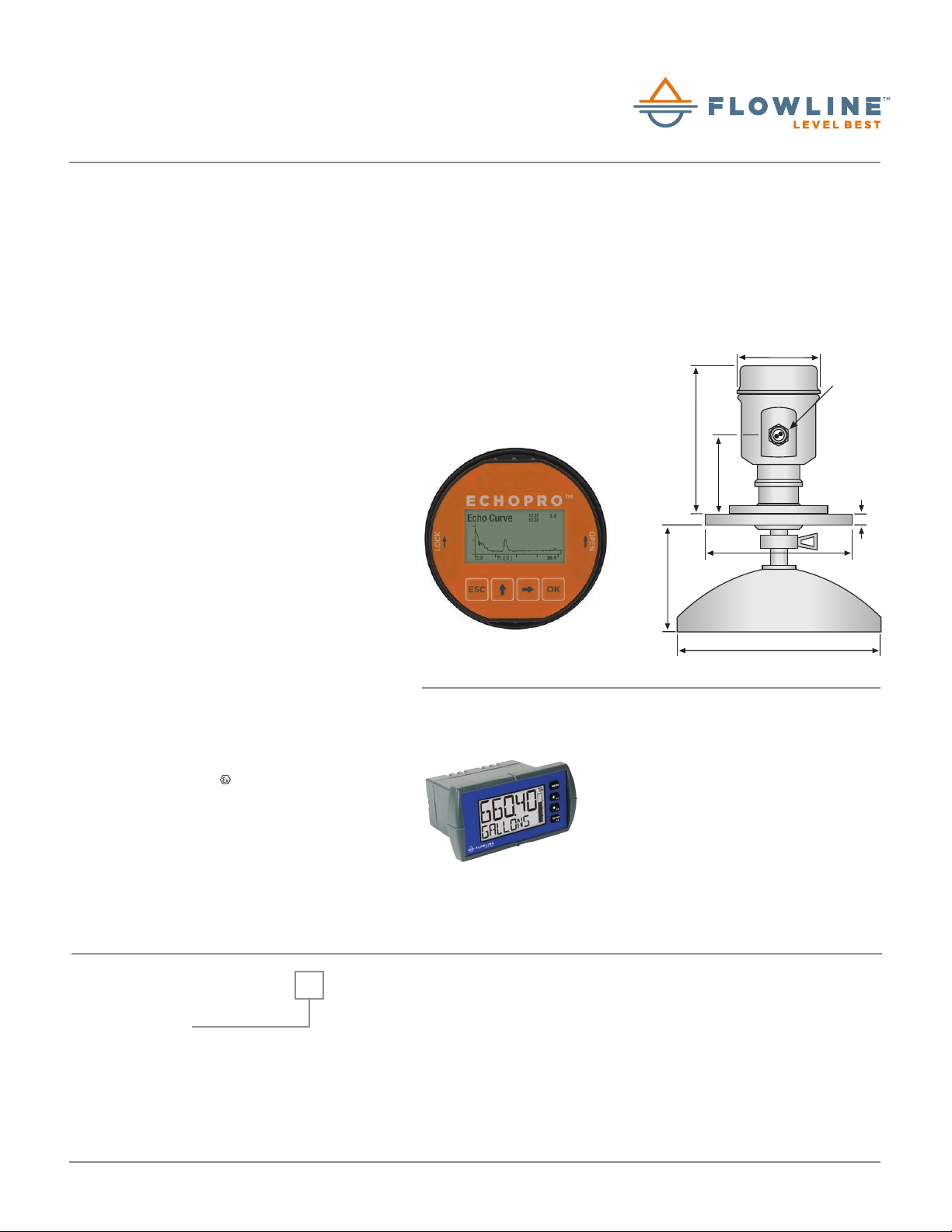

Page 2
EchoPro
Pulse Radar Solids Level Transmitter
LR4 6
Specifications
Range:
Frequency:
Accuracy:
Dead band:
Beam angle:
Configuration:
Memory:
Display type:
Display units:
Display bar:
Display graph:
Supply voltage:
Max. consumption:
Signal output:
Signal invert:
Signal fail-safe:
Process temp.:
Temp. comp.:
Storage temp.:
Pressure:
Enclosure rating:
Encl. material:
Encl. window mat.:
Conduit entrance:
Antenna material:
Process mount:
Classification:
Approvals:
Certification:
12” to 229.7’ (30cm to 70m)
26 GHz.
± 15mm
12” (30cm)
- 8_: 5º
- 0_: 4º
Push button, HART 7
Non-volatile
LCD, dot matrix
Feet and meters
Percent of span
Echo signal curve
21.6 to 26.4 VDC
22.5 mA
4-20 mA, two-wire, HART 7
4-20 mA, 20-4 mA
3.9 mA, 20.5 mA, 22 mA
F: -40º to 752º
C: -40º to 400º
Automatic
F: -40º to 176º
C: -40º to 80º
Atmospheric
IP67
316L stainless steel w/silicone gasket
Polycarbonate
(1) 1/2” NPT connector
316L & PTFE
-_4: 4” gimbal flange (ANSI)
Intrinsically safe
ATEX IIG Ex ia II C T6...T3 Ga
IEC Ex ia IIC T6...T3 Ga
CSA Class I, Div 1, Groups A, B, C & D;
Class II, Div 1, Groups E, F & G; (T6...T3);
Class I Zone 0 AEx ia IIC (T6...T3) Ga &
Zone 20 AEx ia IIIC (T76ºC to T146ºC) Da;
Ex ia IIC (T6...T3) Ga & Ex ia IIIC (T76ºC to
T146ºC) Ga
FCC
Dimensions
FLANGE
-84
P/N
4” ANSI
A
8.7” (220mm)
B
0.45” (11mm)
C
7.8” (198mm)
X
Echo Signal Return Curve
-04
4” ANSI
8.7” (220mm)
0.45” (11mm)
9.7” (246mm)
Level Indicator
LI24-1001
DATA LOOP™
Intrinsically Safe Level Indicator
3.5" (88.9mm)
½"
NPT
6.75" (171.4mm)
4.0" (101.6mm)
B
5.55” (141mm)
X
UL approved intrinsically safe, the loop
powered level indicator displays engineering
units connected in series with one 4-20 mA
level transmitter. Select the LI24-1001 level
indicator for hazardous applications with
an intrinsically safe sensor. For field mount
installation, add a single or two indicator
NEMA box.
A
C
Ordering
LR46-5321- 4-00
ANTENNA SIZE (1)
8 8” (196mm) parabola
0 10” (246mm) parabola
© 2019 Flowline | 10500 Humbolt Street, Los Alamitos, CA 90720 USA p 562.598.3015 f 562.431.8507 w flowline.com DS301960 REV A5
NOTES
If you want help in selecting a sensor for your application, please go to our
1)
website and submit a Level Questionnaire. An engineer will review your
requirements and suggest a product solution via email.
