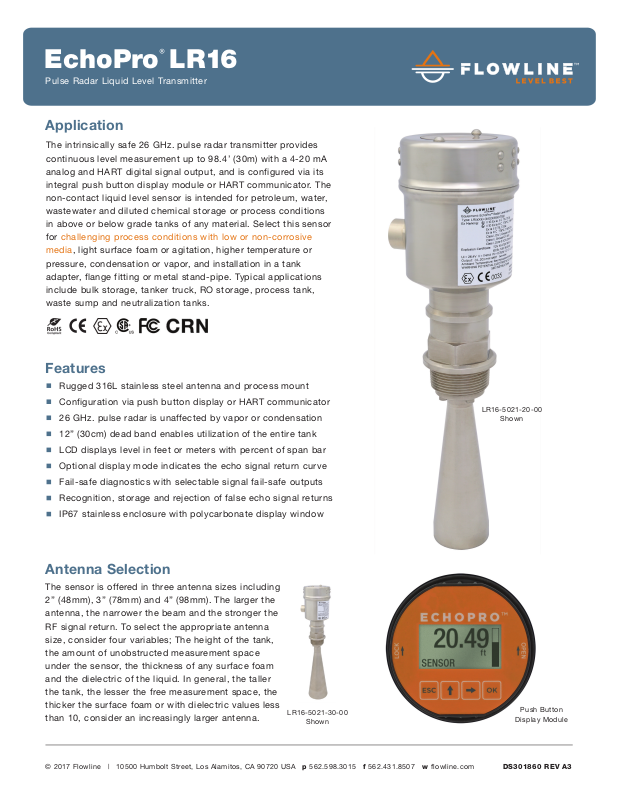

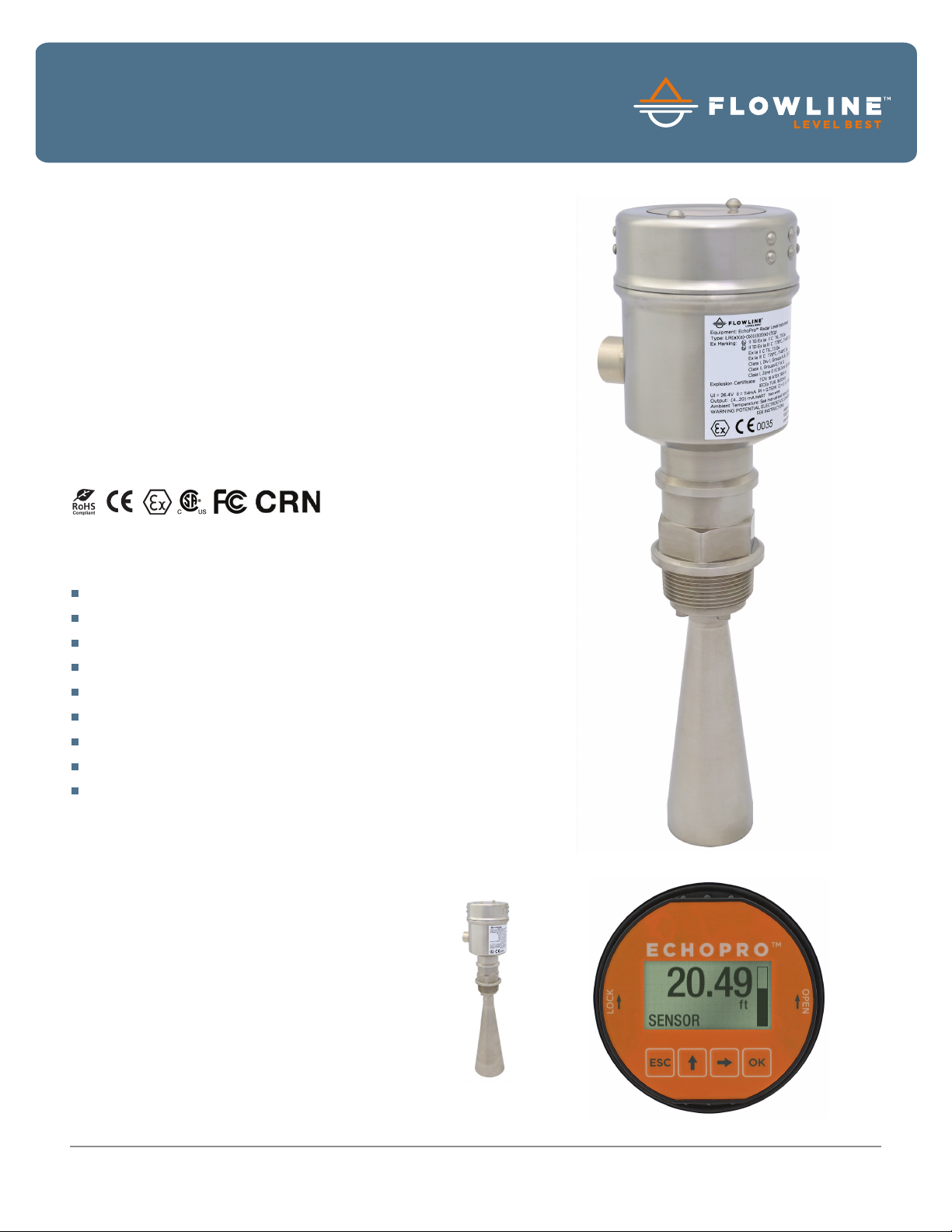

Page 1



EchoPro

Pulse Radar Liquid Level Transmitter

LR16

Application

The intrinsically safe 26 GHz. pulse radar transmitter provides continuous level measurement up to 98.4’ (30m) with a 4-20 mA analog and HART digital signal output, and is configured via its integral push button display module or HART communicator. The non-contact liquid level sensor is intended for petroleum, water, wastewater and diluted chemical storage or process conditions in above or below grade tanks of any material. Select this sensor for challenging process conditions with low or non-corrosive

media, light surface foam or agitation, higher temperature or

pressure, condensation or vapor, and installation in a tank adapter, flange fitting or metal stand-pipe. Typical applications include bulk storage, tanker truck, RO storage, process tank, waste sump and neutralization tanks.

Features

Rugged 316L stainless steel antenna and process mount

Configuration via push button display or HART communicator

26 GHz. pulse radar is unaffected by vapor or condensation

12” (30cm) dead band enables utilization of the entire tank

LCD displays level in feet or meters with percent of span bar

Optional display mode indicates the echo signal return curve

Fail-safe diagnostics with selectable signal fail-safe outputs

Recognition, storage and rejection of false echo signal returns

IP67 stainless enclosure with polycarbonate display window

Antenna Selection

The sensor is offered in three antenna sizes including 2” (48mm), 3” (78mm) and 4” (98mm). The larger the antenna, the narrower the beam and the stronger the RF signal return. To select the appropriate antenna size, consider four variables; The height of the tank, the amount of unobstructed measurement space under the sensor, the thickness of any surface foam and the dielectric of the liquid. In general, the taller the tank, the lesser the free measurement space, the thicker the surface foam or with dielectric values less than 10, consider an increasingly larger antenna.

LR16-5021-30-00

Shown

LR16-5021-20-00

Shown

Push Button

Display Module

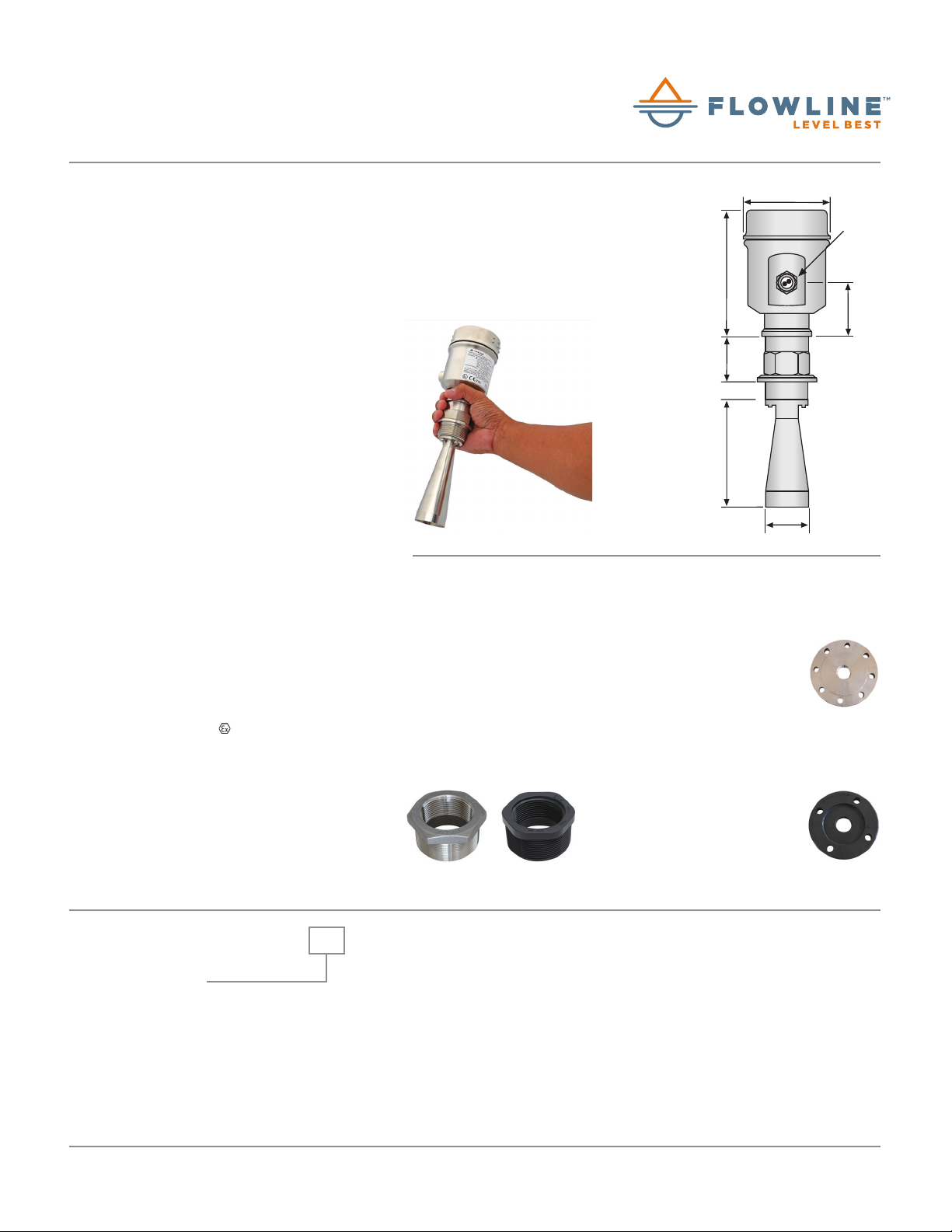

Page 2



EchoPro

Pulse Radar Liquid Level Transmitter

LR16

Speciﬁcations

Range:

Frequency:

Accuracy:

Dead band:

Beam angle:

Configuration:

Memory:

Display type:

Display units:

Display bar:

Display graph:

Supply voltage:

Max. consumption:

Signal output:

Signal invert:

Signal fail-safe:

Process temp.:

Temp. comp.:

Storage temp.:

Pressure:

Enclosure rating:

Encl. material:

Encl. window mat.:

Conduit entrance:

Antenna material:

Process mount:

Classification:

Approvals:

Certification:

Compliance:

12” to 98.4’ (30cm to 30m)

26 GHz.

± 3mm

12” (30cm)

-20: 18º

-30: 12º

-40: 8º

Push button, HART 7

Non-volatile

LCD, dot matrix

Feet and meters

Percent of span

Echo signal curve

21.6 to 26.4 VDC

22.5 mA

4-20 mA, two-wire, HART 7

4-20 mA, 20-4 mA

3.9 mA, 20.5 mA, 22 mA

F: -76º to 302º

C: -60º to 150º

Automatic

F: -40º to 176º

C: -40º to 80º

-14.5 to 150 psi (-1 to 10 bar)

IP67

316L stainless steel w/silicone gasket

Polycarbonate

(1) 1/2” NPT connector

316L

1-1/2” NPT

Intrinsically safe

ATEX IIG Ex ia II C T6...T3 Ga

IEC Ex ia IIC T6...T3 Ga

CSA Class I, Div 1, Groups A, B, C & D;

Class II, Div 1, Groups E, F & G; (T6...

T3); Class I Zone 0 AEx ia IIC (T6...

T3) Ga & Zone 20 AEx ia IIIC (T76ºC to

T146ºC) Da; Ex ia IIC (T6...T3) Ga & Ex

ia IIIC (T76ºC to T146ºC) Ga

FCC

CE, CRN, RoHS

Dimensions

ANTENNA

P/N

- 20

- 30

- 40

2” (48mm)

3” (78mm)

4” (98mm)

5.51” (140mm)

8.94” (227mm)

11.34” (288mm)

Fittings

REDUCER BUSHINGS

LM53-2400

2” x 1.5” NPT, PVC, schedule 40

LM53-2800

2” x 1.5” NPT, PVC, schedule 80

LM53-3800

3” x 1.5” NPT, PVC, schedule 80

LM53-2S10

2” x 1.5” NPT, 316 stainless

LM53-2S10

LM53-2800 LM53-3850

3.5"

(88.9mm)

(136.5mm)

5.38"

1.4"

(35.6mm)

0.85"

(21.5mm)

ANSI FLANGES | SS

LM53-3S50

3” x 1.5” NPT, 316 stainless

LM53-4S50

4” x 1.5” NPT, 316 stainless

LM53-6S50

6” x 1.5” NPT, 316 stainless

ANSI FLANGES | CPVC

LM53-3850

3” x 1.5” NPT, CPVC, schedule 80

LM53-4850

4” x 1.5” NPT, CPVC, schedule 80

LM53-6850

6” x 1.5” NPT, CPVC, schedule 80

½"

NPT

2.25"

(57.2mm)

LM53-4S50

Ordering

LR16-5021- 0-00

ANTENNA SIZE ( 1) (2 )

2 2” (48mm) horn

3 3” (78mm) horn

4 4” (98mm) horn

NOTES

If you want help in selecting a sensor for your application, please go to our

website and submit a Level Questionnaire. An engineer will review your

requirements and suggest a product solution via email.

To install the sensor with a flange or reducer bushing, order the fitting

separately, and follow the antenna preparation instructions in the manual.
